CWT-MB318C 8PT 8-Channel PT100 Temperature Modbus Acquisition Module

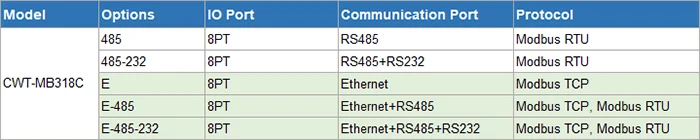

The second generation options:
The first generation options:
PT100 input
PT100 |
|
Precision |
0.1℃ |
Measure range |
-200℃to 220℃ |
System parameters
CPU |
32-bit ATMEL ARM, 72MHZ |
OS |
GCOS,10ms scheduling mechanism |
Power |
7-35VDC @2W, power supply reverse protection, isolation design |
Installation |
DIN rail mounting or screw fixing |
Working Environment |
-40℃~85℃,5%~95%RH(non-condensing) |
Protection |
IP20 |
Watchdog |
1.5m guard |
Series port parameters
Port type |
1RS485 & 1RS232 |
Protection |
DCDC isolation design, 2500V lightning protection, ESD, overvoltage, overcurrent protection |
Baud rate |
1200~115200,default 9600 |
Parity |
Even, Odd, None |
start bit |
1 bit |
data bits |
8 bit |
Stopbits |
1,2bits |
Protocol |
MODBUS RTU |
default |
9600.N.8.1,slave id is 1 |
Ethernet
Port type |
RJ45 |
Communicate protocol |
MODBUS TCP,MODBUS UDP |
Communicate rate |
1000 times/s |
bandwidth |
10M/100Mbps |
IP address |
192.168.1.75 |
Port |
502 |
![CWT-MB318C 8PT 8-Channel PT100 Temperature Modbus Acquisition Module](http://store.comwintop.com/cdn/shop/files/17-MB318C-S.jpg?v=1718783734&width=1445)
![CWT-MB318C 8PT 8-Channel PT100 Temperature Modbus Acquisition Module](http://store.comwintop.com/cdn/shop/products/1_d5fc0709-5a81-4749-b44d-1914f604ec02.jpg?v=1637391876&width=1445)
![CWT-MB318C 8PT 8-Channel PT100 Temperature Modbus Acquisition Module](http://store.comwintop.com/cdn/shop/products/3_4d04f0a8-91aa-4262-9b2d-0c6cd9796330.jpg?v=1637391876&width=1445)
![CWT-MB318C 8PT 8-Channel PT100 Temperature Modbus Acquisition Module](http://store.comwintop.com/cdn/shop/products/2_c7e8e53a-0c4b-40d7-a3ab-9603c2e8e050.jpg?v=1637391877&width=1445)
![CWT-MB318C 8PT 8-Channel PT100 Temperature Modbus Acquisition Module](http://store.comwintop.com/cdn/shop/files/17-MB318C-SE.jpg?v=1718783734&width=1445)
![CWT-MB318C 8PT 8-Channel PT100 Temperature Modbus Acquisition Module](http://store.comwintop.com/cdn/shop/products/485_8547dce9-3c2f-46d6-862a-066b78a9df8b.jpg?v=1718783729&width=1445)
![CWT-MB318C 8PT 8-Channel PT100 Temperature Modbus Acquisition Module](http://store.comwintop.com/cdn/shop/products/485-232_fe856ead-a1d2-4408-9303-76b5b9ef54d4.jpg?v=1718783729&width=1445)
![CWT-MB318C 8PT 8-Channel PT100 Temperature Modbus Acquisition Module](http://store.comwintop.com/cdn/shop/products/E_1bc58bb8-ce07-4112-926b-06d38a100c2e.jpg?v=1718783729&width=1445)
![CWT-MB318C 8PT 8-Channel PT100 Temperature Modbus Acquisition Module](http://store.comwintop.com/cdn/shop/products/E-485_49b82bc1-0a9e-412f-90e2-29c91ef29a9f.jpg?v=1718783729&width=1445)

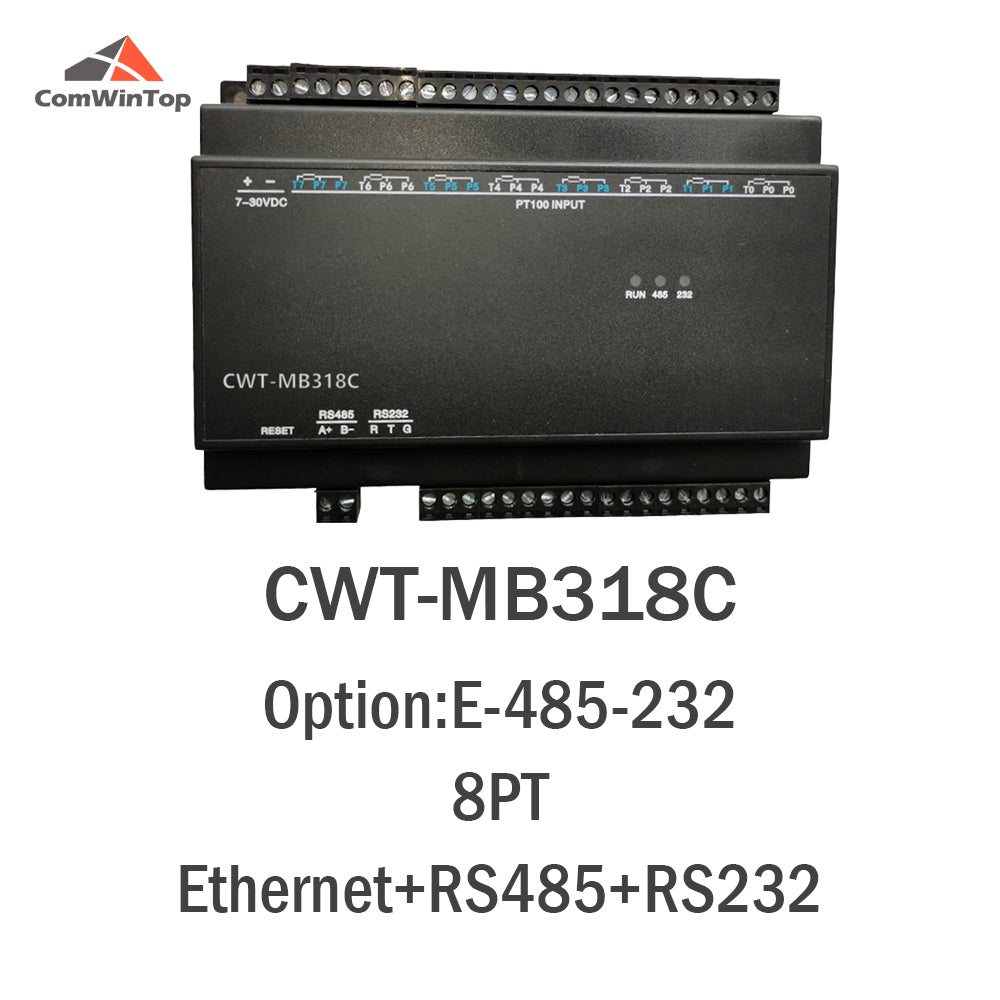

![CWT-MB318C 8PT 8-Channel PT100 Temperature Modbus Acquisition Module](http://store.comwintop.com/cdn/shop/products/E-485-232_bd8d7bb1-434c-4bba-92ed-11f594d2a173.jpg?v=1718783729&width=1445)
