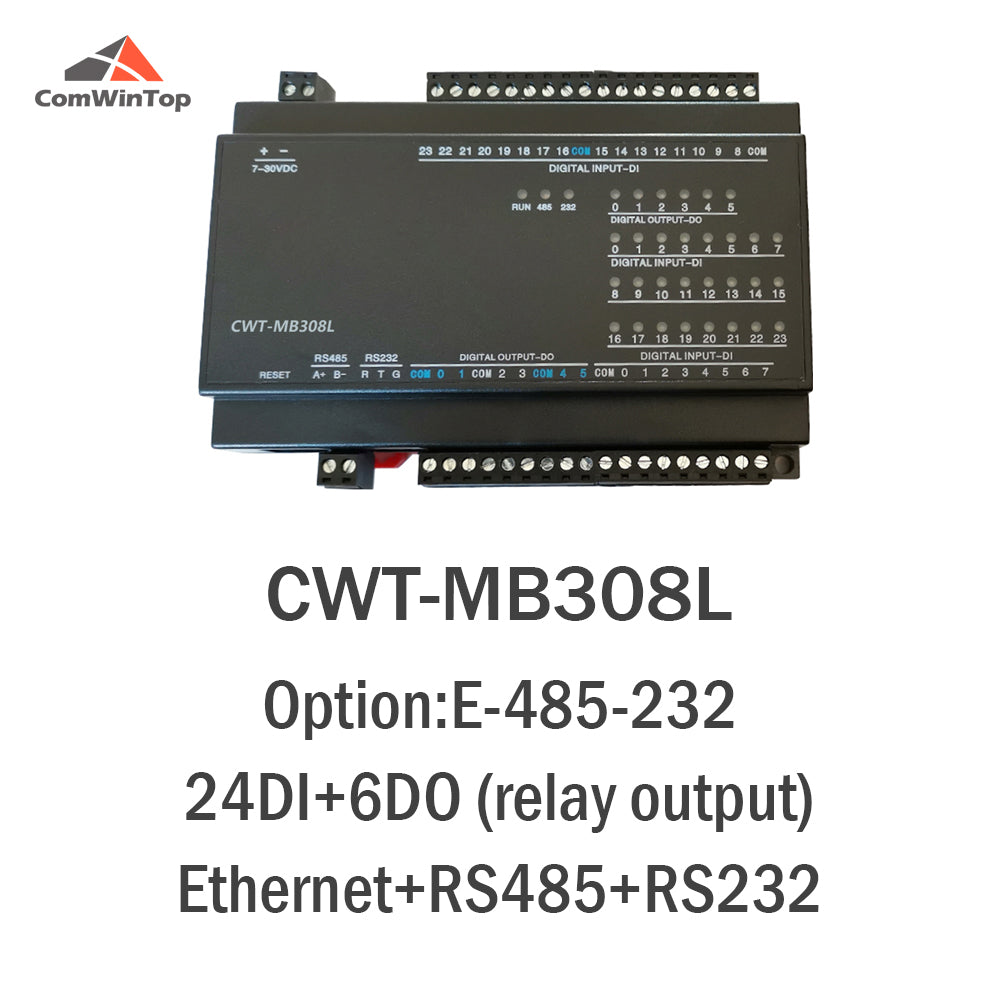

CWT-MB308L 24DI+6DO RS485 RS232 Ethernet Modbus Remote Controller
The second generation options:
The first generation options:
Digital input
|
ON signal level |
5-30VDC，6mA@24VDC |
|
OFF signal level |
0-3VDC |
|
Protection |
optocoupler isolation, 2500V lightning protection, overvoltage, |
Digital output
|
Output type |
Normal open relay |
|
Isolation |
optocoupler isolation& relay isolation |
|
Resistive load |
5A/250VAC，5A/30VDC |
|
Response time |
≤0.01s |
System parameters
|
CPU |
32-bit ATMEL ARM, 72MHZ |
|
OSDD |
GCOS,10ms scheduling mechanism |
|
Power |
7-35VDC @2W, power supply reverse protection, isolation design |
|
Installation |
DIN rail mounting or screw fixing |
|
Working Environment |
-40℃~85℃,5%~95%RH(non-condensing) |
|
Protection |
IP20 |
|
Watchdog |
1.5m guard |
Series port parameters
|
Port type |
1RS485 & 1RS232 |
|
Protection |
DCDC isolation design, 2500V lightning protection, ESD, overvoltage, overcurrent protection |
|
Baud rate |
1200~115200,default 9600 |
|
Parity |
Even, Odd, None |
|
start bit |
1 bit |
|
data bits |
8 bit |
|
Stopbits |
1,2bits |
|
Protocol |
MODBUS RTU |
|
default |
9600.N.8.1,slave id is 1 |
Ethernet
|
Port type |
RJ45 |
|
Communicate protocol |
MODBUS TCP,MODBUS UDP |
|
Communicate rate |
1000 times/s |
|
bandwidth |
10M/100Mbps |
|
IP address |
192.168.1.75 |
|
Port |
502 |
