ComWinTop

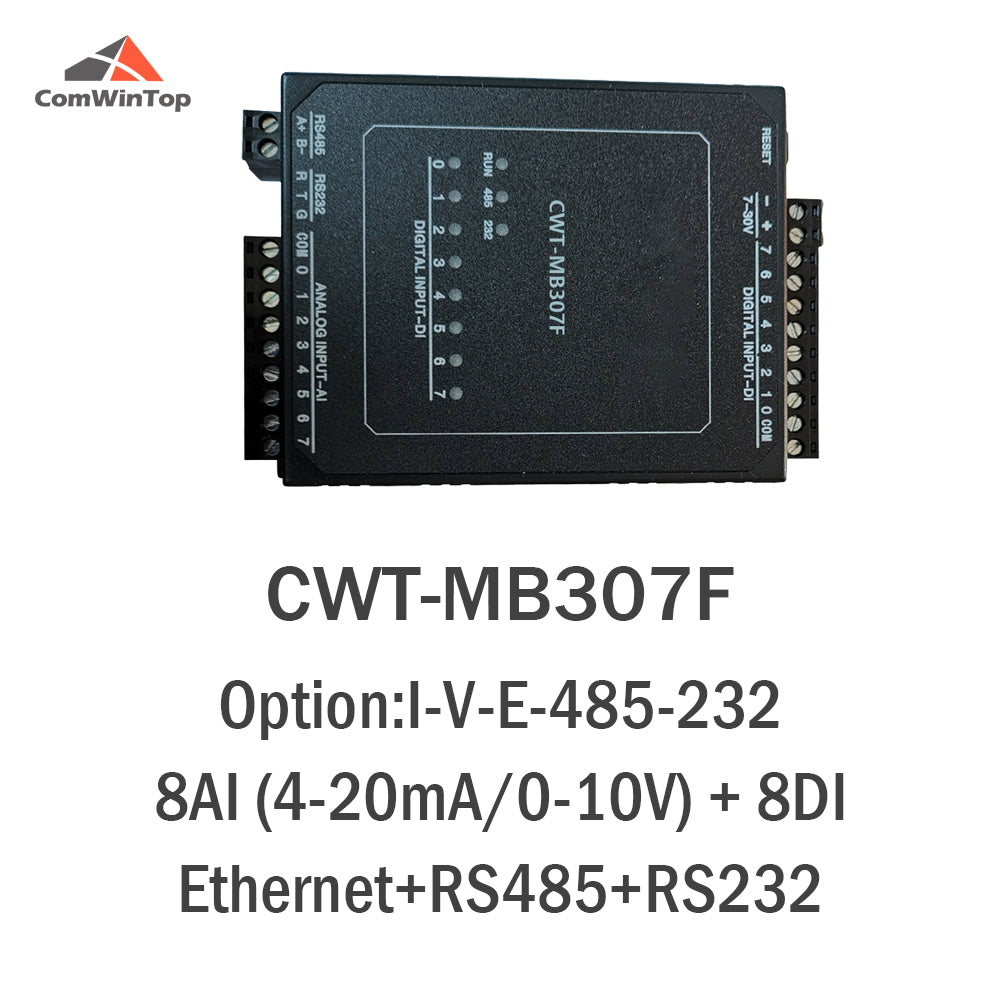

CWT-MB307F 8AI+8DI RS485 Ethernet Modbus Remote Terminal Unit

Regular price $47.30 USD
Regular price Sale price $47.30 USD
Sale Sold out
样式

Please notice: All prices are untaxed!

CWT-MB series Modbus IO Module

AI + AO

CWT-MB307B

8AI

View

CWT-MB307J

16AI

View

CWT-MB308Z

24AI

View

CWT-MB308F

32AI

View

CWT-MB307C

4AO

View

CWT-MB307A

8AI+4AO

View

CWT-MB308J

16AI+4AO

View

CWT-MB308Q

32AI+4AO

View

DI + DO

CWT-MB307G

16DI

View

CWT-MB308D

32DI

View

CWT-MB307N

4DO

View

CWT-MB328A

16DO

View

CWT-MB308M

24DO

View

CWT-MB307P

8DI+4DO

View

CWT-MB307E

8DI+8DO

View

CWT-MB328B

8DI+16DO

View

CWT-MB308K

16DI+12DO

View

CWT-MB308L

24DI+6DO

View

AI + AO + DI + DO

CWT-MB307F

8AI+8DI

View

CWT-MB308W

8AI+24DI

View

CWT-MB308U

16AI+16DI

View

CWT-MB308H

24AI+8DI

View

CWT-MB308C

24AI+6DO

View

CWT-MB307L

8AI+4DO

View

CWT-MB308Y

16AI+12DO

View

CWT-MB307K

4AO+8DI

View

CWT-MB307R

4AO+6DO

View

CWT-MB307D

8AI+8DI+8DO

View

CWT-MB308E

8AI+8DI+12DO

View

CWT-MB308T

8AI+16DI+6DO

View

CWT-MB308R

16AI+8DI+6DO

View

CWT-MB308N

8AI+4AO+8DI+8DO

View

CWT-MB308V

8AI+4AO+8DI+12DO

View

CWT-MB308P

8AI+4AO+16DI+6DO

View

CWT-MB308S

16AI+4AO+8DI+6DO

View

CWT-MB328C

8AI+16DO

View

DI + DO(NPN)

CWT-MB317H

16NPN

View

CWT-MB317T

32NPN

View

CWT-MB317E

8DI+8NPN

View

CWT-MB317F

16DI+16NPN

View

CWT-MB317A

8AI+8NPN

View

CWT-MB317D

8AI+8DI+8NPN

View

CWT-MB317Q

16AI+8DI+8NPN

View

PT100 + AI (4-20mA / 0-5V / 0-10V) + AO + DI + DO)

CWT-MB318A

4PT

View

CWT-MB318B

4PT+4AI

View

CWT-MB318G

4PT+3AI+8DI+8DO

View

CWT-MB318F

4PT+4AI+4AO+8DI+6DO

View

CWT-MB318C

8PT

View

CWT-MB318M

4PT+11AI+16DI

View

CWT-MB318L

8PT+16AI

View

CWT-MB318W

8PT+8AI+8DI

View

CWT-MB318K

8PT+8DI+6DO

View

CWT-MB318D

12PT

View

CWT-MB318E

12PT+4AI

View

CWT-MB318S

4PT+11AI+8DI+6DO

View

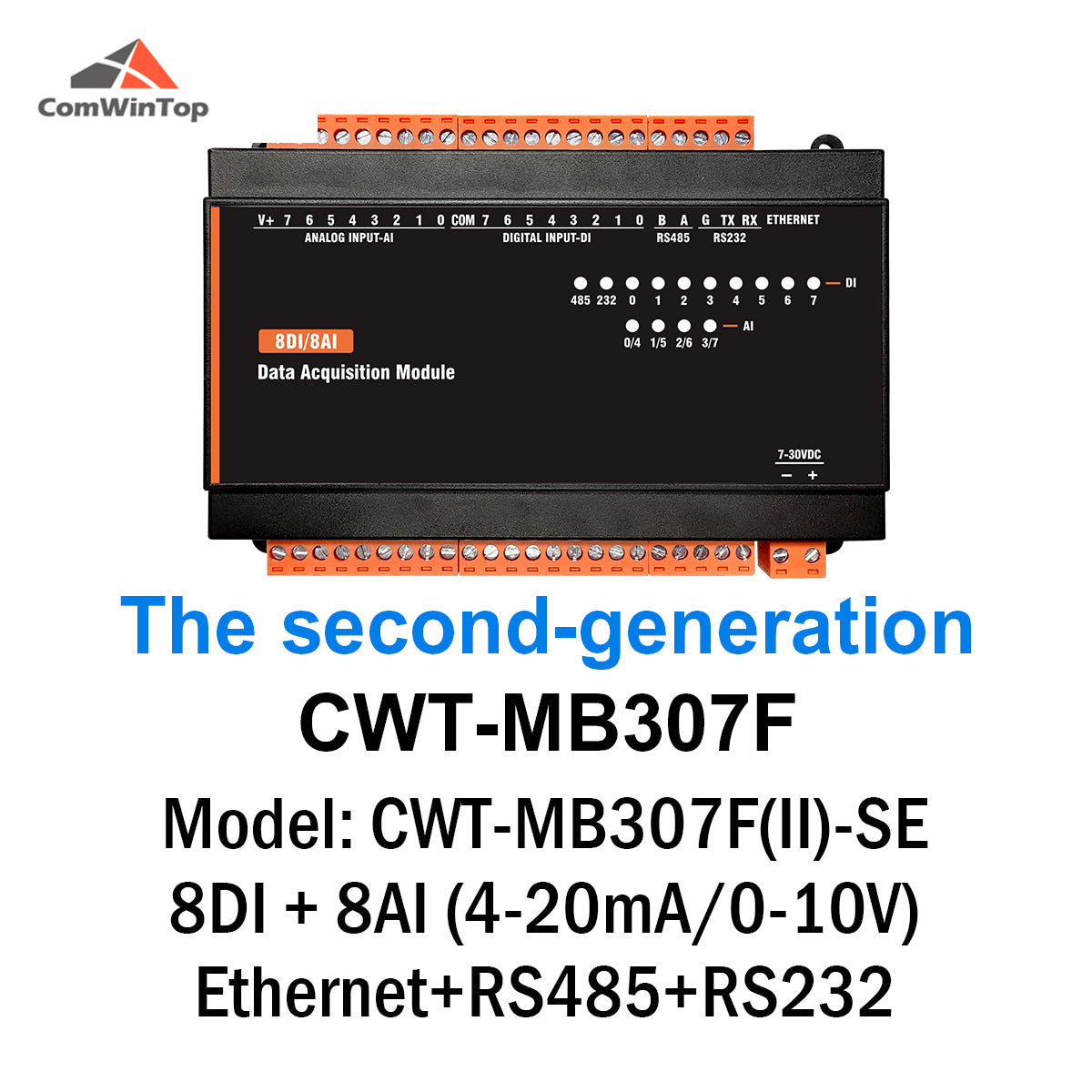

CWT-MB307F 8AI+8DI RS485 Ethernet Modbus Remote Terminal Unit



Options:



Analog input

Input type

4~20mA<default>,option: 0~20mA/0~5/1~5/0~10V

Precision

0.1%,16 bit

Refresh rate

0.01m


Digital input

ON signal level

5-30VDC6mA@24VDC

OFF signal level

0-3VDC

Protection

optocoupler isolation, 2500V lightning protection, overvoltage,
overcurrent protection



System parameters

CPU

32-bit ATMEL ARM, 72MHZ

OS

GCOS,10ms scheduling mechanism

Power

7-35VDC @2W, power supply reverse protection, isolation design

Installation

DIN rail mounting or screw fixing

Working Environment

-40℃~85,5%~95%RH(non-condensing)

Protection

IP20

Watchdog

1.5m guard


Series port parameters

Port type

1RS485 & 1RS232

Protection

DCDC isolation design, 2500V lightning protection, ESD, overvoltage, overcurrent protection

Baud rate

1200~115200,default 9600

Parity

Even, Odd, None

start bit

1 bit

data bits

8 bit

Stopbits

1,2bits

Protocol

MODBUS RTU

default

9600.N.8.1,slave id is 1


Ethernet

Port type

RJ45

Communicate protocol

MODBUS TCP,MODBUS UDP

Communicate rate

1000 times/s

bandwidth

10M/100Mbps

IP address

192.168.1.75

Port

502







Config tool
