CWT-MB307G 16DI 16-Channel Digital Input with Optocoupler Isolation
The second generation options:
The first generation options:
Digital input
ON signal level |
5-30VDC,6mA@24VDC |
OFF signal level |
0-3VDC |
Protection |
optocoupler isolation, 2500V lightning protection, overvoltage, |
System parameters
CPU |
32-bit ATMEL ARM, 72MHZ |
OSDD |
GCOS,10ms scheduling mechanism |
Power |
7-35VDC @2W, power supply reverse protection, isolation design |
Installation |
DIN rail mounting or screw fixing |
Working Environment |
-40℃~85℃,5%~95%RH(non-condensing) |
Protection |
IP20 |
Watchdog |
1.5m guard |
Series port parameters
Port type |
1RS485 & 1RS232 |
Protection |
DCDC isolation design, 2500V lightning protection, ESD, overvoltage, overcurrent protection |
Baud rate |
1200~115200,default 9600 |
Parity |
Even, Odd, None |
start bit |
1 bit |
data bits |
8 bit |
Stopbits |
1,2bits |
Protocol |
MODBUS RTU |
default |
9600.N.8.1,slave id is 1 |
Ethernet
Port type |
RJ45 |
Communicate protocol |
MODBUS TCP,MODBUS UDP |
Communicate rate |
1000 times/s |
bandwidth |
10M/100Mbps |
IP address |
192.168.1.75 |
Port |
502 |
![CWT-MB307G 16DI 16-Channel Digital Input with Optocoupler Isolation](http://store.comwintop.com/cdn/shop/files/9-MB307G-S.jpg?v=1718768058&width=1445)
![CWT-MB307G 16DI 16-Channel Digital Input with Optocoupler Isolation](http://store.comwintop.com/cdn/shop/products/1_9d3ffc85-3e74-4d5e-a9ad-71096ad1ffcb.jpg?v=1637647940&width=1445)
![CWT-MB307G 16DI 16-Channel Digital Input with Optocoupler Isolation](http://store.comwintop.com/cdn/shop/products/2_2977c6a8-effa-4bb9-a062-824161c2bb43.jpg?v=1637647940&width=1445)
![CWT-MB307G 16DI 16-Channel Digital Input with Optocoupler Isolation](http://store.comwintop.com/cdn/shop/products/3_b7087802-4355-4cf0-b67d-bec54bf3dd1f.jpg?v=1637647940&width=1445)
![CWT-MB307G 16DI 16-Channel Digital Input with Optocoupler Isolation](http://store.comwintop.com/cdn/shop/files/9-MB307G-SE.jpg?v=1718768058&width=1445)
![CWT-MB307G 16DI 16-Channel Digital Input with Optocoupler Isolation](http://store.comwintop.com/cdn/shop/products/485_c270fa76-aaf9-4239-aa22-c893f2c289ff.jpg?v=1718768058&width=1445)
![CWT-MB307G 16DI 16-Channel Digital Input with Optocoupler Isolation](http://store.comwintop.com/cdn/shop/products/485-232_7daf20cc-0449-4183-a331-3edb67f9356e.jpg?v=1718768058&width=1445)
![CWT-MB307G 16DI 16-Channel Digital Input with Optocoupler Isolation](http://store.comwintop.com/cdn/shop/products/E_0d7b8053-5fb9-4e91-bef1-e4c767240ca8.jpg?v=1718768058&width=1445)
![CWT-MB307G 16DI 16-Channel Digital Input with Optocoupler Isolation](http://store.comwintop.com/cdn/shop/products/E-485_5aa73efa-400f-41a0-8d5f-f3637b71026e.jpg?v=1718768058&width=1445)

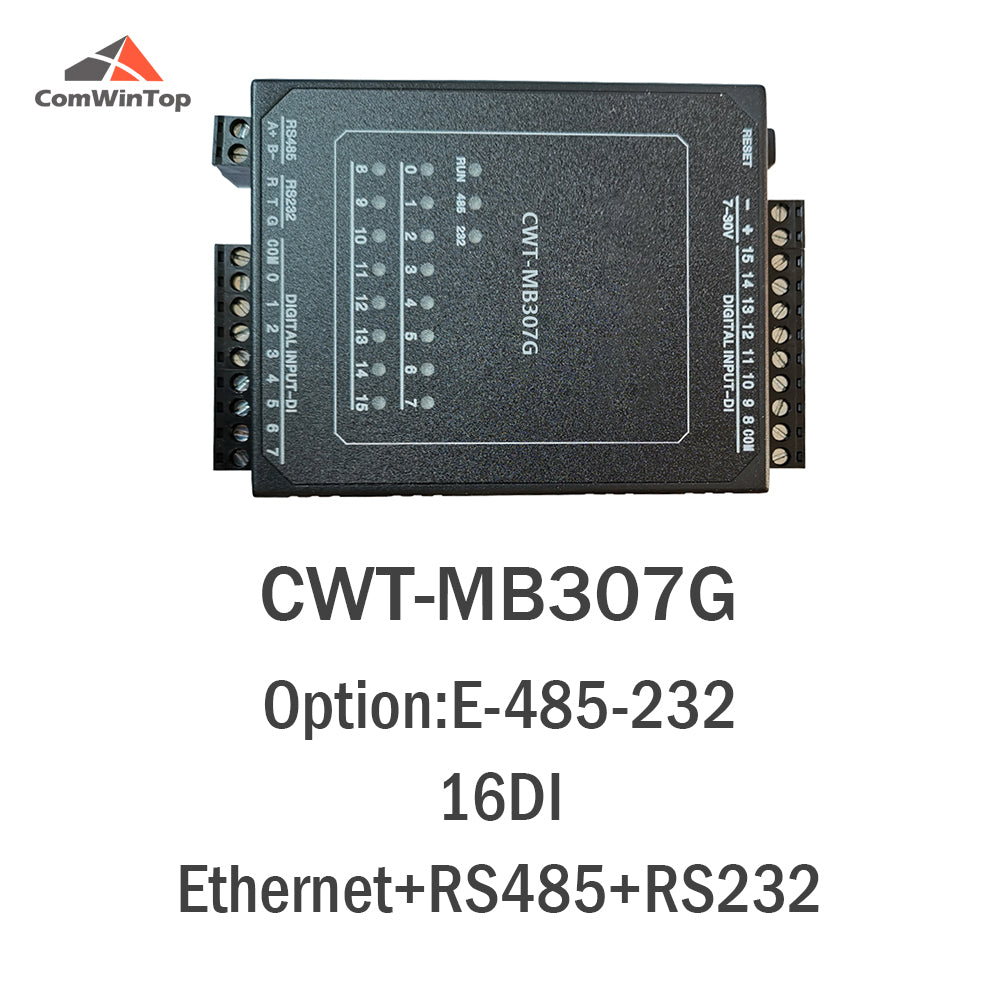

![CWT-MB307G 16DI 16-Channel Digital Input with Optocoupler Isolation](http://store.comwintop.com/cdn/shop/products/E-485-232_b57f41e6-960d-4cac-9a2d-b30987f1935a.jpg?v=1718768058&width=1445)
