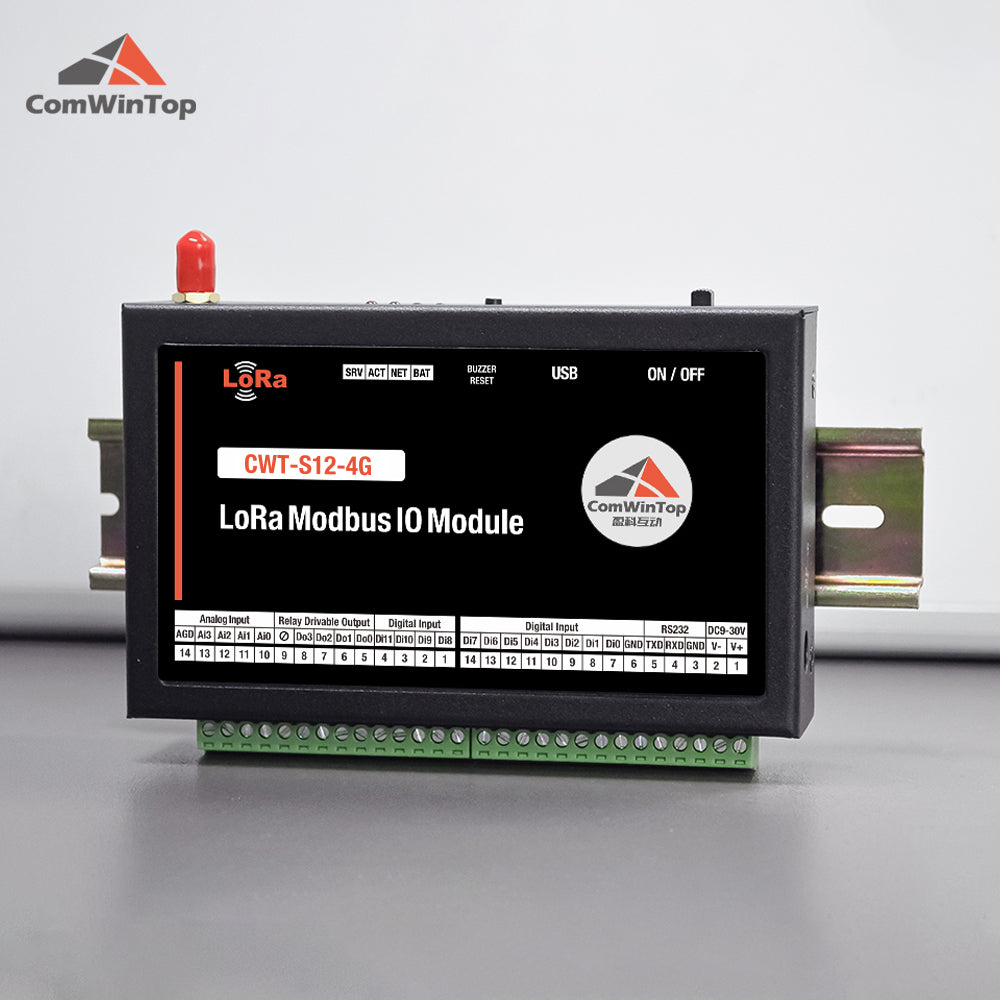

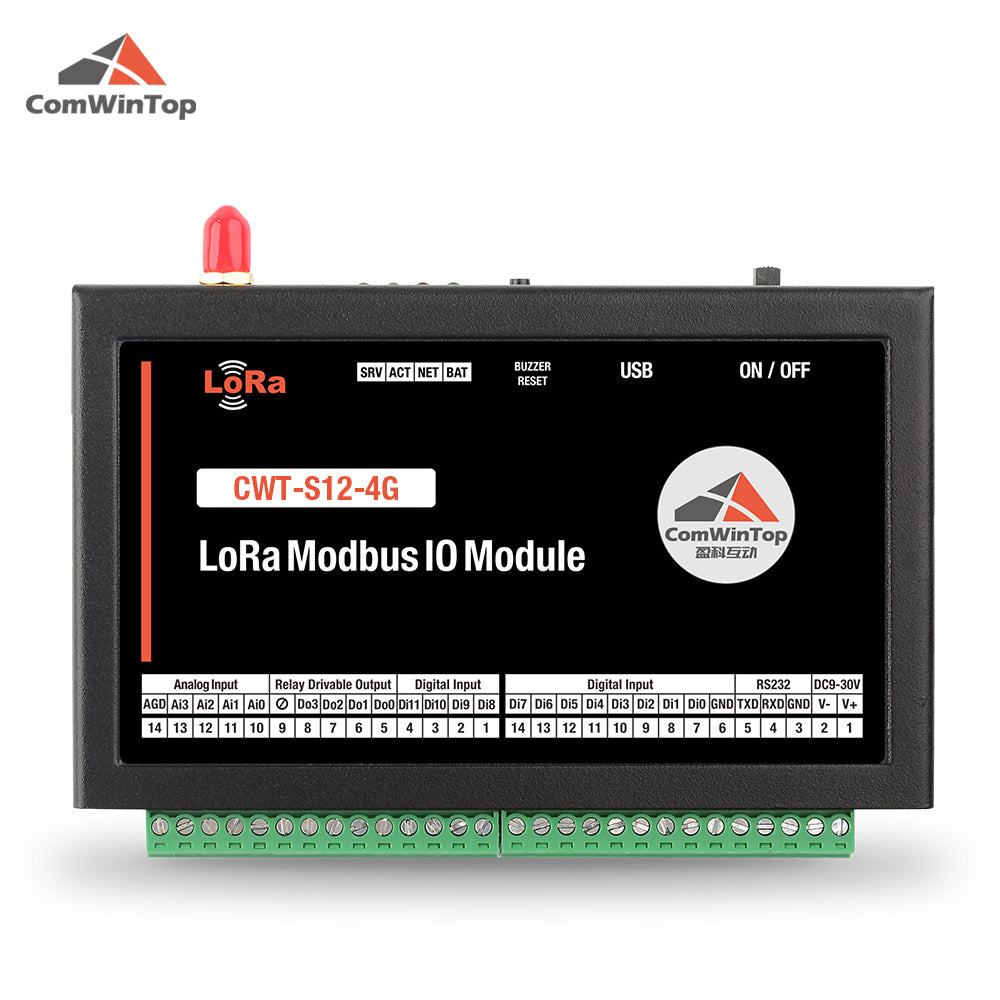

CWT-S12-4G wifi 12Di+4Do+4Ai 4g Modbus Tcp IO Module, Remote Data Acquisition Rtu For Scada
Couldn't load pickup availability
Please notice: All prices are untaxed!
Wireless Modbus IO module |
||||
|
Model |
IO port |
LoRa |
Wi-Fi |
4G |
|
CWT-L2 |
1Di + 1DO (transistor) + 2Ai (4-20mA) |
|||
|
CWT-L3 |
2Di + 2Ai (4-20mA) |
|||
|
CWT-L4 |
4Ai (4-20mA) |
|||
|
CWT-M4 |
4Di + 4DO (transistor) |
|||
|
CWT-M5 |
3Di + 3DO (relay) |
|||
|
CWT-M6 |
2Di + 3DO (relay) + 1Ai (4-20mA) |
|||
|
CWT-S6 |
4Di + 4DO (transistor) + 4Ai (4-20mA) + 4Ti (18B20) |
|||
|
CWT-S8 |
8Di + 8DO (transistor) + 4Ai (4-20mA) |
|||
|
CWT-S12 |
12Di + 4DO (transistor) + 4Ai (4-20mA) |
|||
How does Scada system poll 4G Modbus IO module?
Usually, SCADA cannot directly poll 4g Modbus io module due to 4g network do not provide static public IP address for
simcard (except VPN), so CWT provide aModbus TCP server tool to work with Scada in server，Modbus TCP server
only forward message between Scada and 4g Modbus IO module. So that realizes the connectivity of SCADA and CWT
4g module.
Communication process:
1.CWT 4g module build connection with Modbus TCP server according to server IP address (in this case, static public IP
address or domain is necessary for server)
2.Scada system send Modbus TCP request command to Modbus TCP server tool
3.Modbus TCP server tool forward command to CWT 4g module
4.CWT 4g module responds
CWT-S12-4G Features
1 Basic Feature
2 Technical Specification
3 Size

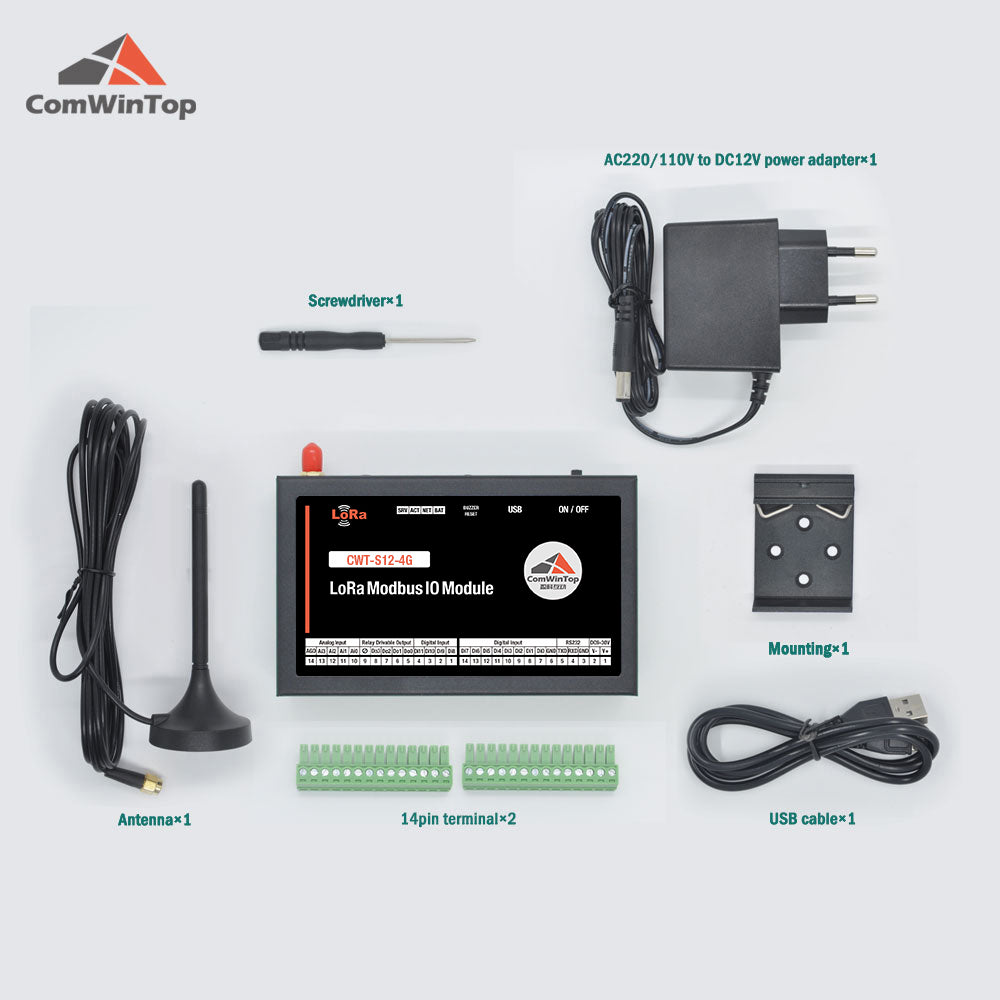

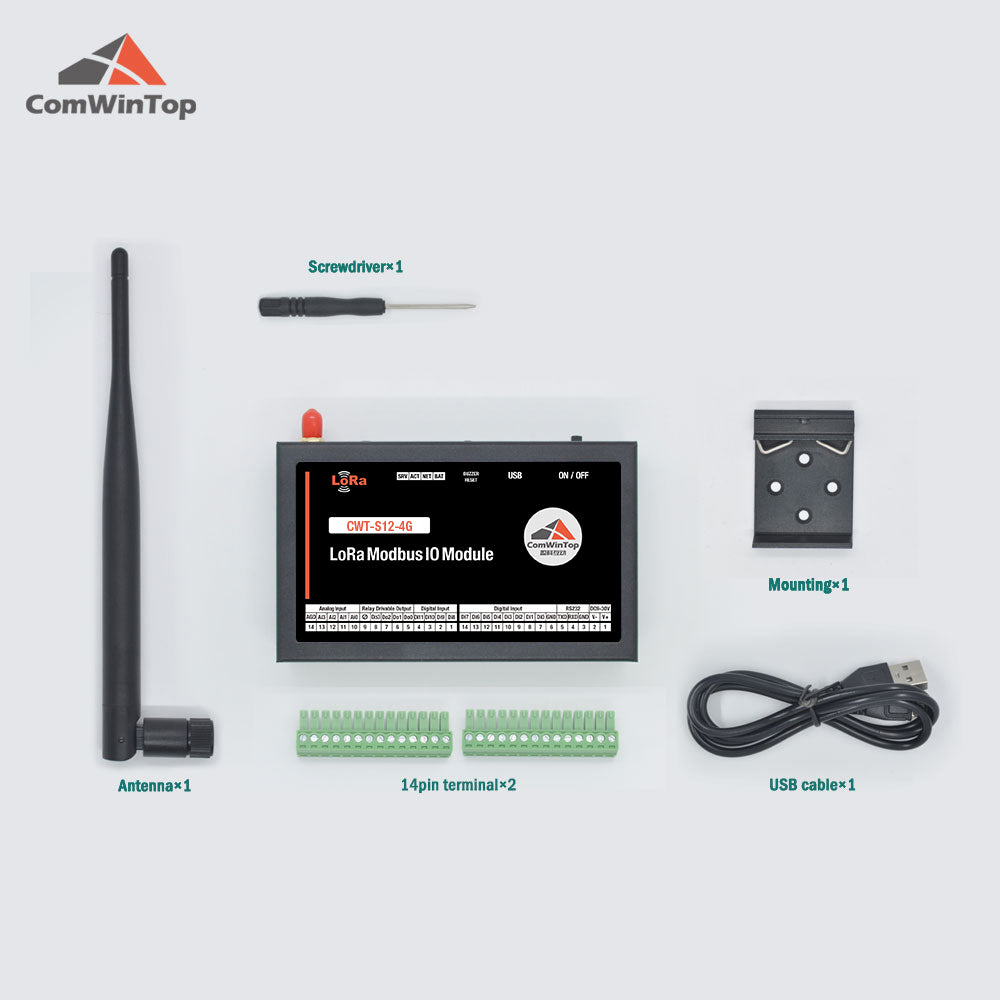

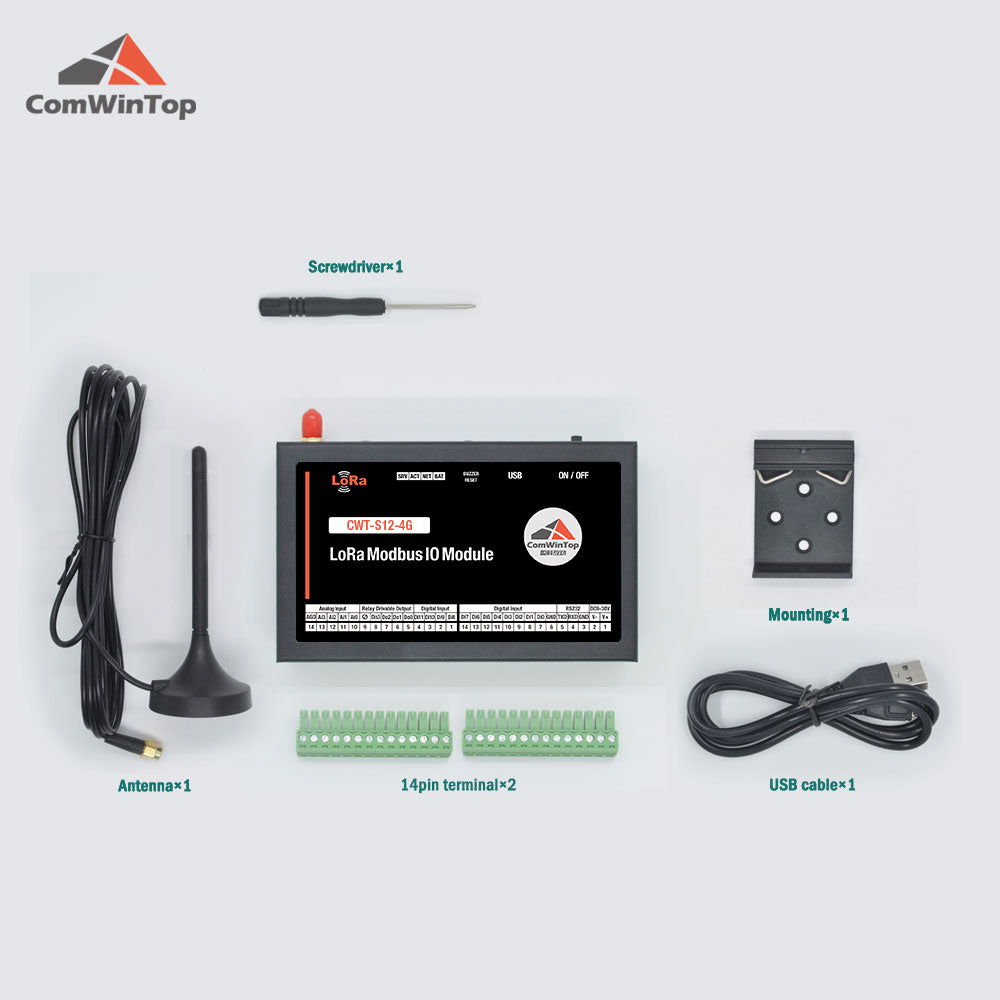

Module×1, antenna×1, USB cable×1
