ComWinTop

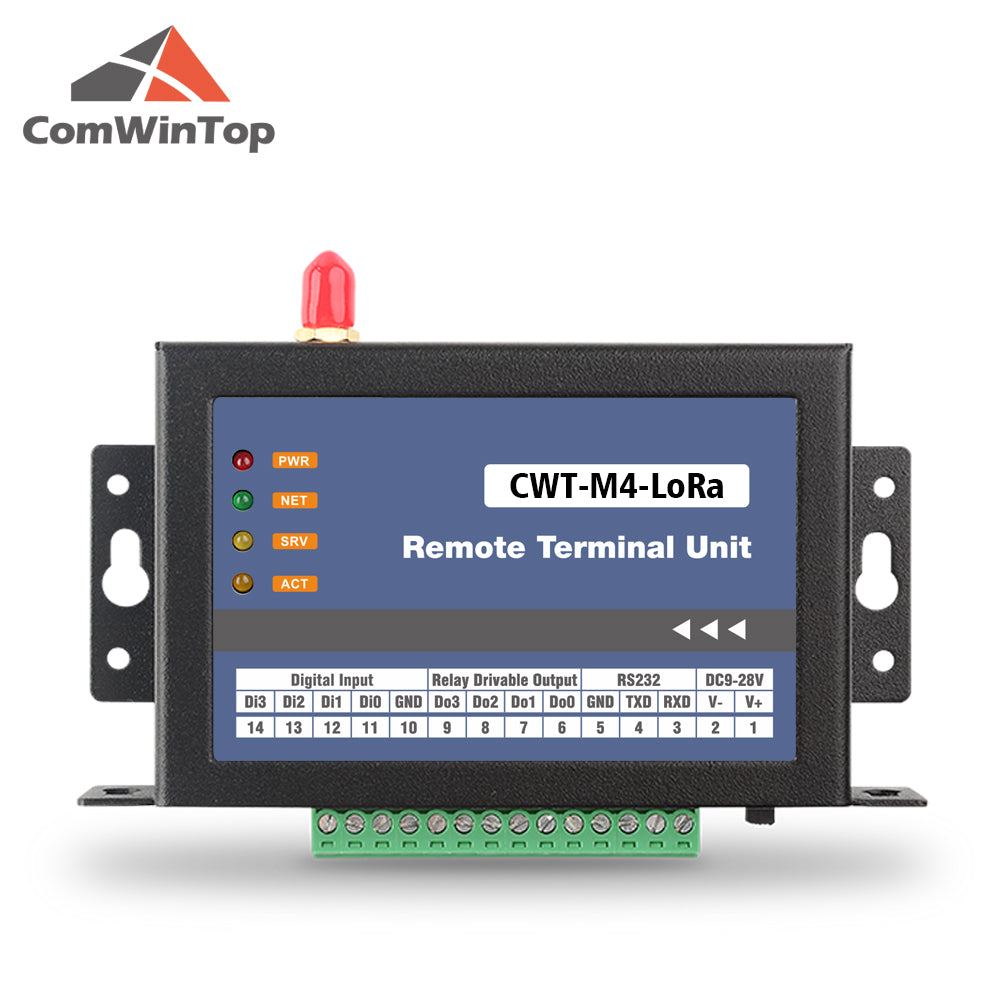

CWT-M4-LoRa 4Di+4Do Wireless 433M LoRa Modbus IO Module Modbus RTU

Regular price $68.00 USD
Regular price Sale price $68.00 USD
Sale Sold out
样式

Please notice: All prices are untaxed!

Wireless Modbus IO module

Model

IO port

LoRa
Version

Wi-Fi
Version

4G
Version

CWT-L2

1Di + 1DO (transistor) + 2Ai (4-20mA)

Link

Link

Link

CWT-L3

2Di + 2Ai (4-20mA)

Link

Link

Link

CWT-L4

4Ai (4-20mA)

Link

Link

Link

CWT-M4

4Di + 4DO (transistor)

Link

Link

Link

CWT-M5

3Di + 3DO (relay)

Link

Link

Link

CWT-M6

2Di + 3DO (relay) + 1Ai (4-20mA)

Link

Link

Link

CWT-S6

4Di + 4DO (transistor) + 4Ai (4-20mA) + 4Ti (DS18B20)

Link

Link

Link

CWT-S8

8Di + 8DO (transistor) + 4Ai (4-20mA)

Link

Link

Link

CWT-S12

12Di + 4DO (transistor) + 4Ai (4-20mA)

Link

Link

Link

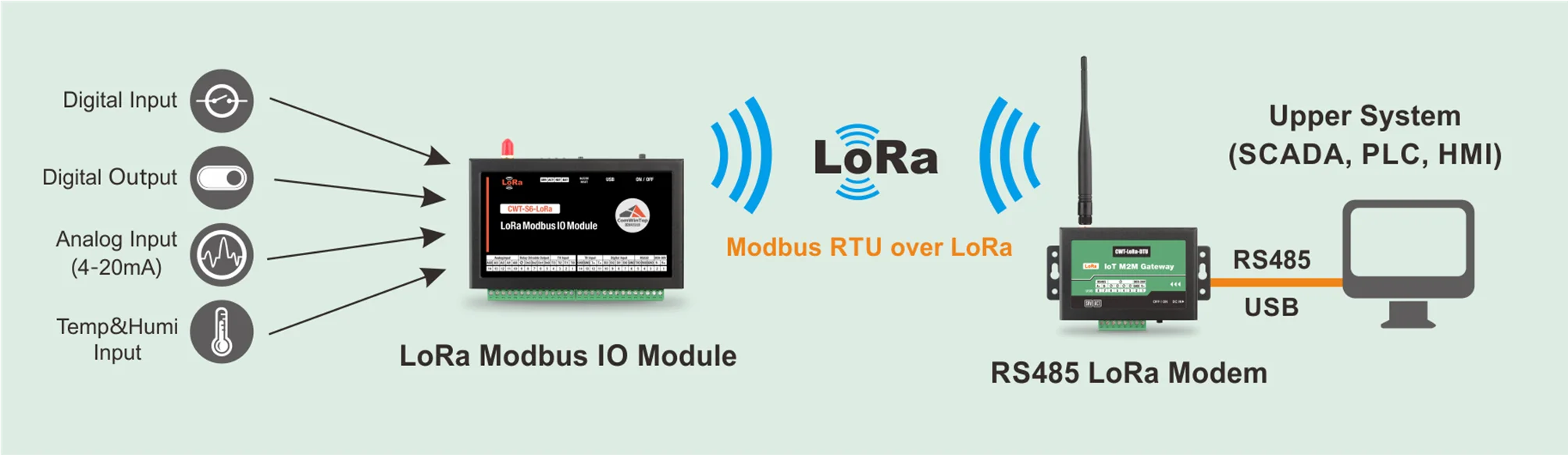

How does upper system poll LoRa Modbus IO module?

Communication process:

1.Upper system (SCADA, PLC, HMI) connects a LoRa modem by RS485 or USB port

2.Upper system as Modbus master sends request command to LoRa modem

3.LoRa modem transmit the request command to LoRa Modbus IO module over LoRa wireless network

4.LoRa Modbus IO module receives and responds LoRa modem only forward message between upper system and LoRa

Modbus IO module. One LoRa modem can communicate with multiple LoRa IO modules


About CWT LoRa device wireless communication

1.Open air communication distance is about 3KM, distance will be affected by obstructions

2.Communication in building, the distance through the wall is about 5-6 layers of wall

3.Can setup LoRa communication parameters by config tool


CWT-M4-LoRa Features

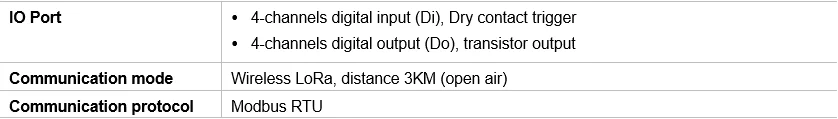

1 Basic Feature

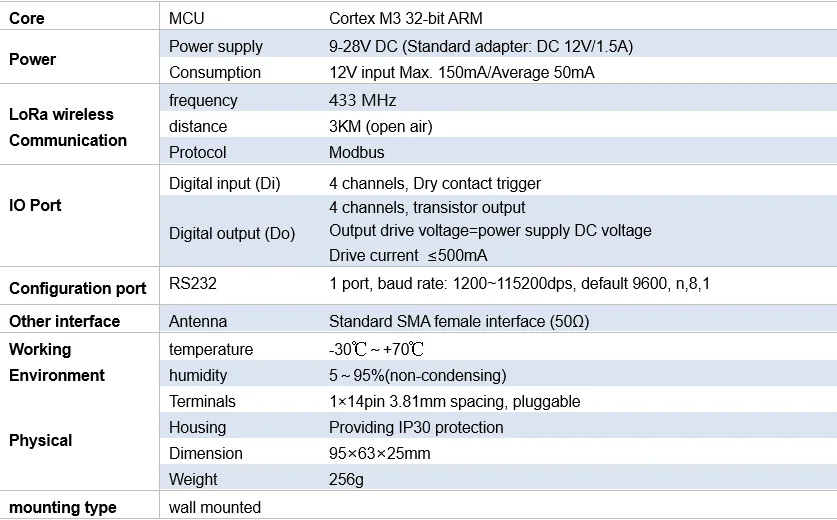

2 Technical Specification

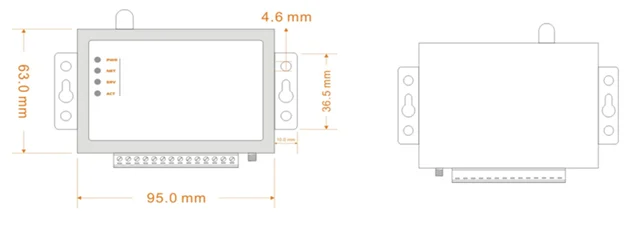

3 Size

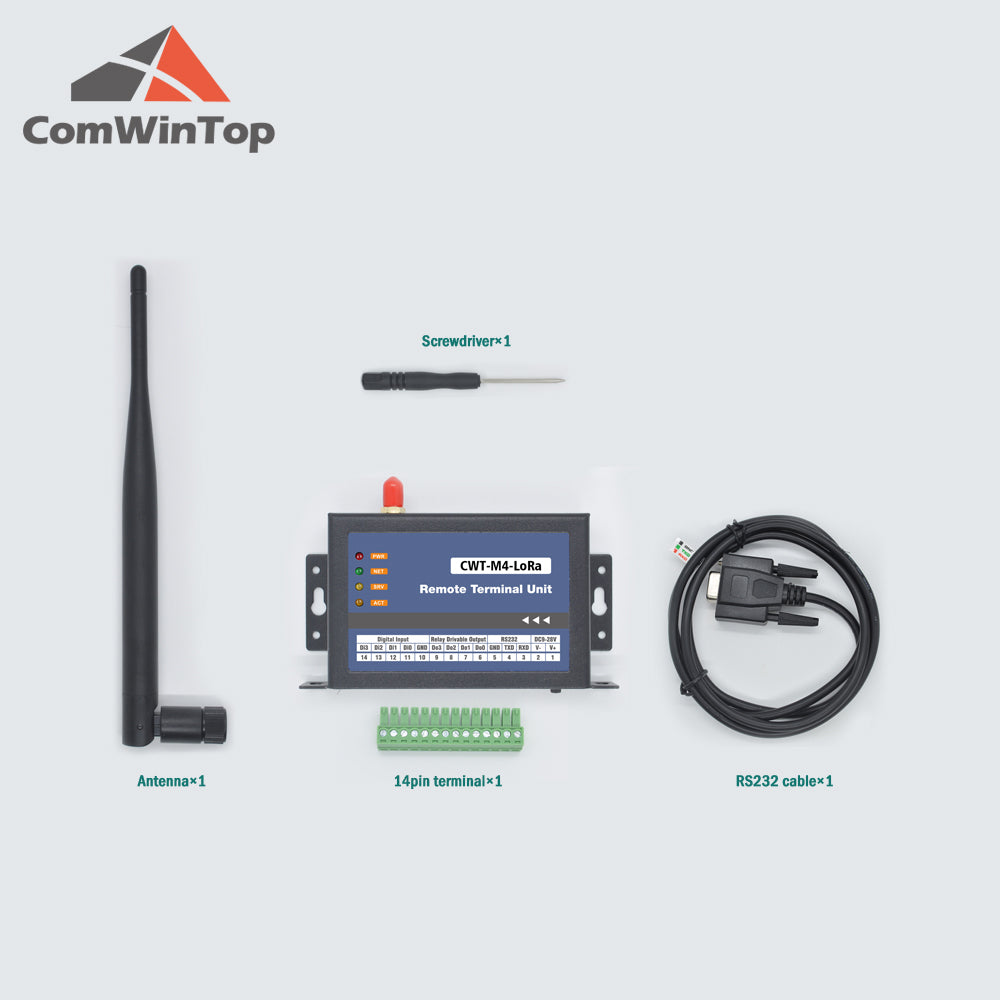

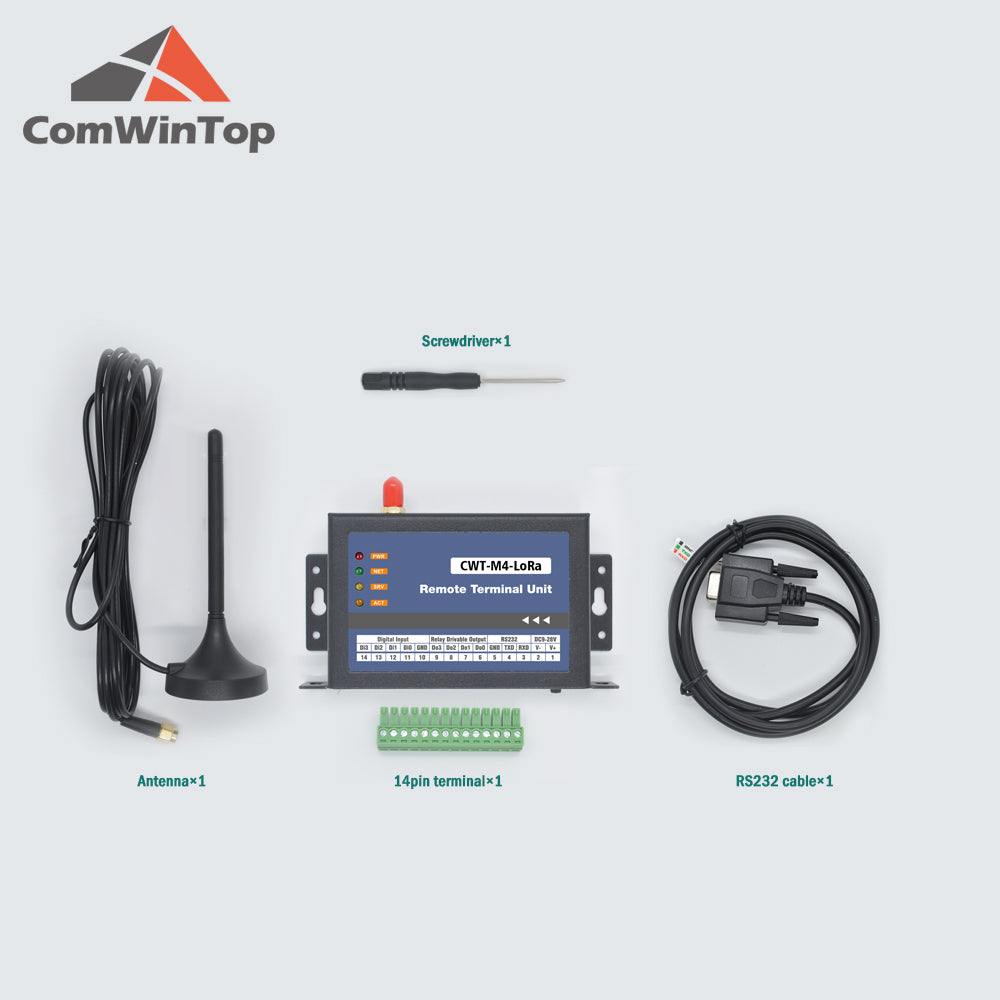

4 Package list

Module×1, antenna×1, USB cable×1
