ComWinTop

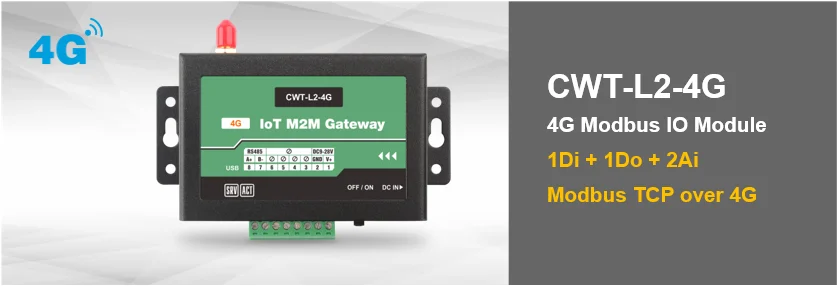

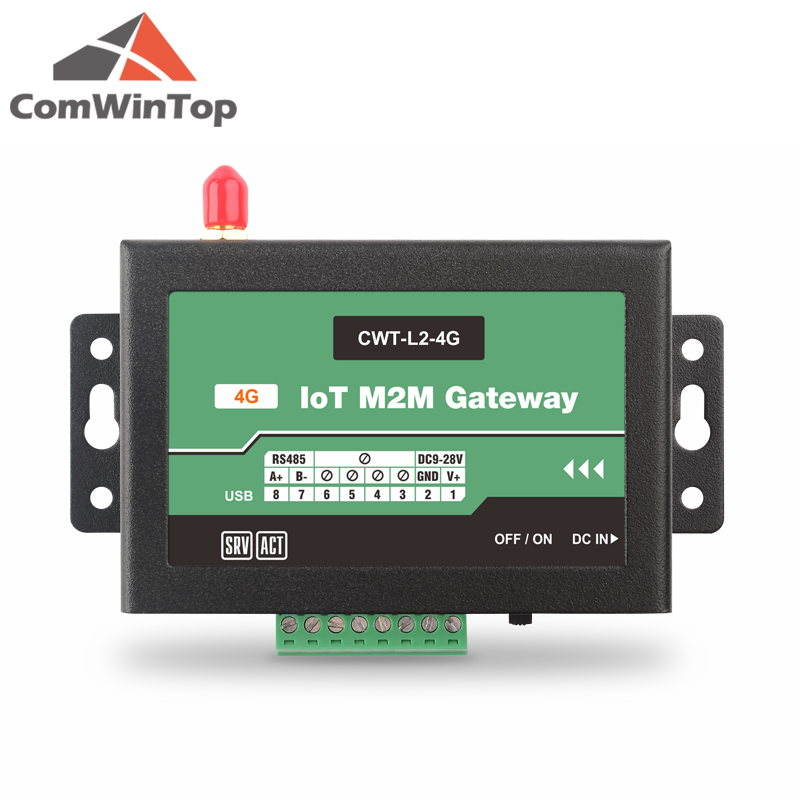

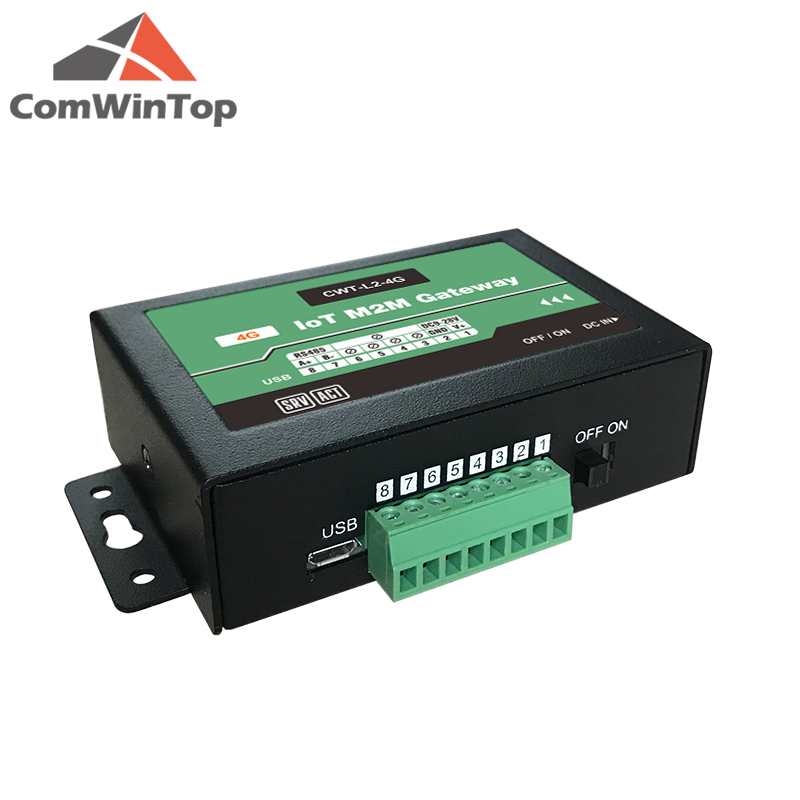

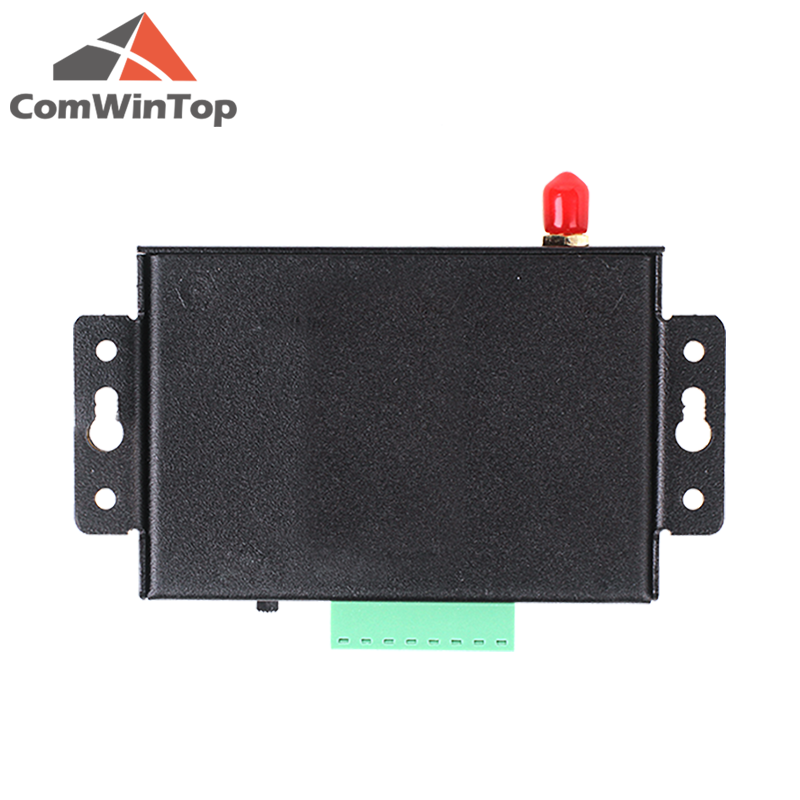

CWT-L2-4G 1Di+1Do+2Ai 4G Modbus Tcp IO Module, 4g Modbus Rtu

Regular price $68.00 USD
Regular price Sale price $68.00 USD
Sale Sold out
样式

Please notice: All prices are untaxed!

Wireless Modbus IO module

Model

IO port

LoRa
Version

Wi-Fi
Version

4G
Version

CWT-L2

1Di + 1DO (transistor) + 2Ai (4-20mA)

Link

Link

Link

CWT-L3

2Di + 2Ai (4-20mA)

Link

Link

Link

CWT-L4

4Ai (4-20mA)

Link

Link

Link

CWT-M4

4Di + 4DO (transistor)

Link

Link

Link

CWT-M5

3Di + 3DO (relay)

Link

Link

Link

CWT-M6

2Di + 3DO (relay) + 1Ai (4-20mA)

Link

Link

Link

CWT-S6

4Di + 4DO (transistor) + 4Ai (4-20mA) + 4Ti (DS18B20)

Link

Link

Link

CWT-S8

8Di + 8DO (transistor) + 4Ai (4-20mA)

Link

Link

Link

CWT-S12

12Di + 4DO (transistor) + 4Ai (4-20mA)

Link

Link

Link

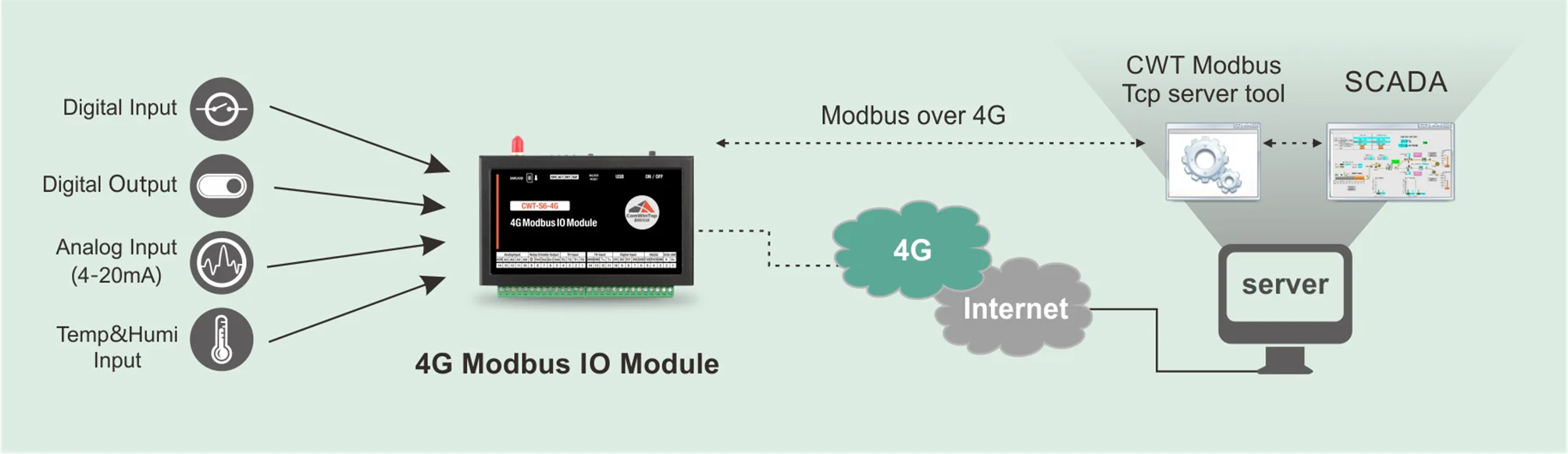

How does Scada system poll 4G Modbus IO module?

Usually, SCADA cannot directly poll 4g Modbus io module due to 4g network do not provide static public IP address for

simcard (except VPN), so CWT provide a Modbus TCP server tool to work with Scada in server,Modbus TCP serve

r only forward message between Scada and 4g Modbus IO module. So that realizes the connectivity of SCADA and CW

T 4g module.

Communication process:

1.CWT 4g module build connection with Modbus TCP server according to server IP address (in this case, static public IP

address or domain is necessary for server)

2.Scada system send Modbus TCP request command to Modbus TCP server tool

3.Modbus TCP server tool forward command to CWT 4g module

4.CWT 4g module responds


CWT-L2-4G Features

1Basic Feature


2 Technical Specification

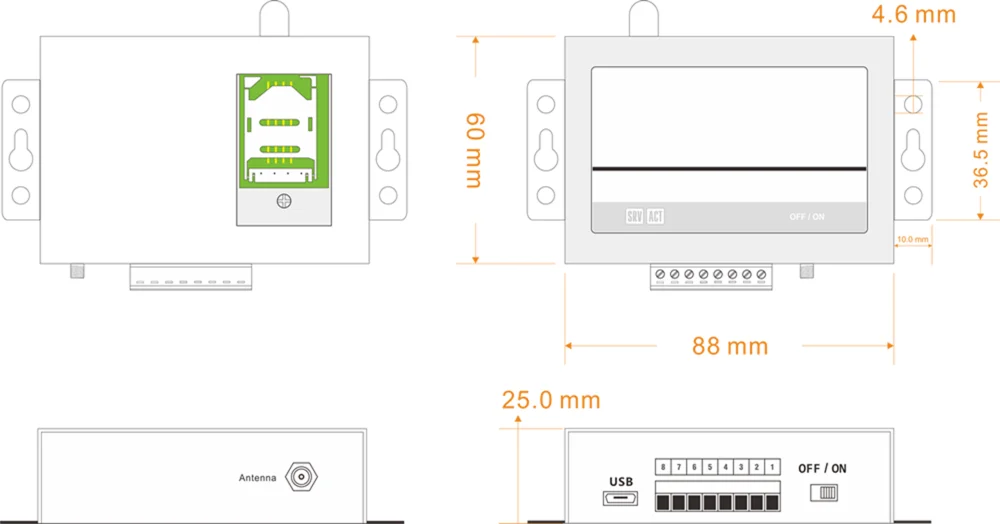

3 Size

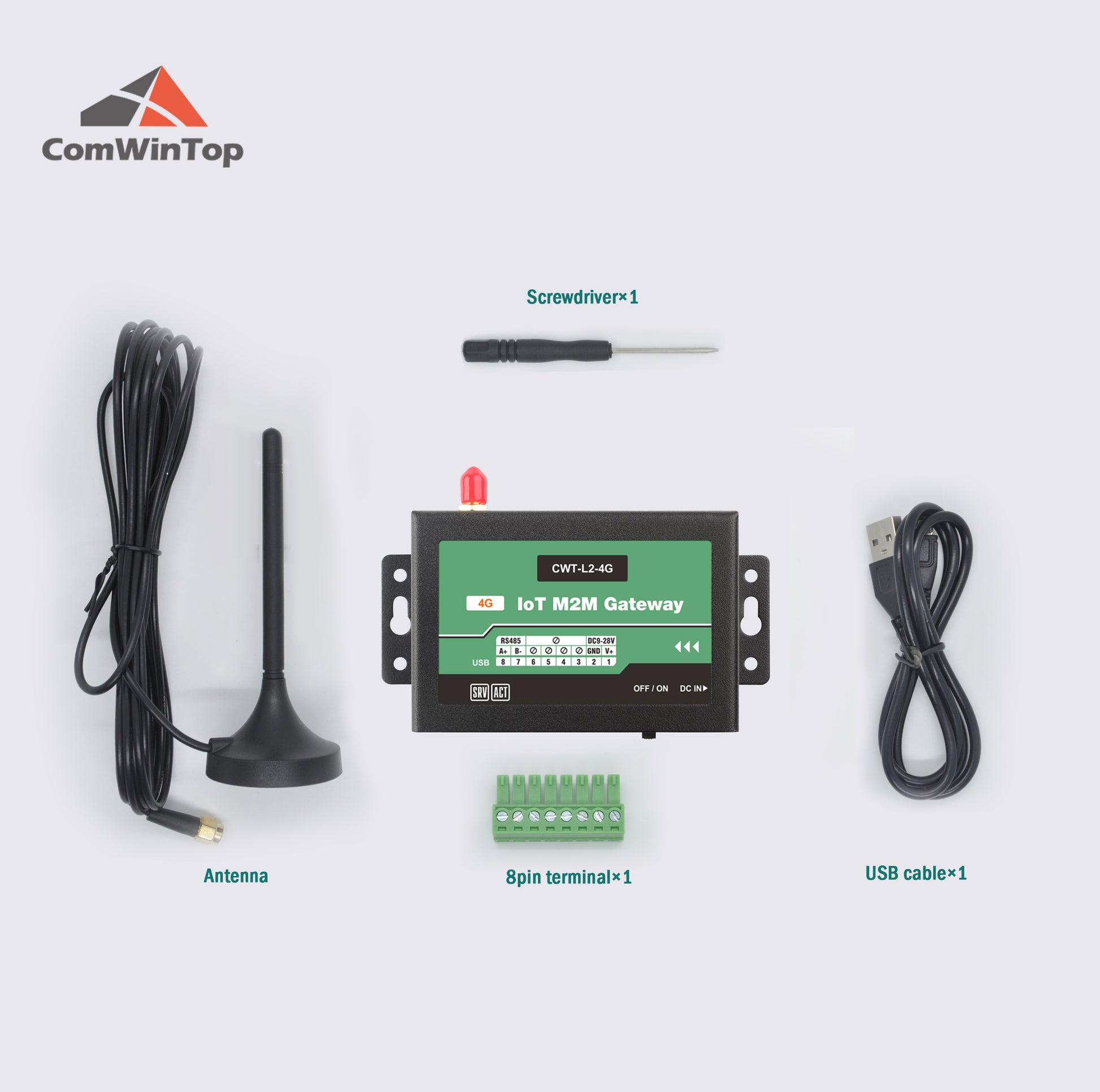

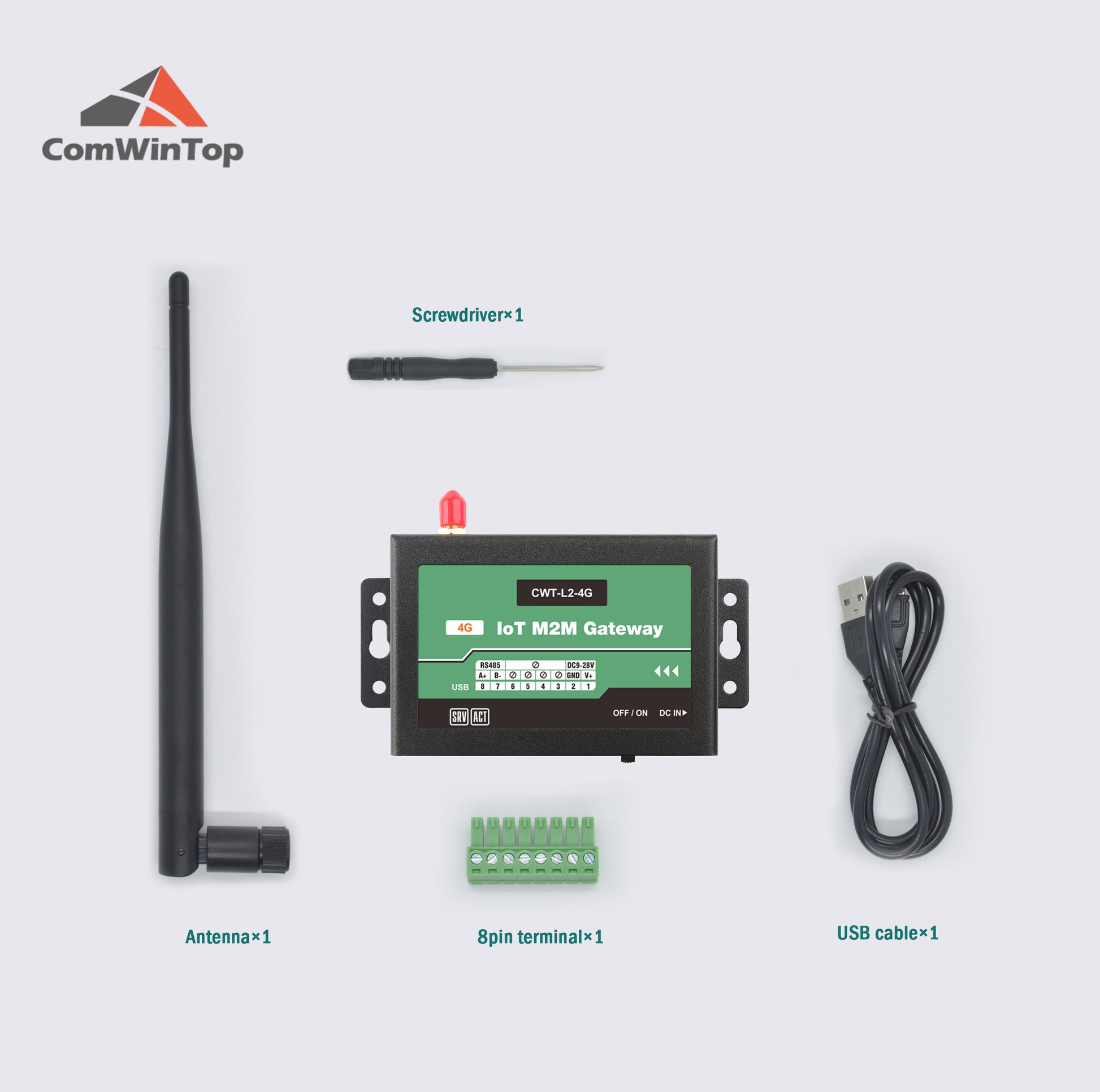

4 Package list

Module×1, antenna×1, USB cable×1
