ComWinTop

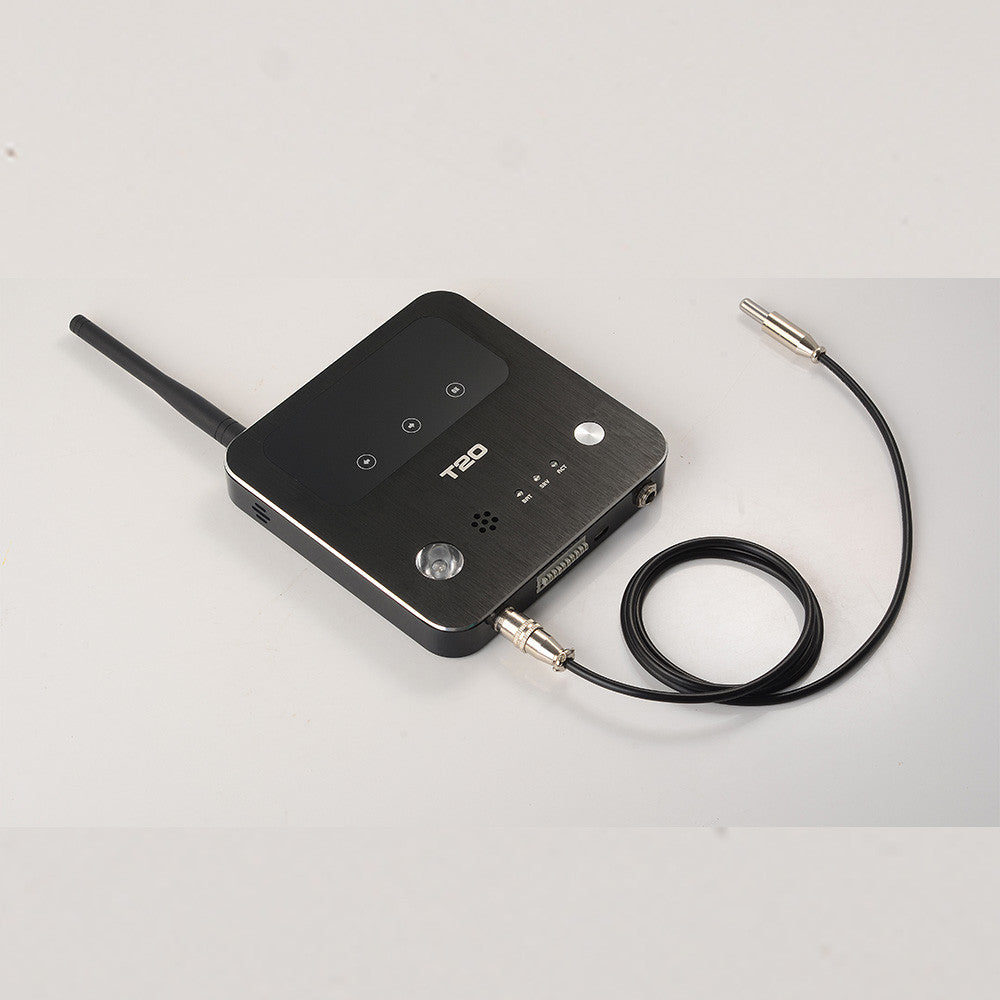

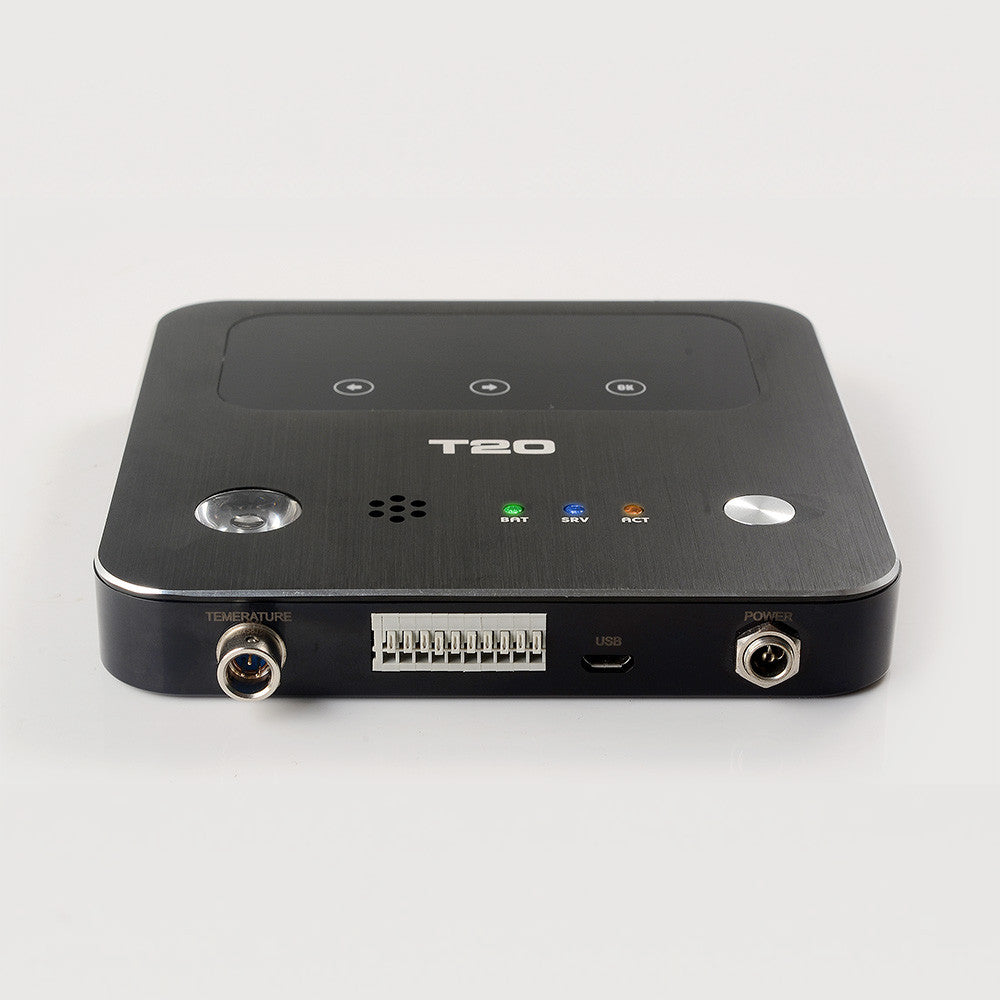

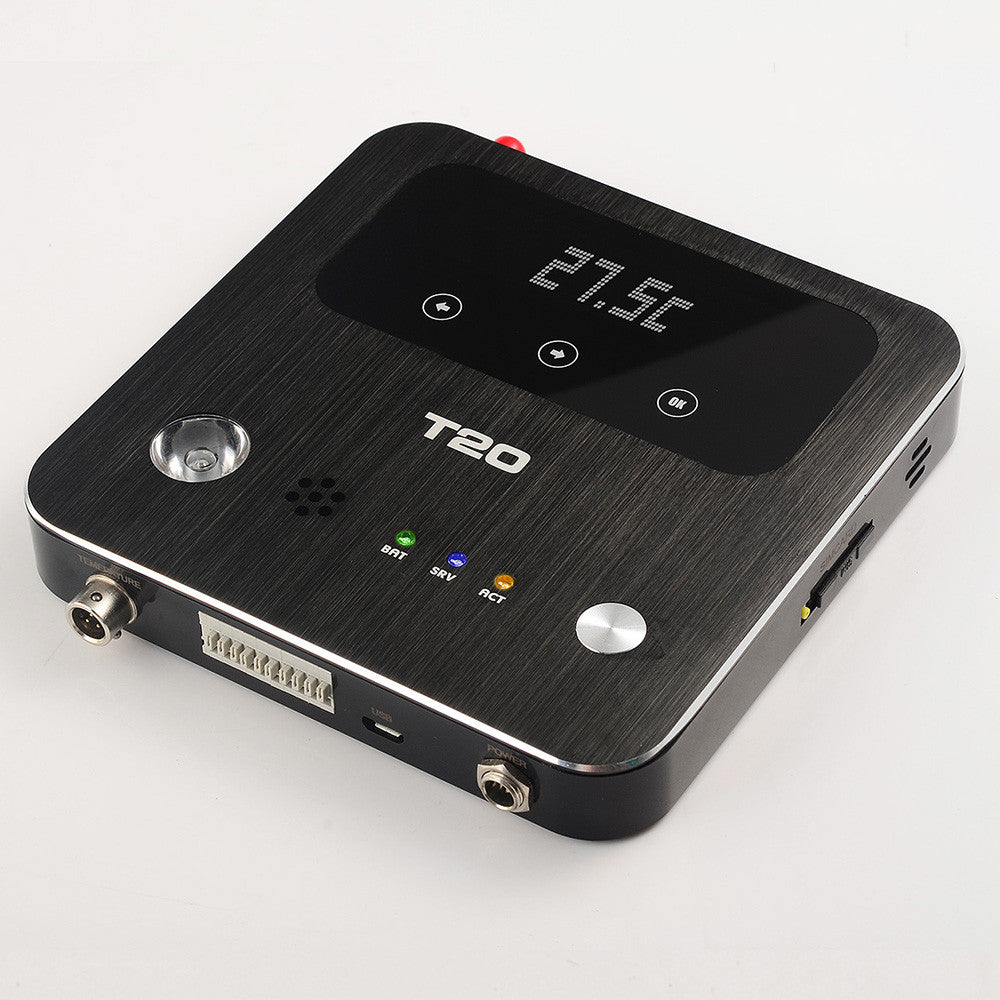

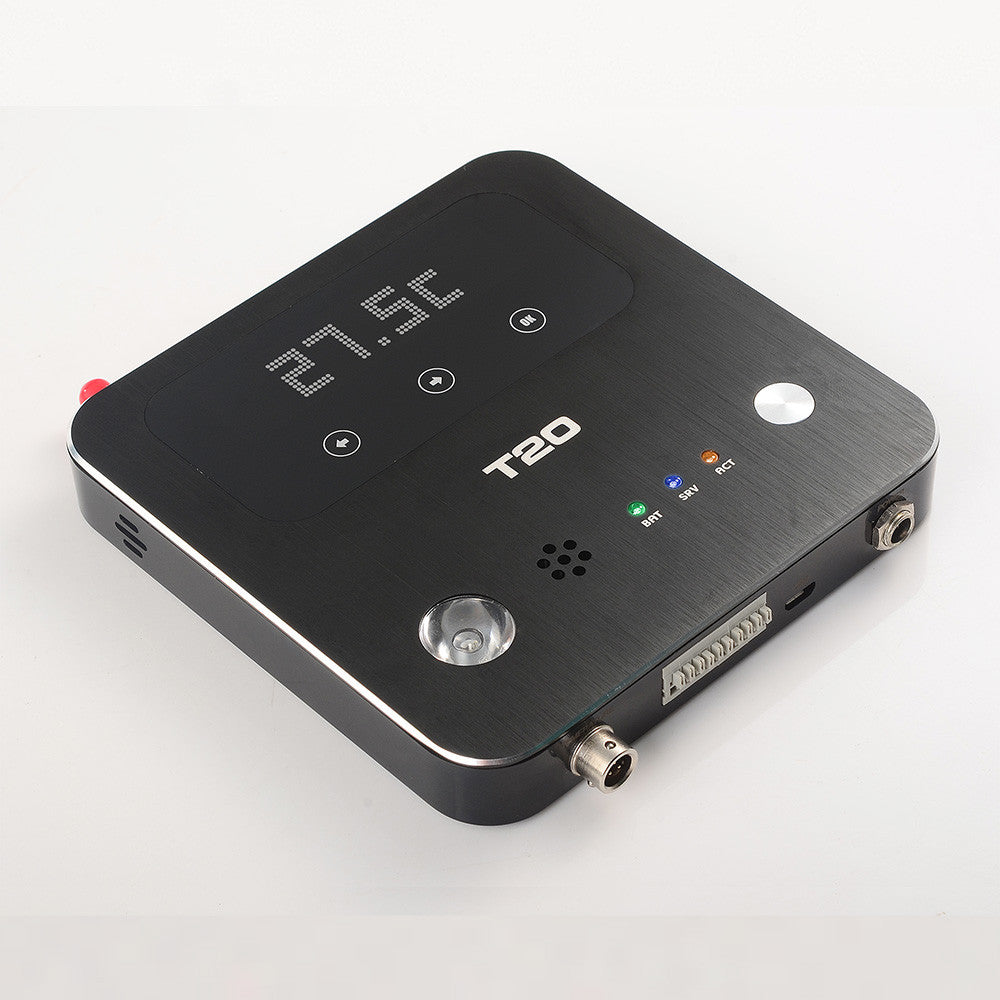

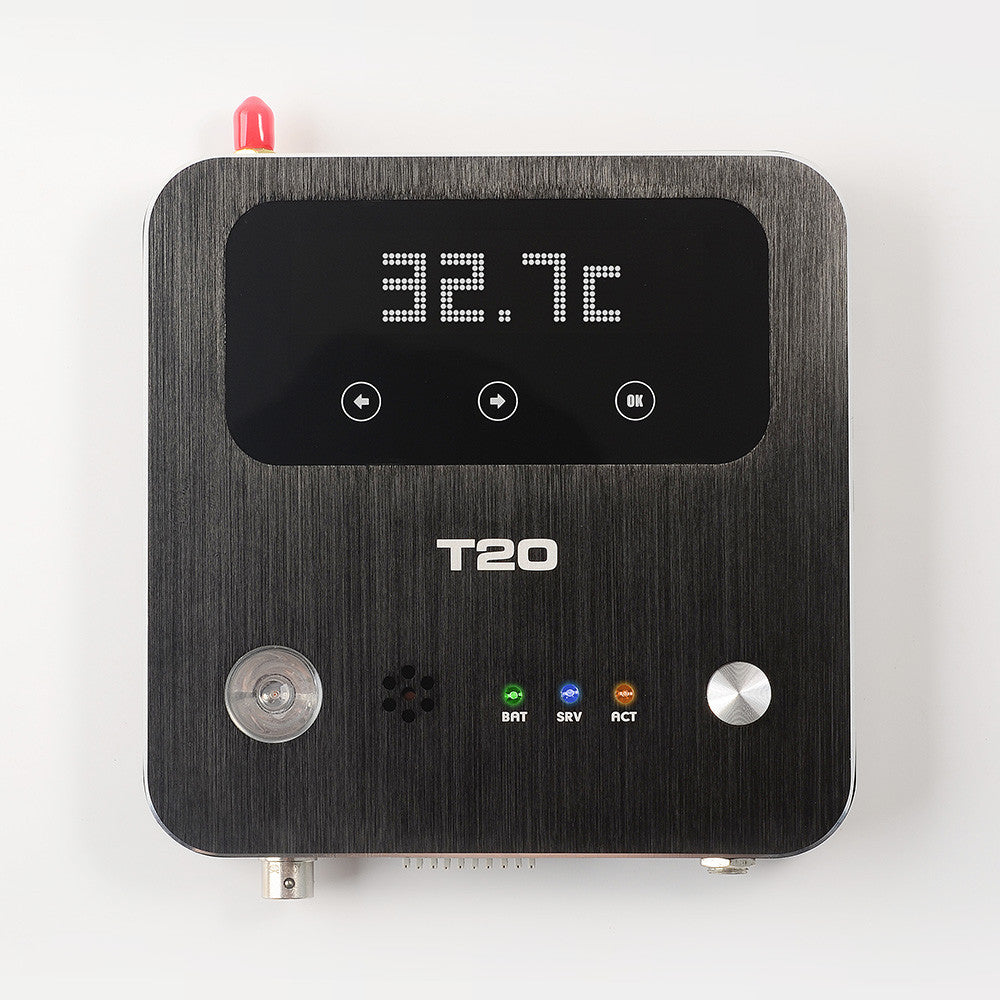

T20 Wireless Gsm 3g 4g Wifi Temperature Humidity Alarm Controller Data Logger

Regular price $116.00 USD
Regular price Sale price $116.00 USD
Sale Sold out
样式

Please notice: All prices are untaxed!

T20 Wireless Gsm 3g 4g Wifi Temperature Humidity Sensor Alarm Controller Data Logger




T20 Options

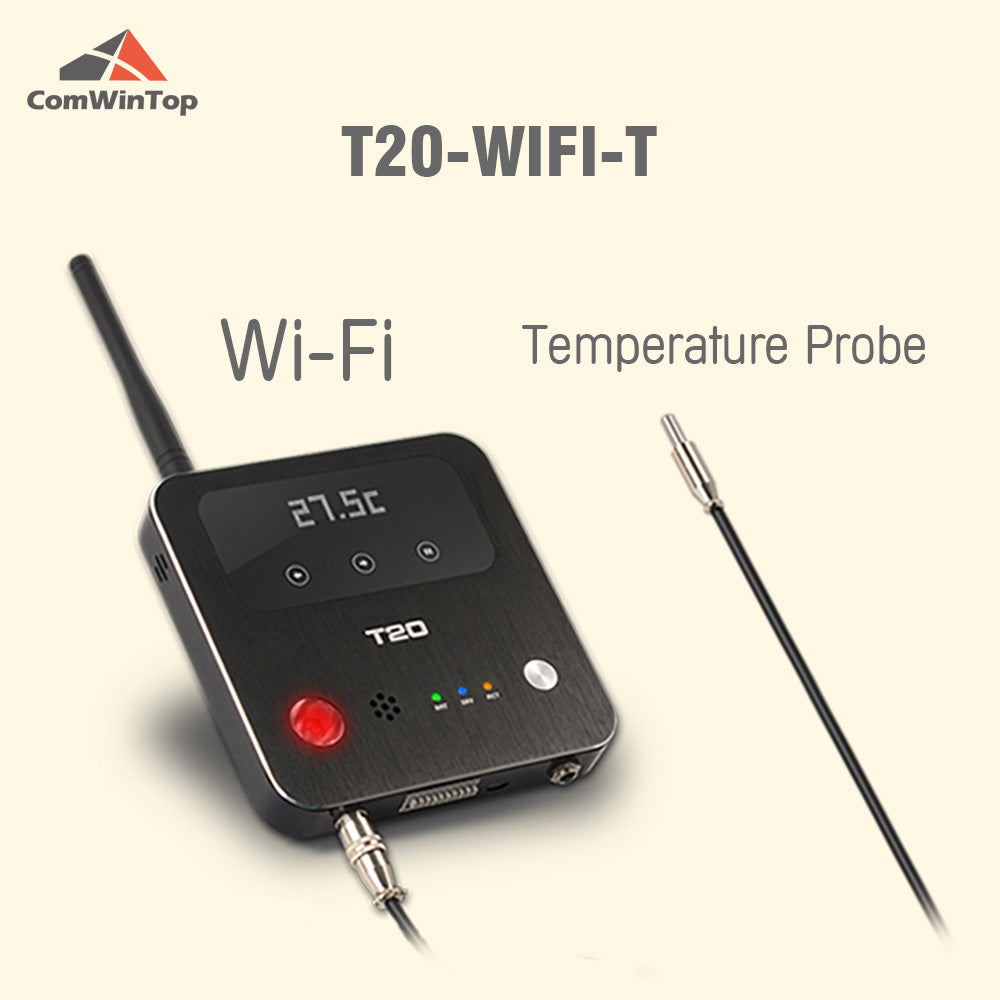

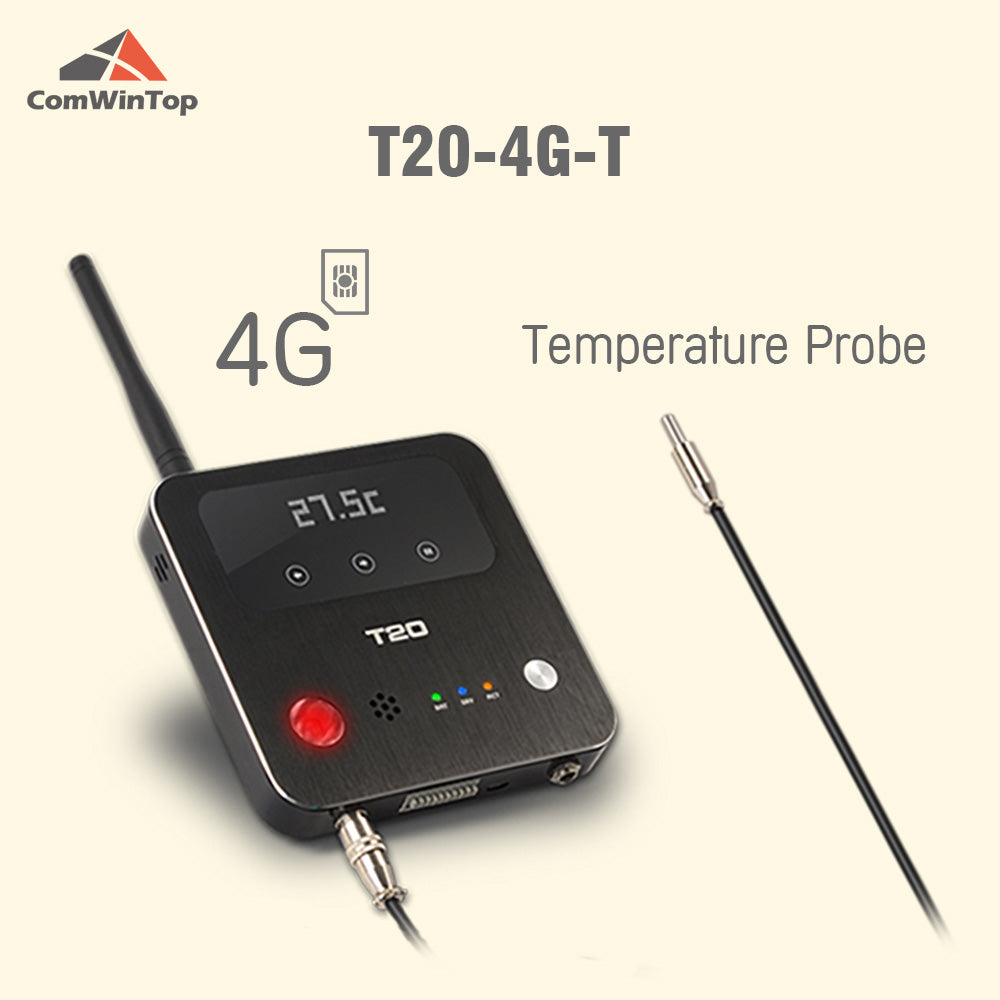

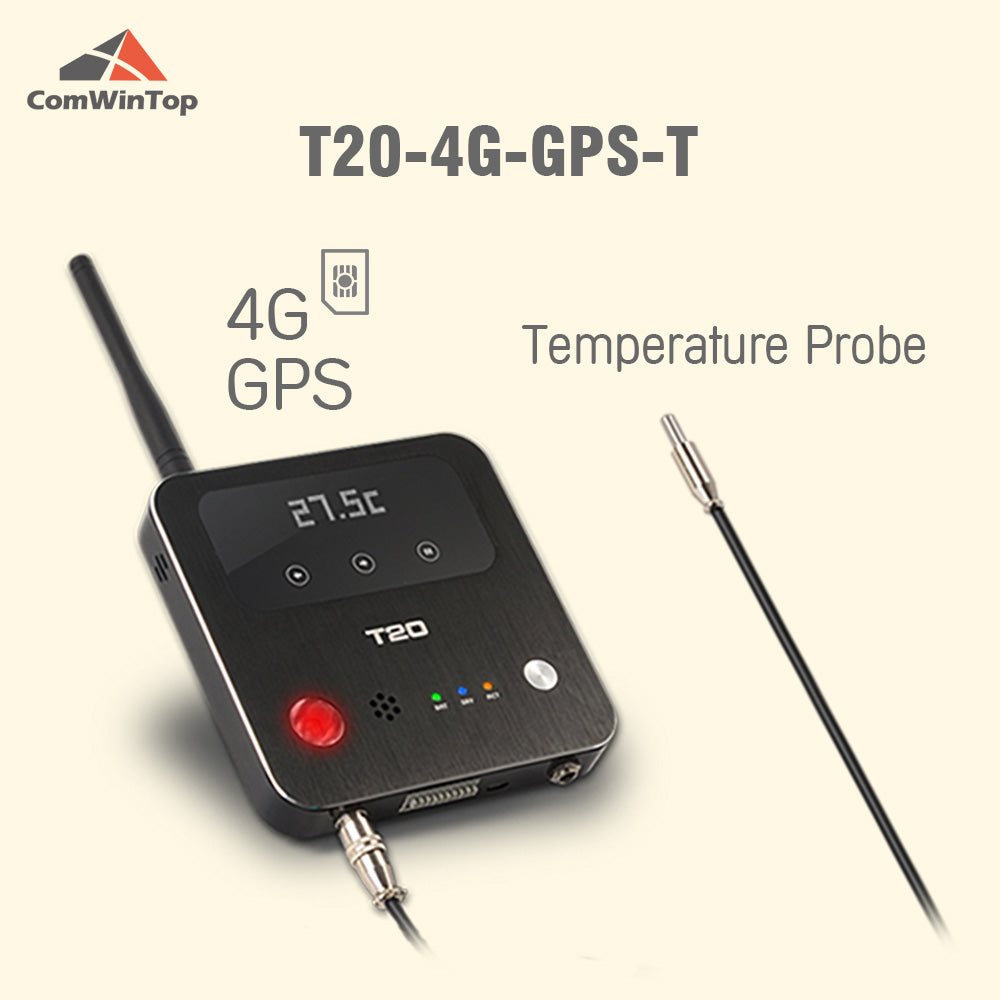

T20 with temperature probe

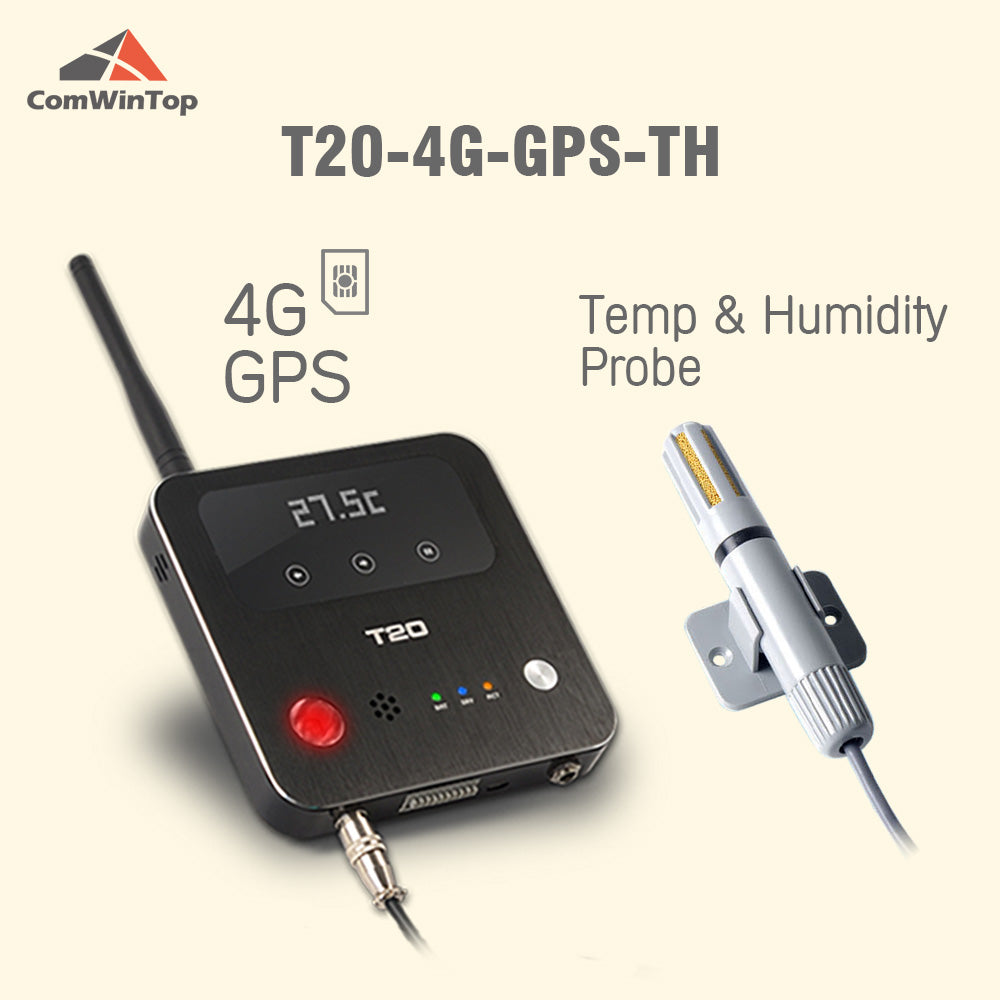

T20 with temperature humidity probe

Temperature Humidity Measurement
  • Temperature measurement range: -40~80℃(±0.5℃)

  • Humidity measurement range: 0-100%RH (±5%RH@25℃)

  • Support up to 2 temperature probes or 2 temperature & humidity probes

Display
  • OLED display screen

  • Touch key switch menu

Data Logger
  • Wireless record to Cloud, optional cellular or Wi-Fi version

  • Memory data storage capacity: 15000 readings

  • Automatically data store when network connection lost

  • Recover the stored to Cloud when connection is back to normal

Thermostat
  • Inside 3 relays

  • Temperature and humidity high or low interlock

  • Programmable timer relay action

SMS (only cellular version support)
  • Preset 10 authorized phone numbers

  • Configurable alarm/recover SMS

  • Query current value by SMS

  • Control relay by SMS

  • Remote setting by SMS

TCP/IP connect
  • TCP/IP connect 4 internet servers (IP or domain)

  • Http post, Cwt_IO protocol

  • Real-time/logging upload data

Real-time Data Monitoring
  • Login cloud via web or APP to monitor data

  • Support export data form cloud platform

Alarm
  • Configurable temperature/humidity low and high level to alarm

  • High-brightness red led light on panel

  • Built-in alarm buzzer

  • Power failure/recover alarm

  • Support 2 wired inputs for alarm




SPECIFICATION

MCU

Cortex M3 32-bit ARM

Power supply

12V DC (Standard adapter: DC 12V/1.5A)

Consumption

12V input  Max. 340mA

Temperature Measurement range

-40~80℃(±0.5℃)

Humidity Measurement range

0-100%RH (±5%RH@25℃)

Probe

Option: temperature or temperature & humidity probe

Wireless Network

Either GPRS or 4G (need simcard) or Wi-Fi(no need simcard)

Option:

GSM/GPRS (4 band 850/900/1800/1900Mhz)

FDD LTE(4G)

Wi-Fi, 802.11 b/g security WEP/WPA/WPA2

GPS module

Optional for 4G

Antenna interface

Standard SMA female interface (50Ω)

Working temperature

-30℃~+70

Working humidity

Relative humidity 95%

Display

OLED

Key

Touch

Digital input

2 channel

Digital Output

3 relay output (NO),DC220V 2A / AC 125V 2A

Alarm light

Red LED light

Alarm sound

Inside buzzer,Loudness : 85dB

Config port

Mini USB,(windows)

Battery

lithium-polymer, 1000mAh/3.7V,life:6 hours

Dimension

130×130×20mm

Weight

265g

Housing

Aluminum front panel , back case ABS
