Soil Moisture Temperature Humidity EC PH NPK Sensor 7 in 1 Rapid Soil tester meter

$110.00 USD
$110.00 USD
Sale Sold out
样式

Please notice: All prices are untaxed!

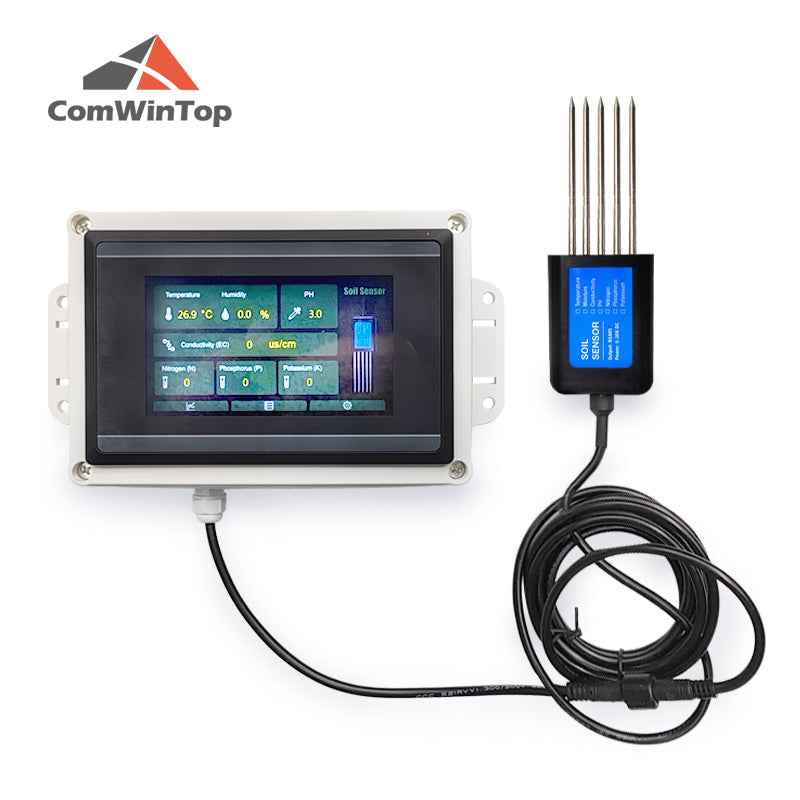

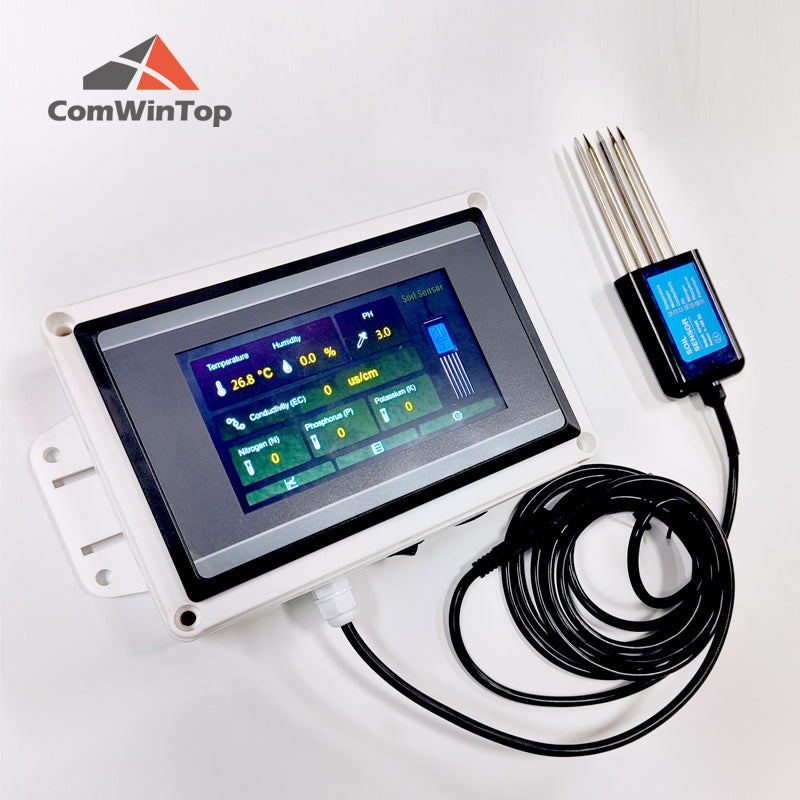

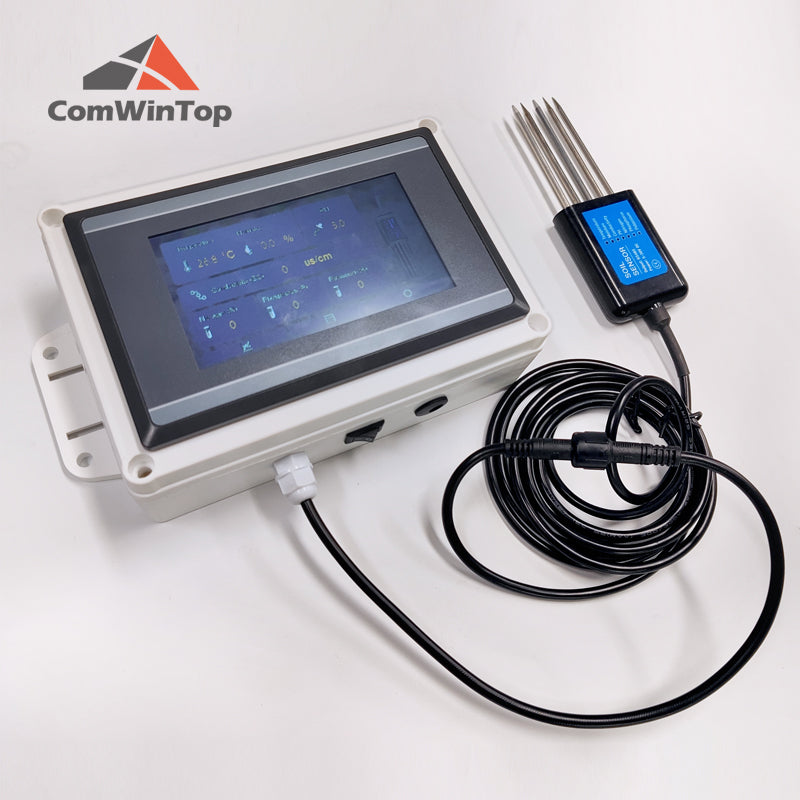

Soil Moisture Temperature Humidity EC PH NPK Sensor

7 in 1 Rapid Soil tester meter

Important Reminder

The measurement of NPK adopts the general rapid detection method, so there are certain error, Use with caution for planting reference.
The existing electronic measuring method cannot accurately measure NPK, the error is big, sensor only show trend of NPK.

Features

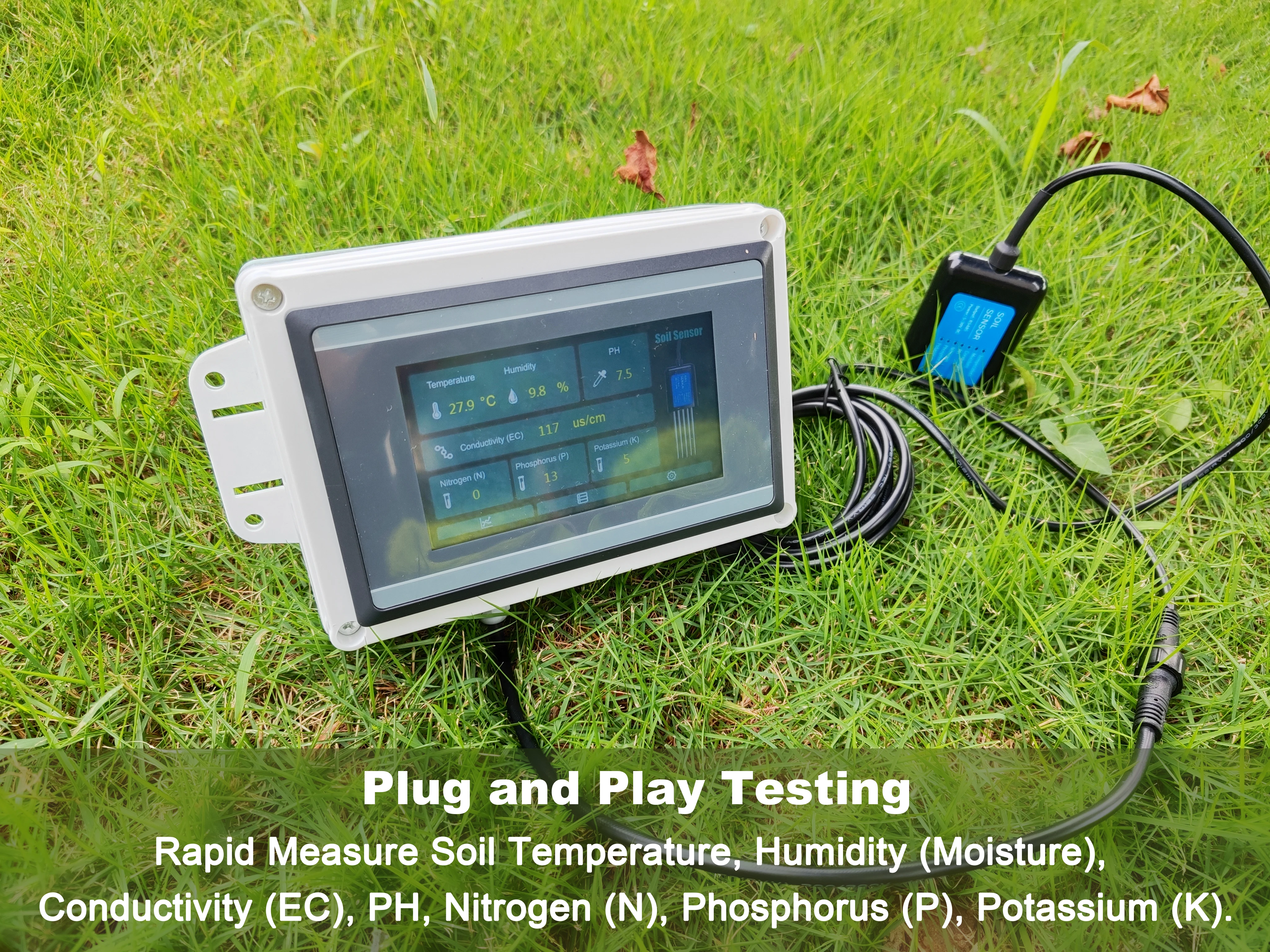

  1. Plug and play testing, Rapid measure soil Temperature, humidity (Moisture), conductivity (EC), PH, Nitrogen (N), Phosphorus (P), Potassium (K).

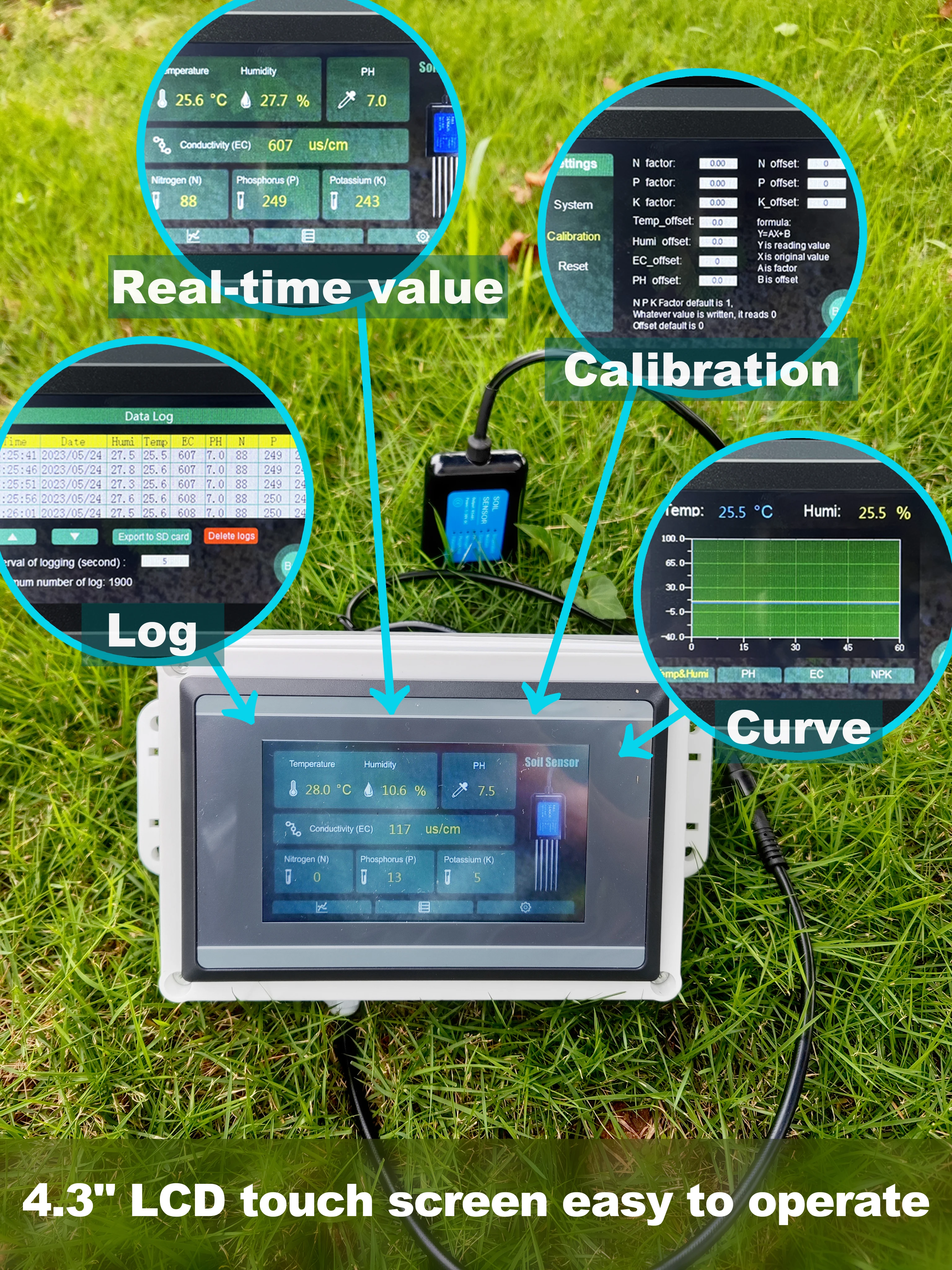

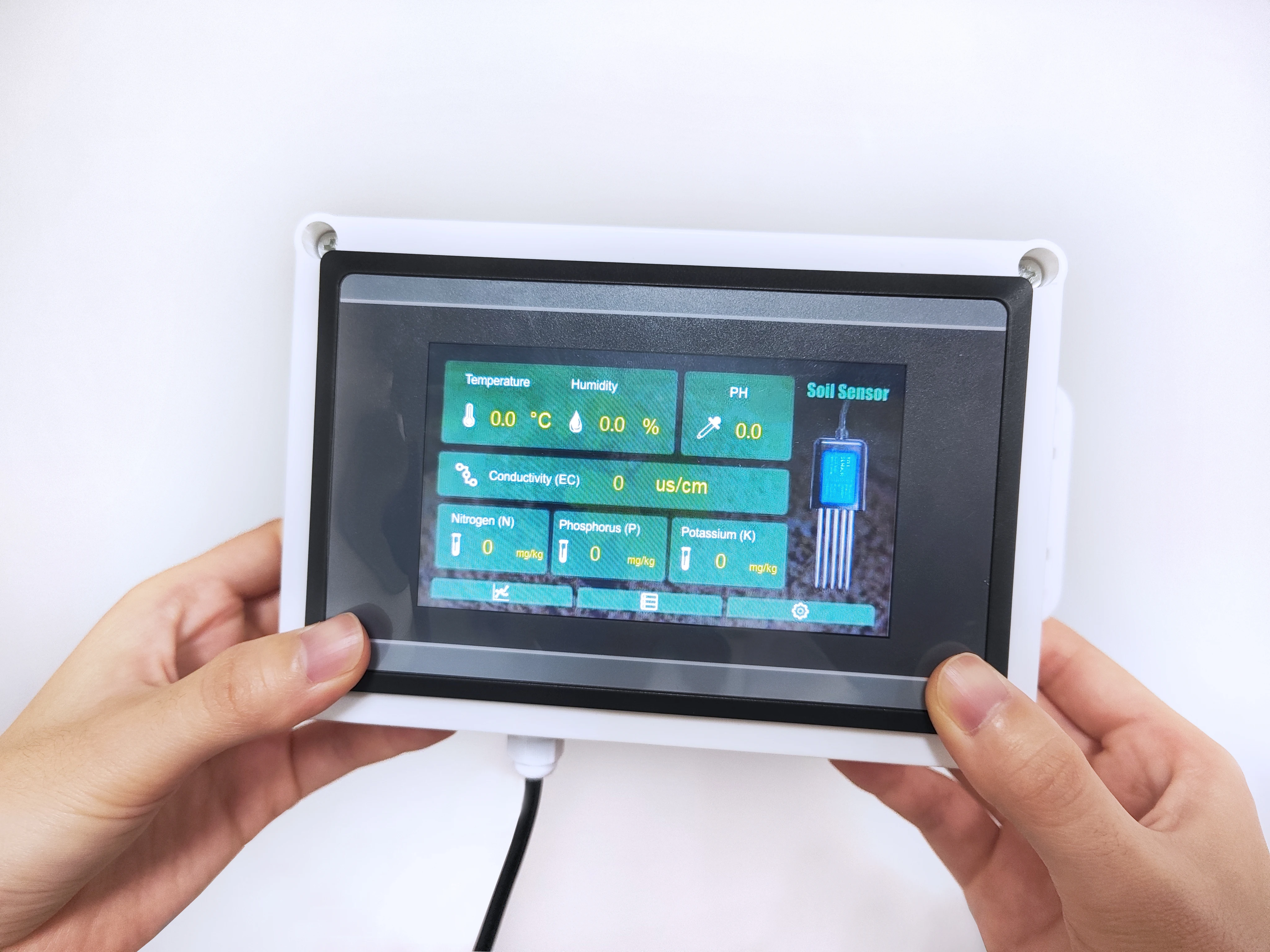

  2. 4.3" LCD touch screen easy to operate, display real-time value, curve, logs, can set calibration on screen

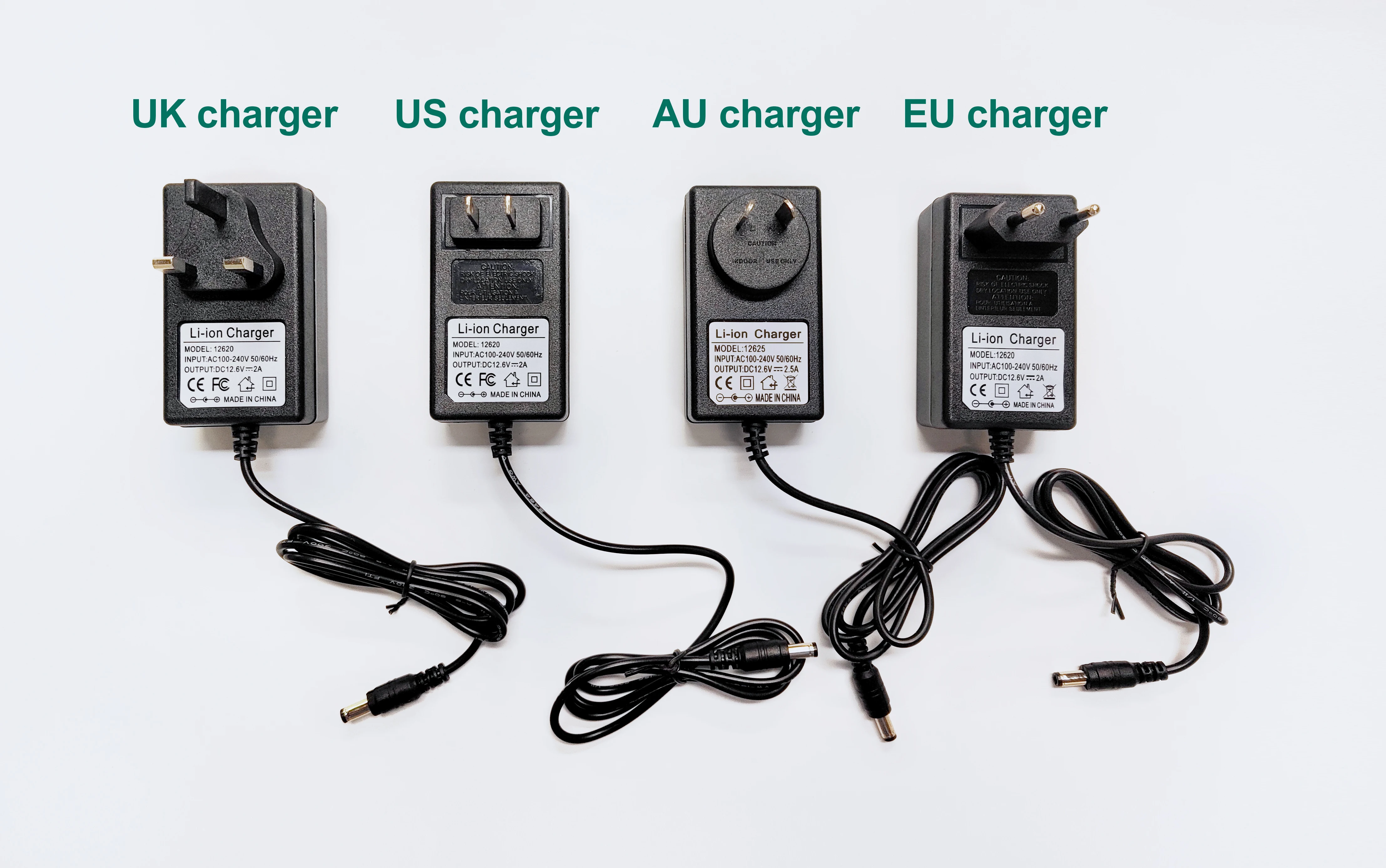

  3. Inside 5000mA rechargeable lithium battery, can continuously operate for 48 hours, come with AC110/220V to DC13.6V charger

  4. Support 1900 logs, settable interval of logging, can export logs to SD card, come with 1GB SD card

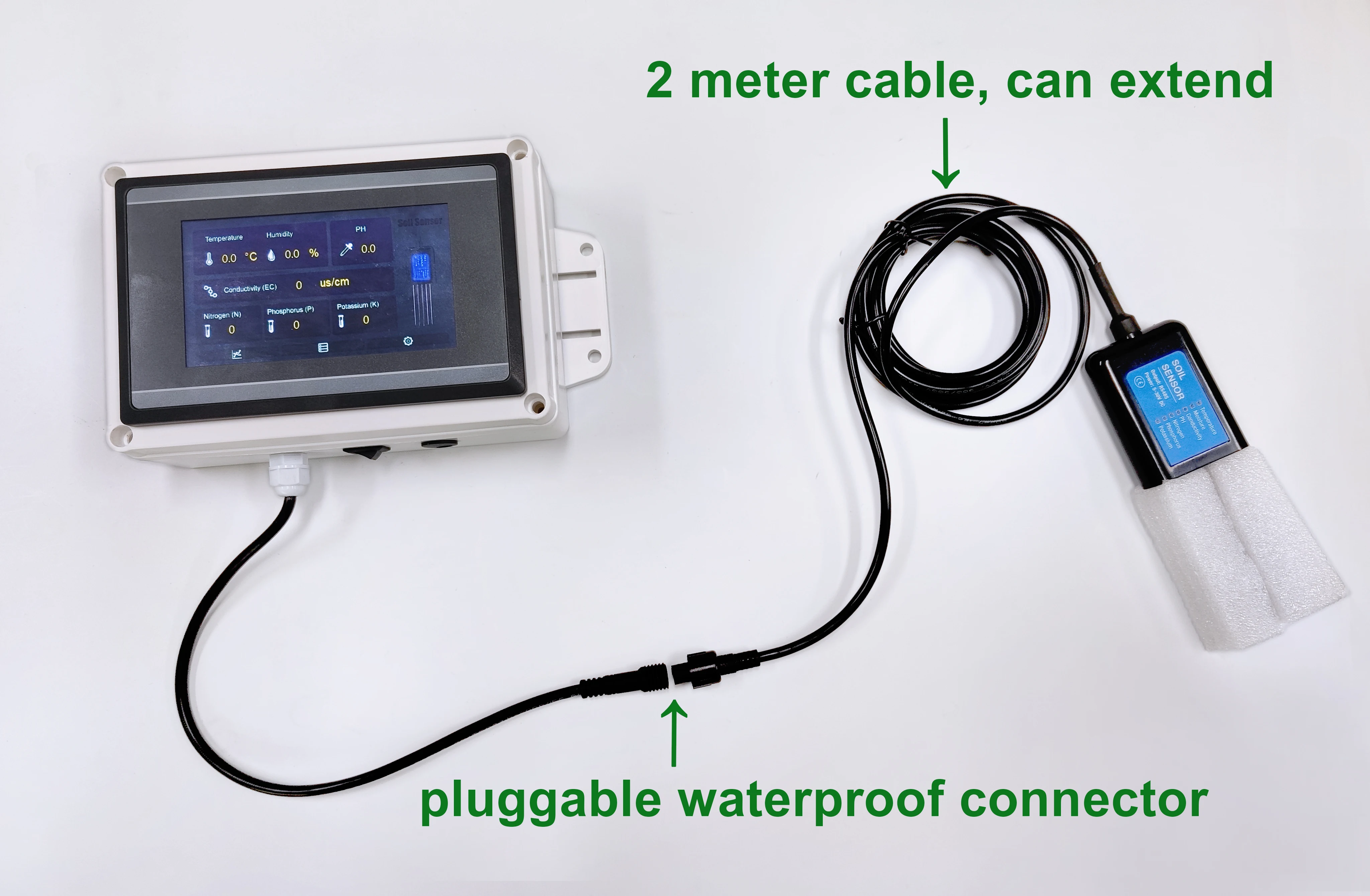

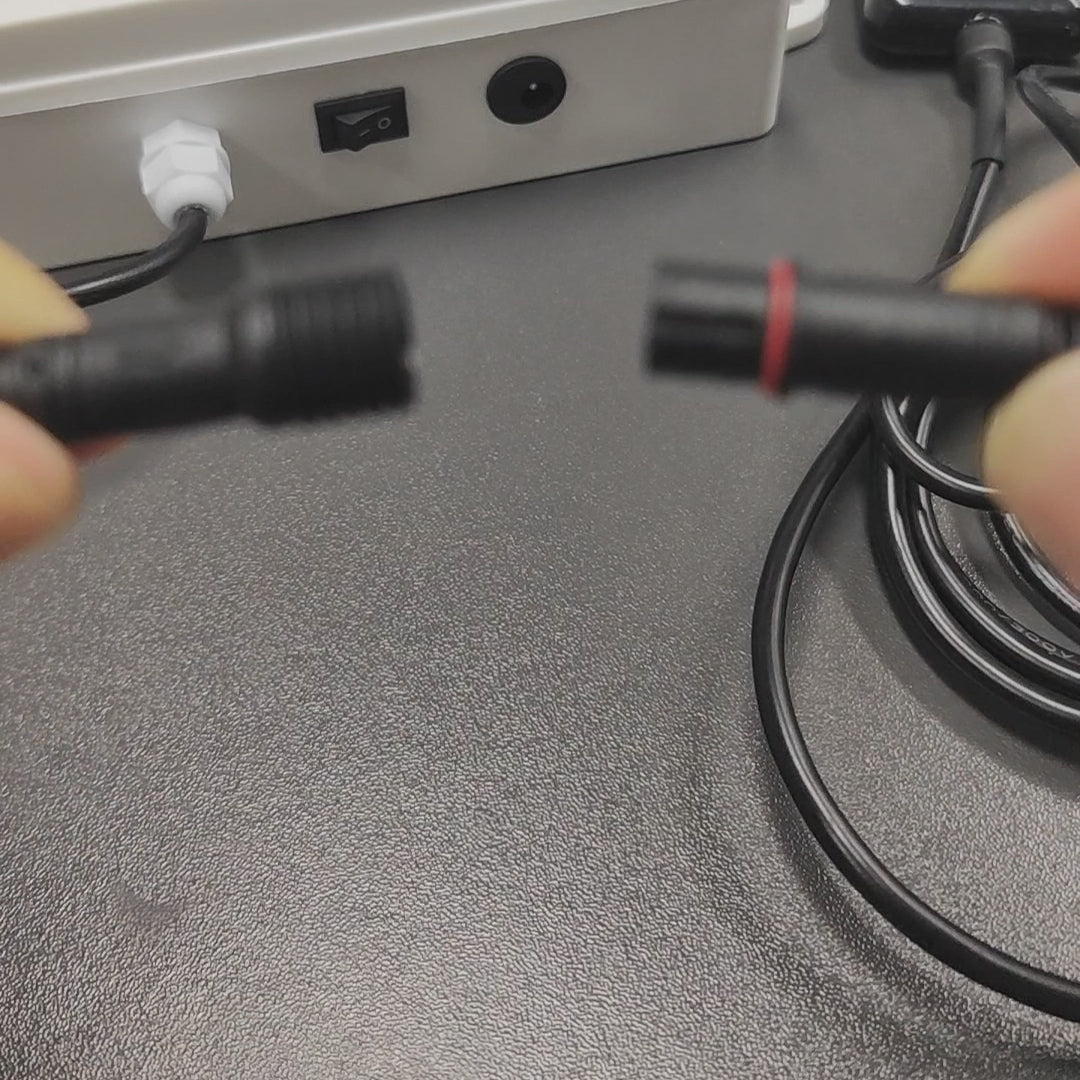

  5. Connect sensor by pluggable waterproof connector

  6. Sensor cable length is 2m, can extend

  7. Portable or wall-mounted

  8.        Can setup system language:
           Language version 1: Support English, French, German, Italian, Spanish, Portuguese.
           Language version 2 : Support English, Korean, Japanese, Thai, Russian, Arabic.
           It can also be customized in other system languages.


Soil parameters measuring


Temperature

  • Measuring range: -40℃-80℃

  • Accuracy: ±0.5℃ (25℃)

  • Long-term stability: ≤0.1%℃/y

  • Response time: ≤15s

Humidity

  • Measuring range: 0-100%RH

  • Accuracy: 3% within 0-50%, 5% within 50-100%

  • Long-term stability: ≤1%RH/y

  • Response time: ≤4s

Conductivity (EC)

  • Measuring range: 0-20000us/cm

  • Accuracy: 0-10000 us/cm range is ±3%; 10000-20000 us/cm range is ±5%

  • Long-term stability: ≤1%uS/cm

  • Response time: ≤1s

PH

  • Measuring range: 3-9 PH

  • Accuracy: ±0.3PH

  • Long-term stability: ≤5%/year

  • Response time: ≤10S

Nitrogen

Phosphorus

Potassium

  • Measuring range: 1-2999 mg/kg(mg/L)

  • Resolution：1 mg/kg(mg/L)

  • Response time: ＜1S


Reminder of measuring

  1. NPK is measured using general rapid detection methods, which have certain errors and should be used with caution for planting reference. Existing electronic measurement methods cannot accurately measure NPK, it only displays the trend of NPK, just for reference.

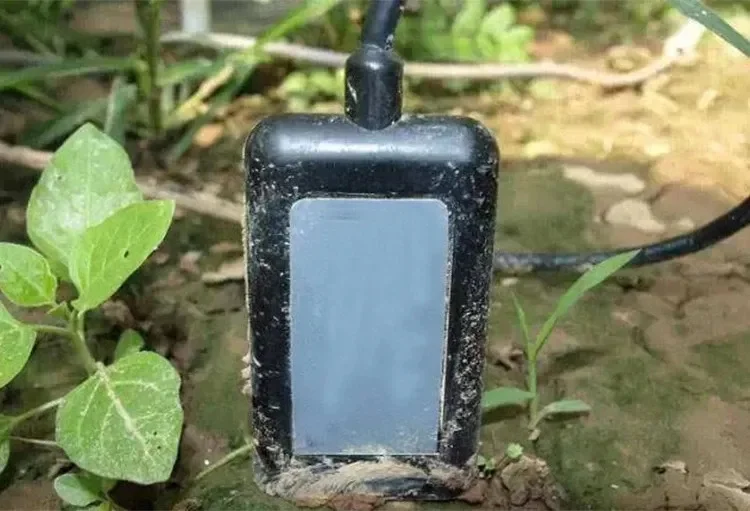

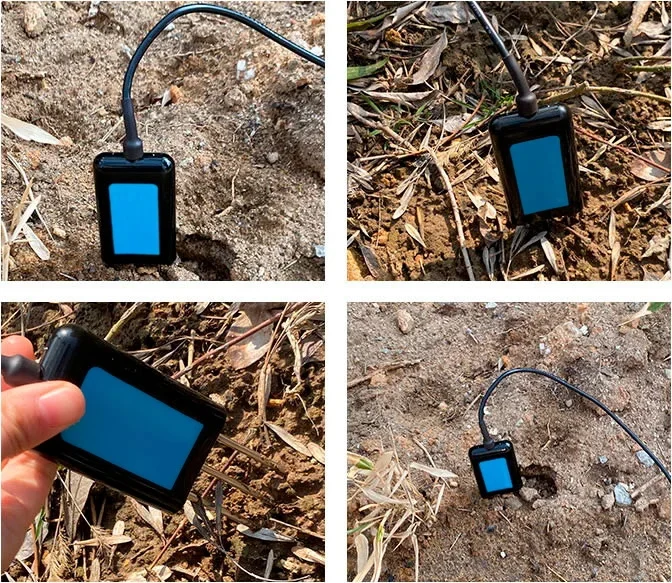

  2. Probes are inserted in the soil for more than 2 minutes to measure the accurate value (PH need 5 minutes)


Specification


Power supply

DC12.6V

Max Power consumption

2W

Screen

4.3" TFT LCD

Resolution (PX)

480X272

Operating environment

-10℃-50℃/ 10~90%RH

Screen dimensions

142*70.5*27mm

Weight

1 kg

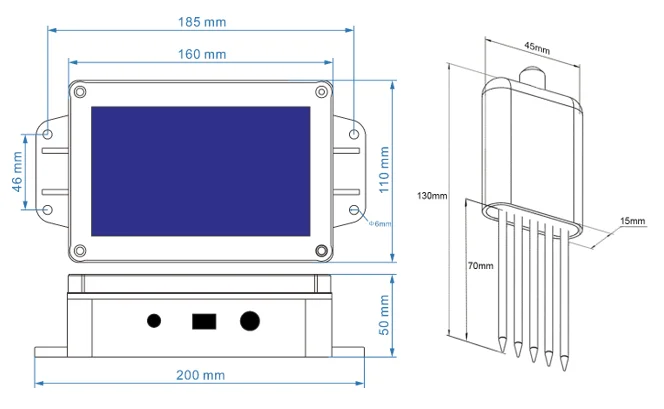

Size


Sensor measuring range
