Single Three axis vibration monitoring Fan motor vibrating string instrument RS485 Industrial temperature vibration sensor
Introduction:

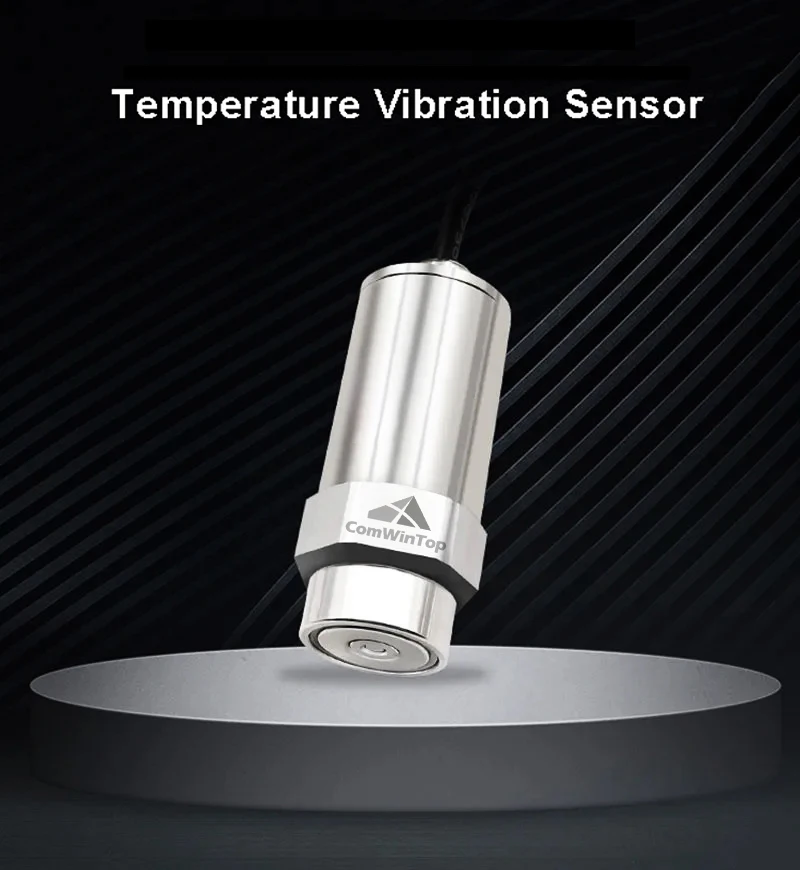

This temperature vibration sensor uses high-performance MEMS chips. Adopt embedded technology, temperature sensing technology and vibration sensing technology. It has the advantages of high performance, low power consumption and anti-interference. Widely used in motors, reducers, generators, air compressors, centrifuges, water pumps and other equipment temperature vibration measurement.
Specifications:
|
Power supply |
DC10-30V |
|
Protection class |

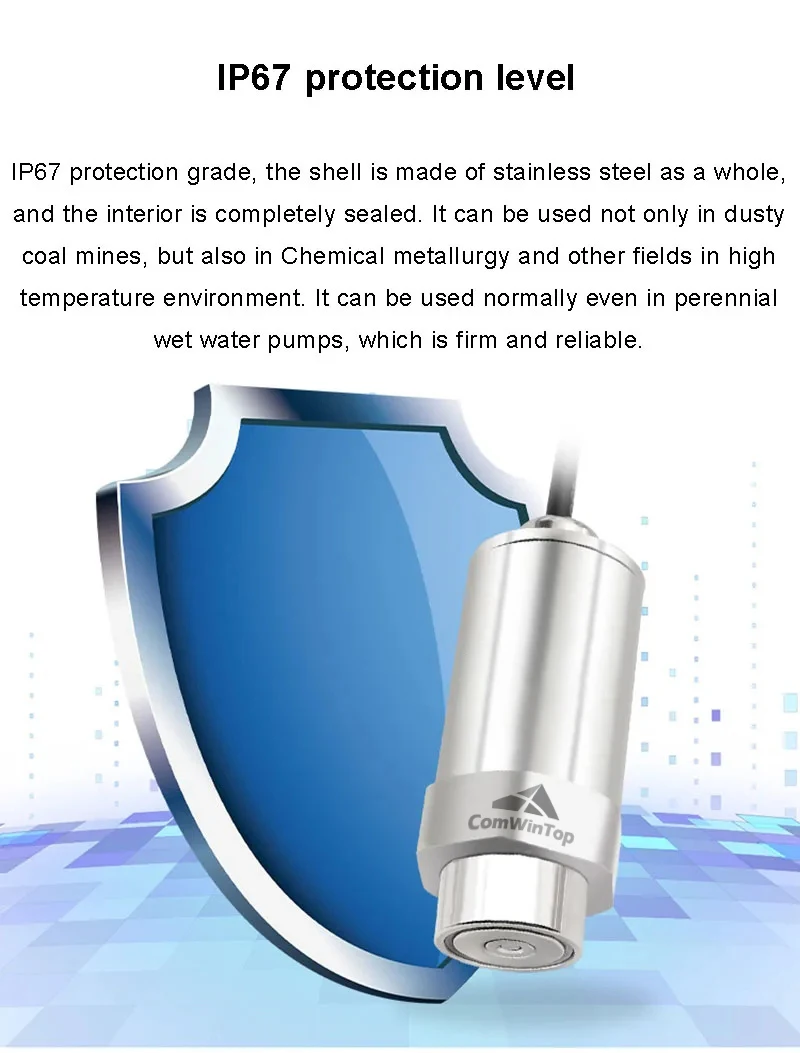

IP67 |
|
Frequency range (HZ) |

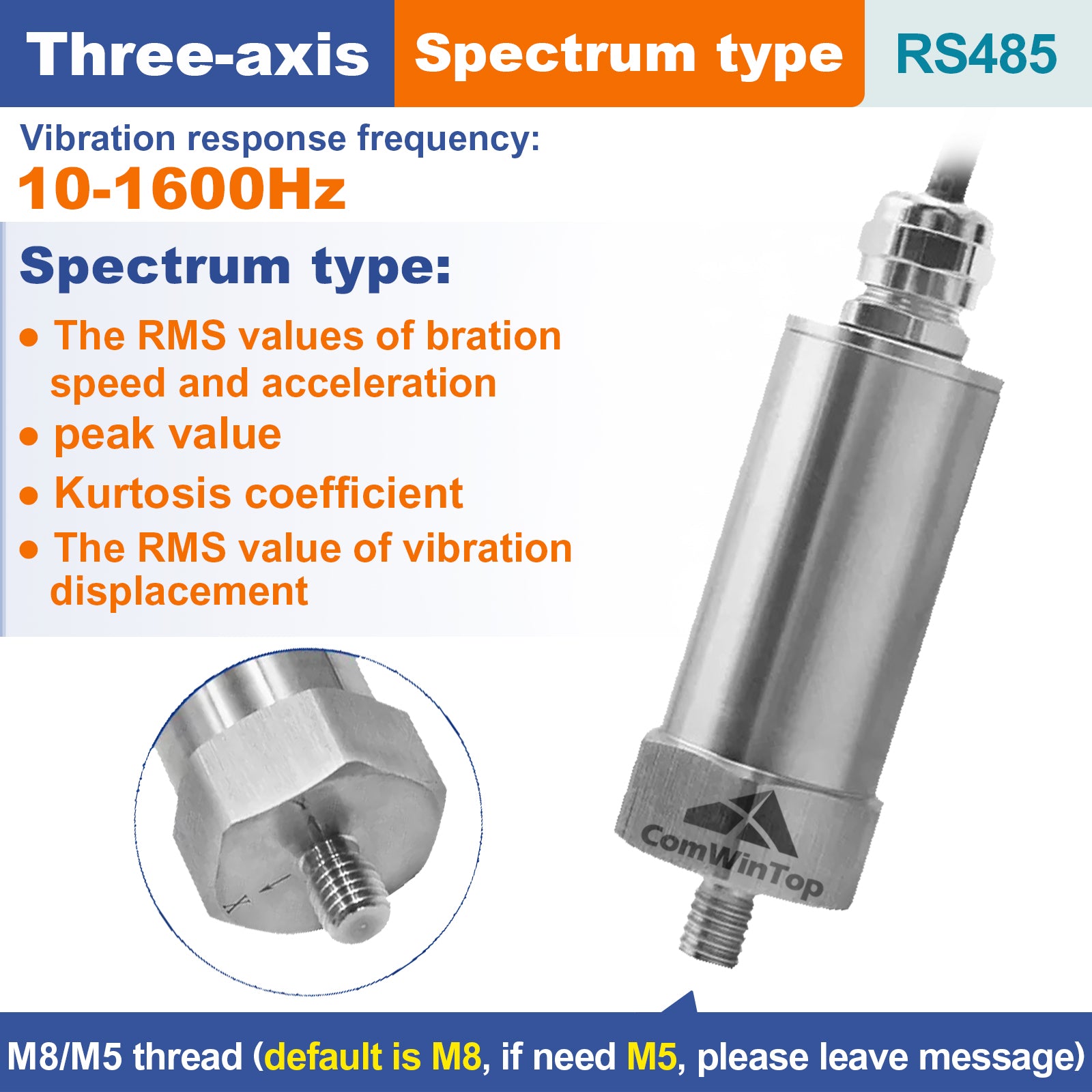

10-1600 |
|
Vibration measurement direction |

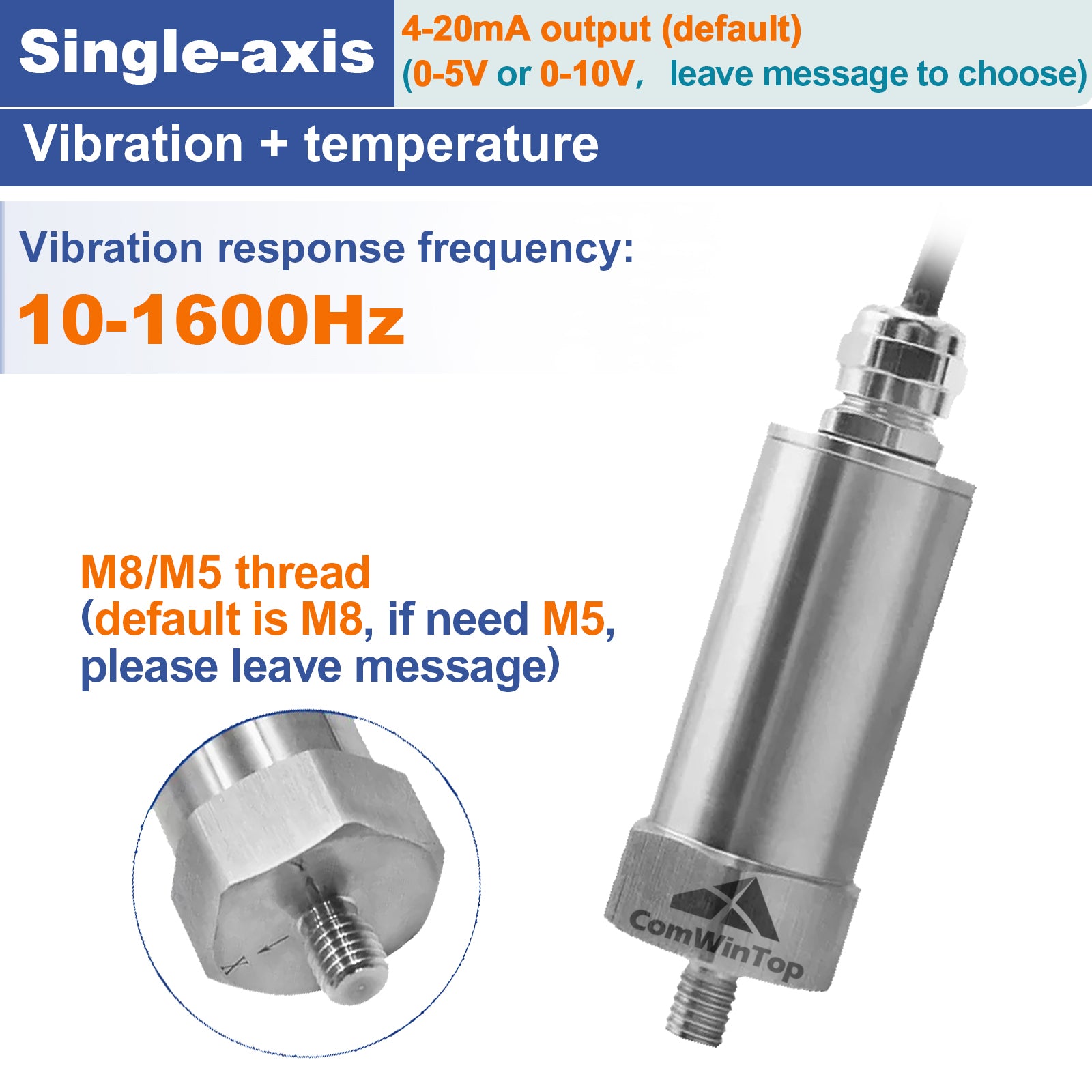

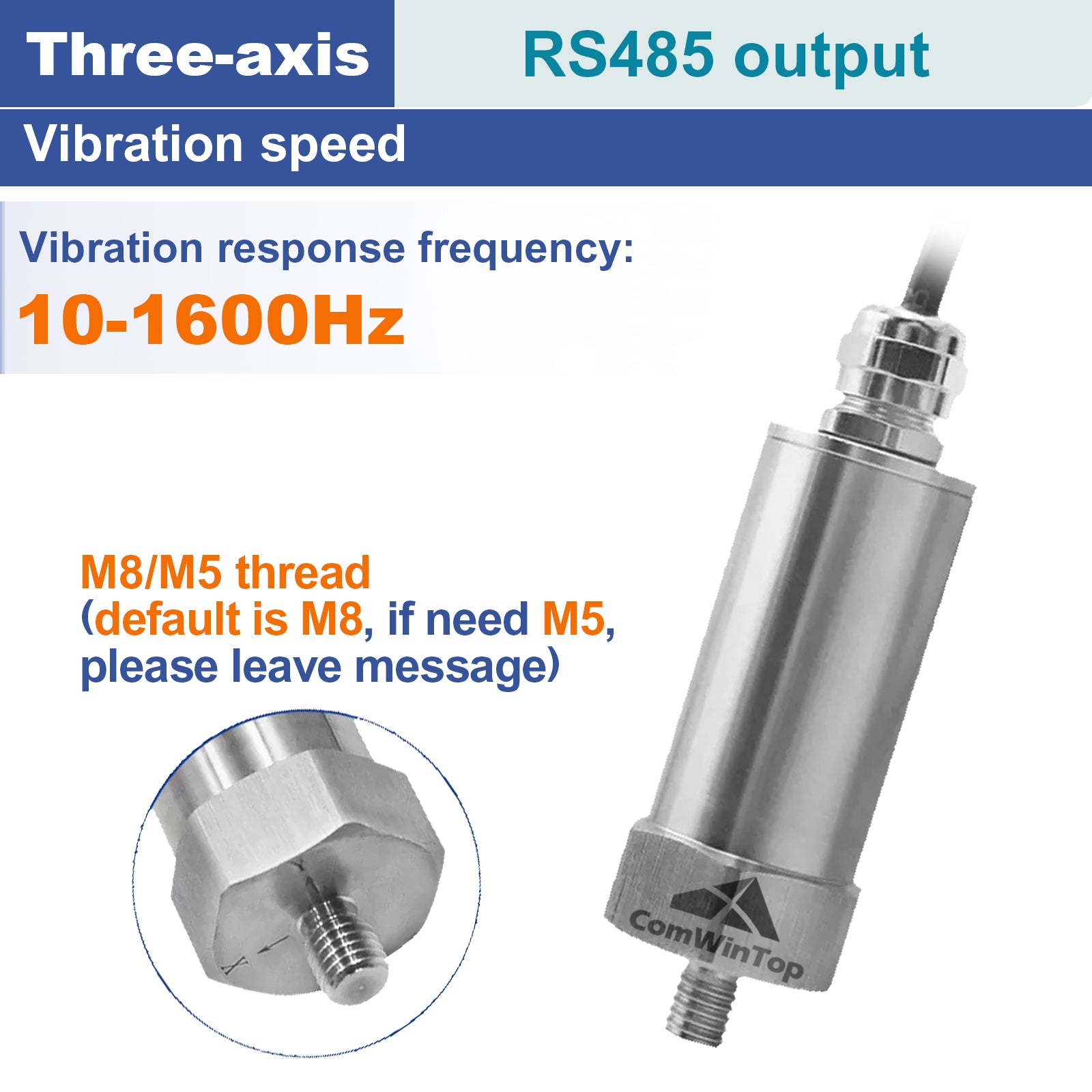

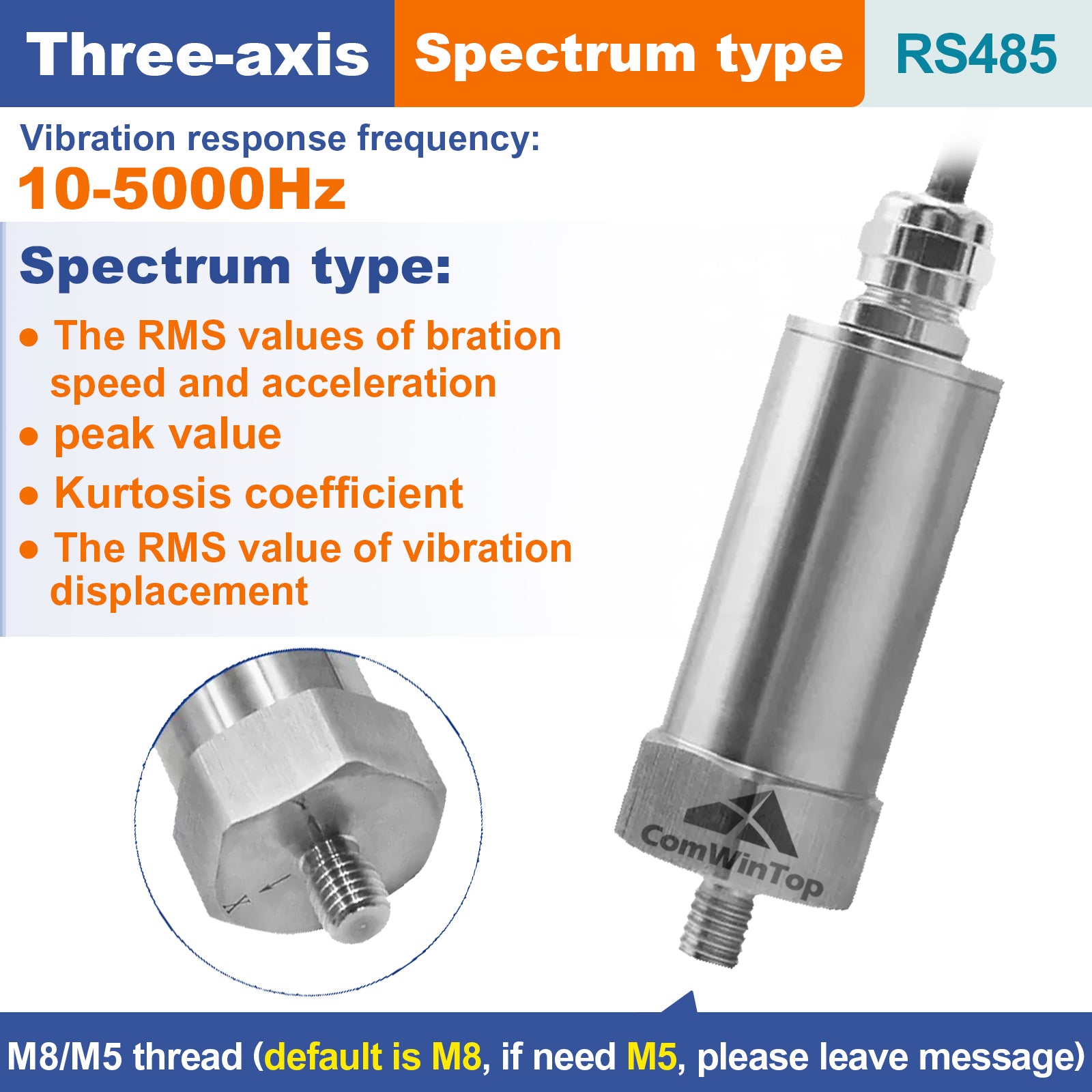

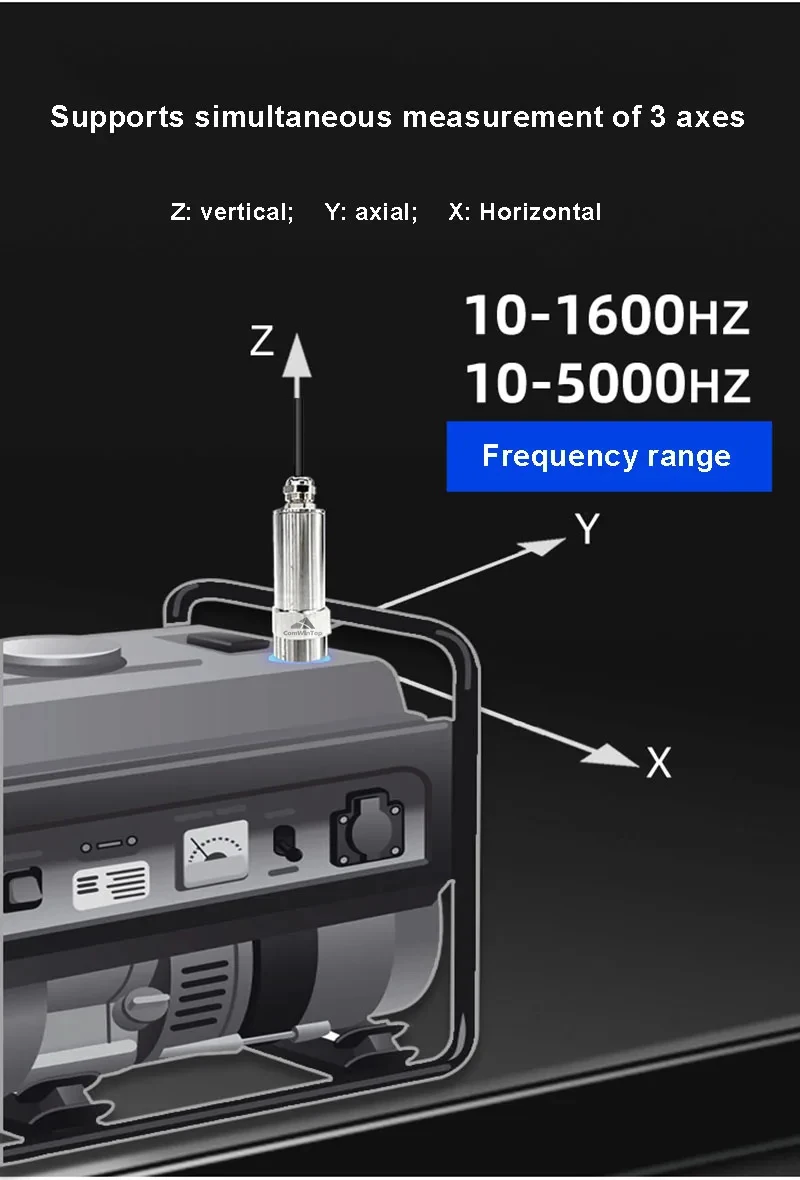

1-axis or 3-axis |
|
WorKing environment |
-40℃~+80℃, 0%RH~80%RH |
|
Vibration speed measurement range (mm/s) |
0-50 |
|
Vibration velocity measurement accuracy (mm/s) |
±1.5% FS (@1kHz, 10mm/s) |
|
Vibration speed display resolution (mm/s) |
0.1 |
|
Surface temperature measurement range (℃) |
-40~+80 |
|
Temperature display resolution (℃) |
0.1 |
|
Signal output |
RS485/4-20mA/0-5v/0-10v |
|
Detection cycle |
real-time |

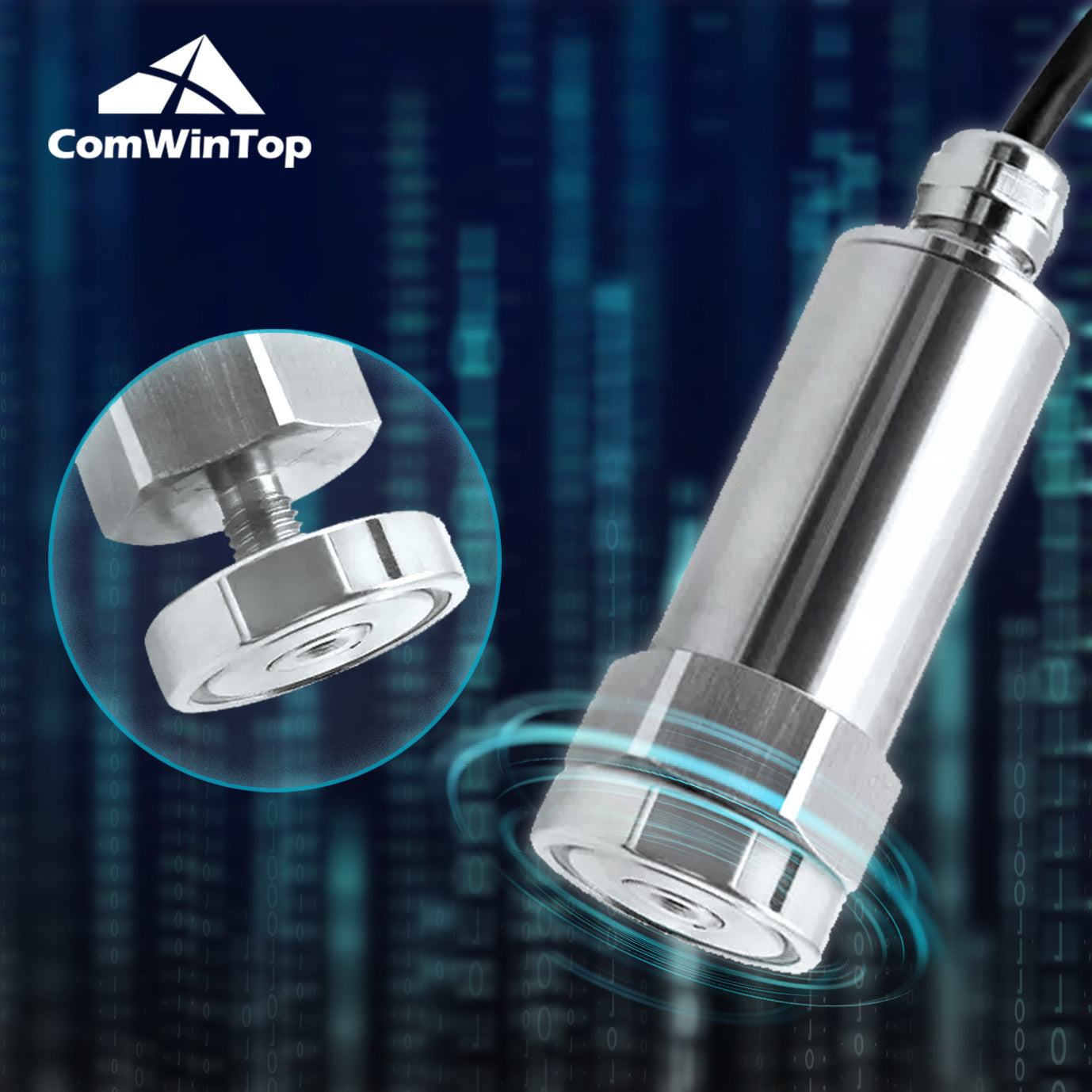

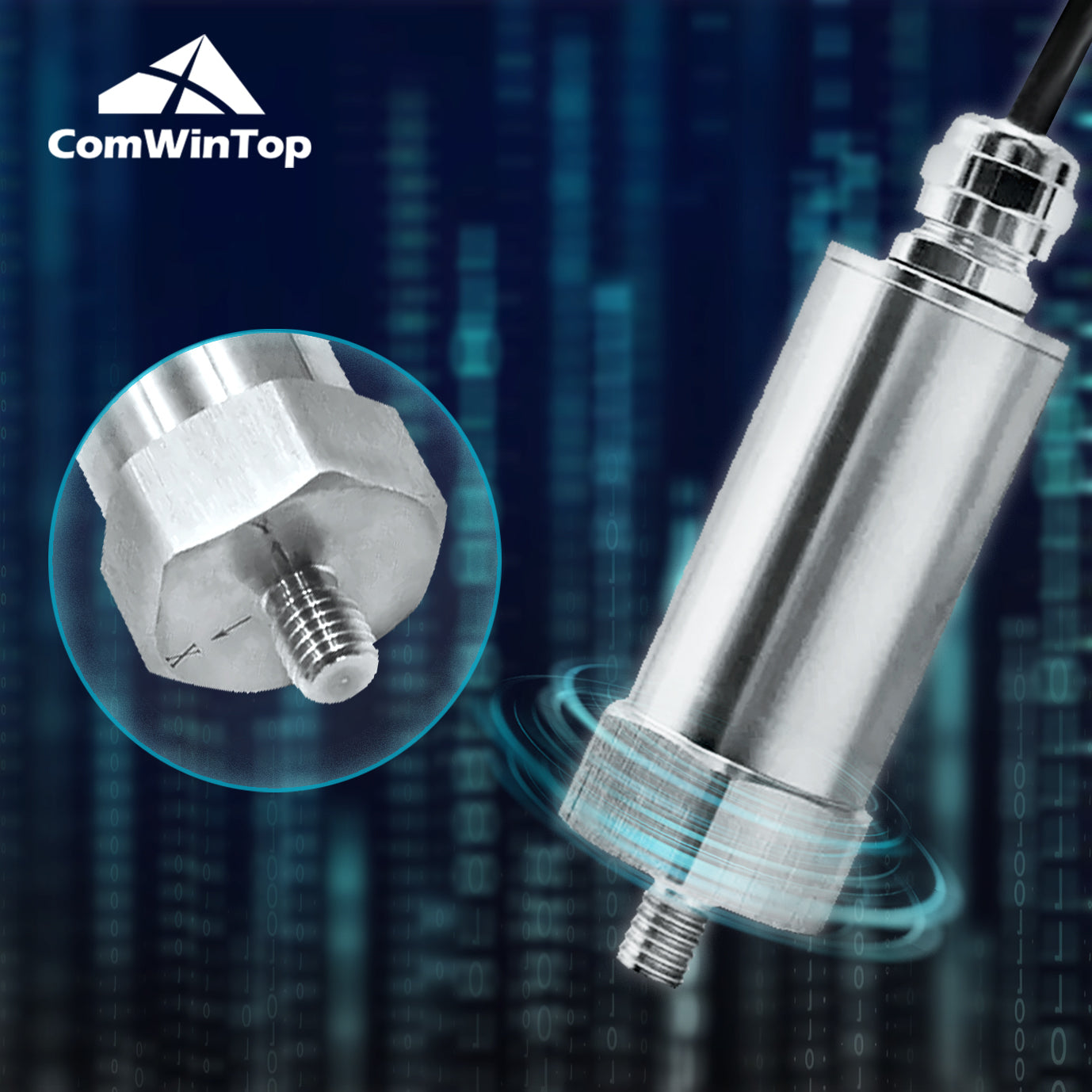

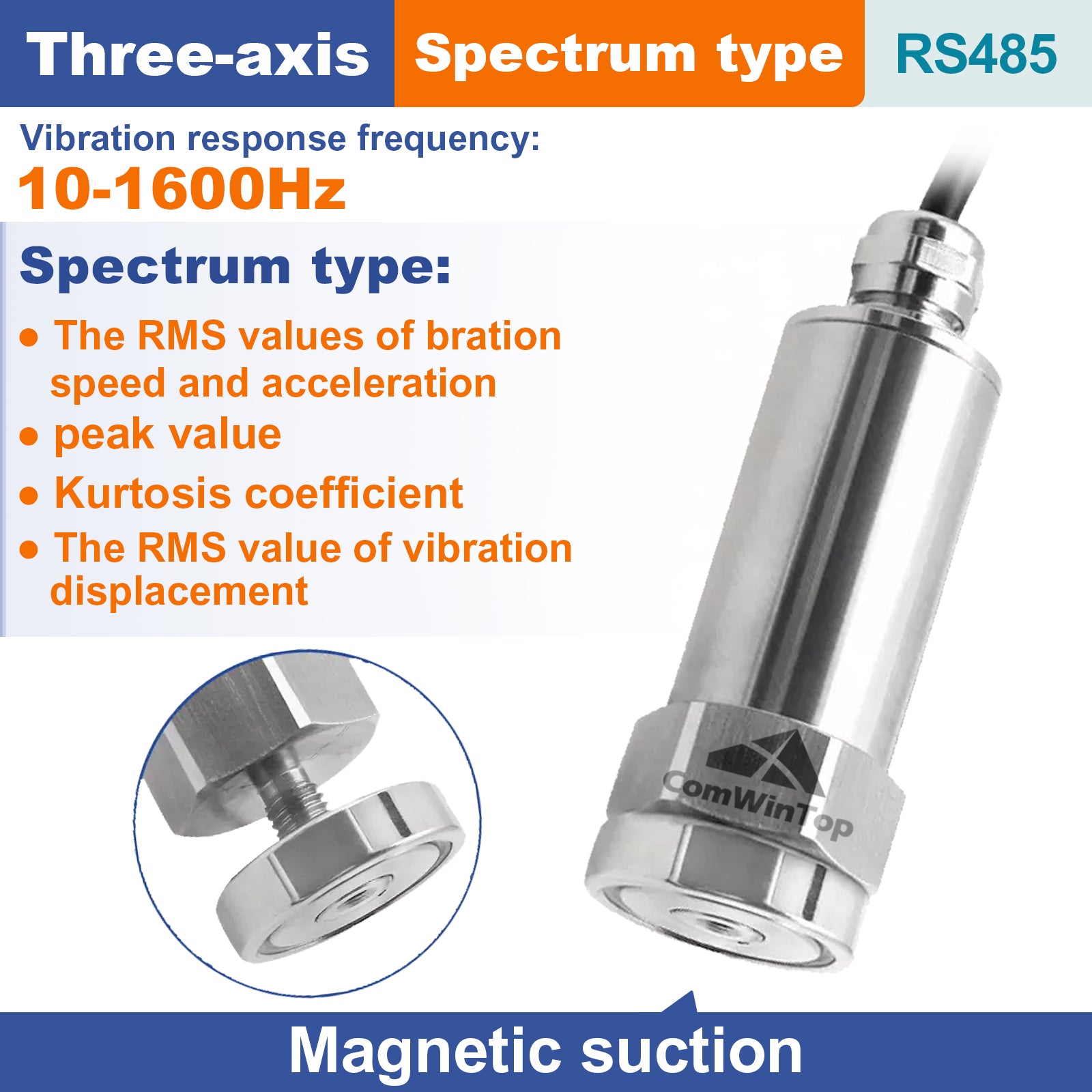

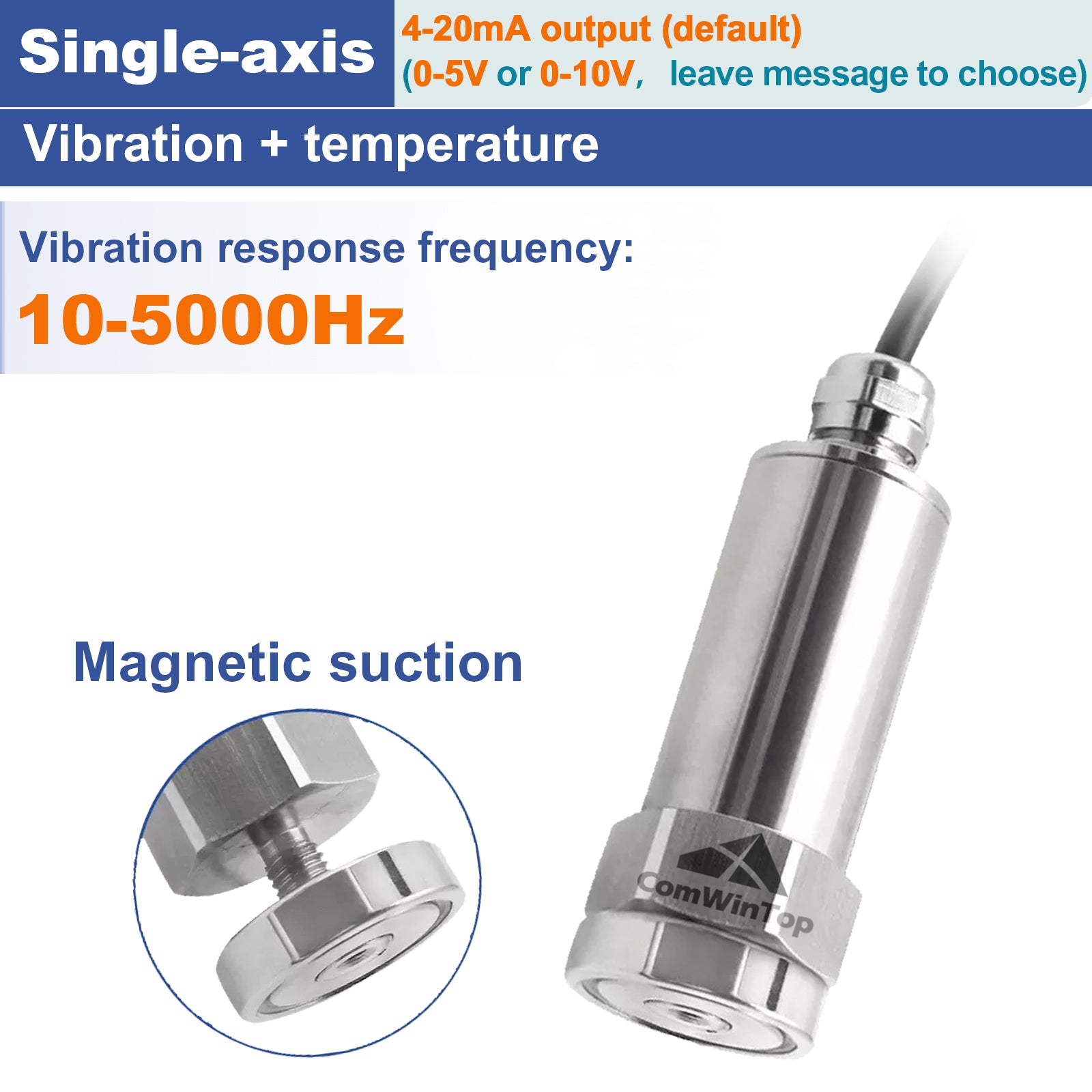

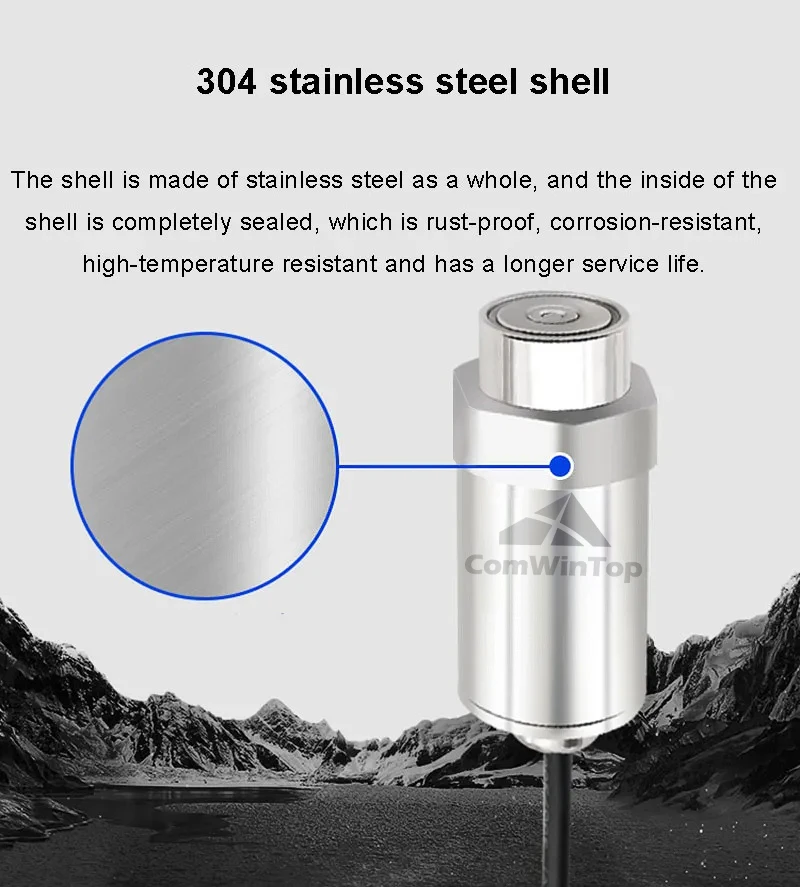

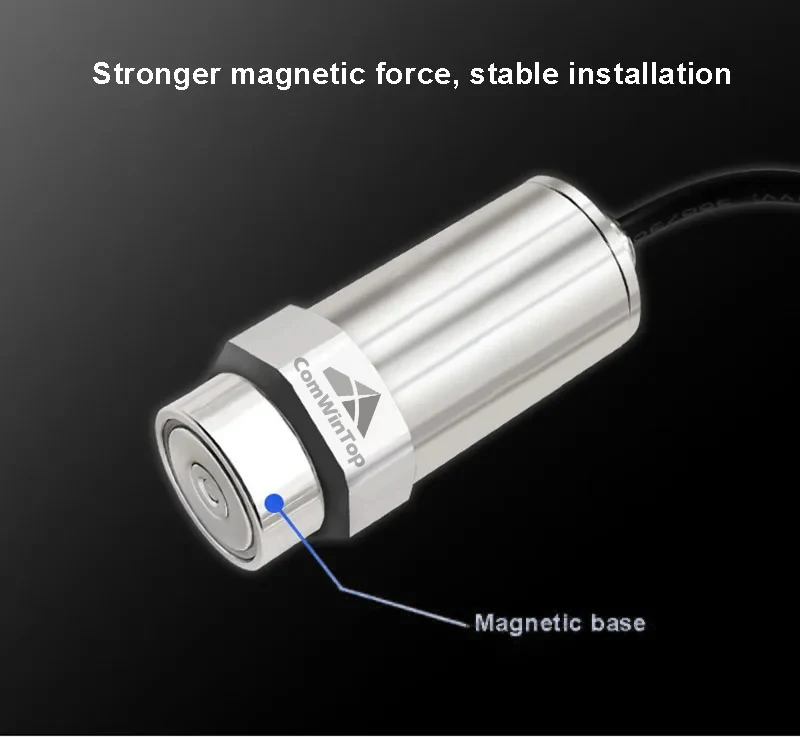

The housing is stainless steel. Threaded installation is available, and the standard threads on the metal shell can be quickly connected to the installation site. Magnetic suction installation can also be used, eliminating the problem of punching holes and making installation more convenient.
Vibration and Temperature Sensor Features:
1. Using high-performance MEMS chip, high measurement accuracy and strong anti-interference ability.

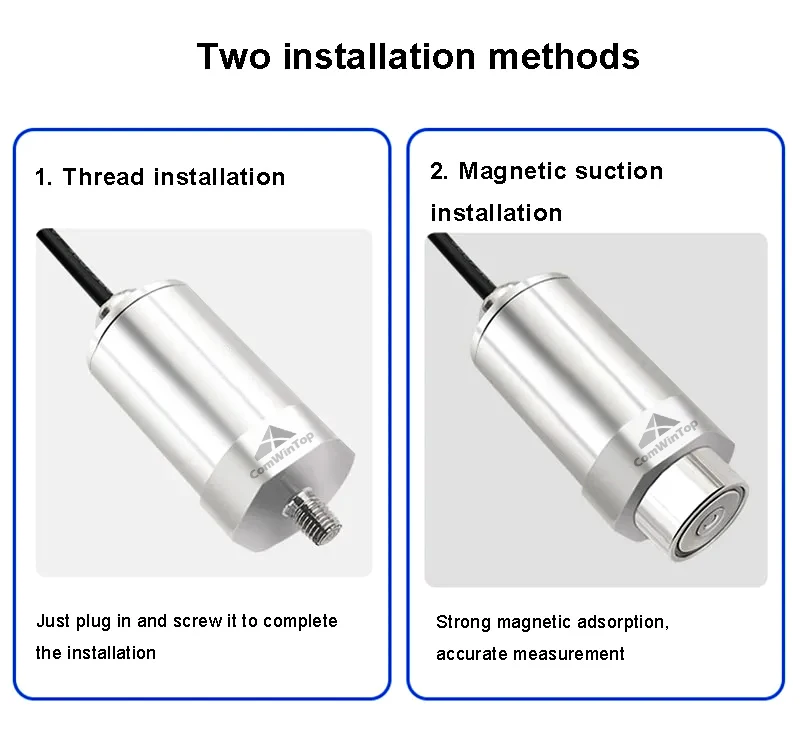

2. Provide threaded installation and magnetic installation.

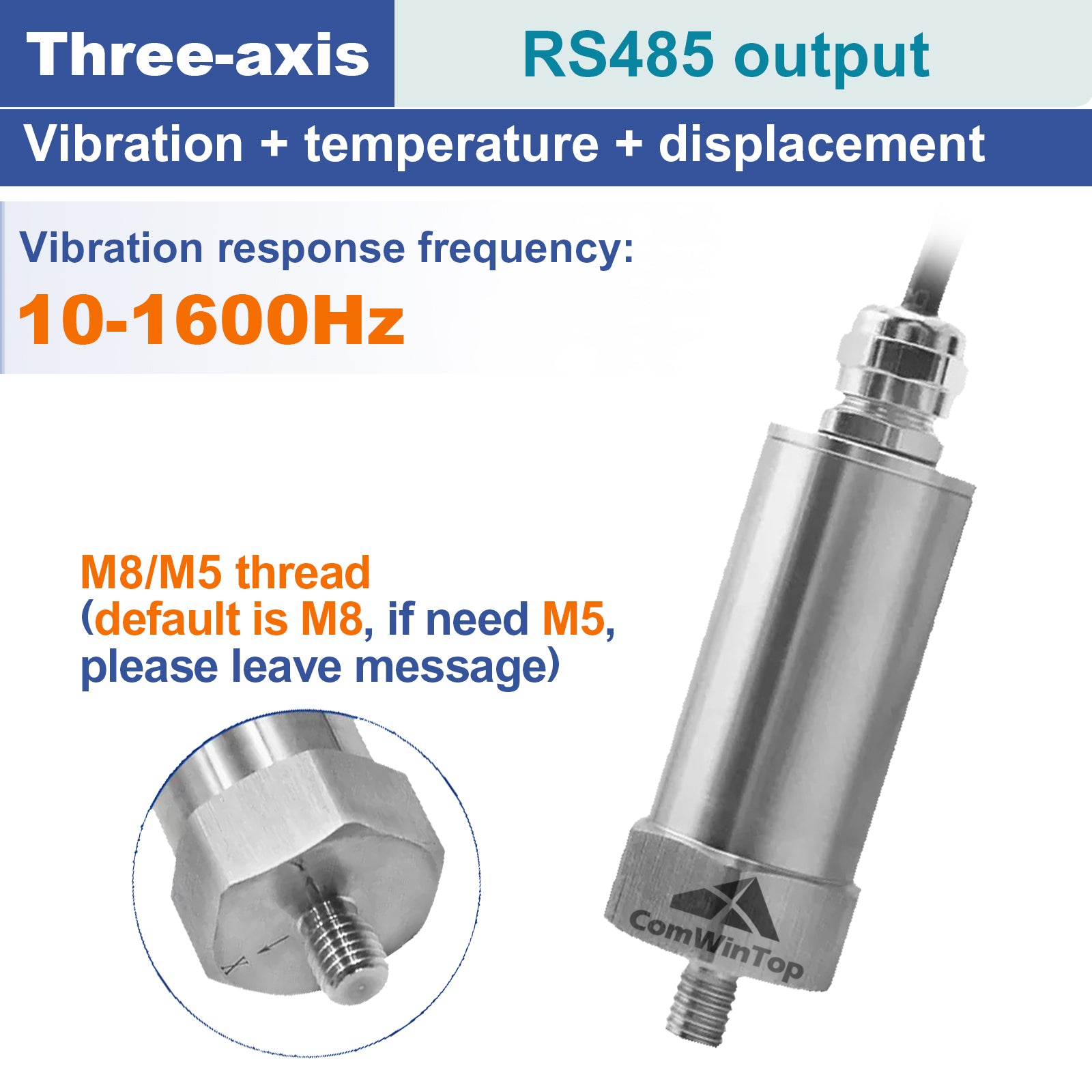

3. It can measure parameters such as single-axis and three-axis vibration velocity, vibration displacement, etc.
4. The surface temperature of the motor can be measured.
5. 10-30V DC wide voltage power supply.
