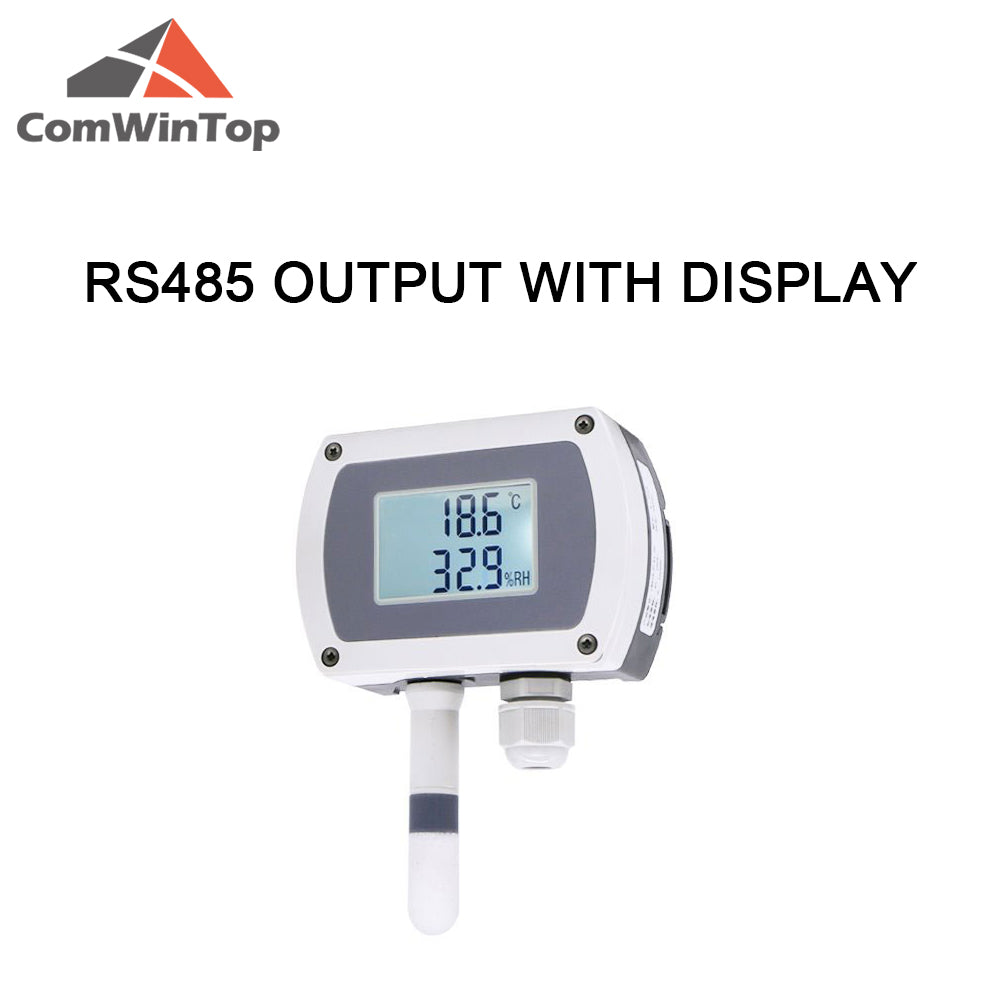

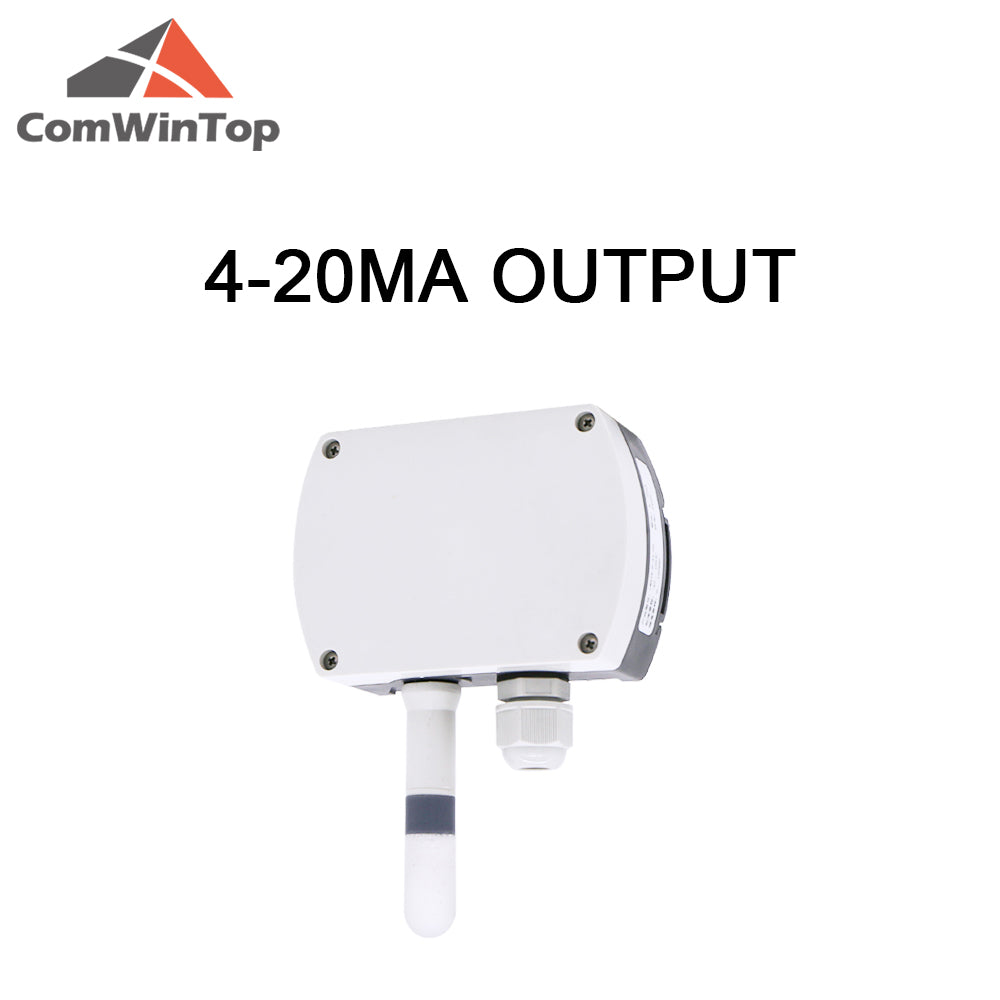

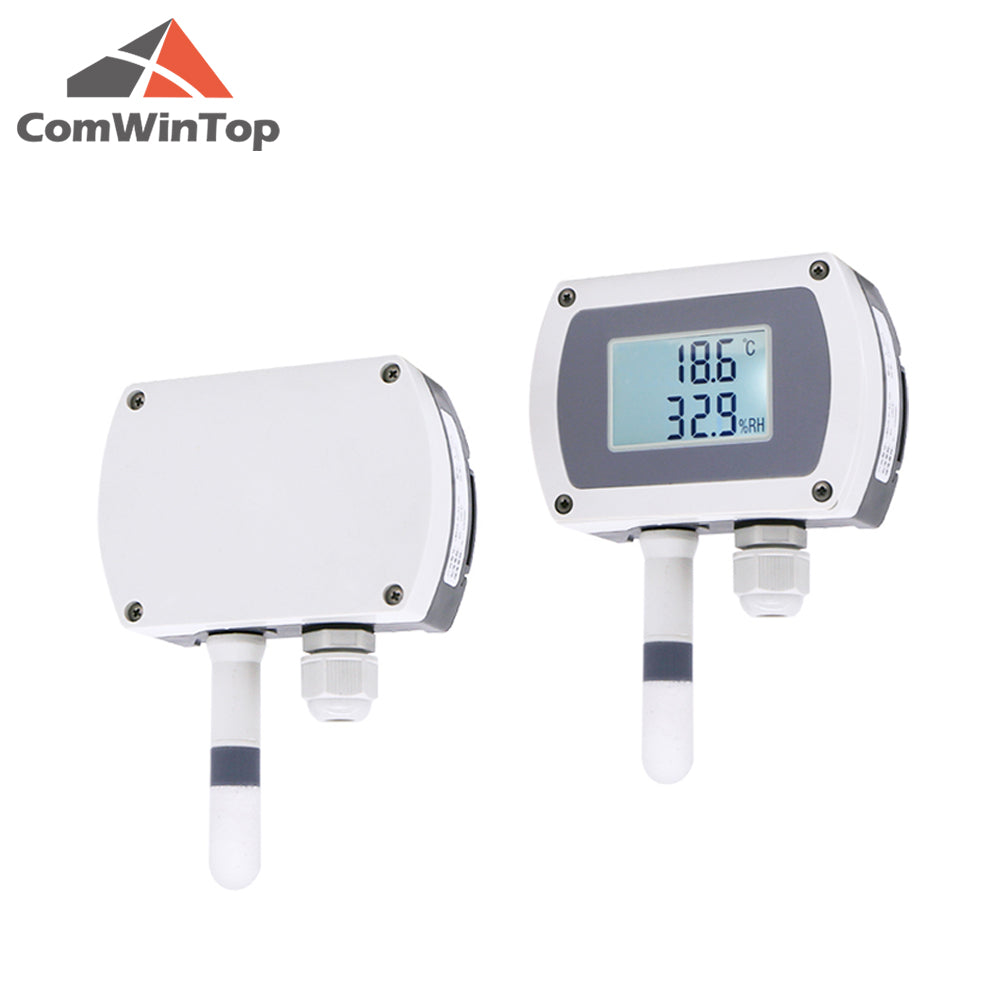

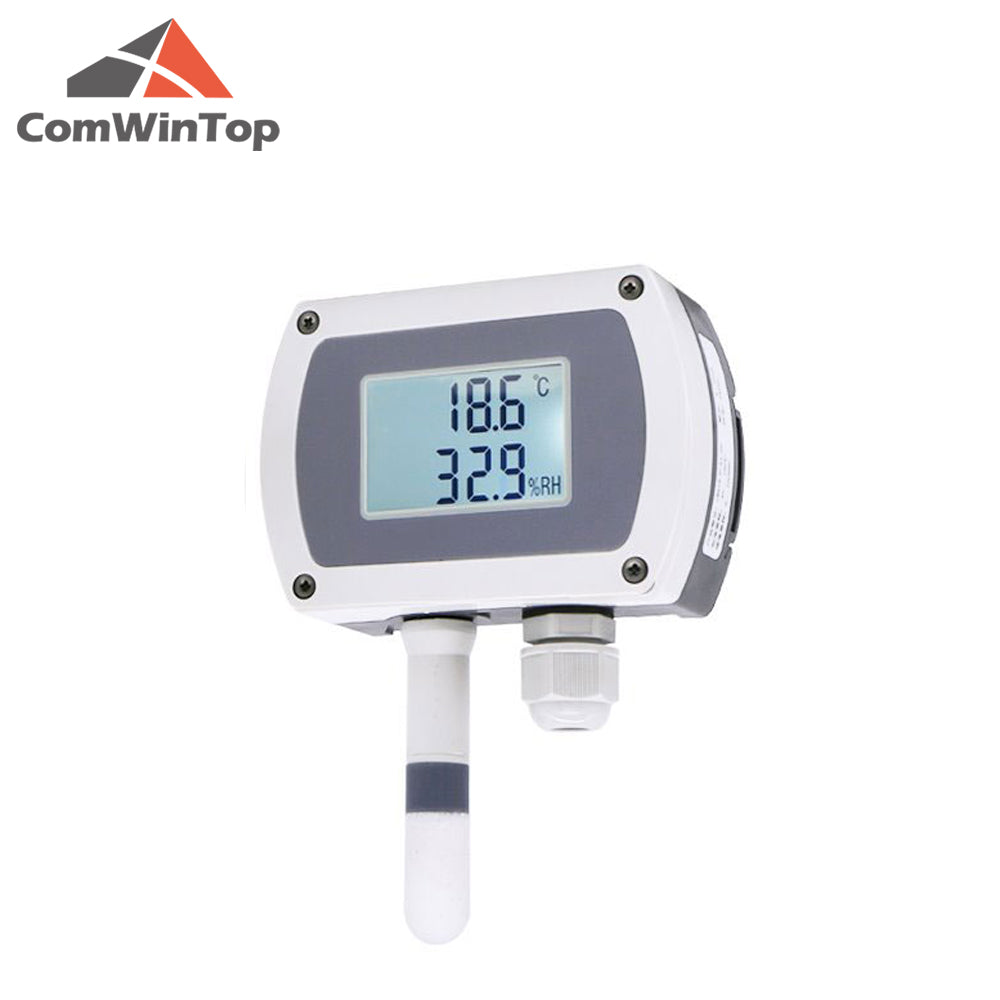

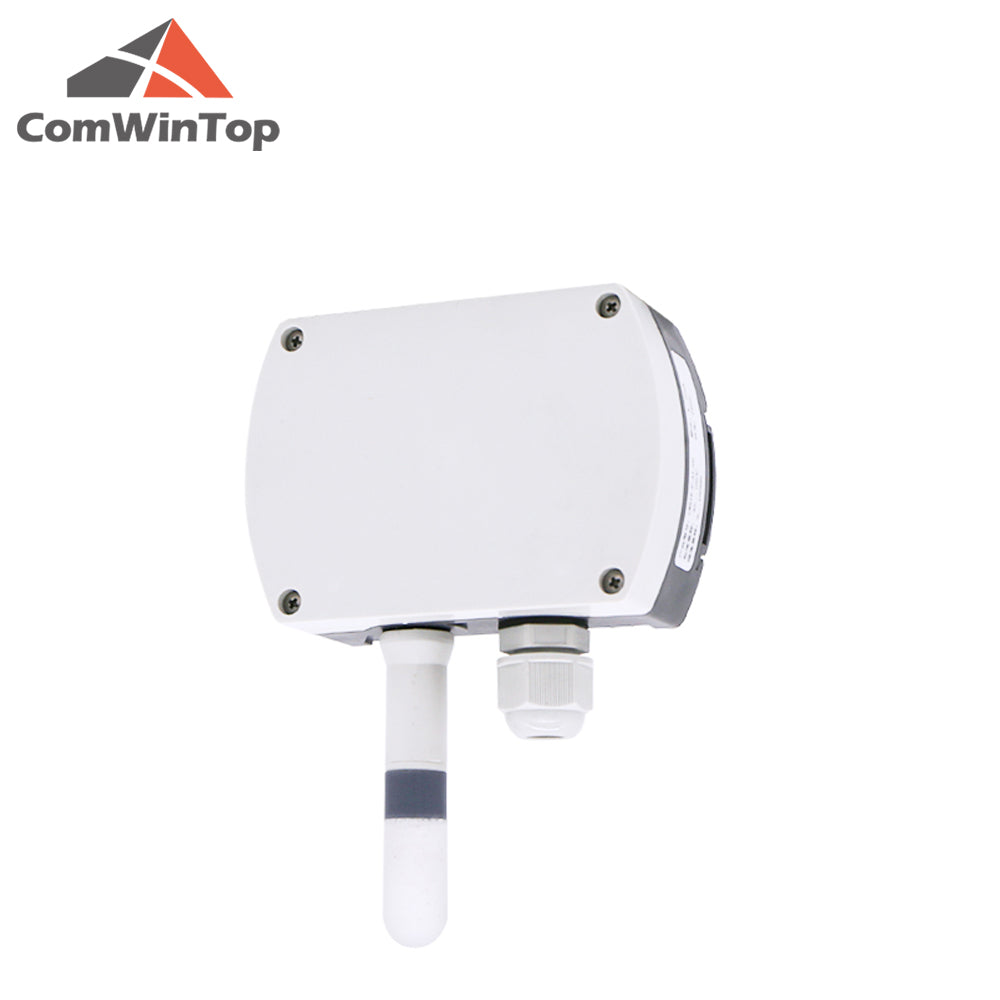

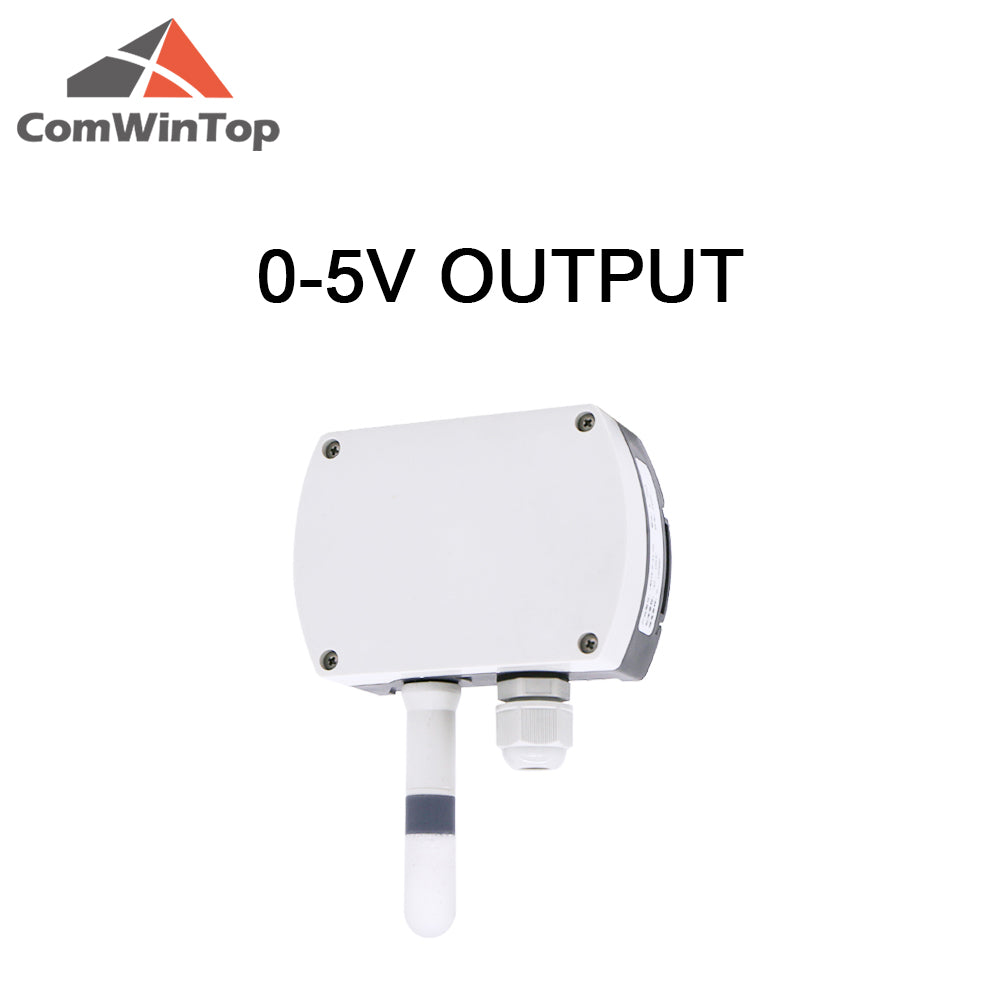

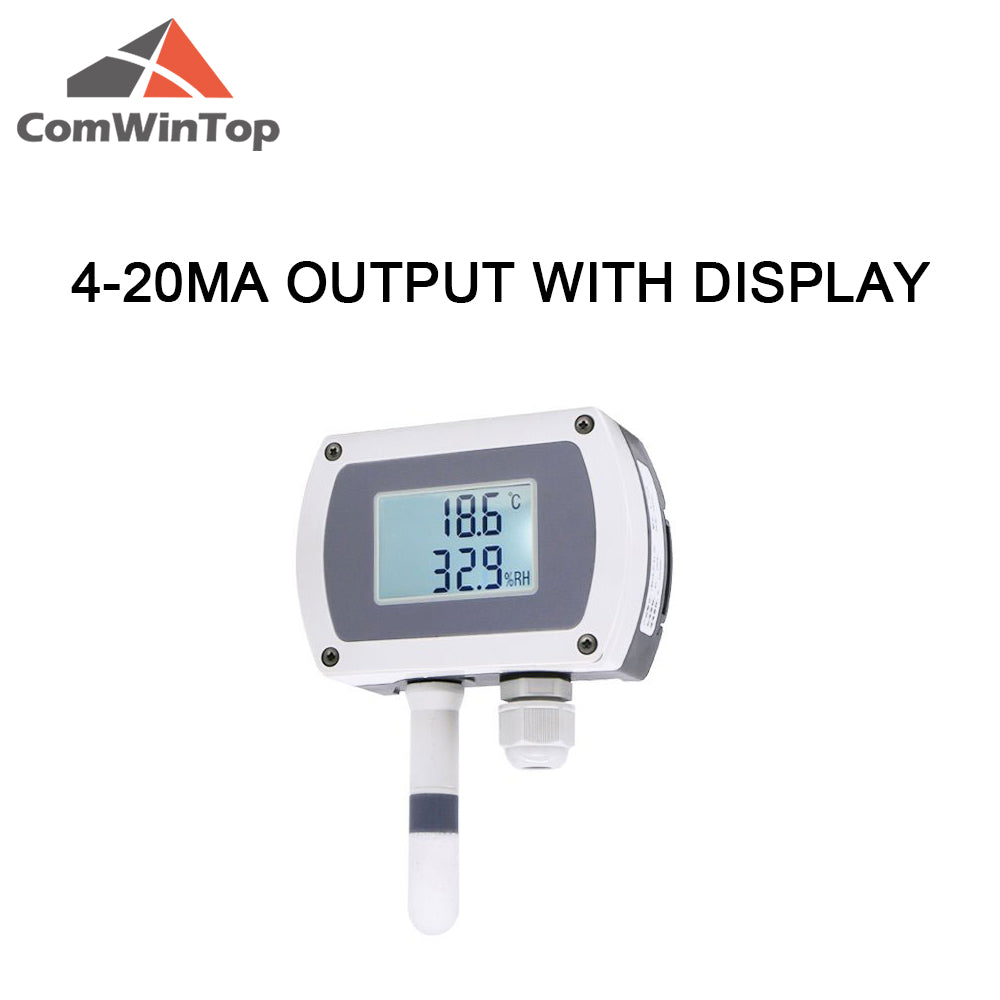

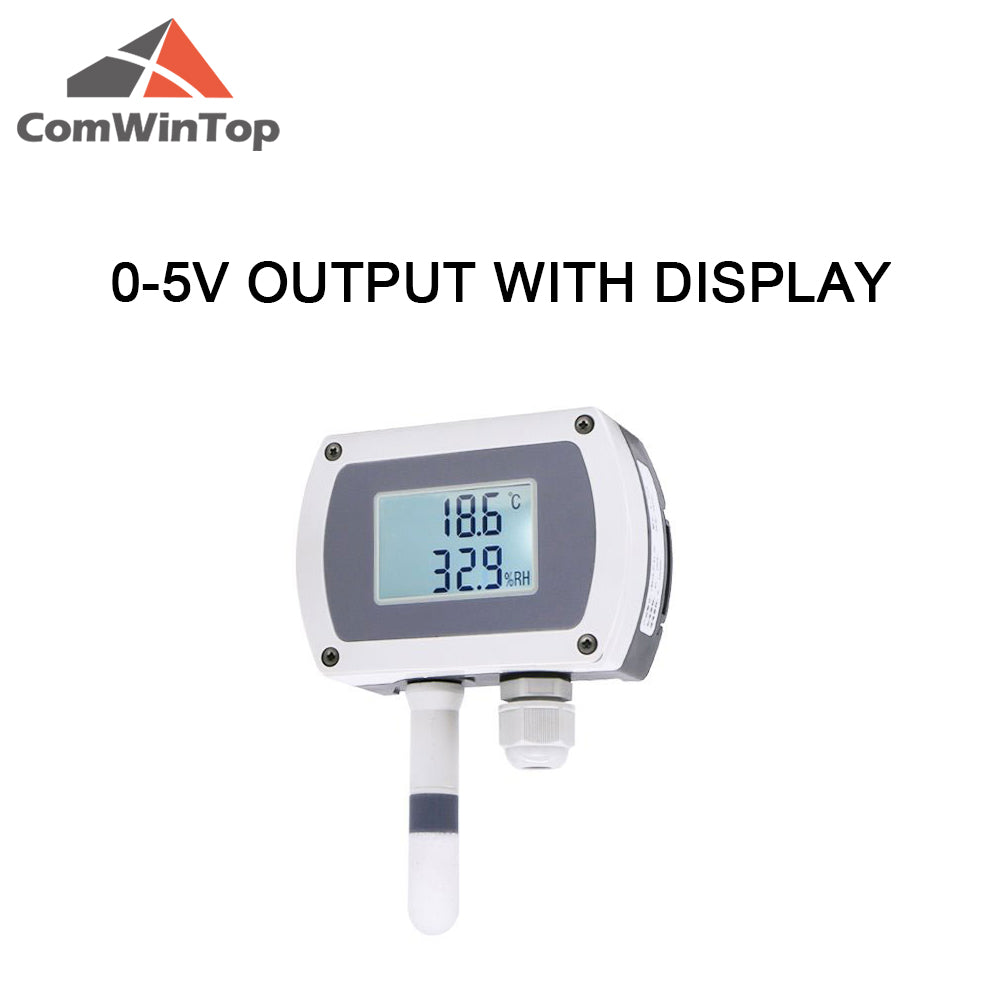

RS485 wall-mounted temperature and humidity transmitter 4-20mA temperature and humidity sensor with display track installation
Couldn't load pickup availability
Please notice: All prices are untaxed!
CWT-XYTH Temperature Humidity Transmitter Manual

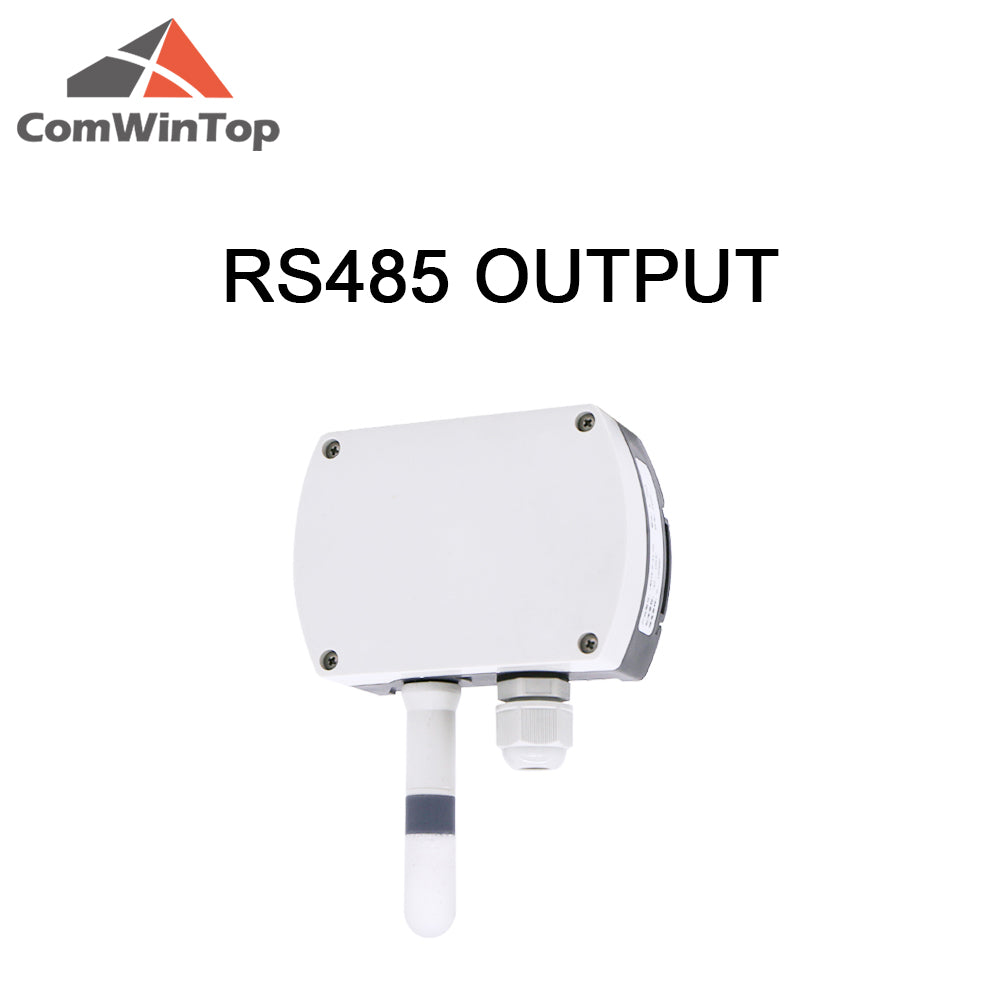

CWT-XYTH-S (RS485 type)
Basic parameters
Size

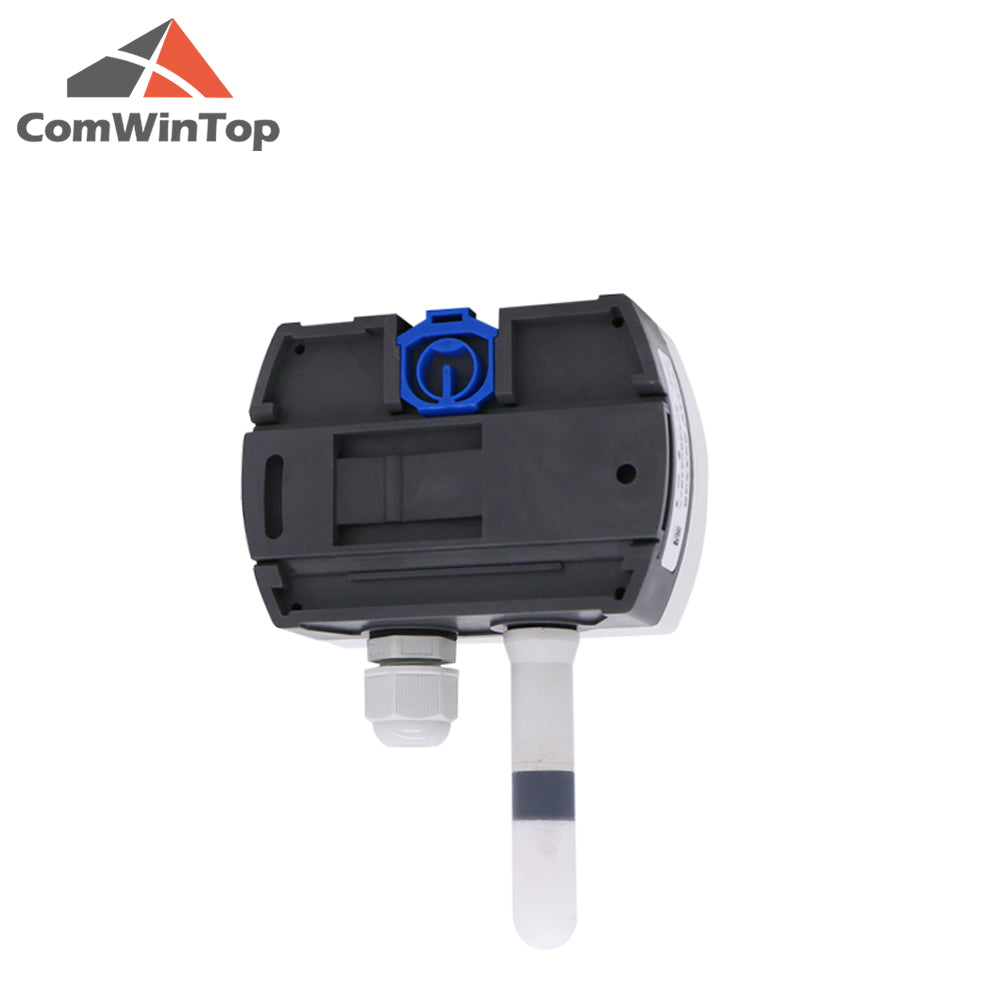

Mounting method: Wall mounting or DIN

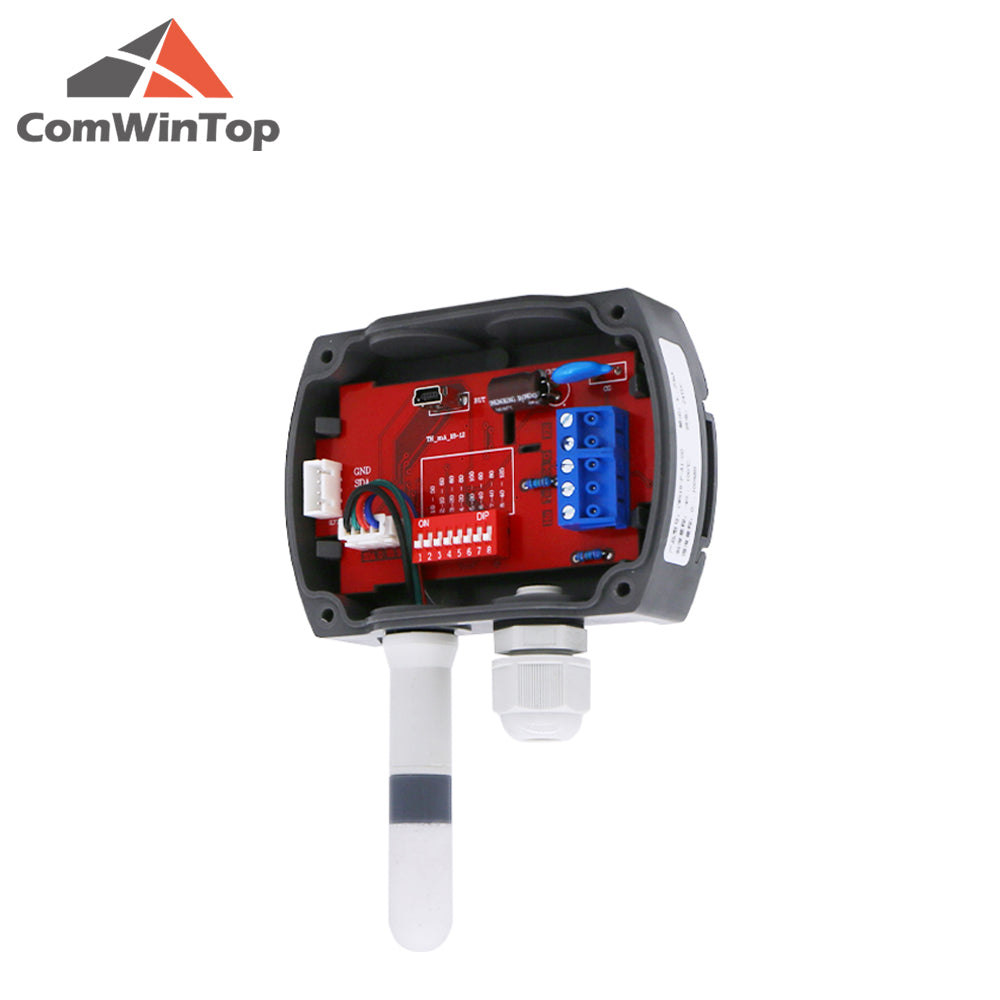

Open encloser to Wire
RS485 communication Default parameters: 9600,n,8,1
Default device address is 1
Modbus RTU protocol
E.g. master read temperature humidity:
Sensor responds:
Temperature calculates:
00F8 (HEX)= 248 (DEC)
Output value 0~1650 corresponds to -40~125℃
Temperature=125-(-40)*248/1650-40=-15.2℃
Humidity calculates:
00177 (HEX)= 375 (DEC)
Output value 0~1000 corresponds to 0~100%RH
humidity=374*100/1000=37.5%RH
Set slave ID
E.g., set slave ID=9, Master sends
Sensor responds:
Enquiry slave ID
Master sends
Sensor responds:
CWT-XYTH config tool instruction
1 Connect sensor
Connect sensor to PC by a RS485 to USB converter
2 Read value
2.1 read ID
2.2 read temperature or humidity
3 Set parameters
3.1 Set ID
