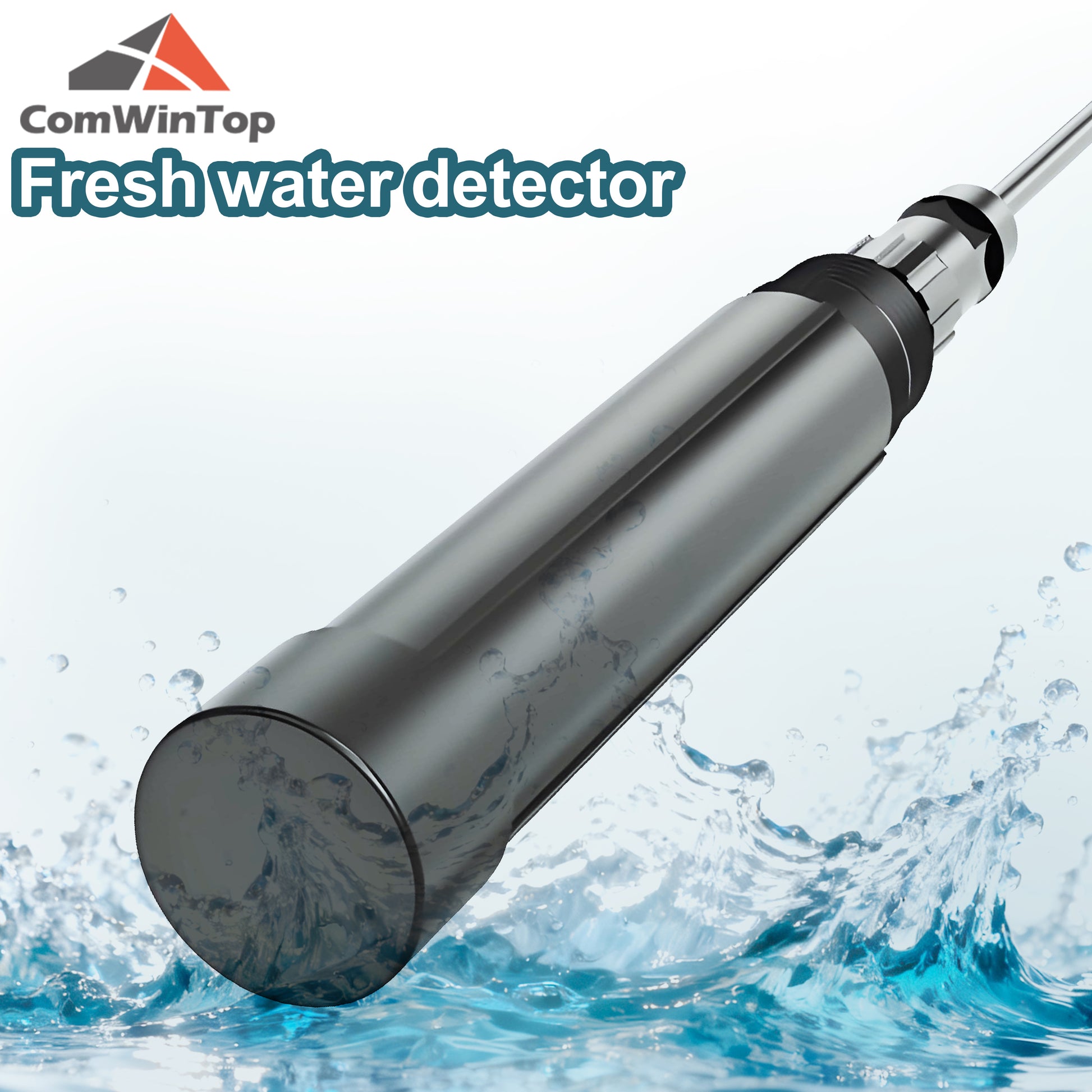

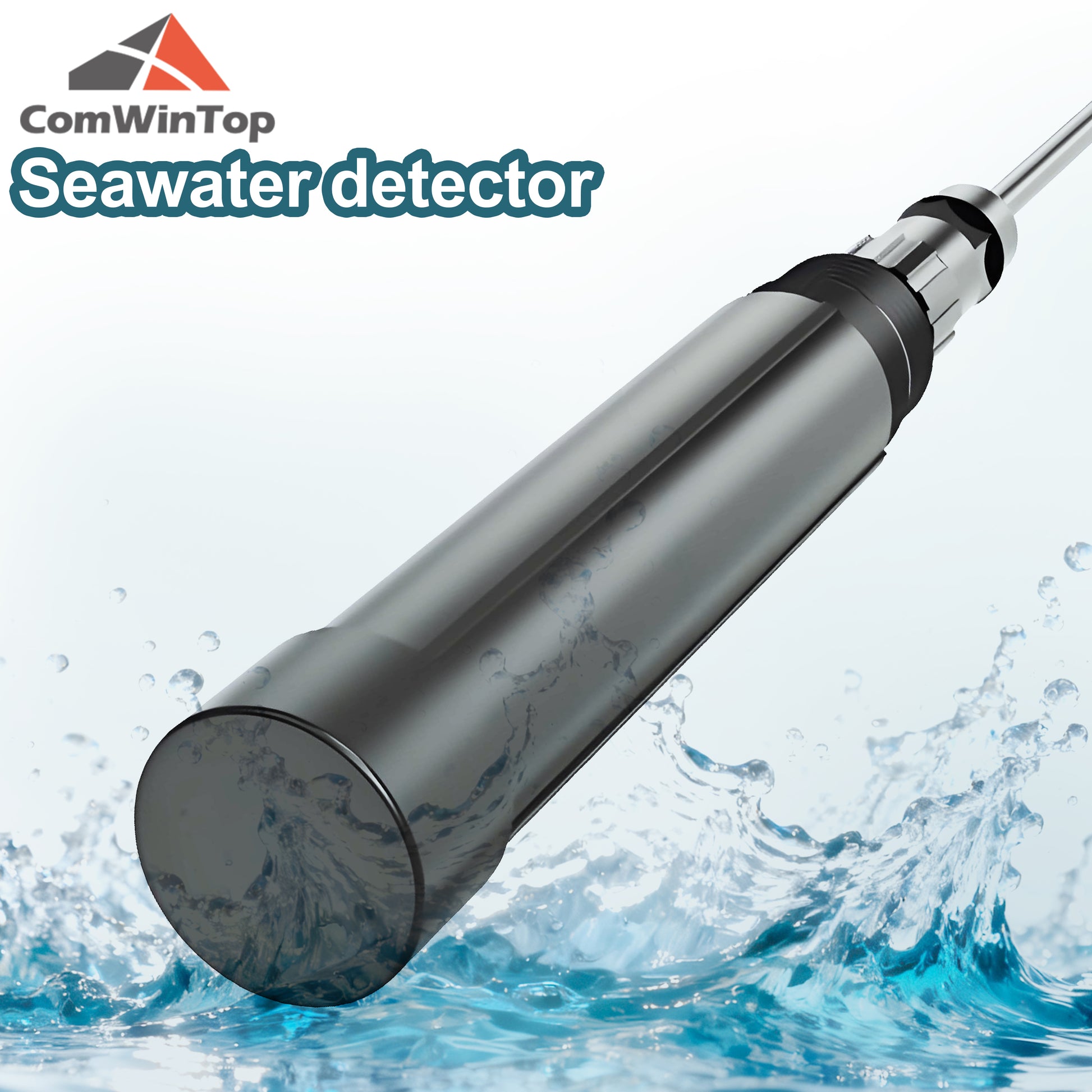

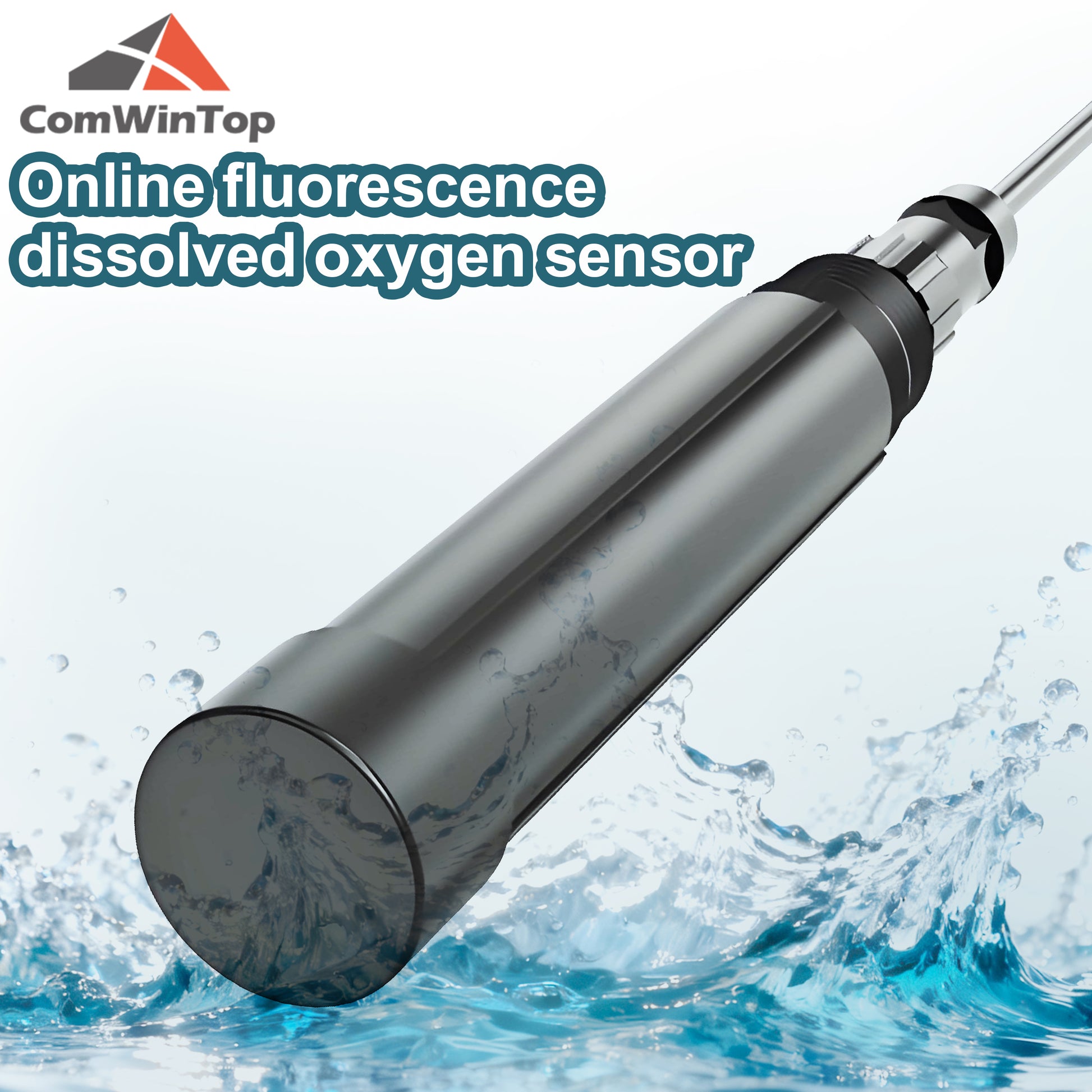

RS485 Online fluorescence dissolved oxygen sensor DOS transmitter
Couldn't load pickup availability
Please notice: All prices are untaxed!
WQS-DOS series
Online fluorescence dissolved oxygen sensor manual
This product is a device for measuring the dissolved oxygen concentration in solutions. It adopts the fluorescence measurement principle, which does not consume oxygen and requires no electrolyte. It has a built - in temperature sensor with an automatic temperature compensation function. The calibration function provides a simpler and more convenient calibration method. It can be widely used in industries such as water treatment, aquaculture, and environmental monitoring.
Features
-
The measurement range of dissolved oxygen is 0 - 20mg/L (0 - 200% saturation).
-
RS485 communication
-
DC 10 - 30V wide - voltage power supply
-
It uses a fluorescence diaphragm with imported quality.
-
It adopts the fluorescence measurement principle, which does not consume oxygen and requires no electrolyte.
Basic parameters
|
Measuring range |
0-20mg/L (0-200% saturation) |
|
Measurement error |
±3%FS；±0.5℃（25℃） |
|
Resolution |
0.01mg/L；0.1%；0.1℃ |
|
Response time |
≤60s |
|
Working temperature |
0~40℃ |
|
Power supply |
DC10-30V |
|
Max Power consumption |
0.2W@24V DC |
|
Communication Interface |
RS485; standard Modbus-RTU protocol; baud rate: default 4800 (1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 can be set) |
|
Measurement principle |
Fluorescence method |
|
Fluorescent membrane lifespan |
Normal service life is 1 year. |
|
Pressure resistance |
0.6MPa |
|
Waterproof class |
IP68 |
|
Electrode cable length |
5m |
|
Enclosure material |
Corrosion - resistant plastic |
Size
Installation
Wiring
|
Cable color |
Description |
|
Brown |
Power + (DC10-30V) |
|
black |
Power - |
|
Yellow (or green) |
RS485 A+ |
|
blue |
RS485 B- |
|
|
