ComWinTop

RS485 Modbus Temperature Humidity Pressure Light TVOC PM2.5 PM10 CO2 HCHO O3 O2 H2S CH4 CO NO2 SO2 H2 NH3 Air Quality Sensor

Regular price $40.60 USD
Regular price Sale price $40.60 USD
Sale Sold out
样式

Please notice: All prices are untaxed!

CWT-SAQ Series Air Quality Sensor Manual





Measuring parameters

Parameters

Range

Resolution

Precision

Preheat time

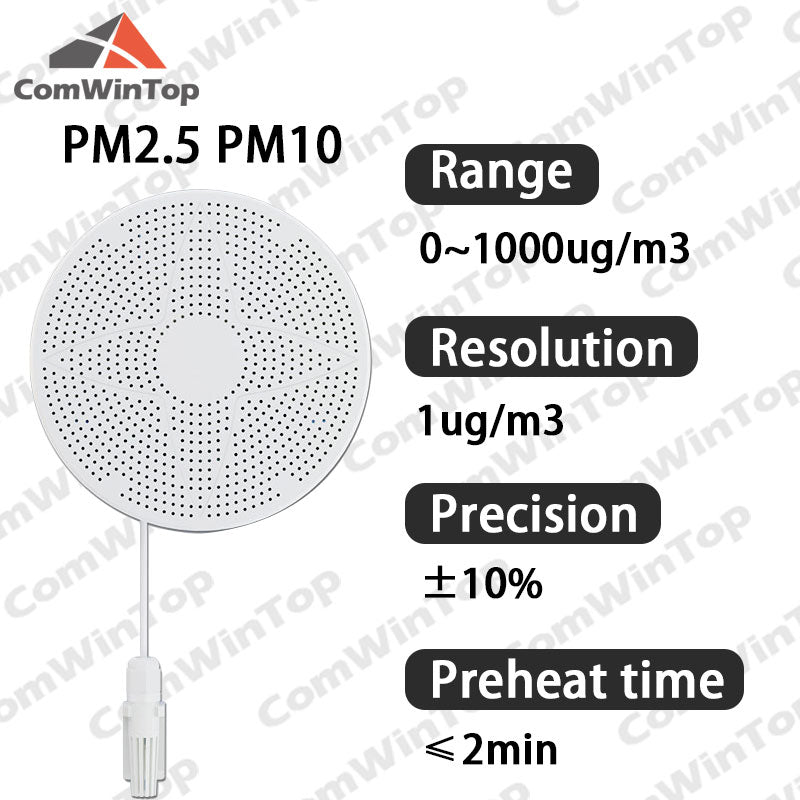

PM2.5

0~1000ug/m3

1ug/m3

±10%

≤2min

PM10

0~1000ug/m3

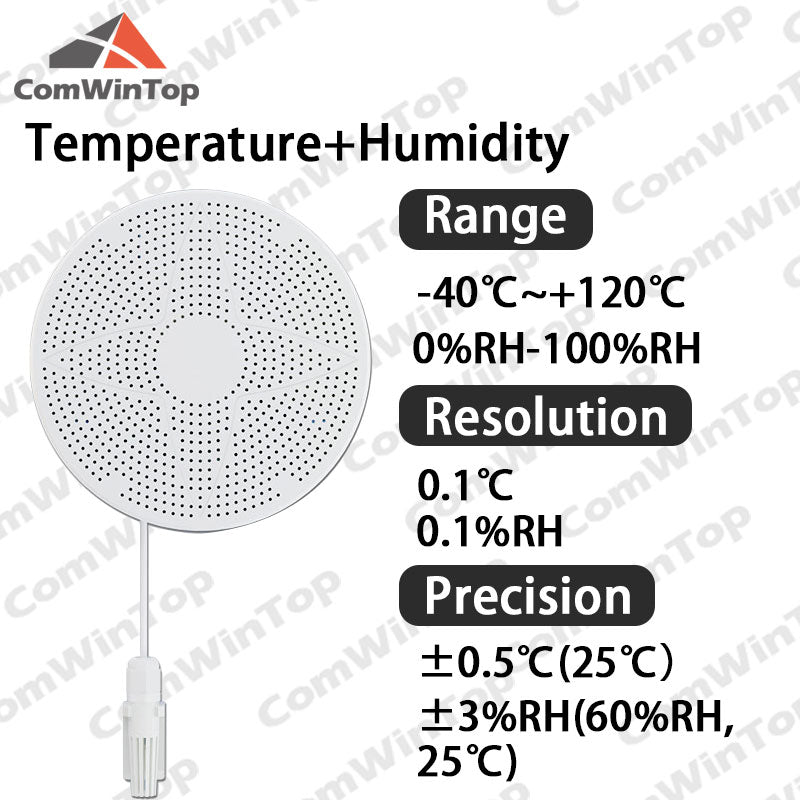

Temperature

-40℃~+120℃

0.1℃

±0.5℃(25℃)


Humidity

0%RH-100%RH

0.1%RH

±3%RH(60%RH,25℃)

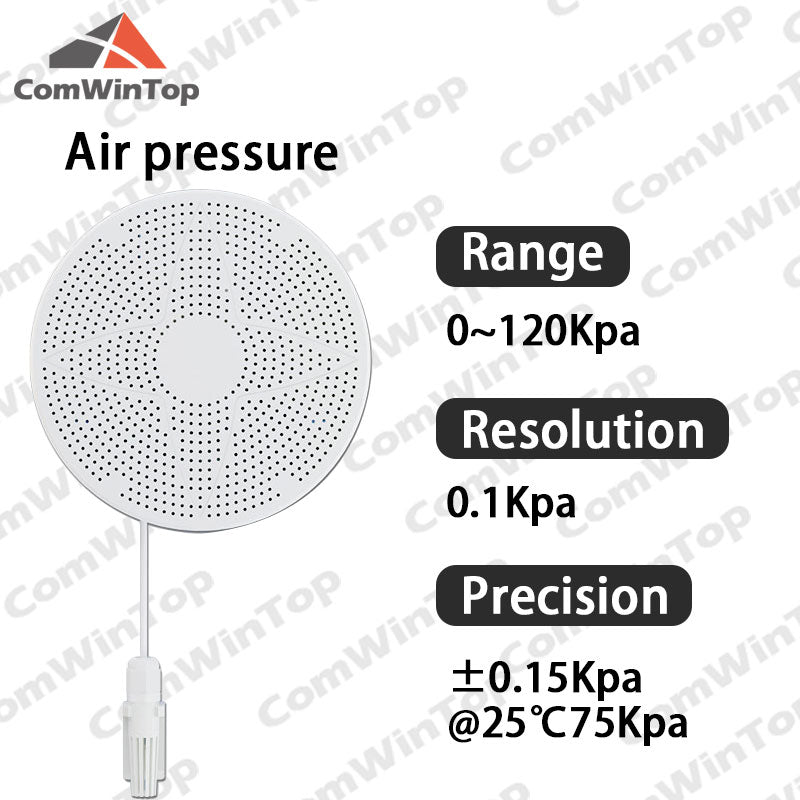

Air pressure

0~120Kpa

0.1Kpa

±0.15Kpa@25℃75Kpa

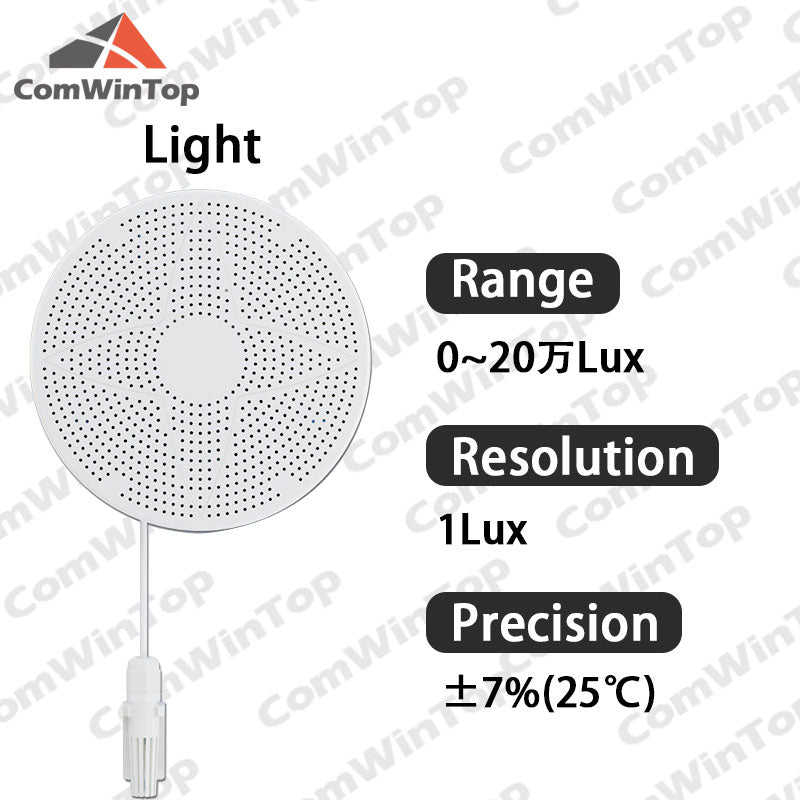

Light

0~200000 Lux

1Lux

±7%(25℃)

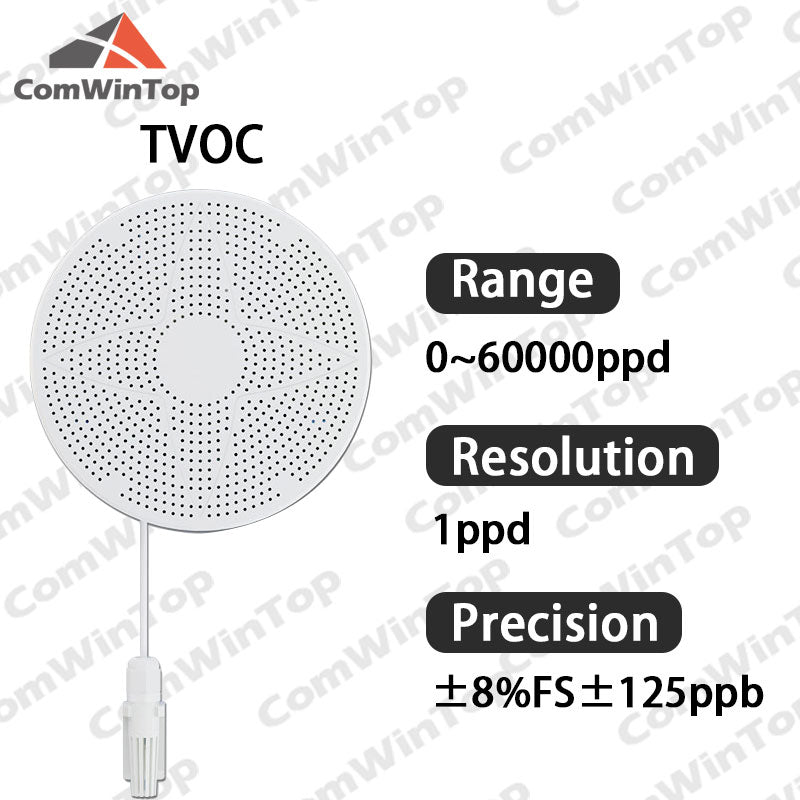

TVOC

0~60000ppb

1ppb

±8%FS±125ppb

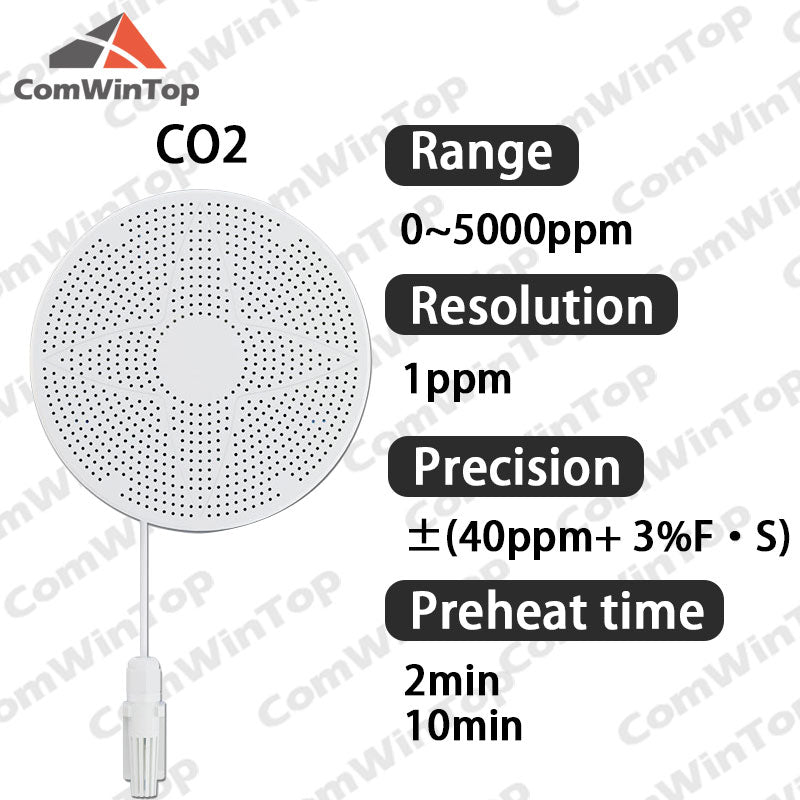

CO2

0~5000ppm

1ppm

±(40ppm+ 3%F·S)

2min-10min(max precision)

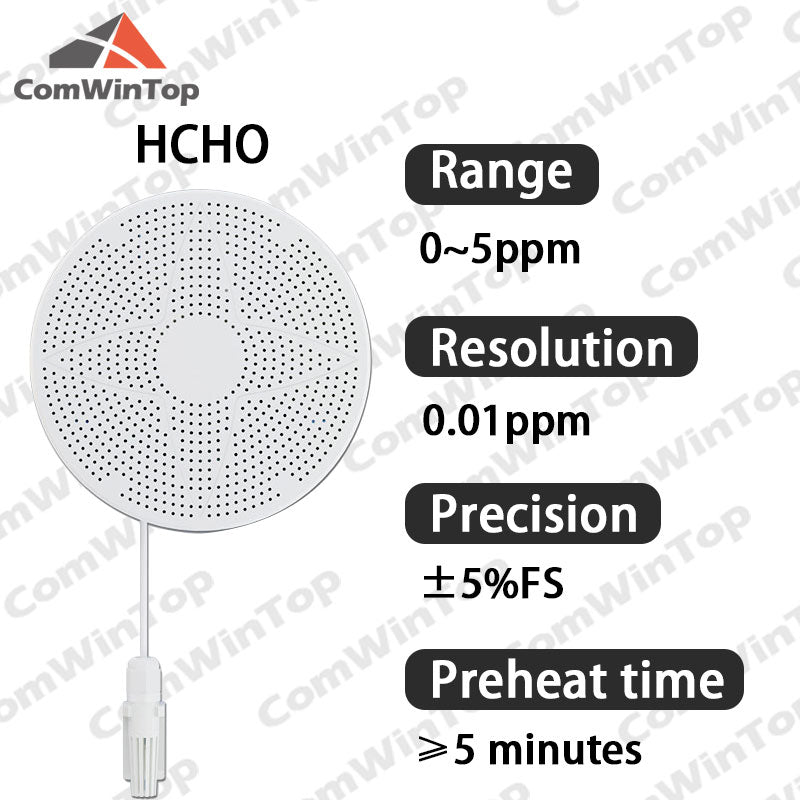

HCHO

0~5ppm

0.01ppm

±5%FS

≥5 min

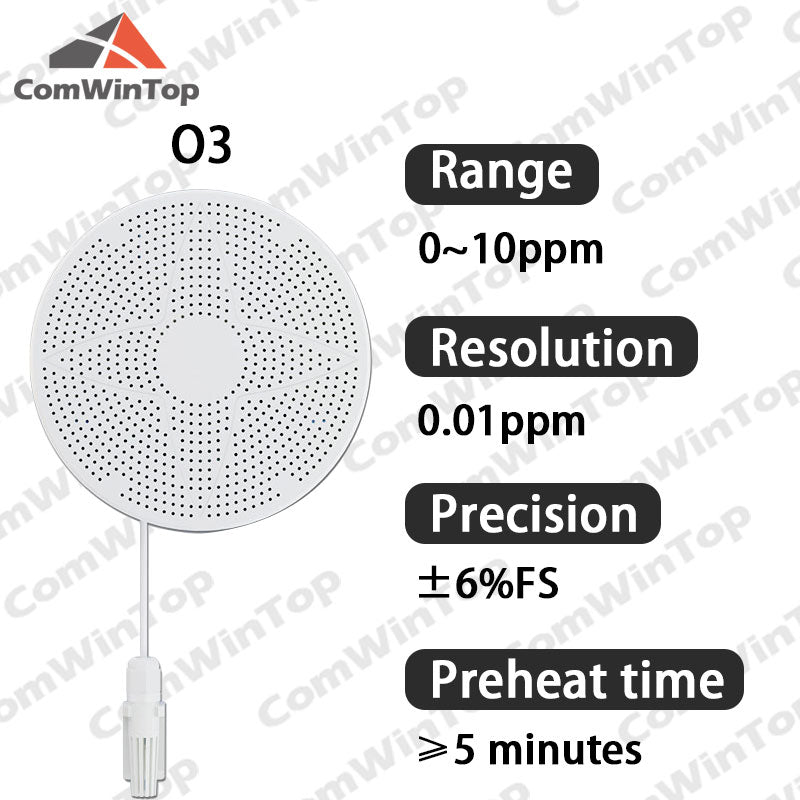

O3

0~10ppm

0.01ppm

±6%FS

≥5 min

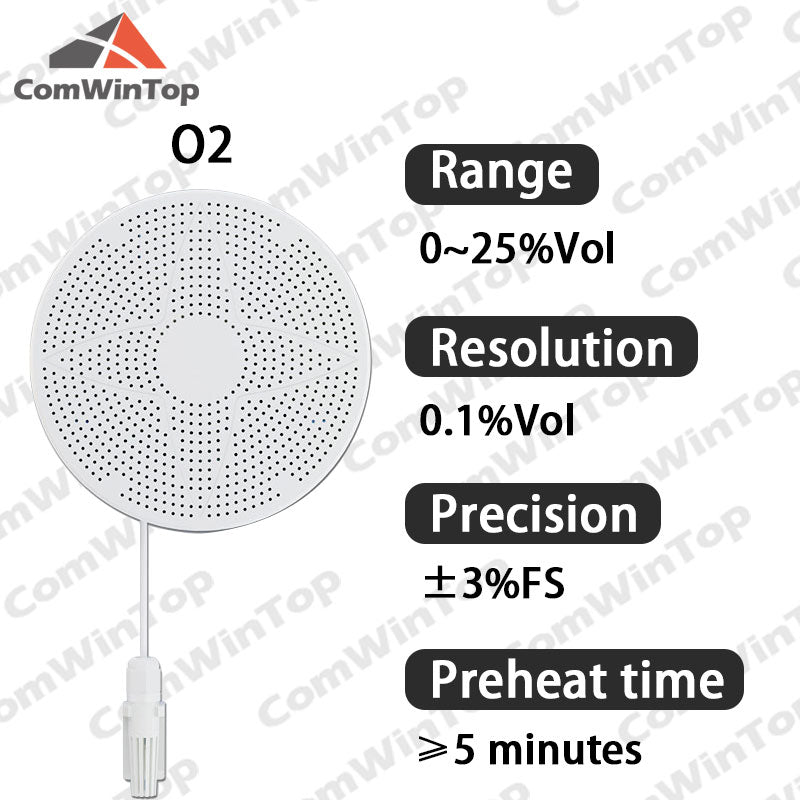

O2

0~25%Vol

0.1%Vol

±3%FS

≥5 min

H2S

0~100ppm

1ppm

±3%FS

≥5 min

CH4

0~100%LEL

1%LEL

±5%FS

≥5 min

CO

0~1000ppm

1ppm

±3%FS

≥5 min

NO2

0~20ppm

0.1ppm

±3%FS

≥5 min

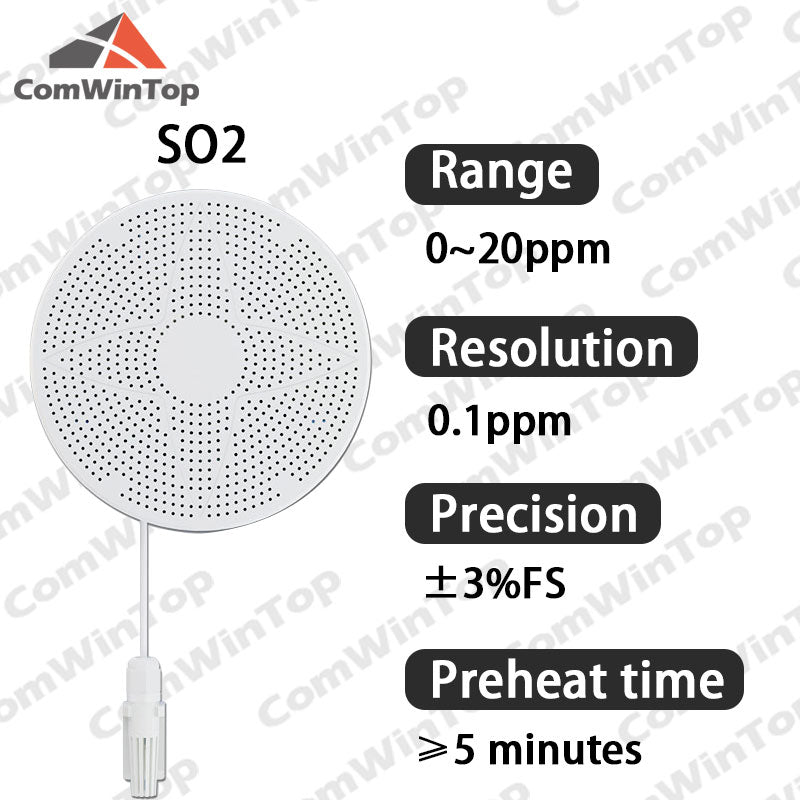

SO2

0~20ppm

0.1ppm

±3%FS

≥5 min

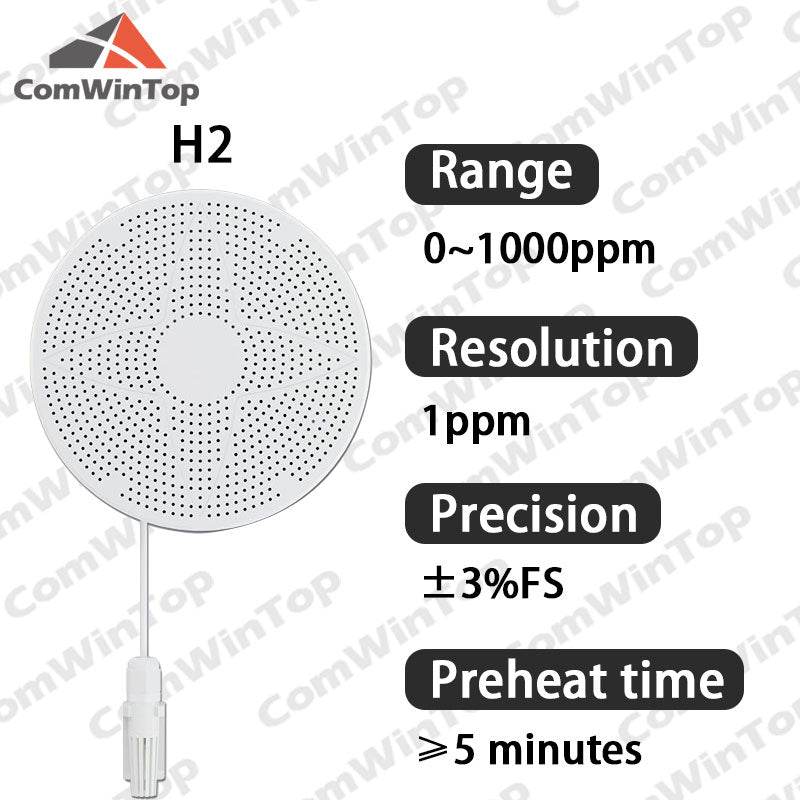

H2

0~1000ppm

1ppm

±3%FS

≥5 min

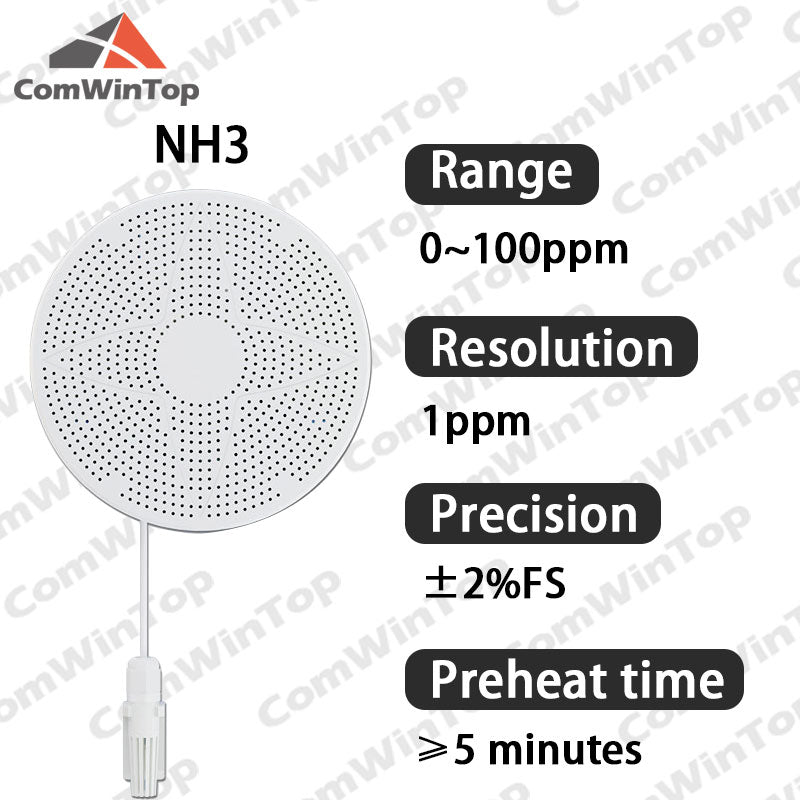

NH3

0~100ppm

1ppm

±2%FS

≥5 min

Test environment: temperature: 20℃, Humidity: 50%RH, atmospheres pressure :1pa,


Basic parameters

Power supply

DC10-30V

Working environment

-10~+55℃ / 0 -95%RH

output

RS485 (Modbus RTU protocol)

Material

ABS

mounting type

wall mounted or ceiling mounted


Size


Wiring




mounting type:

wall mounted


ceiling mounted
