Optical Rain Gauge Transmitter with RS485/pluse output

Integrated Optical Rain and Illumination Transmitter Manual

Product Overview

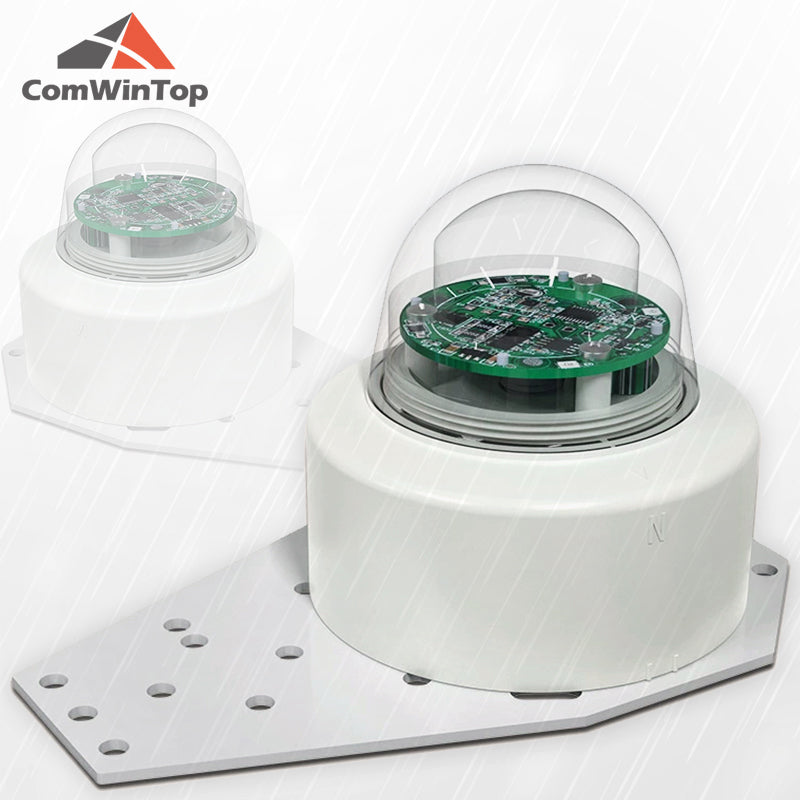

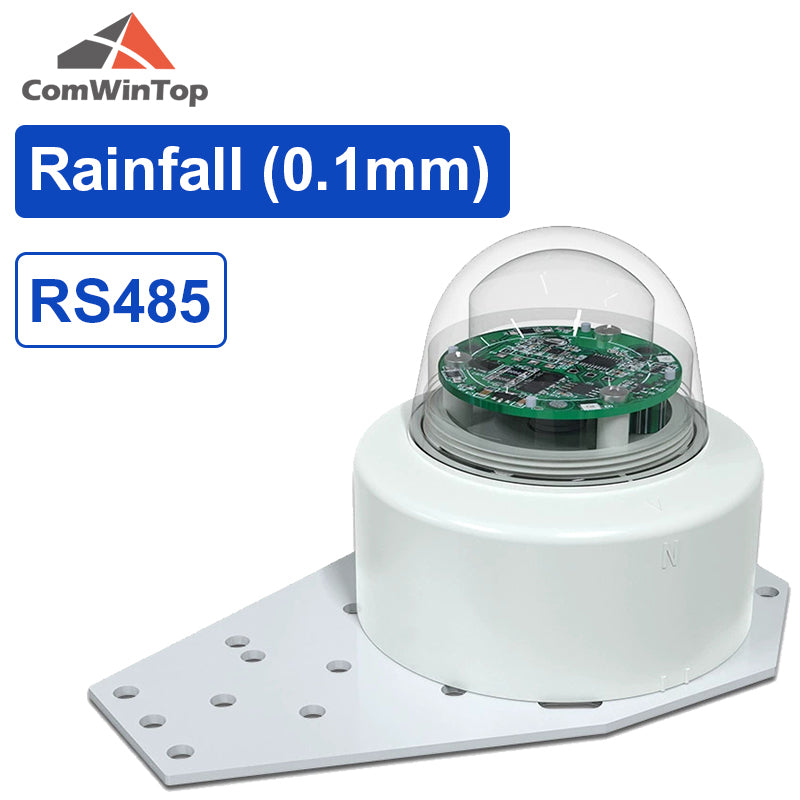

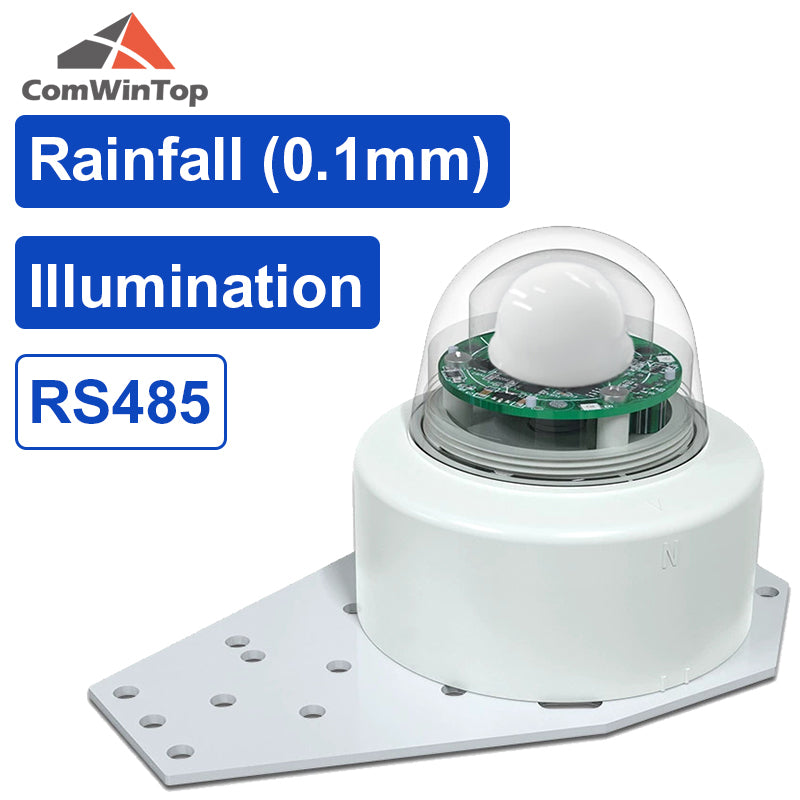

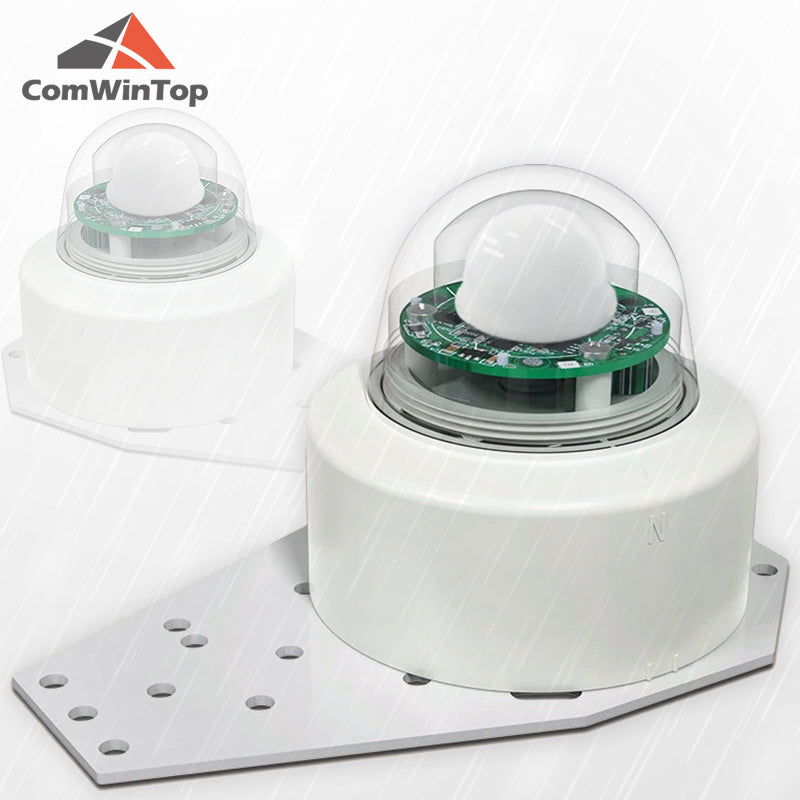

This product is a transmitter designed for measuring rainfall and illumination. It adopts the optical sensing principle for rainfall detection and is equipped with multiple optical probes, ensuring reliable rainfall measurement. Unlike traditional mechanical rain transmitters, this optical rain transmitter features a smaller size, higher sensitivity, greater reliability, enhanced intelligence, and easier maintenance. It incorporates a high-precision photosensitive transmitter for accurate illumination measurement, with the output unit expressed in Lux.

The product can be widely applied in industries and fields such as smart irrigation, ship navigation, mobile weather stations, automatic doors and windows, and geological disaster monitoring.

Features

• Compact size, light weight and easy installation.

• Low-power consumption design for energy conservation.

• High reliability, capable of stable operation in high-temperature and high-humidity environments.

• Maintenance-friendly design that resists leaf blockage.

• Optical measurement technology ensures high accuracy.

• RS485 signal output enables long-distance communication and convenient data collection.

Specification

Size

Installation

Pre-installation Inspection

Ensure the surface of the transmitter cover is dry before installing the rain transmitter. Any moisture or water droplets will cause measurement errors. You may optionally place a desiccant inside the transmitter.

Check that the transmitter housing is tightly fastened and the PG7 cable gland at the bottom is locked without any looseness.

Outdoor Installation and Commissioning

Install the rain transmitter in an open area with no obstructions around or above it.

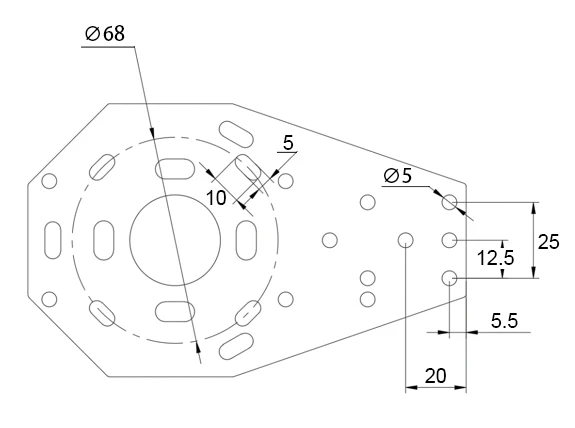

1. First, mount the transmitter onto the mounting bracket included in the accessories. Secure the transmitter and bracket using four M4*35 304 stainless steel screws and nuts.

2. Next, install the bracket at the designated location. A φ5 circular hole is required at the installation site.

3. Ensure the bracket is installed horizontally. Finally, fix the bracket and transmitter in place using three M4*10 304 stainless steel screws and nuts.
