Optical Rain Sensor Dual-Channel Outdoor Meteorological Rain Gauge Monitoring High-Precision Rainwater Transmitter
Couldn't load pickup availability
Please notice: All prices are untaxed!

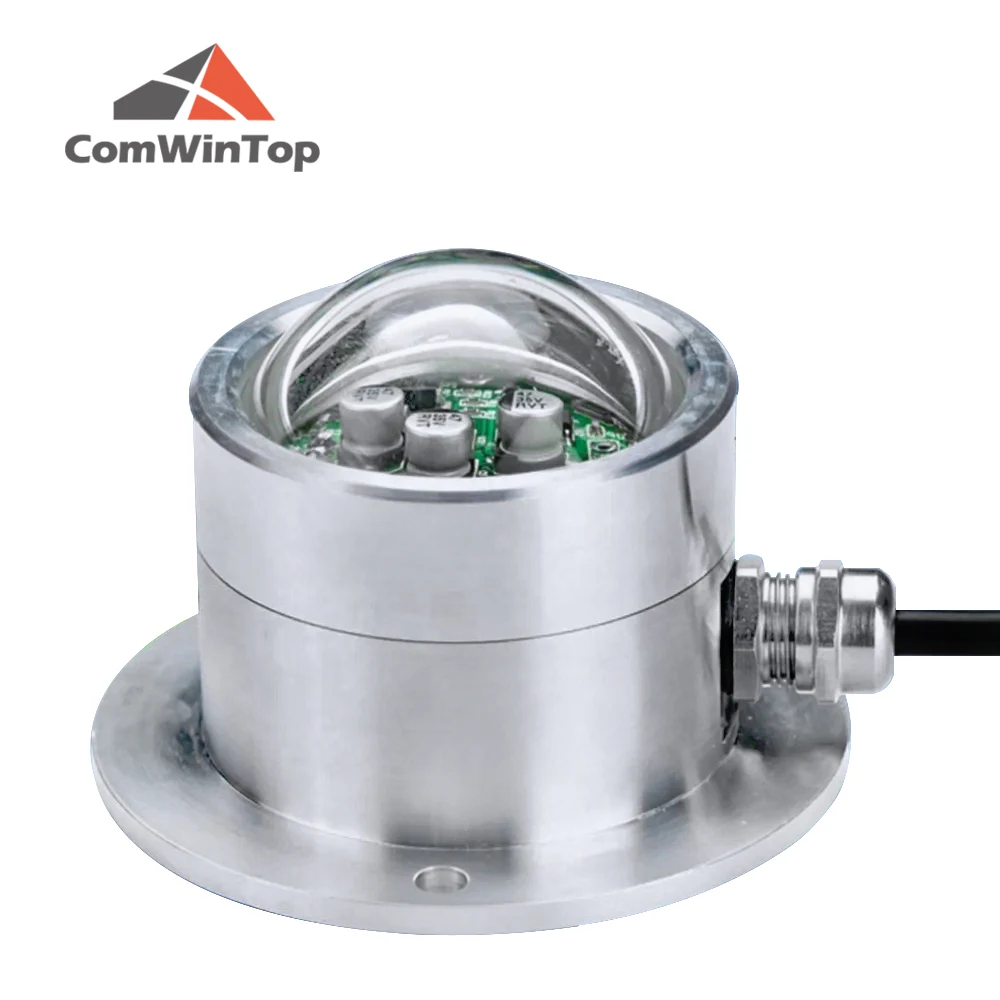

Optical Rain Sensor
Features

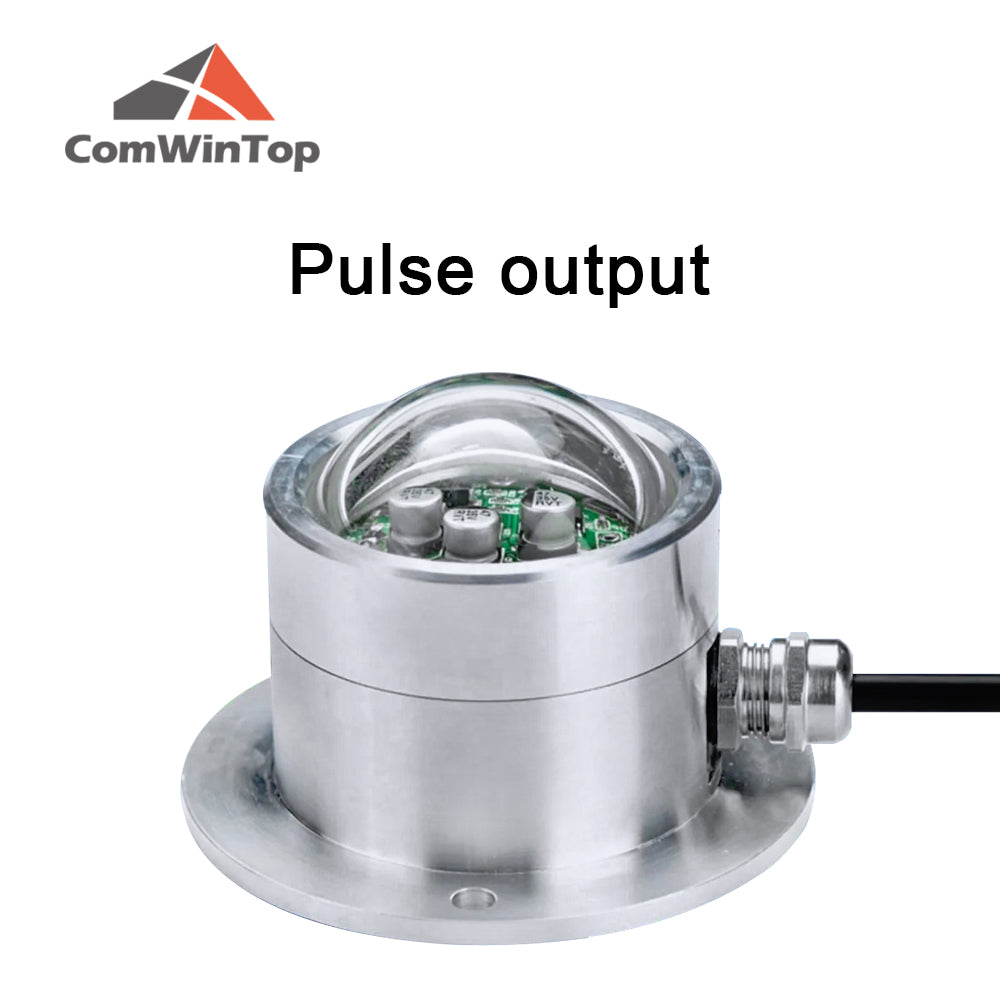

RS485/Pulse output
Long Transmission Distance and stable signal.
Rain Mode
The Resolution in Rain Mode is 0.1mm, and Sends a Pulse Signal of 50ms Duration and Accumulated Rainfall to the Outside World Through the signal line.
Waterproof connector
The Product Comes with 1 Meter Lead Wire for Easy Wiring and Testing.

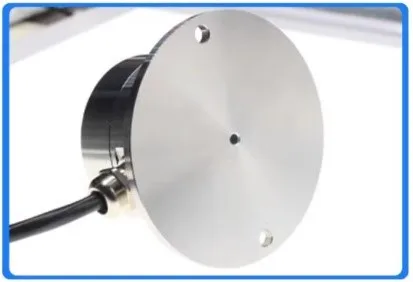

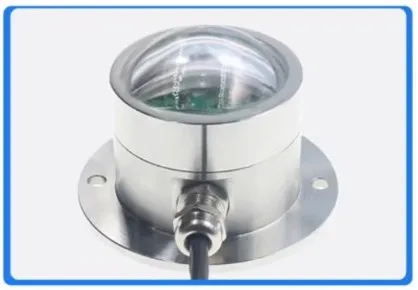

Stainless Steel Housing
Waterproof Housing for Outdoor Use with 2 Mounting Holes.
Specification
|
Output |
RS485/pulse |
|
Power Supply |
DC5~30V/DC12~30V |
|
Power consumption |
<0.3W(@12V DC:<20mA) |
|
Resolution |
0.1mm |
|
Typical accuracy |
±5% (@25℃) |
|
Maximum instantaneous rainfall |
24mm/min |
|
Rain sensing diameter |
6CM |
|
Working temperature |
-40~60℃ |
|
Working humidity |
0~99%RH (no condensation) |
|
Working pressure range |
Standard atmospheric pressure ±10% |
|
long term stability |
Light: <5%/y (Type 485) |
|
Withstand voltage |
≤30VDC |
|
Withstand current |
≤1A |
|
Dimensions |
See dimensional drawing |
Size
|
Wiring |
|
|
|||||
|
RS485 Wiring |
Pulse wiring |
|
|
||||
|
|
Red |
Power + |
|
Red |
Power + |
|
|
|
|
|
|
|
||||
|
|
Green |
Power - |
|
black |
Power - |
|
|
|
|
|
|
|
||||
|
|
Yellow |
RS485 + |
|
blue |
Pulse output |
|
|
|
|
|
|
|
||||
|
|
Blue |
RS485 - |
|
|
|
|
|
|
|
|
|
|
||||
|
Note: Connect the Positive and Negative Terminals of the Power supply first, and then connect the signal Wire. |
|||||||
