1. Product Overview

The instrument has a brand-new signal processing technology, with the characteristics of safety, cleanliness, high accuracy, long life, stability and reliability, convenient installation and maintenance, and simple reading. It is widely used in petroleum, chemical industry, water treatment, water conservancy, steel, coal mine, electric power and food processing industries, and is suitable for various fields such as acid, alkali, salt, anticorrosion, high temperature and explosion protection. It can be connected with various brands of PLC systems or secondary control systems through 4 ~ 20 mA or RS 485 (Modbus protocol) to provide real-time liquid level data for industrial automation.

2. Specification

Measuring range: 0-20m

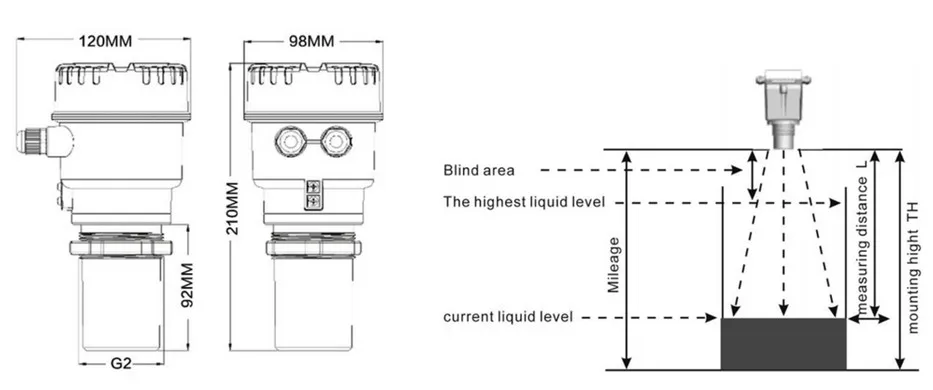

Blind area: 0.35m ~ 0.5m

Ranging accuracy: 0.5%

Power supply: DC12V, DC24V/AC220V

Display: LCD display (resolution 1 mm)

Analog output: 4 ~ 20 mA

Digital Output: RS485 (Modbus)

Ambient temperature: -40°C ~ 80°C

Pressure resistance of sensor: < 0.1MPa

Protection: IP65
