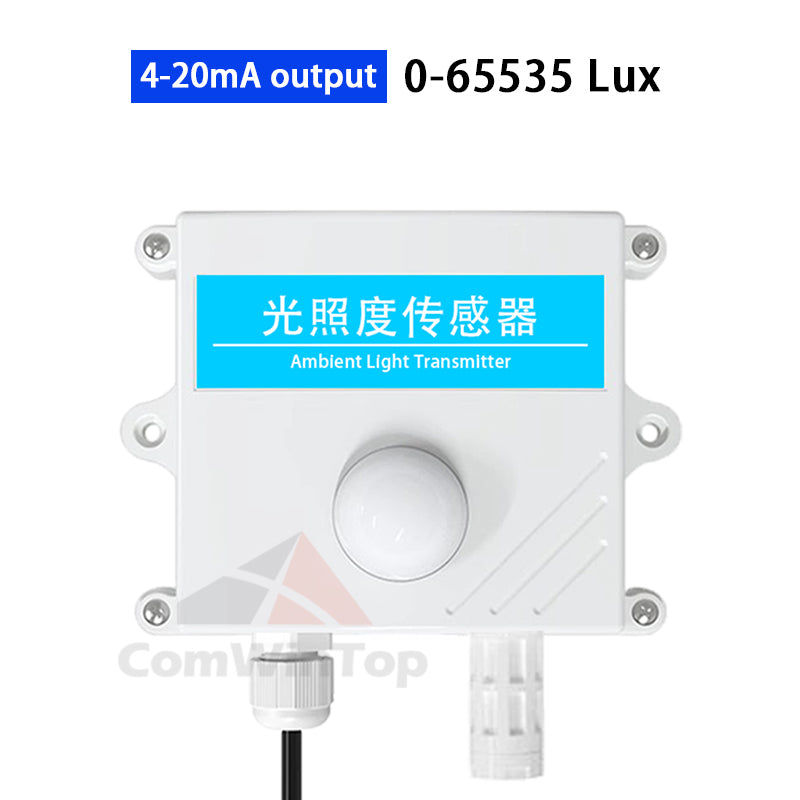

Light sensor 0-10V 0-5V 4-20mA RS485 200000Lux 65535Lux industrial intensity illumination acquisition transmitter

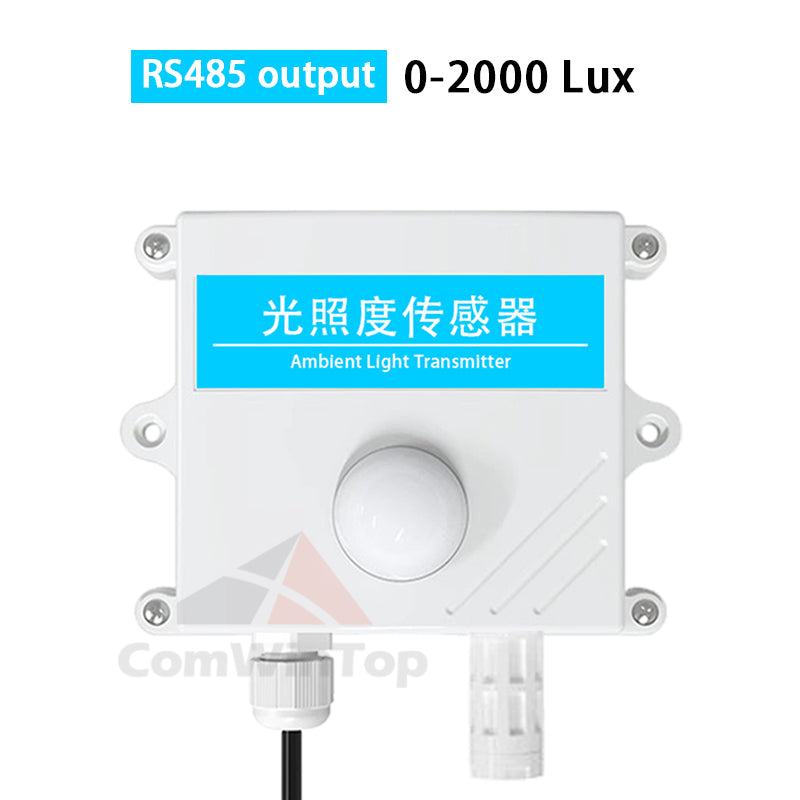

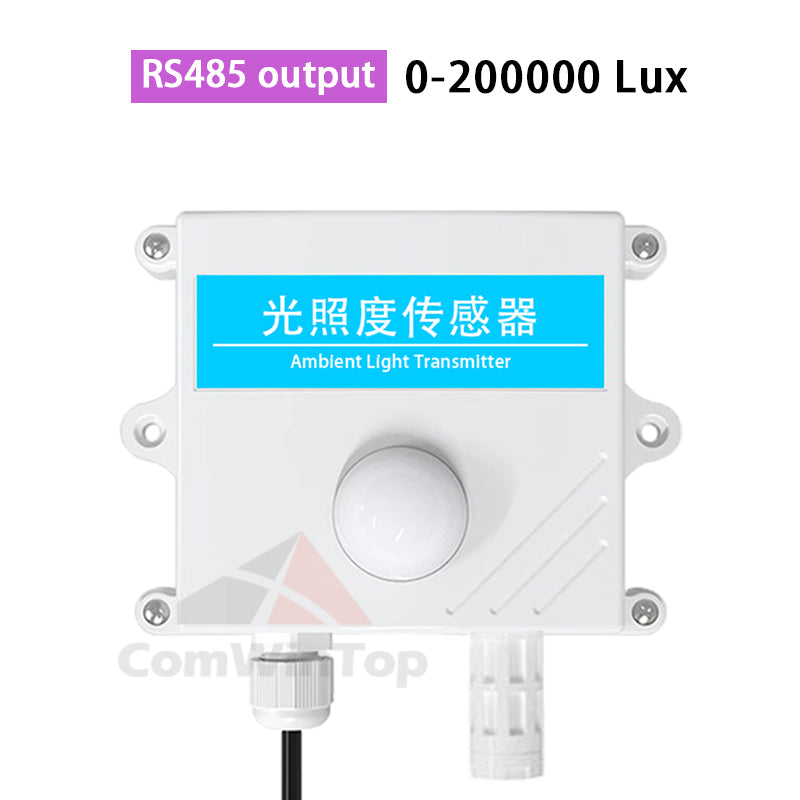

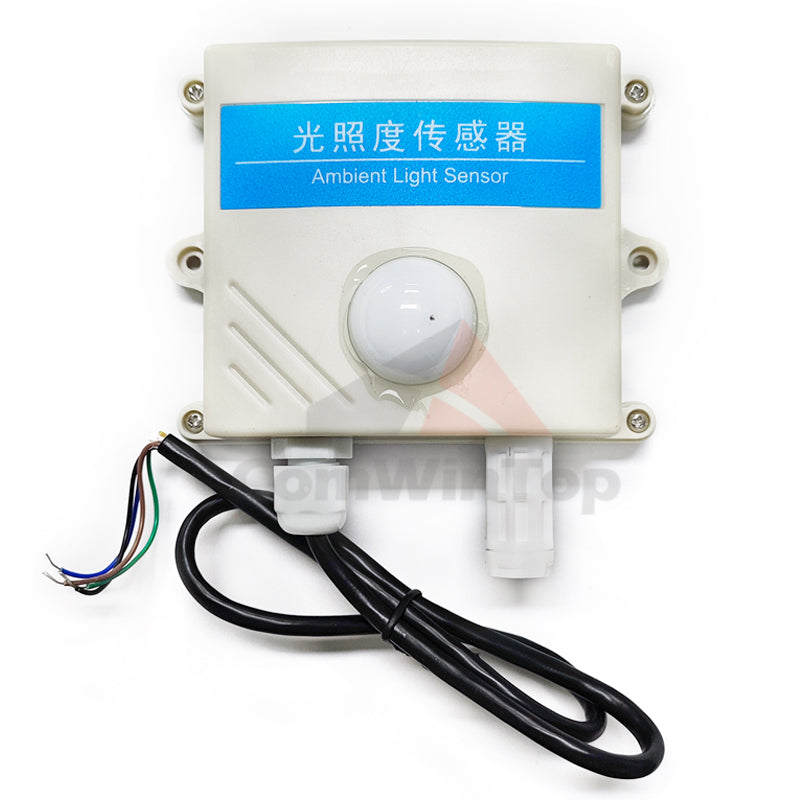

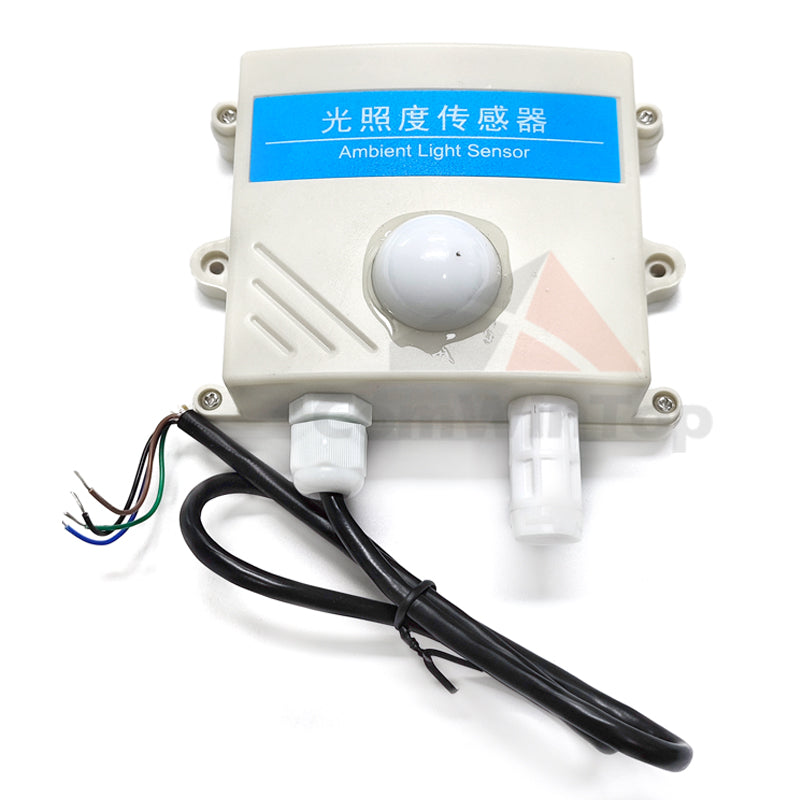

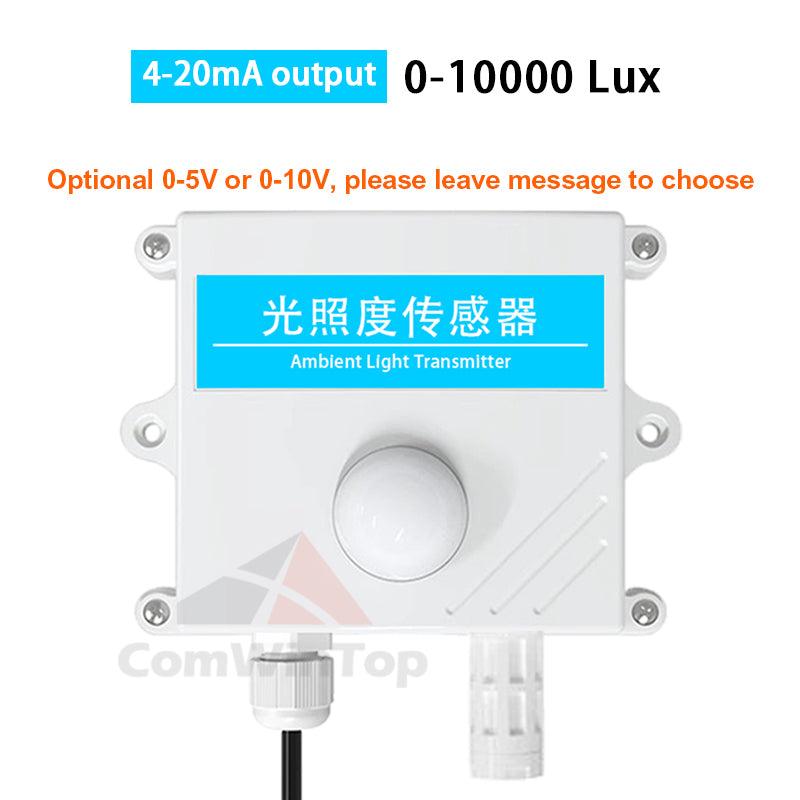

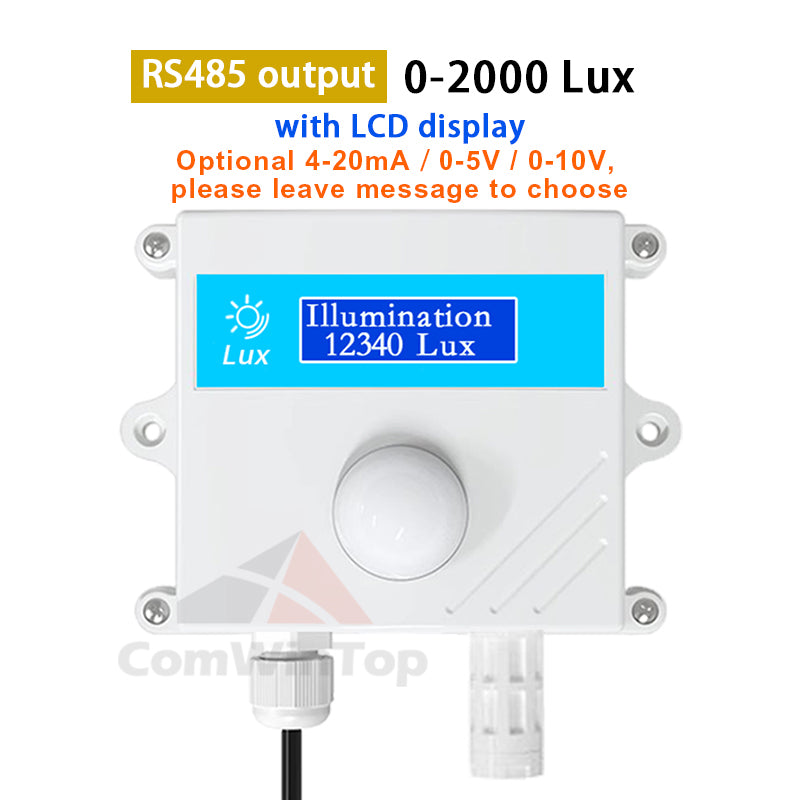

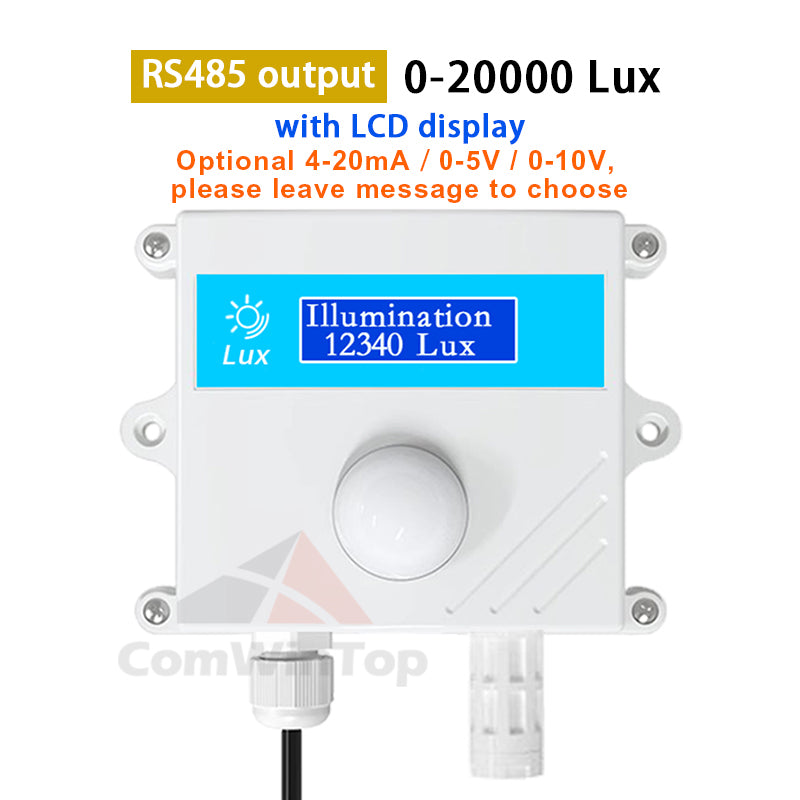

the transmitter is an optical precision photosensitive transmitter, and the output value unit of measurement is Lux, The use of wall-mounted waterproof housing, wall-mounted installation, high level of protection. 4-20ma/0-10v/0-5v A variety of analog output signal optional, product power supply for 10-30V wide voltage power supply, mainly used in agricultural greenhouses, flower culture greenhouse, Agricultural field, electronic equipment production lines, such as the need for illumination monitoring occasions.
Features
-

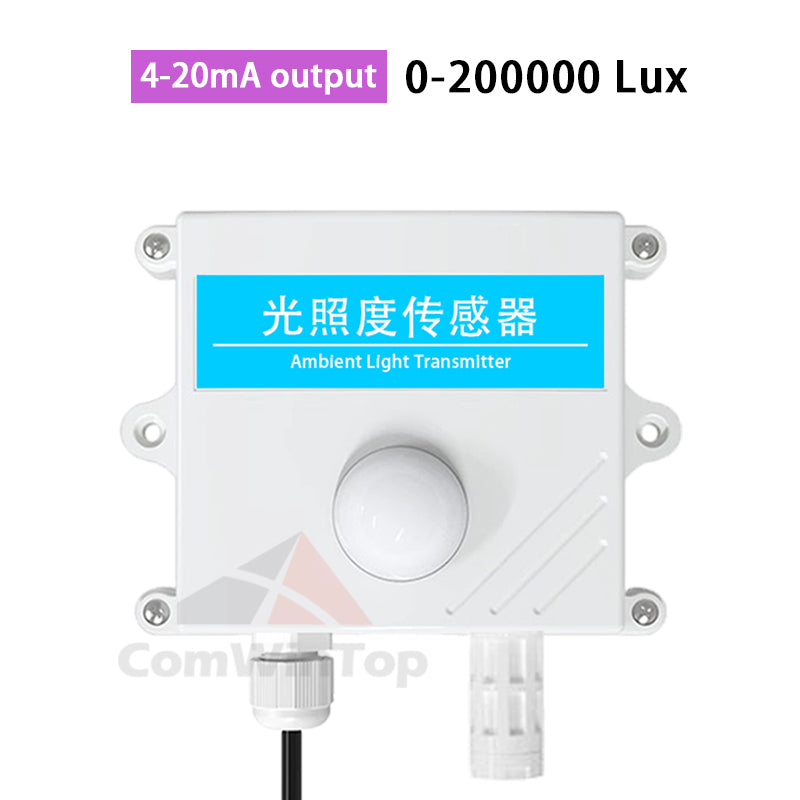

measuring range of high precision illumination measurement 0-6 million Lux, 0-20 million Lux Optional.
-

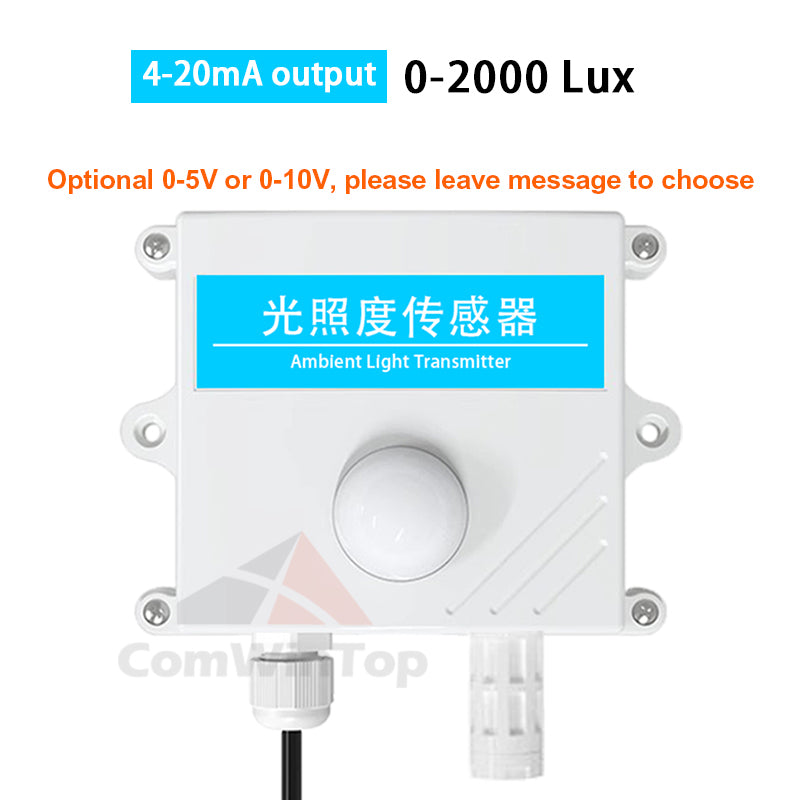

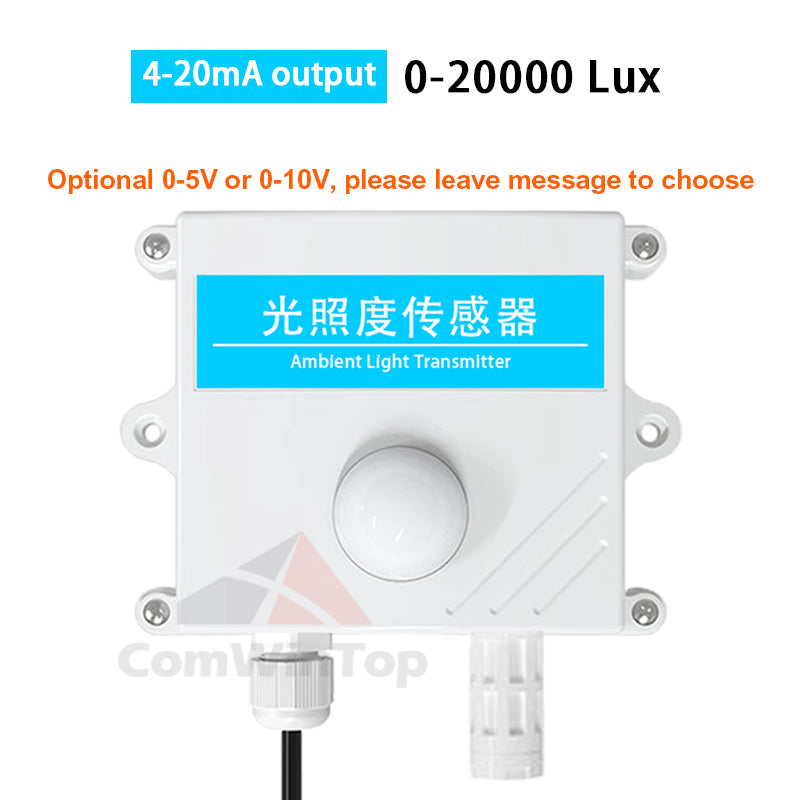

4-20ma/0-10v/0-5v multiple analog output signals optional
-

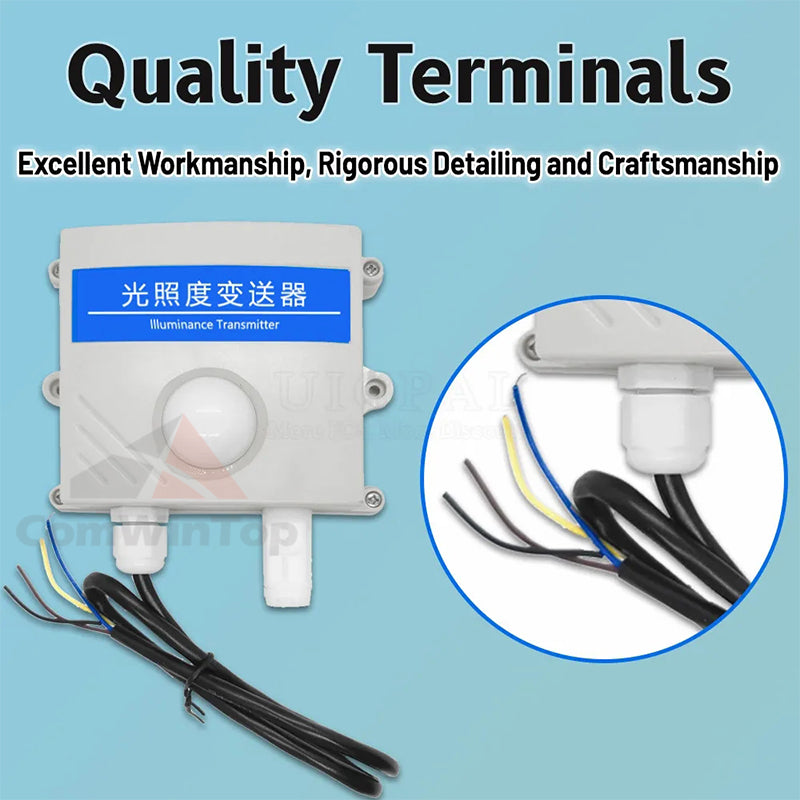

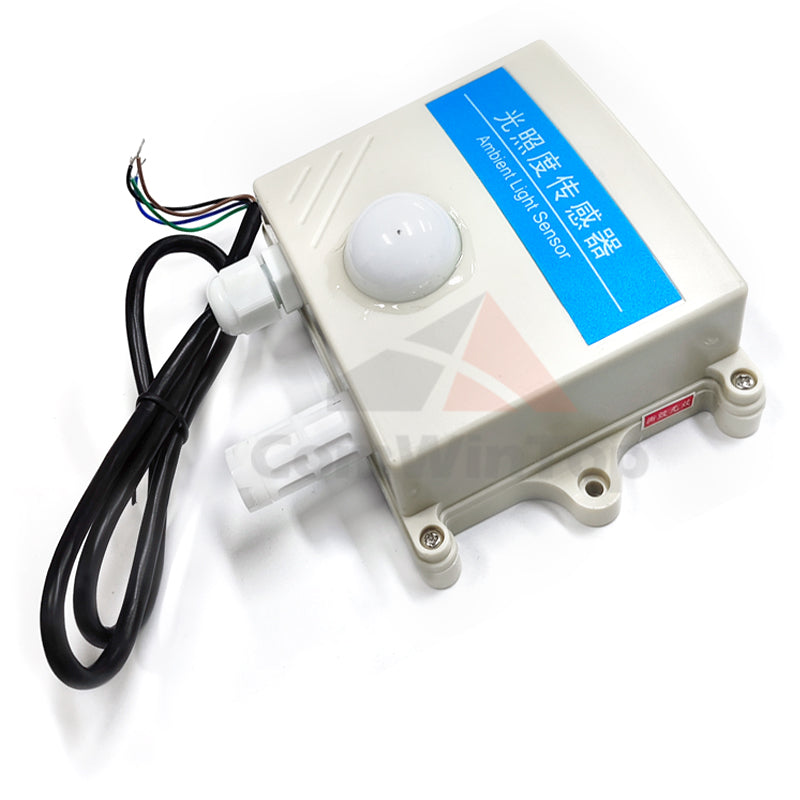

wall-mounted waterproof shell, high protection level, can be used for outdoor or harsh on-site environment
-
10-30V DC wide voltage power supply
Specification
|
DC power Supply (default) |
10-30vdc(0~10v -type |
|
|
Maximum power |
Current output |
1.2W |
|
Voltage output |
1.2W |
|
|
Precision |
Light intensity |
±7% (°) |
|
Light intensity Range |
0~20 million 0~65535lux |
|
|
Working |
-40 ° ~+60 °, 0%RH~80%RH |
|
|
Long-term stability |
Light intensity |
≤ 5%/y |
|
Response time |
Light intensity |
0.1s |
|
Output signal |
Current output |
4ma~20ma |
|
Voltage output |
0~5v/0~10v |
|
|
Load capacity |
Voltage output |
output resistor≤ 250Ω |
|
Current output |
≤ 600Ω |
|
|
DC power Supply (default) |
10-30vdc |
|
|
Maximum power |
0.4W |
|
|
Precision |
Humidity |
±3%rh(5%rh~95%rh,25°) |
|
Temperature |
±0.5 °( - °) |
|
|
Light intensity |
±7% ( °) |
|
|
Light intensity Range |

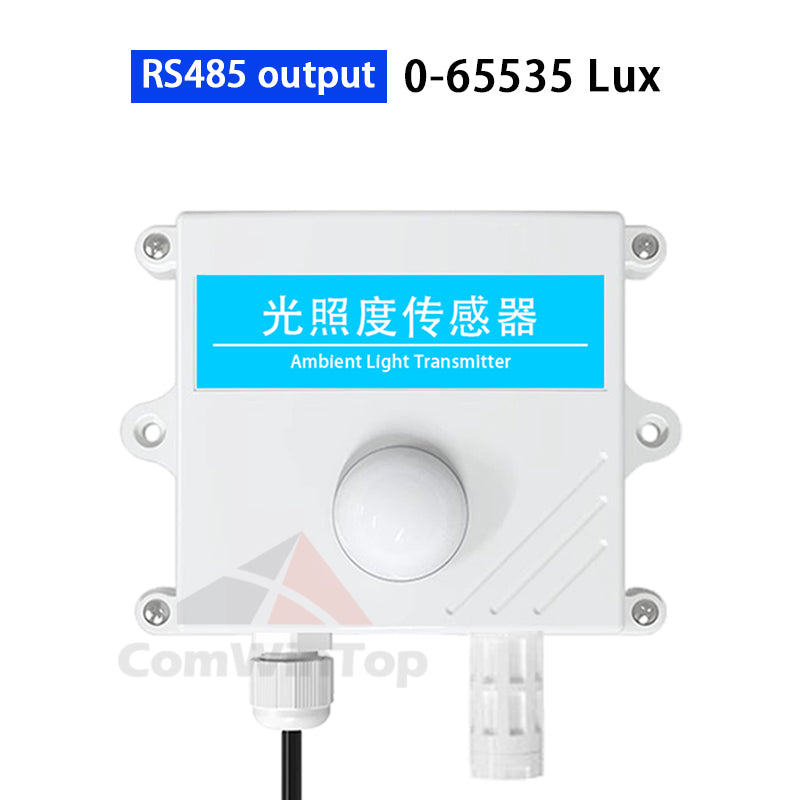

0-65535lux ; 0-20 million Lux |
|
|

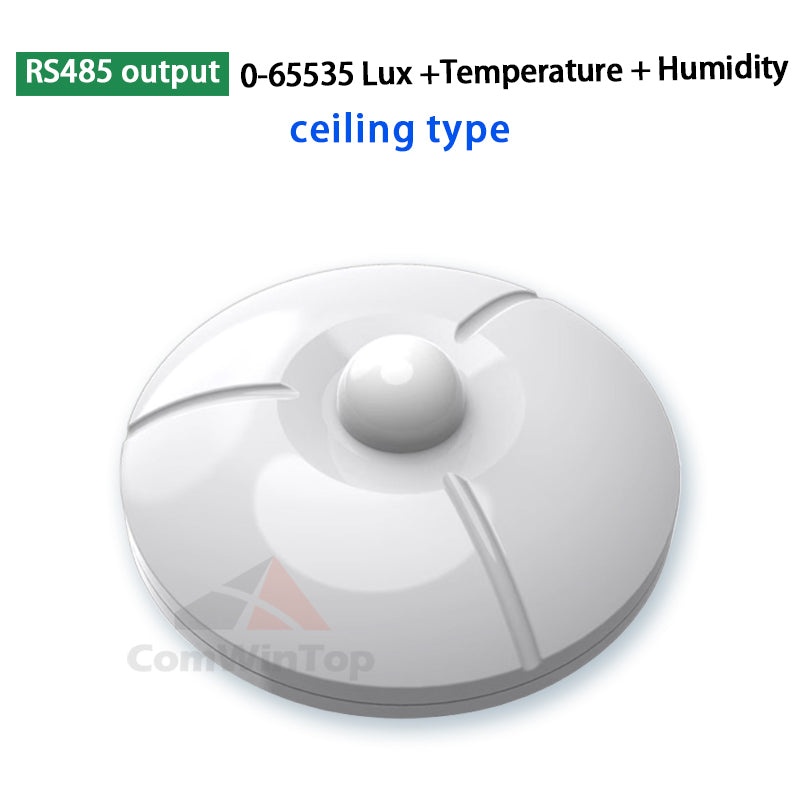

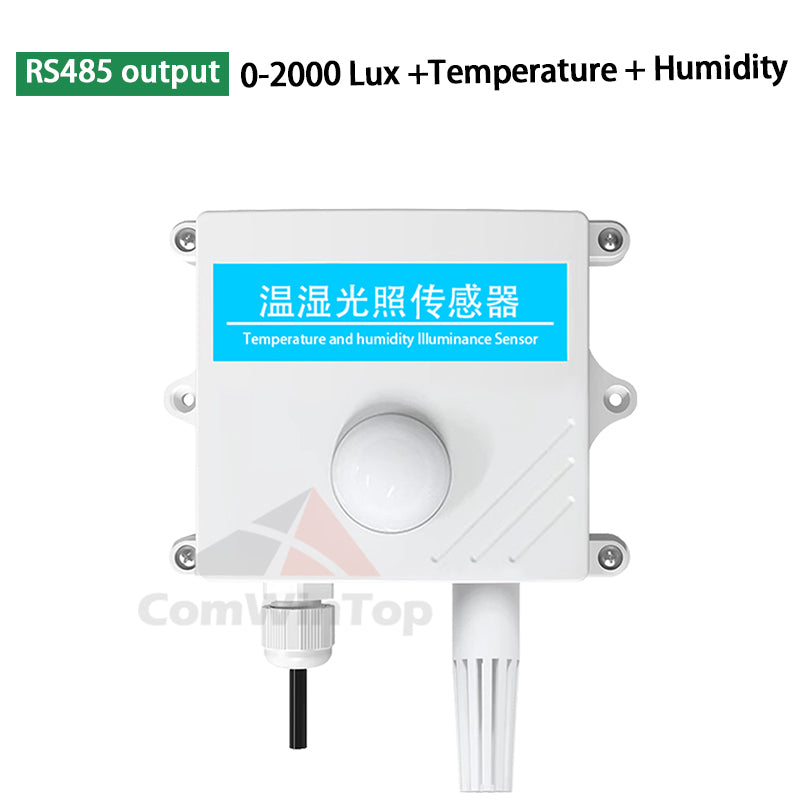

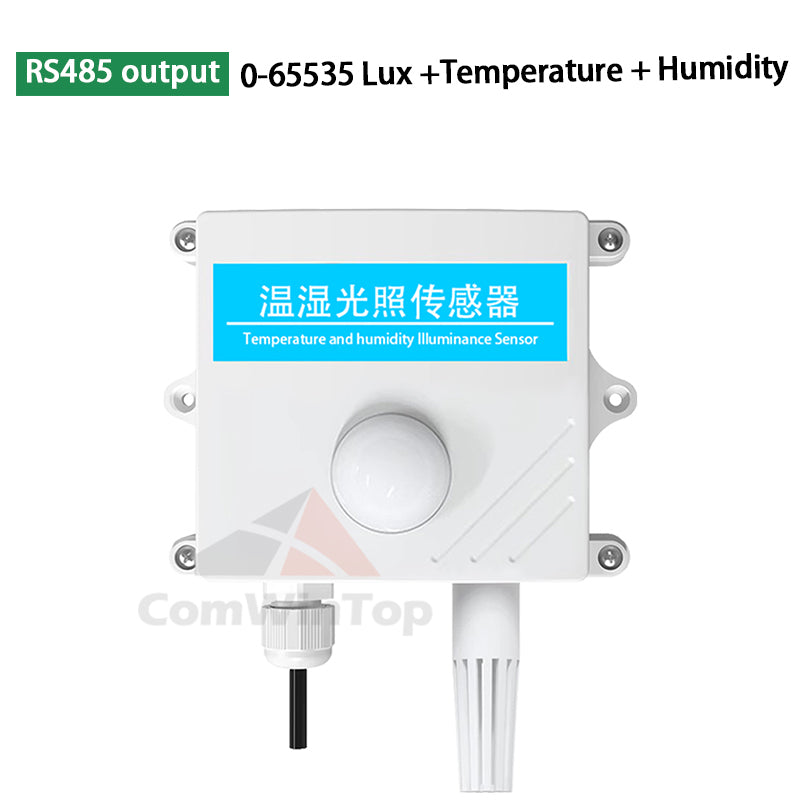

Temperature and humidity measurement process |
-40 ° ~+60 °, 0%RH~80%RH |
|
|
Long-term |
Temperature |
≤ 0.1 ° /y |
|
Humidity |
≤ 1%/y |
|
|
Light intensity |
≤ 5%/y |
|
|
Response time |
Temperature |
≤ 18s (1m/s wind speed) |
|
Humidity |
≤ 6s (1m/s wind speed) |
|
|
Light intensity |
0.1s |
|
|
Output signal |

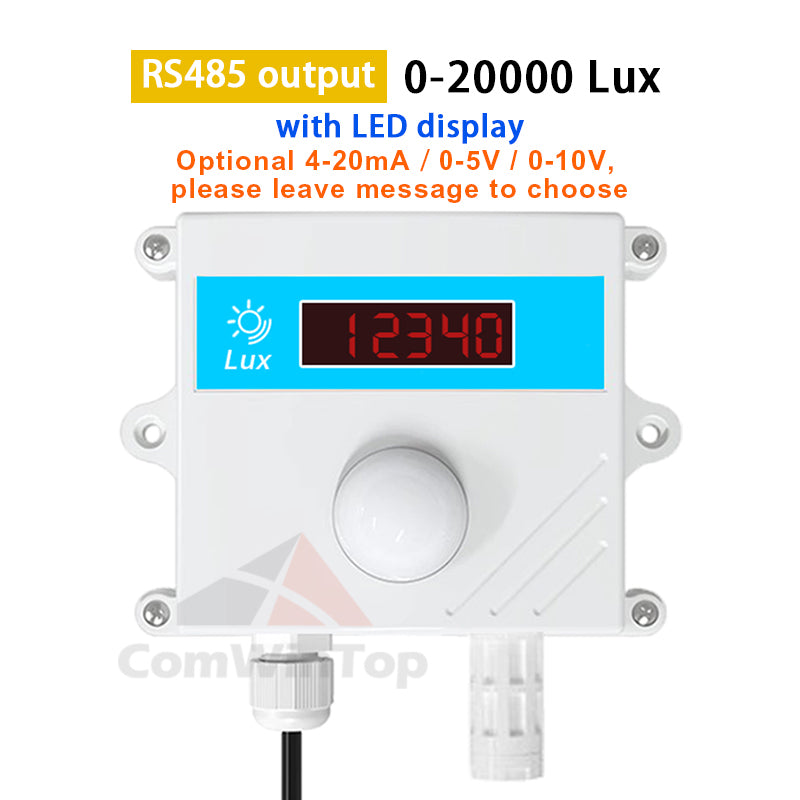

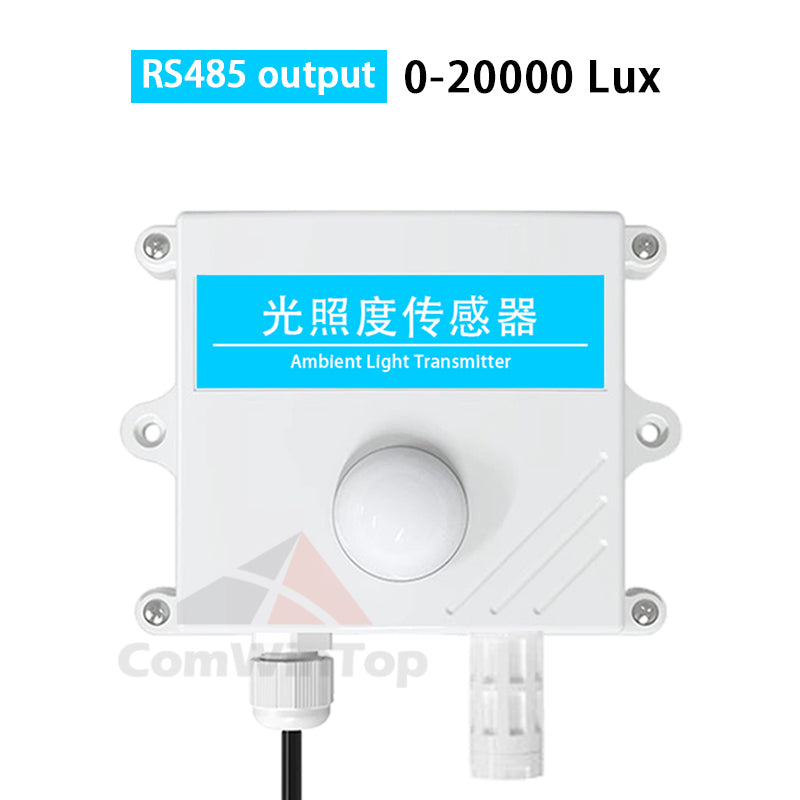

RS485 (Modbus Protocol) |
|
