DIN35 Rail Modbus Rtu RS485 Temperature Humidity Transmitter

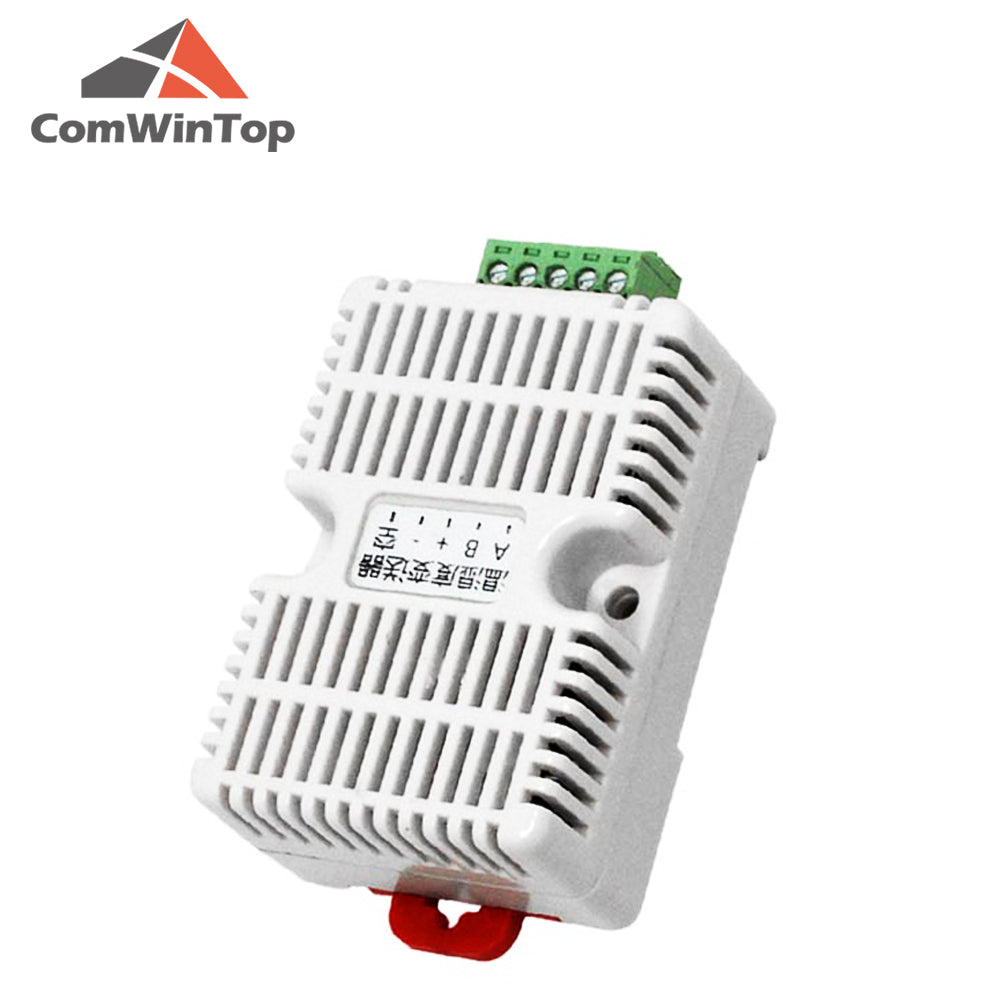

CWT-DINTH RS485 temperature humidity sensor

Use for detecting air temperature and humidity, not waterproof, widely used in communication rooms, intelligent buildings, workshops, warehouse, medicine warehouse, library, museum, laboratory, office, ventilation duct and others normal environment.

Specification

•Power: DC9V~DC30V

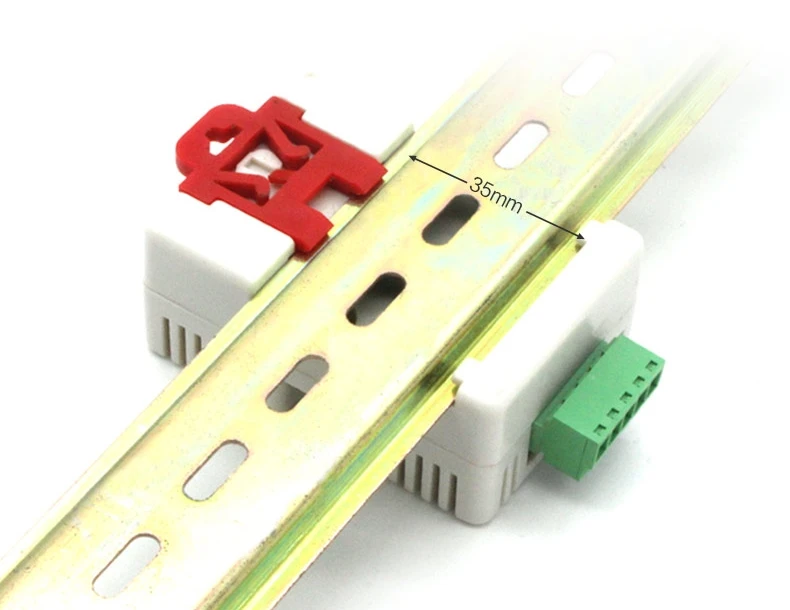

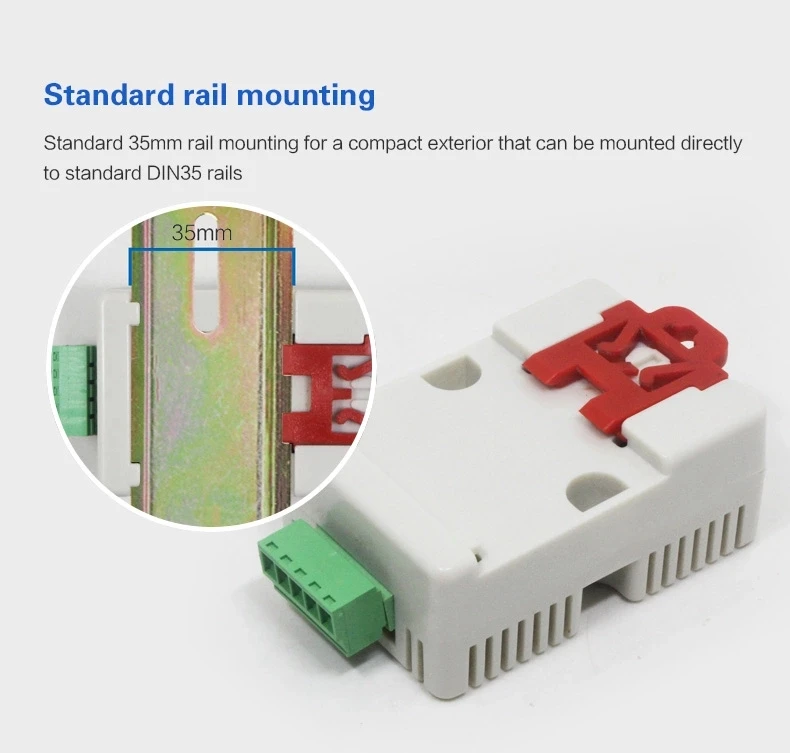

•Standard 35mm rail installation.

• Temperature Measuring Range : -40℃~80℃

• Humidity Measuring Range: 0～100%RH

• Protection: IP30

• Measuring Precision temperature：±0.5℃ (resolution: 0.1℃)

• Humidity：±5%rh(resolution: 0.1 rh)

• Output: RS485 (Protocol MODBUS RTU)

• Consumption ＜0.1W

•RS485 Communication distance: up to 800m
