ComWinTop

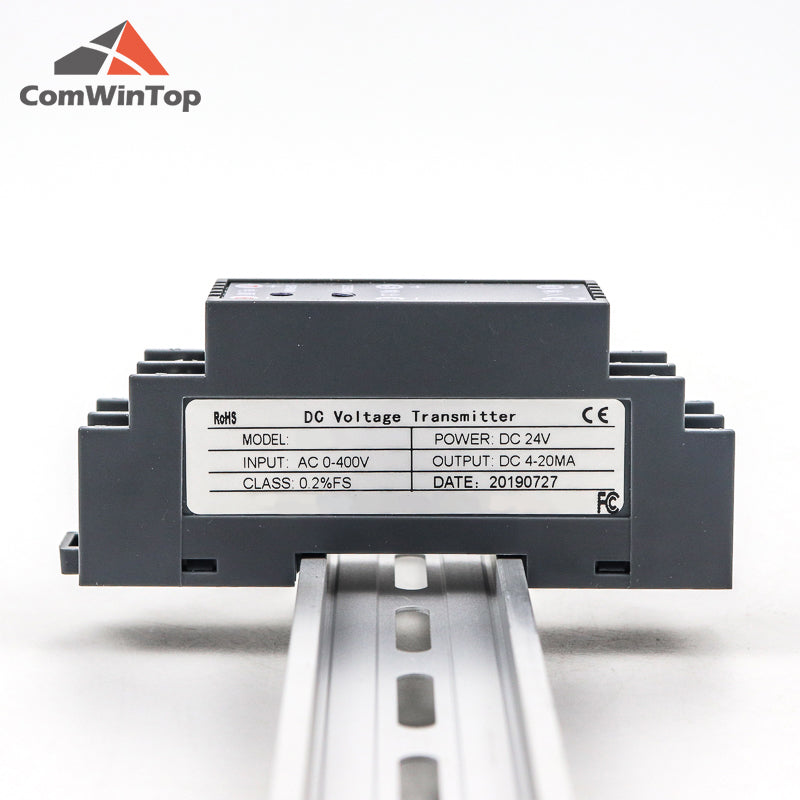

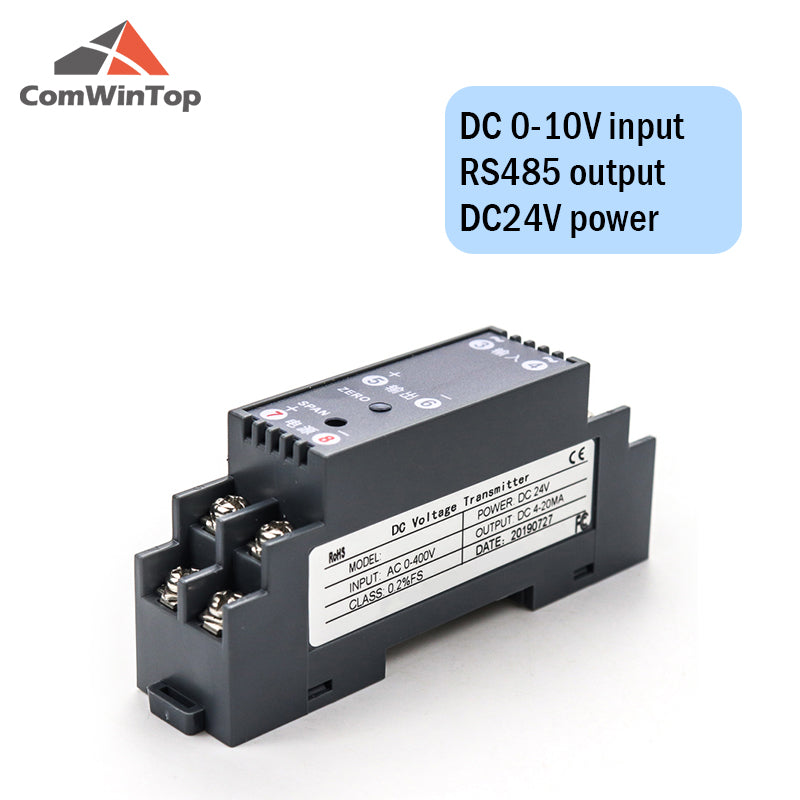

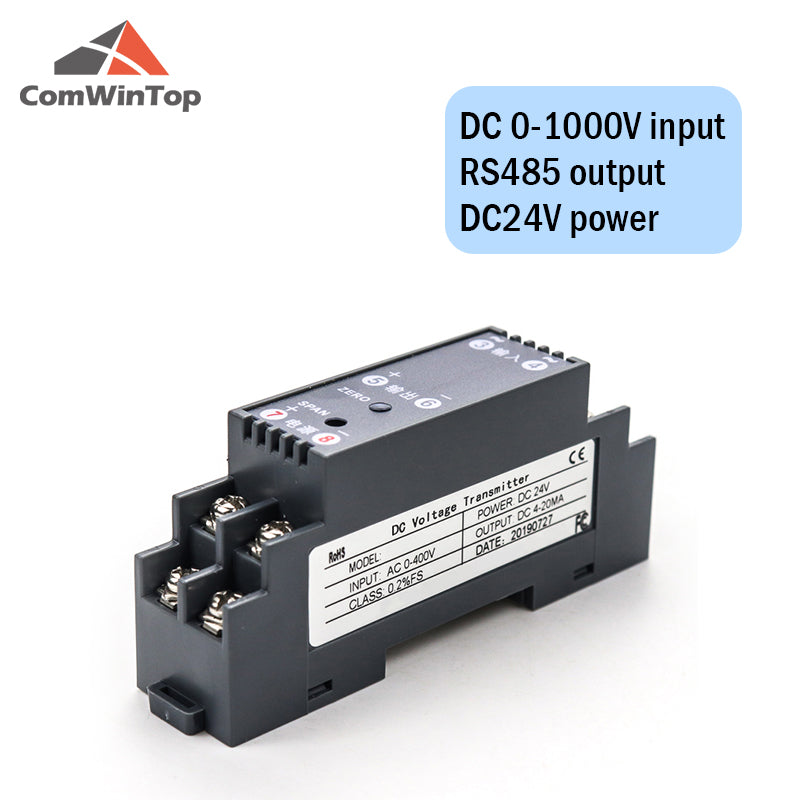

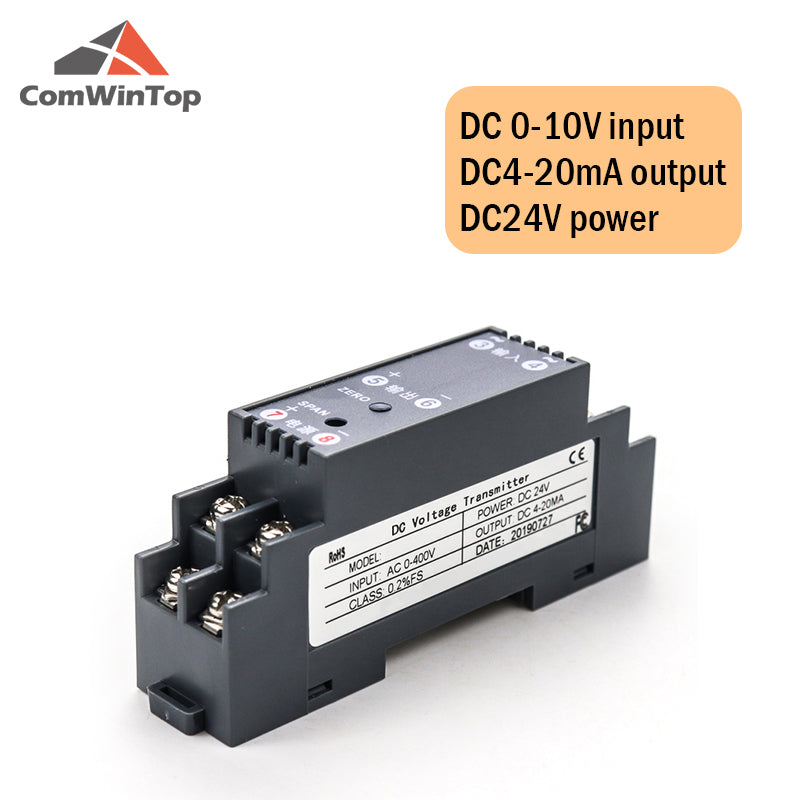

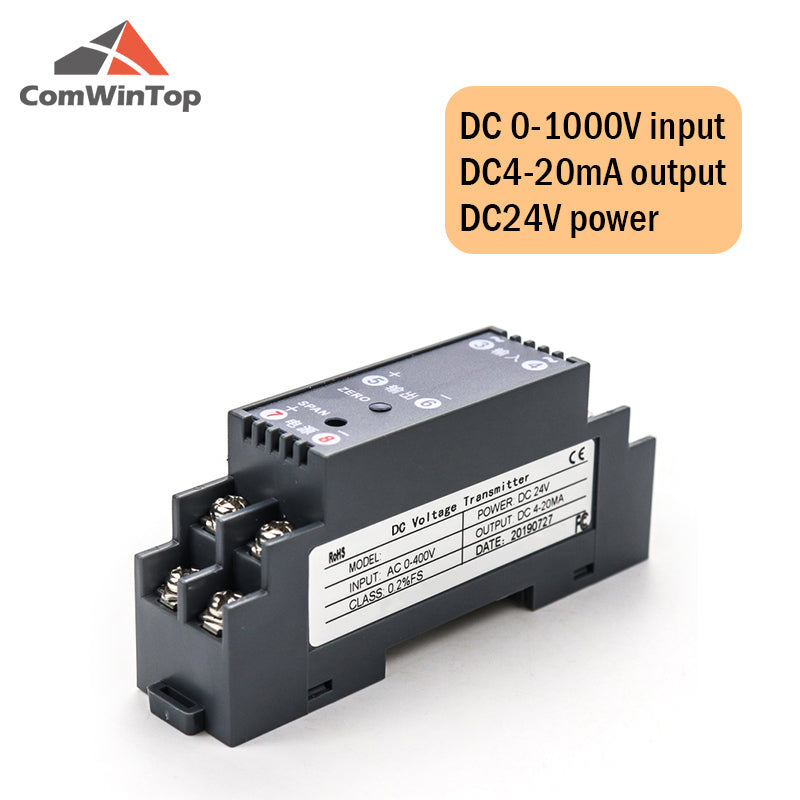

DC 0-1000V Input 4-20mA/RS485 Output Din Type Voltage Transmitter DC Voltage Signal Transducer Voltage Sensor

Regular price $36.76 USD
Regular price Sale price $36.76 USD
Sale Sold out
样式

Please notice: All prices are untaxed!

DC 0-1000V Input 4-20mA/RS485 Output Din Type Voltage Transmitter DC Voltage Signal Transducer Voltage Sensor


Brief Description

This apparatus transmits the DC voltage signal to isolated current or voltage signal such as 4-20 mA DC,0-10 VDC, and the input, output, and power supply are galvanically isolated from each other.

It can be used together with modular instrumentation and DCS, PLC and other systems, to offer signal isolation, signal conversion, signal processing and other functions to field instrument, thereby enhancing the immunity of automatic control system in the industrial production process, and ensuring systems stability and reliability.

Compared with other similar products, this apparatus has the advantages of small volume, fast response time, low power loss and quite well temperature characteristics.



Specification

Product name

DC voltage transmitter

Product model

CWT-DCVT

Input range

0-1000V

Input impedance

≥300KΩ

Output signal

DC0-5V/ DC0-10V/DC4-20mA/RS485

Output load resistance

RL≤5000Ω (output current signal)

RL≥10KΩ (output voltage signal)

Class

0.1%F.S.

Temperature drift

0.005%F.S./°C (-20°C~+55°C)

Response time

≤10mS (0-90%) (TYP)

Dielectric Strength

1500V DC/1min (between input and output and power in)

Insulation resistance

≥100MQ (between input and output and power in)

Power supply

DC12V / 24V

Rating power consumption

≤1W (24V, 20mA output)

Working temperature

-20°C~+55°C

Installation method

35mm standard rail
