CWT7100 series RS485 RS232 Ethernet Modbus Rtu Tcp Io Module

Regular price $109.00 USD
Regular price Sale price $109.00 USD
Sale Sold out
样式

Please notice: All prices are untaxed!


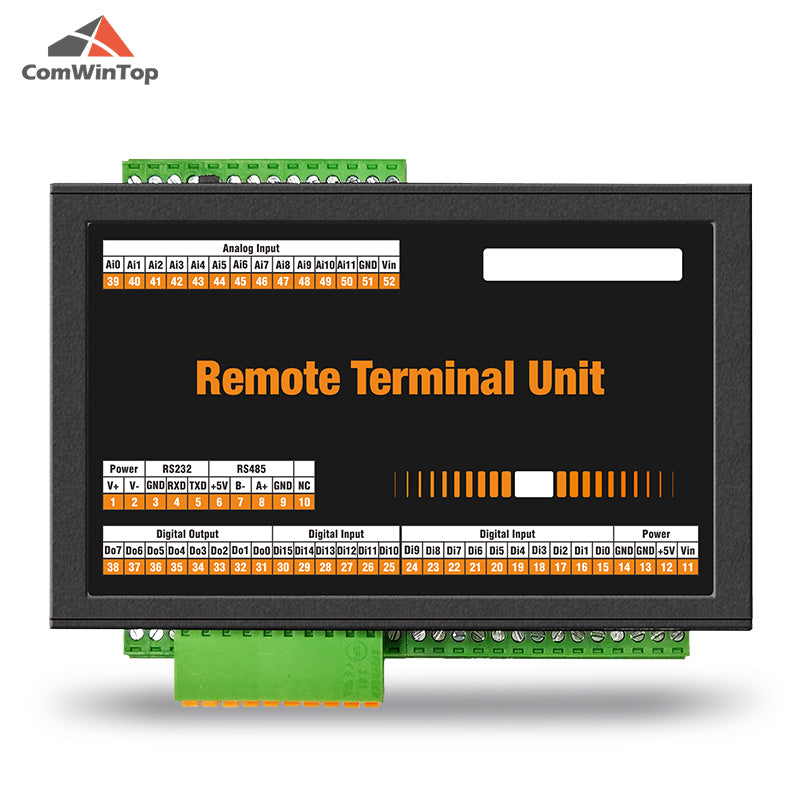

Product overview

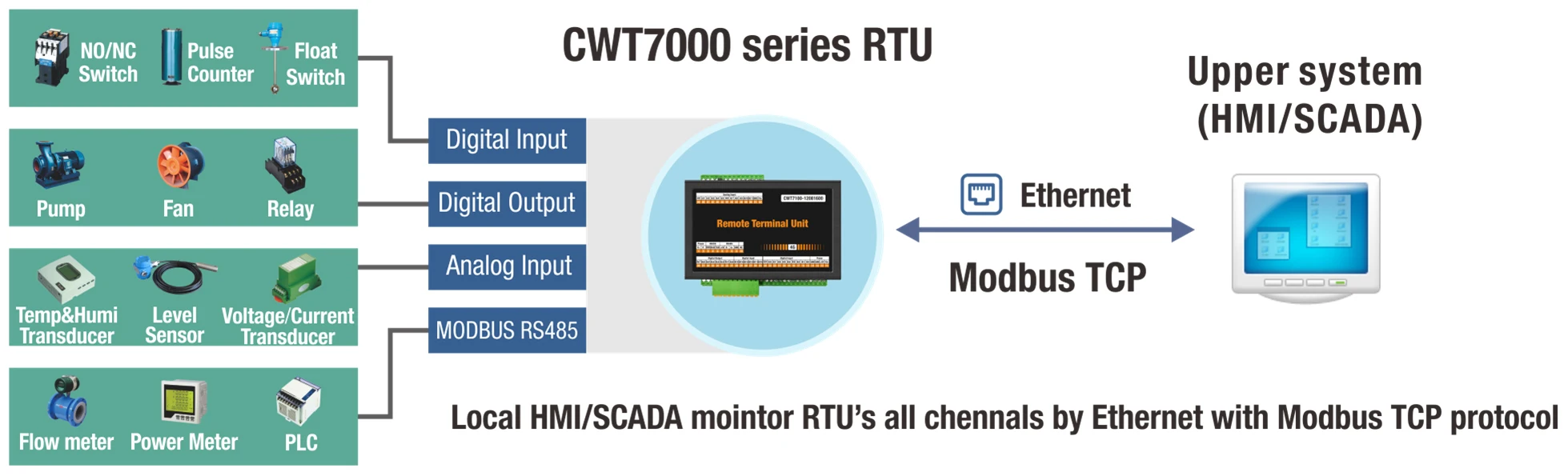

    CWT7100 series RTU with DI, DO, AI, RS485 standard electrical interface, it can connect various industrial equipment, such as PLC, meters, sensors, electrical switches for monitoring real-time running status and data of industrial field, and communicate with central monitoring system by Ethernet. It efficiently acquires the remote equipment operating parameters and process management, can be widely used in industrial automatic control, base station / computer room monitoring, environmental monitoring, water conservancy project, power industries, agriculture, etc.




Model list

Models

IO port

CWT7100-800F(T)

8Ai + 24Do (NPN)

CWT7100-808D(T)

8Ai + 8Di + 16Do (NPN)

CWT7100-8088(T)

8Ai + 8Di + 8Do (NPN)

CWT7100-8084(R)

8Ai + 8Di + 4Do
(relay)

CWT7100-80D8(T)

8Ai + 16Di + 8Do (NPN)

CWT7100-80D4(R)

8Ai + 16Di + 4Do (relay)

CWT7100-80F0

8Ai + 24Di

CWT7100-C00F(T)

12Ai + 24Do (NPN)

CWT7100-C08D(T)

12Ai + 8Di + 16Do (NPN)

CWT7100-C088(T)

12Ai + 8Di + 8Do
(NPN)

CWT7100-C084(R)

12Ai + 8Di + 4Do
(relay)

CWT7100-C0D8(T)

12Ai + 16Di + 8Do (NPN)

CWT7100-C0D4(R)

12Ai + 16Di + 4Do (relay)

CWT7100-C0F0

12Ai + 24Di

CWT7100-0F00

24Ti

CWT7100-0F08(T)

16Ti + 8Do (NPN)

CWT7100-0888(T)

8Ti + 8Di + 8Do (NPN)

CWT7100-8F00

8Ai + 24Ti

CWT7100-8D08(T)

8Ai + 16Ti + 8Do (NPN)

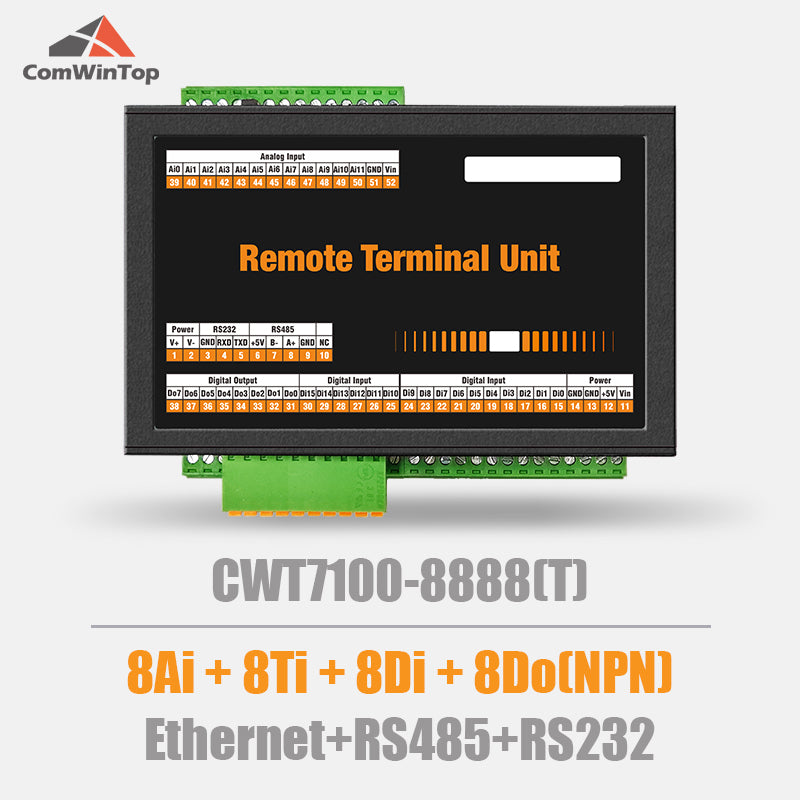

CWT7100-8888(T)

8Ai + 8Ti + 8Di + 8Do
(NPN)

CWT7100-CF00

12Ai + 24Ti

CWT7100-CD04(R)

12Ai + 16Ti + 4Do (relay)


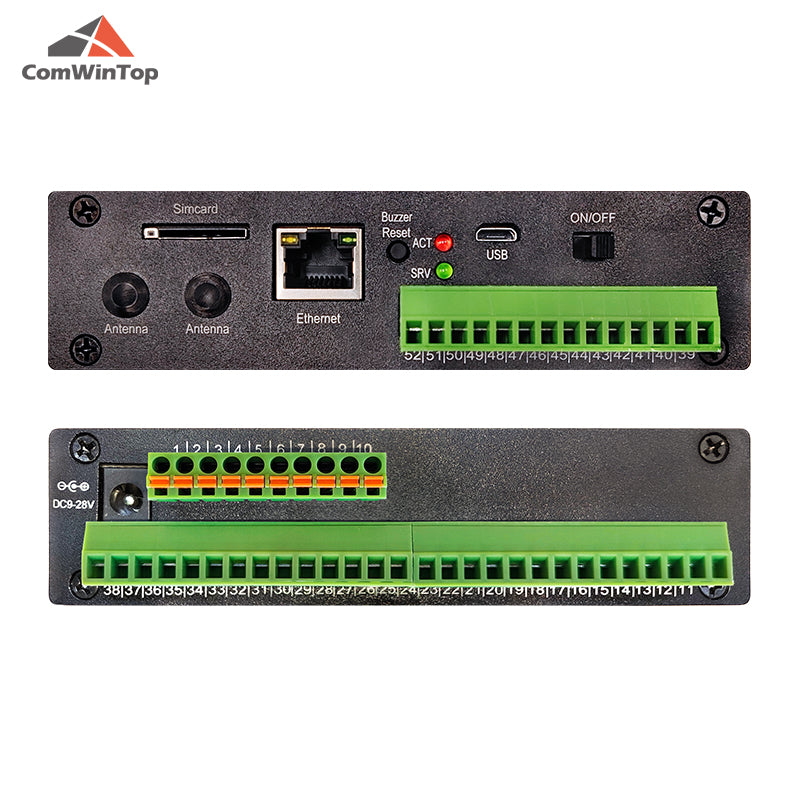

Communication port and features


Port

modes

Features

Ethernet

Modbus TCP server

Work as Modbus TCP slave, master can read/write IO ports by Ethernet

TCP client

  • Connect servers by TCP/IP, Support CWT_IO protocol, http post protocol

  • Can upload data regularly

  • Support connect CWT cloud

RS485

Modbus master

Can work as Modbus master to read/write 64 registers from slaves

Modbus slave

Can work as Modbus slave, master can read/write IO ports by RS485


Basic specifications


System

CPU

STM32

Power

9-28V DC

Consumption

12V input Max. 150mA/Average 50mA

Working environment

-30℃~70℃,5%95%RH(non-condensing)

RTC

Update RTC automatically by NTP or manually


Communication

port

Ethernet

1 port RJ45, 10M/100M adaptive

RS485

2 ports, baud rate: 1200~115200dps, default 9600,n,8,1

USB

Configuration port, connect PC, provide config software


IO port

Digital input

ŸDry contact trigger

ŸCan be pulse counter (counting frequency: 50Hz)

Digital output (transistor)

ŸDrive voltage=power supply voltage, Drive current500mA

ŸNormal open

Digital output (relay)

Norma open, Contact load: 5A / 250VAC, 30VDC

Analog input

Receive 4-20mA, Sampling frequency: 33Hz, 16-bit precision

Temperature input

Connect DS18B20 temperature probe

Measure range: -55℃~125


Physical

Dimension

128×77×33mm

Weight

390G

Protection

IP30

Installation

DIN rail mounting or screw fixing

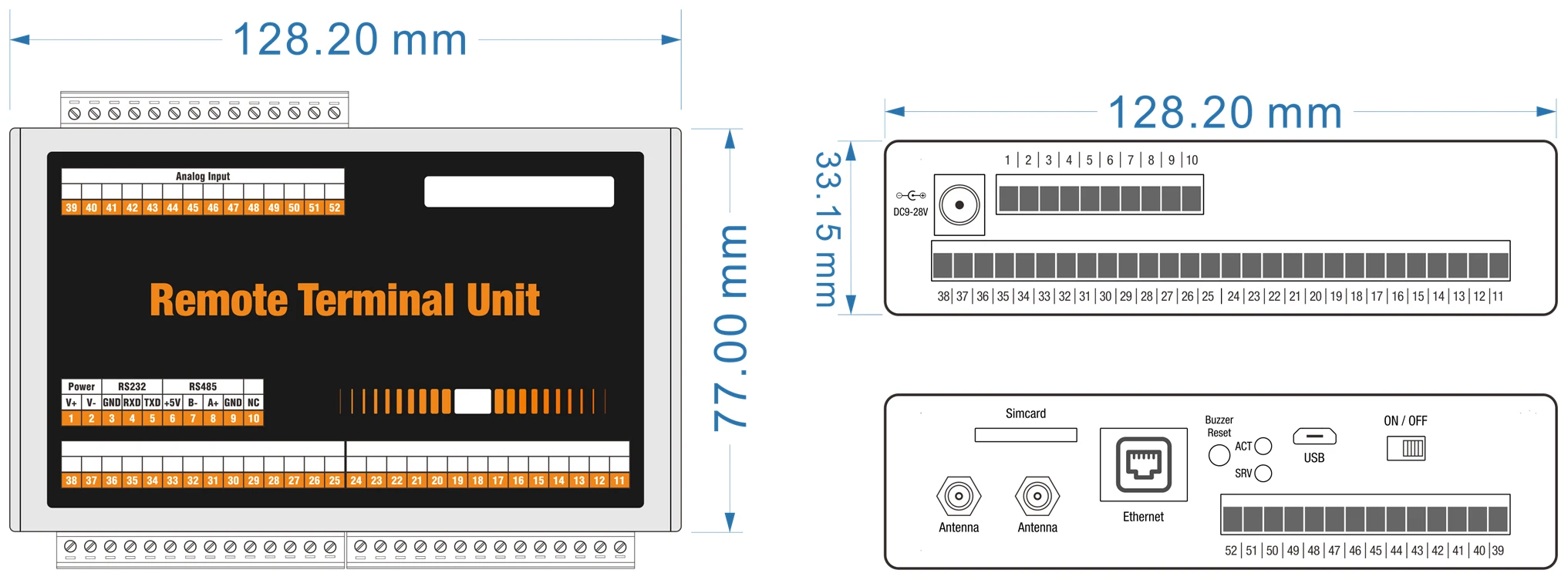

Size diagram
