ComWinTop

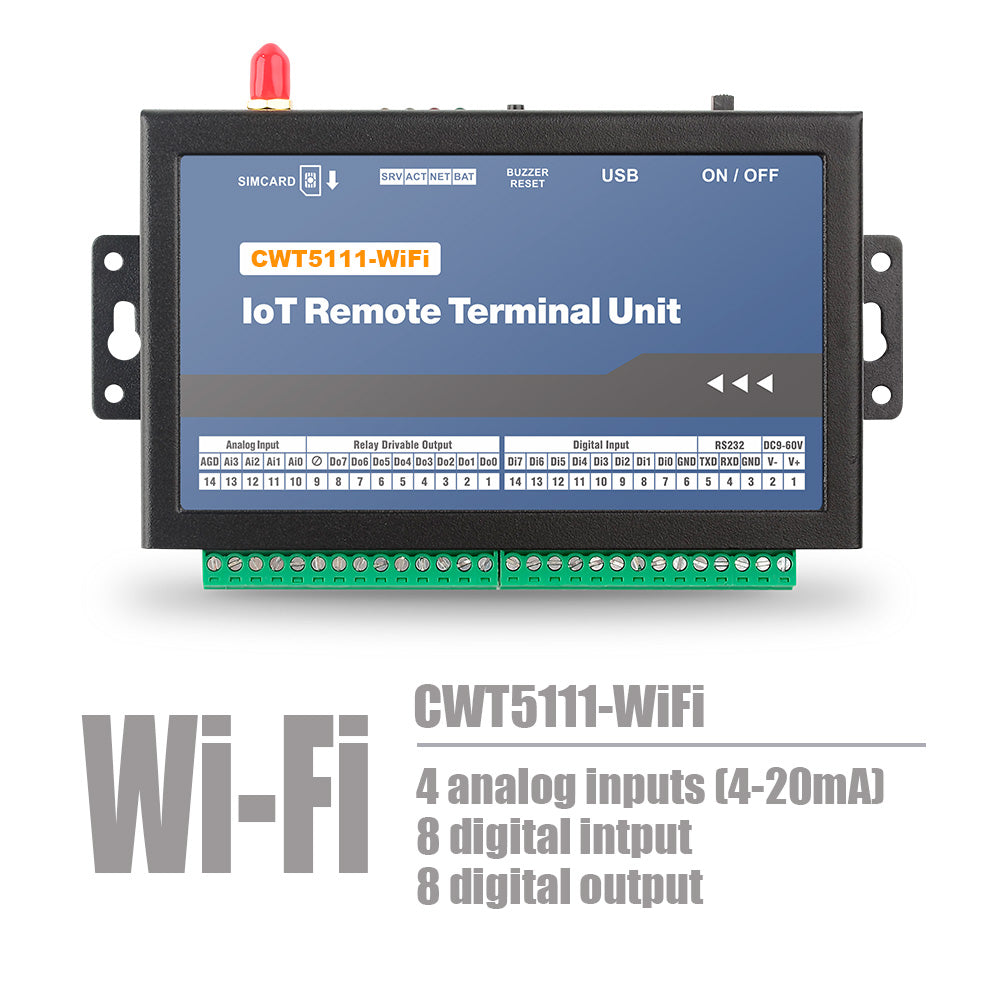

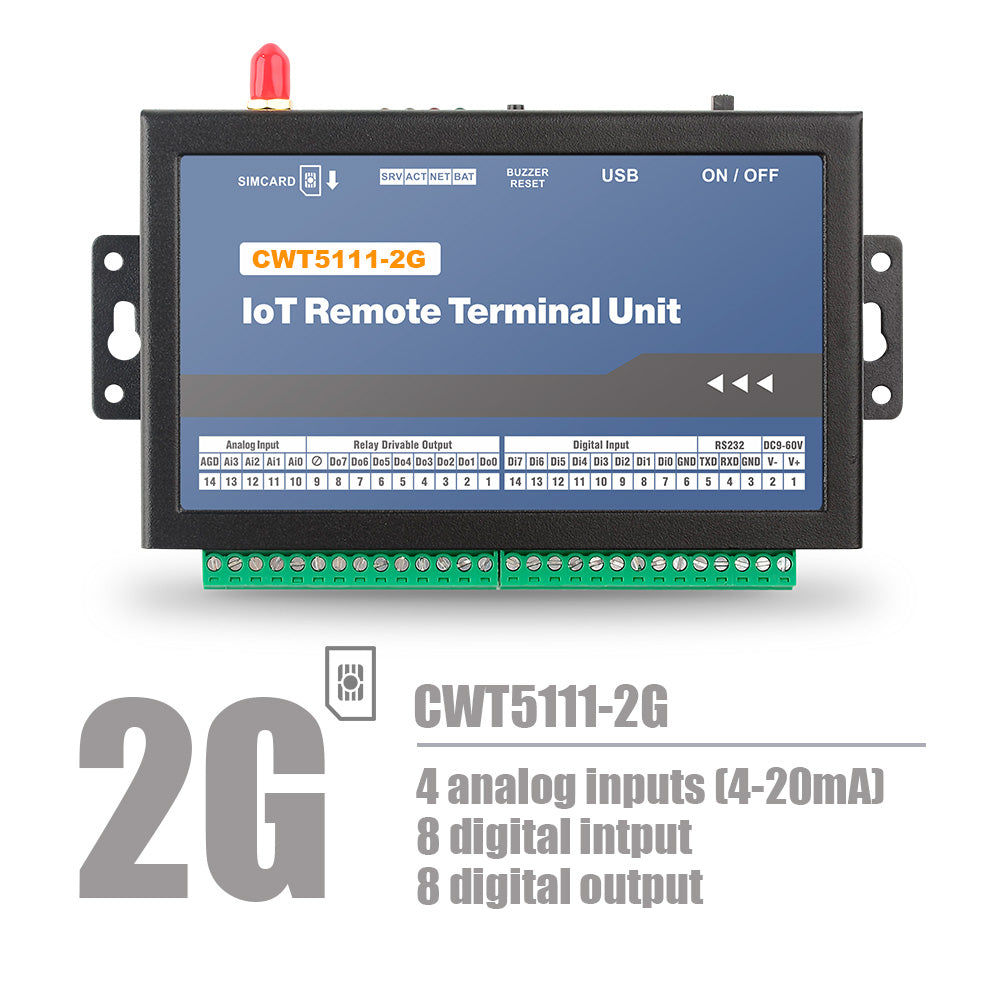

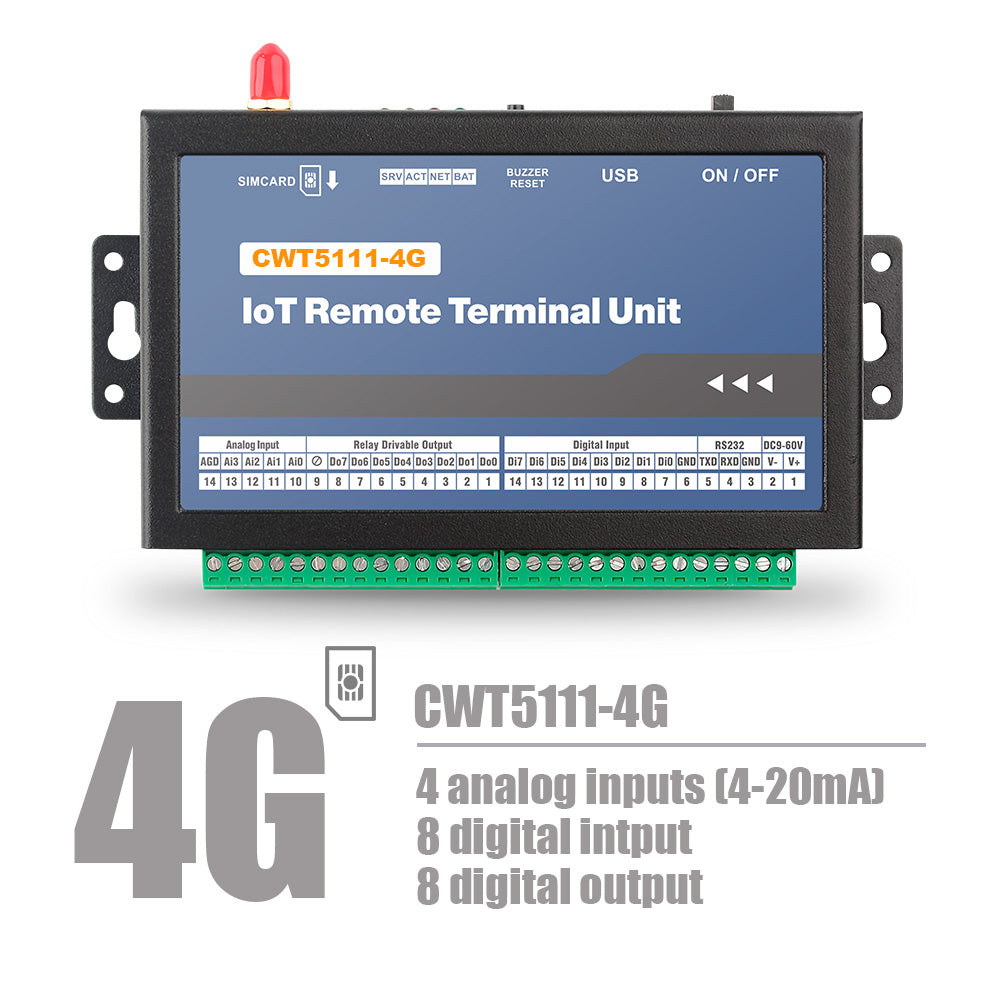

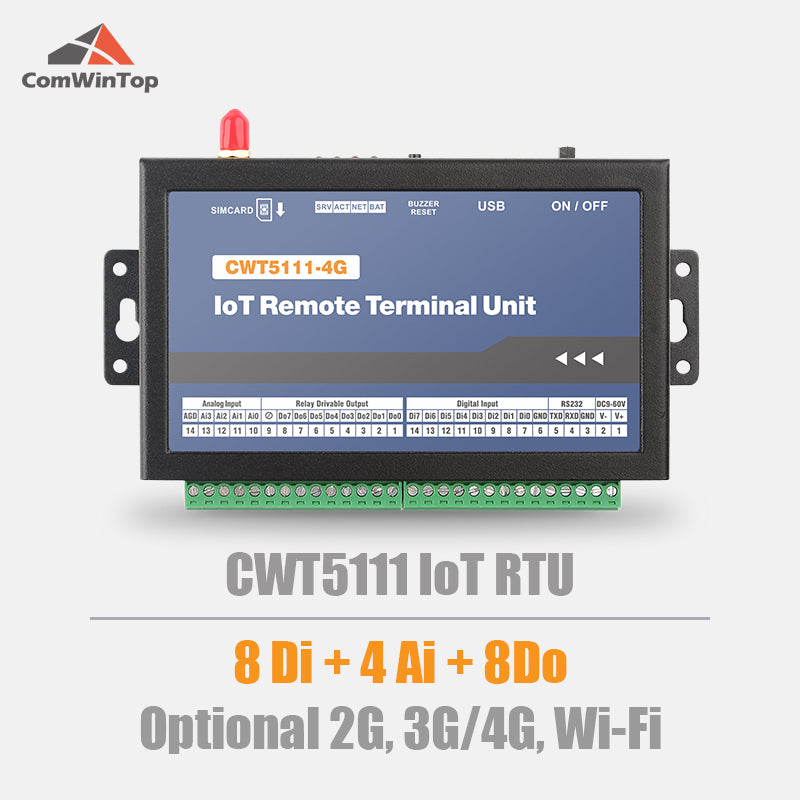

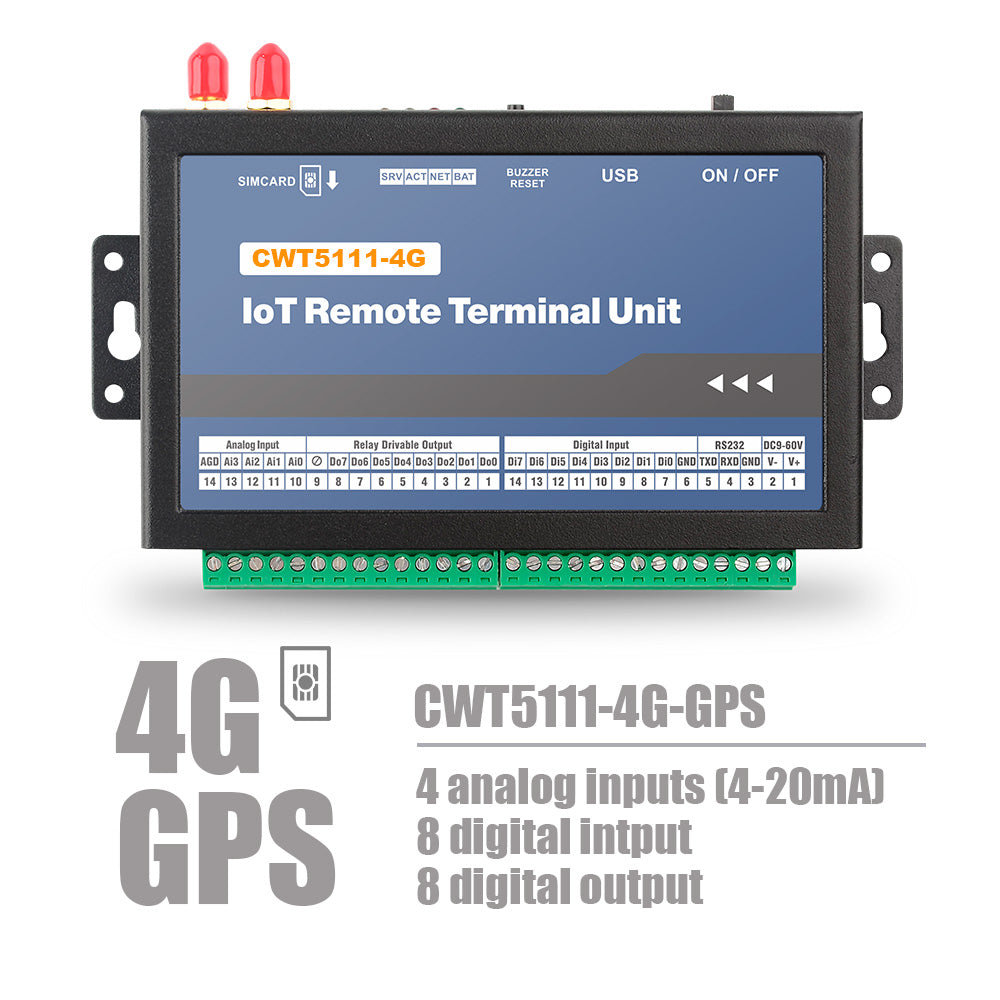

CWT5111 8DI 4AI 8DO Gsm Gprs 4g Wi-Fi Remote Data Acquisition Module Rtu Modem Support M2M Application

$120.00 USD
$120.00 USD
Sale Sold out
样式

Please notice: All prices are untaxed!

Product overview

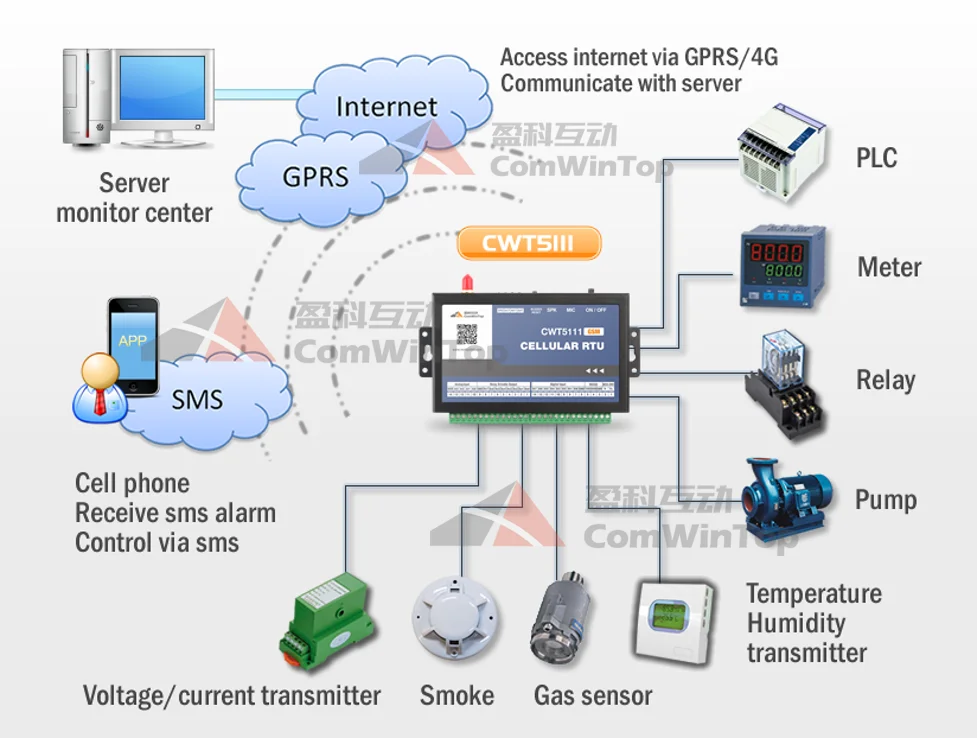

CWT5111 RTU with 8 DI, 8 DO, 4 AI, RS232standard electrical interface can connect various industrial equipment, such as PLC, meters, sensors, electrical switches. It monitors the industrial system real-time running status and data, as well as constructs the remote device to a proprietary central computer and mobile phones through the GSM/GPRS/3G/4G/Wi-Fi/Ethernet communication network. It efficiently acquires the remote equipment operating parameters and process management, can be widely used in industrial automatic control, base station / computer room monitoring, environmental monitoring, water conservancy project, power industries, agriculture, etc.


System Features
  • Adopted highly integrated industrial 32-bit ARM MCU
  • Reliable performance with built-in double watchdog, 24×7 operation
  • With signal filtering mechanisms
  • Network-reconnect and retransmission to ensure data accurately transmit
  • Update RTC automatically or manually, clock source support Sms, NTP, CwtIO Server
  • Can set multiple timers(second, minute, day, week, month) to execute actions, e.g. output, upload data, change setting
  • Event-based linkage programming, e.g. alarm linkage output
  • Provide configure software, visual programming, over 100 parameters can be set
  • Inside temperature optional, can set high or low to alarm
  • Optional inside battery that life is 8-20 hours, cellular module Intelligent sleep when power lost


Port Features

Port

Features


DI

(digital input):
8 channels

  • Accept dry contact


DO

(digital output):
8 channels

  • Transistor output (drive voltage=power supply voltage, Drive current≤500mA

  • Remote or local event activate DO on/off/pulse

  • Remember status when power lost


AI

(analog input):
4 channels

  • Accept 4-20mA (option: 0-5V), Sampling frequency: 33Hz, 16-bit precision)

  • Convert signal to actual measure value，support adjustment

  • Configurable parameters for signal acquisition, alarm, data communication

  • Detect connect or disconnect to alarm



RS232:
1 port

  • Configuration port




Communication Features

Wireless network communication


  • Option network: GPRS, 3G, 4G, Wi-Fi

  • TCP/IP connect at most 4 servers(support Static IP address or domain)

  • Events(e.g. alarm, timer) trigger upload data

  • Communication protocol: Modbus TCP，http post, Cwt_IO(two-way communication

  • Support two-way data transparent transmission with RS485 or RS232



SMS Communication(only available for cellular version)


  • Preset 10 phone numbers (support distribute authority to receive sms)

  • Sms alarm when any IO channel triggered or out of preset normal range

  • Editable alarm and recover sms with time stamp

  • Query any IO channel’s status or value via sms command

  • Control output via sms command

  • Sms report any IO channel’s status or value on schedule

  • Remote setting via sms commands

  • Can query SIM card balance, sms forward

  • Support power lost sms alarm and recover sms(works with inside battery)


2G/4G Version Standard Package




Terminals



Package list

RTU×1,antenna×1，Standard adapter: DC 12V/1.5A×1，serial cable×1, USB cable ×1

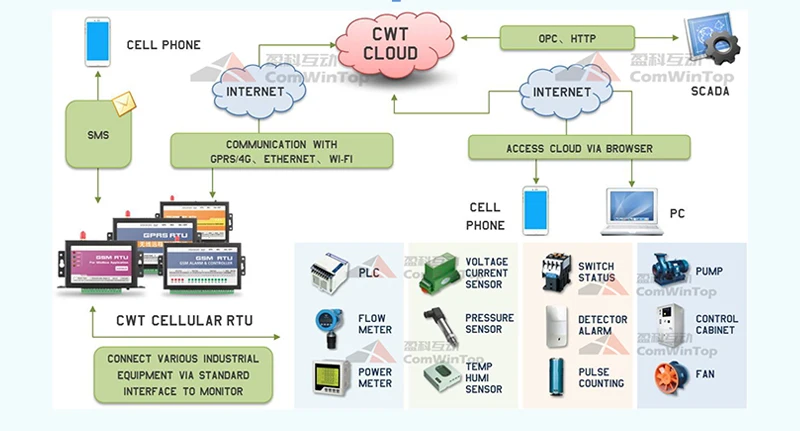

CWT Provide free Cloud Service

CWT cloud is an industrial equipment management system based on internet, cloud computing.

With CWT RTU, CWT cloud can get status, value, position of remote industrial equipment, built a very complete M2M, M2H industrial ecosystem.

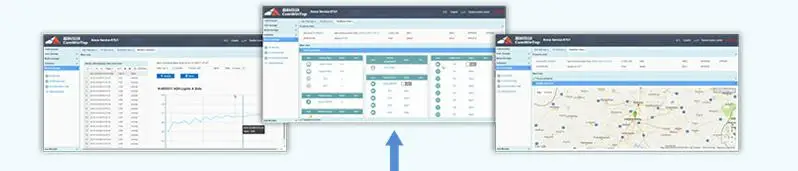

CWT cloud can manage thousands CWT RTU remotely, display all industrial equipment real-time data, location tracking, control device, send commands and store data, analysis data, export data. Operations are based on internet, just login cloud via PC browser or cell phone app to do.
