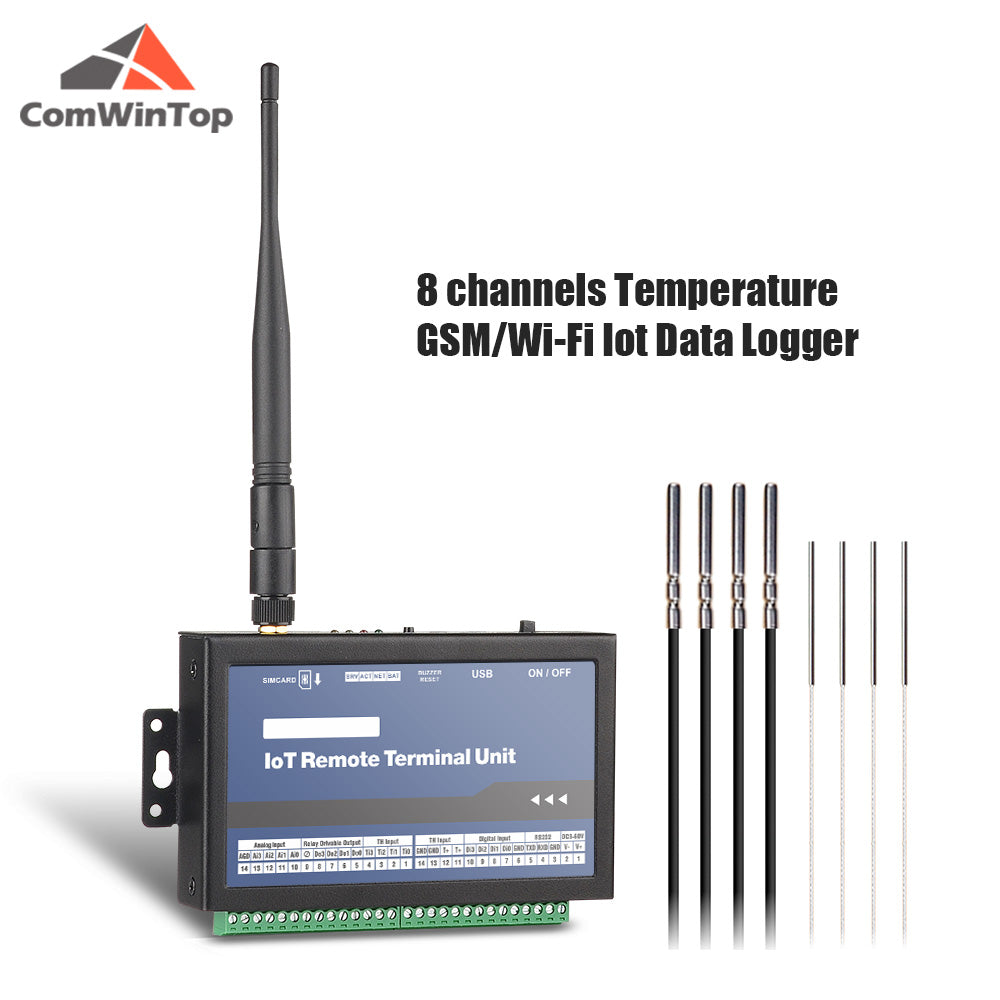

CWT5016 8-channels GSM/Wi-Fi Iot Temperature Alarm Data Logger with Cloud APP Monitoring

CWT5016 Features

Interface

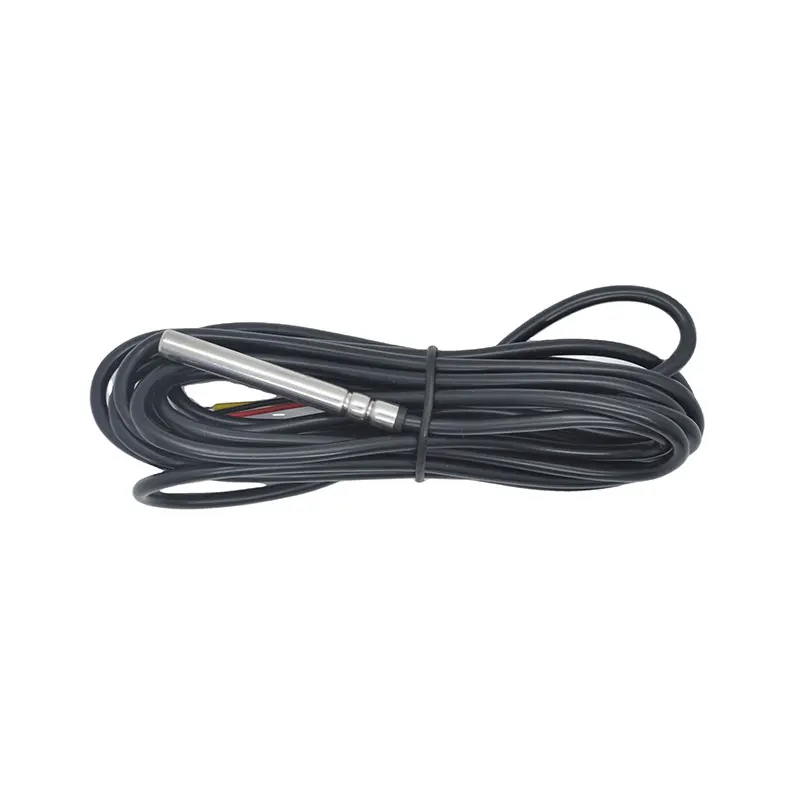

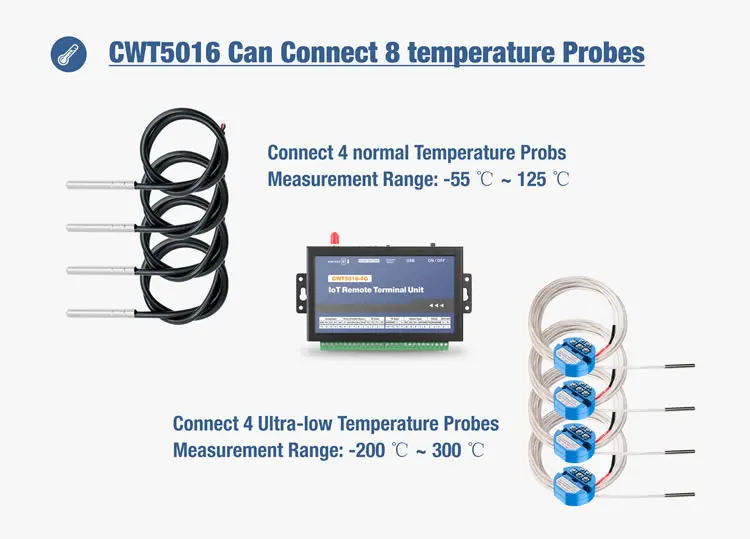

•4 temperature inputs for connecting DS18B20 probe

•4 analog inputs for connecting PT100 temperature probe

•4 outputs, can linkage with temperature alarm (e.g., siren, relay, switch)

•4 digital inputs to receive others signal

•USB port for configuration

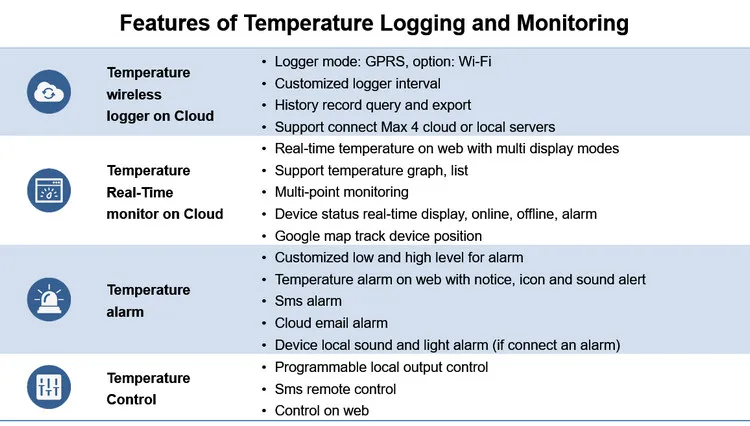

Data logger

•Cloud Data logger

•Customized logger interval

•Support connect Max 4 cloud or local servers

Wireless Network

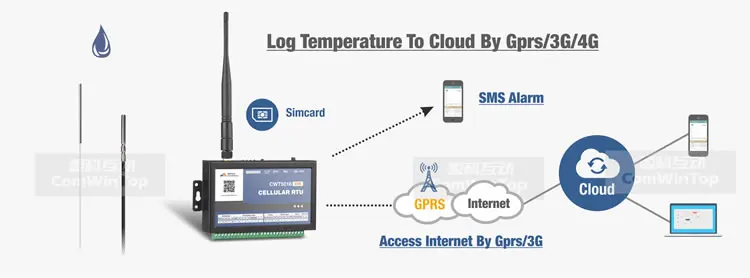

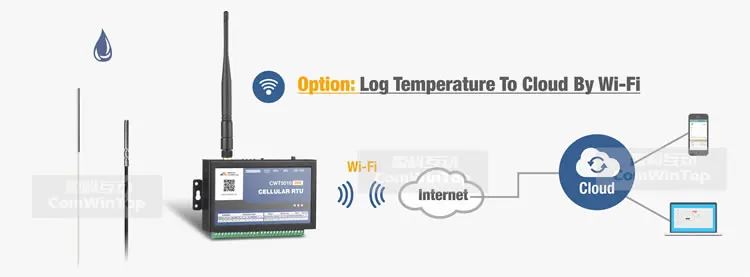

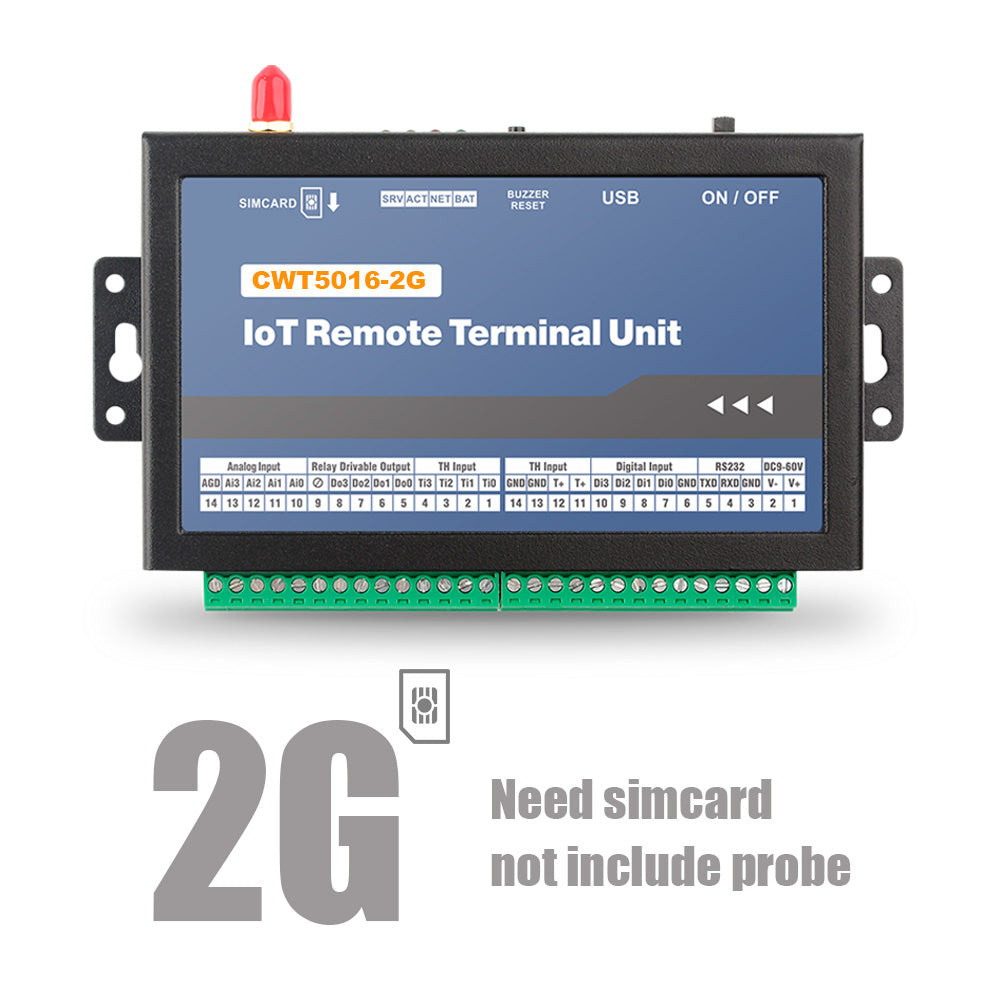

•Either GPRS (option: 3G/4G, need Simcard) or Wi-Fi (Not need simcard)

•To communicate with server with CWT_IO or Modbus TCP protocol

SMS

(available for GSM/3g/4G version)

•SMS alarm when high and low

•Editable SMS alarm texts

•Query current value via SMS command

•SMS report on schedule

•Power failure SMS alarm (need add inside battery)

•Can preset 10 cell phone numbers

•Can query SIM card balance, SMS forward

•Remote config via SMS

Technical Feature

•Network-reconnect and retransmission to ensure sms and data accurately transmit

•Inside watch dog to assures 7*24 hours working

•Optional inside 1000mA battery, life 8-20 hours

•With immediacy and reliability of the system

•GPS module optional

•Free configure software

CWT5016 SPECIFICATIONS

MCU

Cortex M3 32-bit ARM

Power supply

9-28V DC (Standard adapter: DC 12V/1.5A)

Consumption

12V input Max. 150mA/Average 50mA

Wireless Network

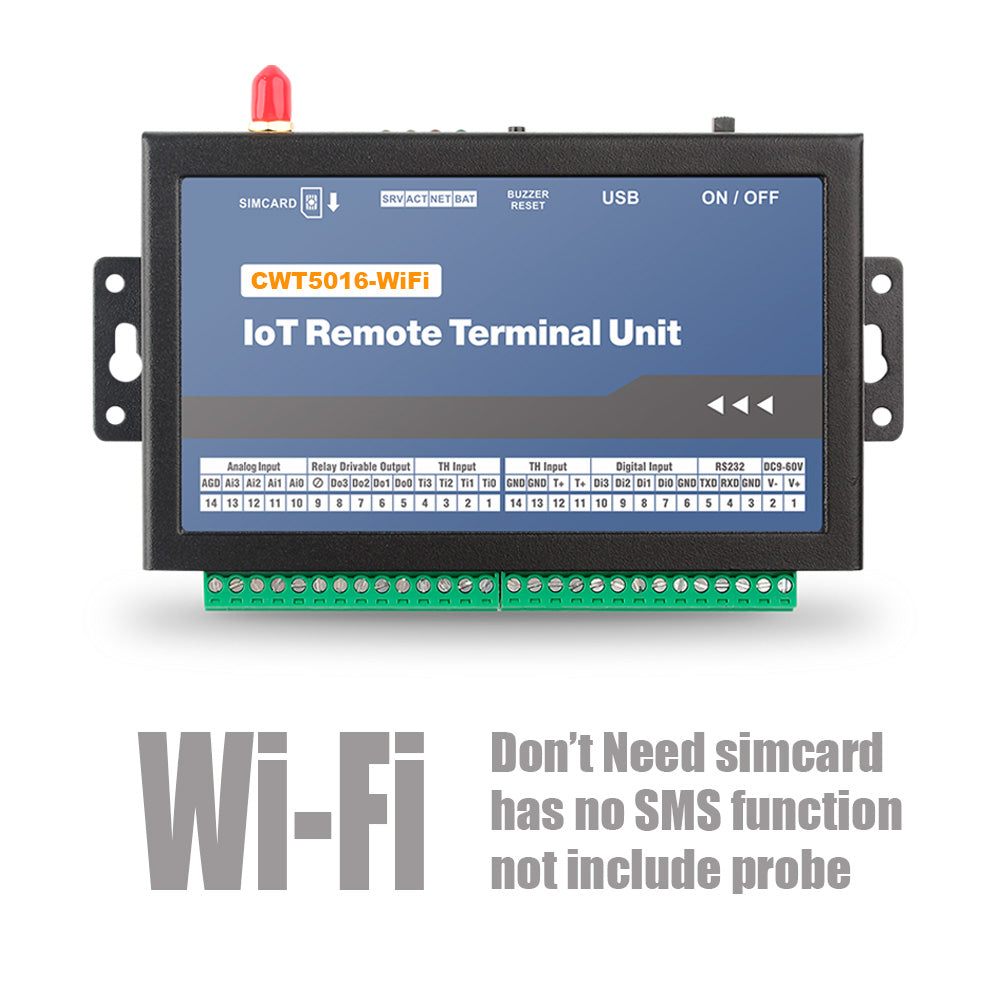

Either GPRS (option: 3G/4G, need simcard) or Wi-Fi (Not need simcard)

GSM/GPRS (4 band 850/900/1800/1900Mhz)

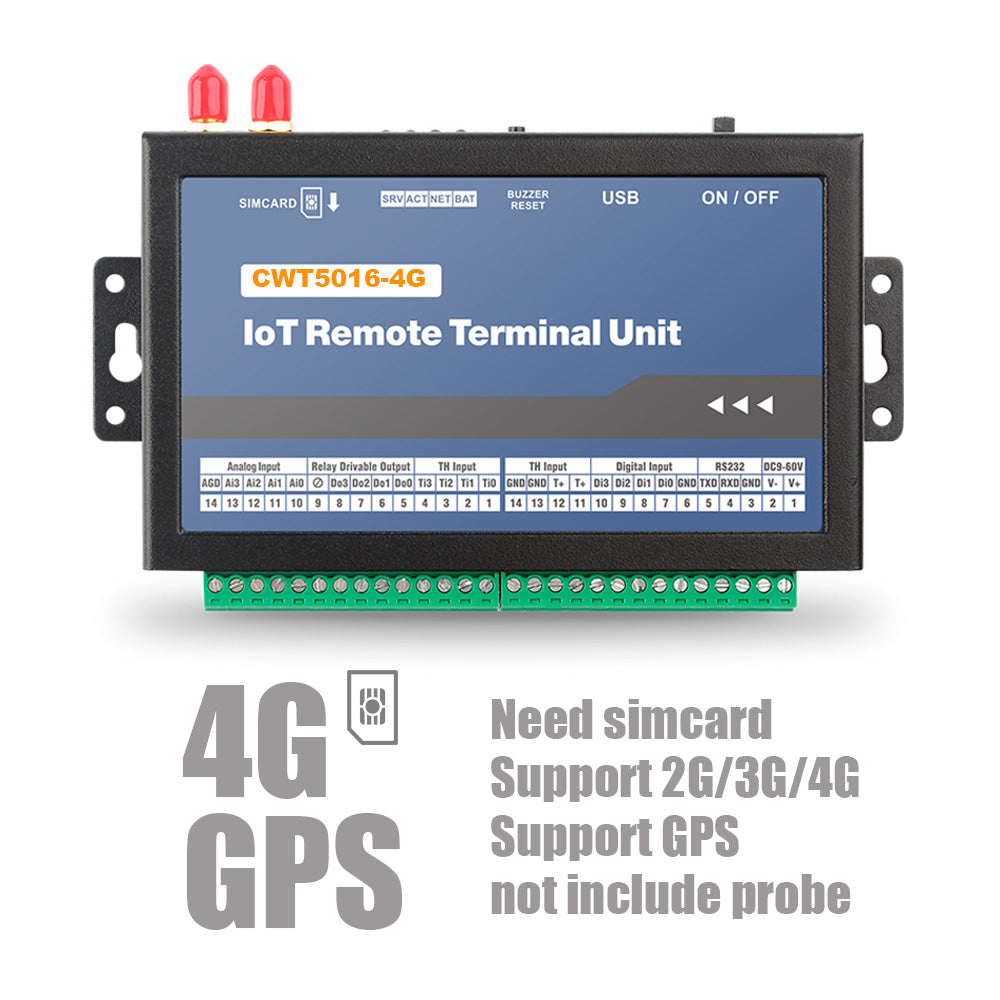

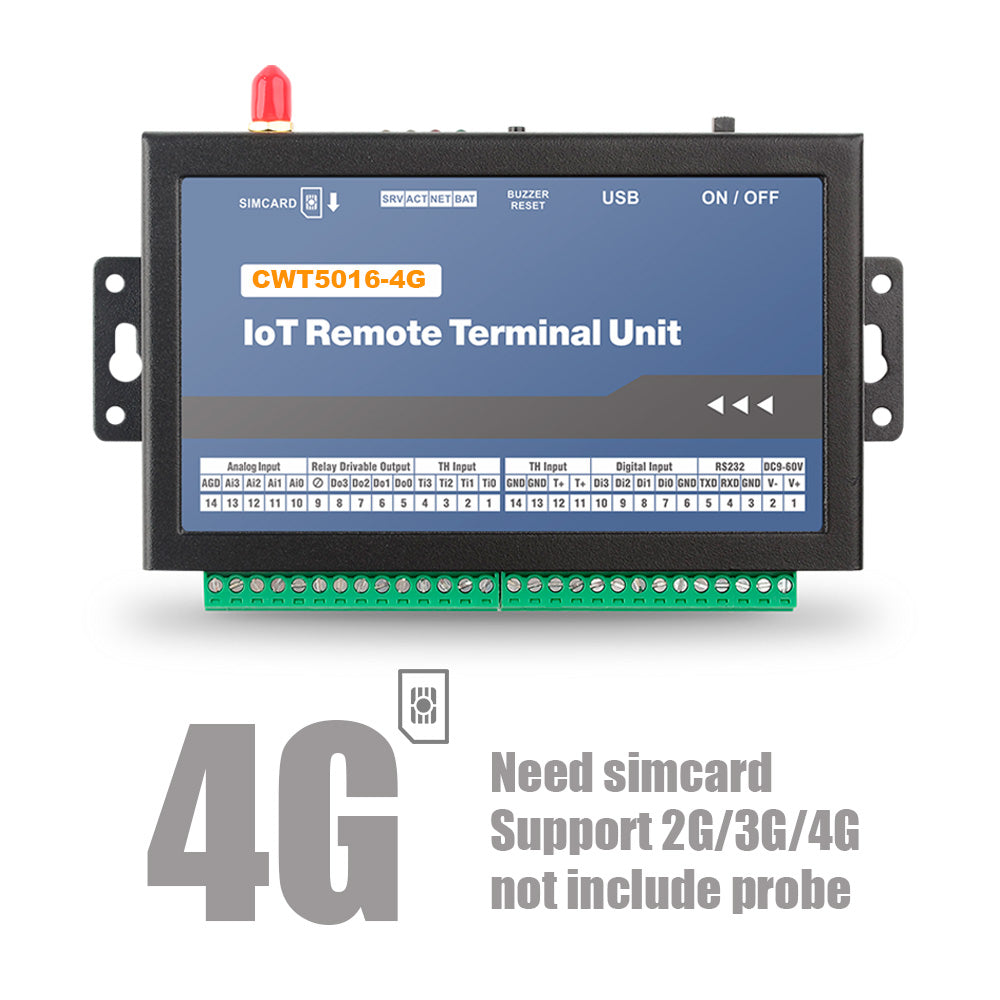

Option: WCDMA (3G), FDD LTE(4G) module

Wi-Fi, 802.11 b/g security WEP/WPA/WPA2

GPS module

Optional

SIM/UIM

Standard user card interface

Terminals

2×14pin 3.81mm spacing, pluggable

Working temperature

-30℃～+70℃

Battery

lithium-polymer, 500mAh/3.7V，life:8-20 hours

Dimension

130×80×25mm

Housing

providing IP30 protection

Antenna

Standard SMA female interface (50Ω)

Working humidity

Relative humidity 95%

Weight

390g
