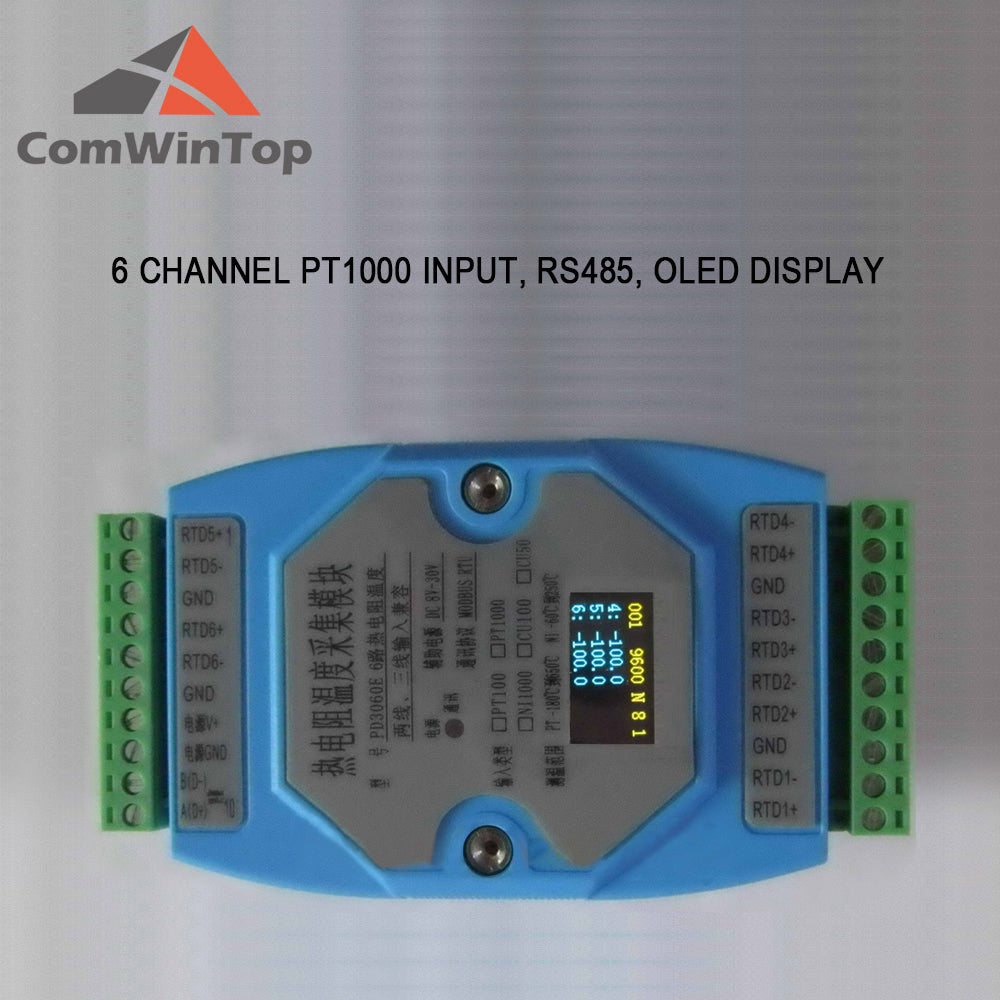

6 channels PT100/PT1000 Rs485 Modbus Output Temperature Acquisition Module with Oled Screen
Regular price
$39.23 USD
Regular price
Sale price
$39.23 USD
Unit price
per
Couldn't load pickup availability
Please notice: All prices are untaxed!
6 channels PT100/PT1000 Rs485 Modbus Output Temperature Acquisition Module with Oled Screen

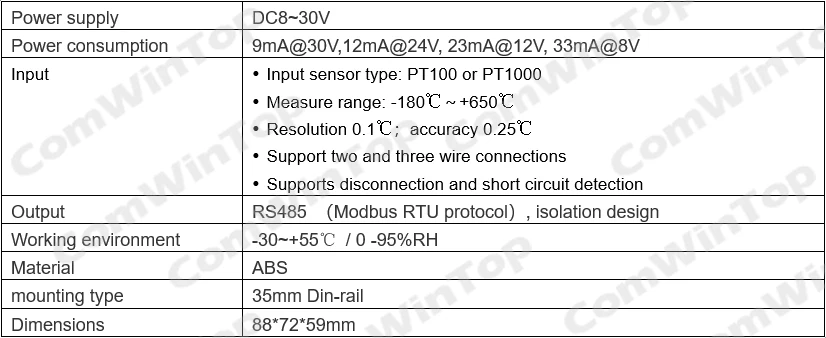

Basic parameters

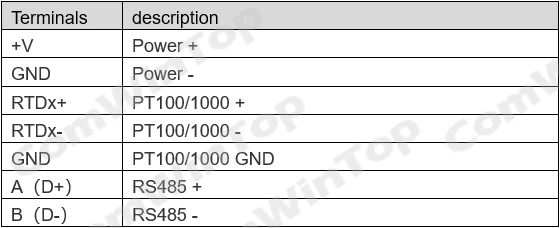

Terminal description

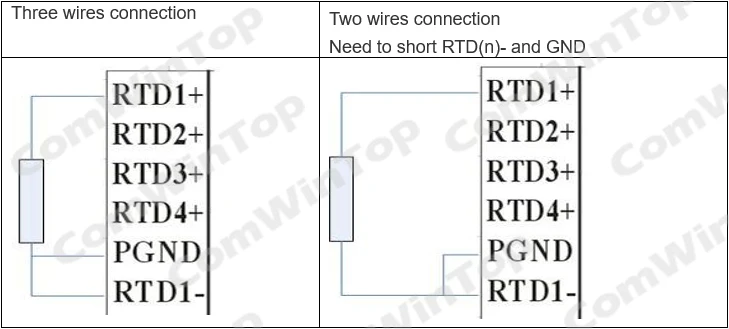

PT100/PT1000 wiring
RS485 communication (Modbus RTU protocol)
Default parameters: 9600,n,8,1
Default device address is 1
Modbus register map

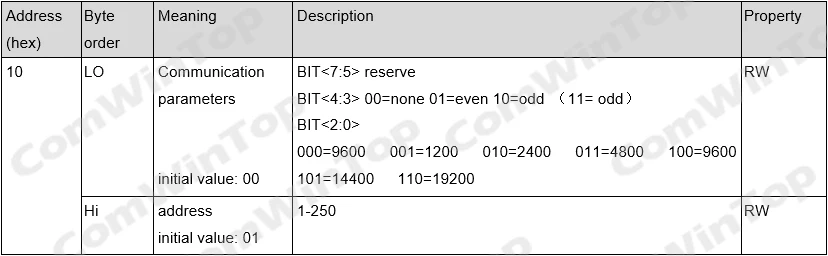

1.Parameter register map
Function code: 03H (read), 06H(write)

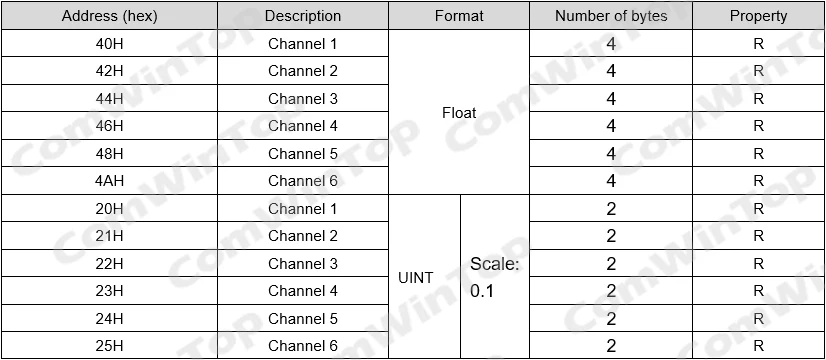

2.Data register map
Function code: 03H (read)
![6 channels PT100/PT1000 Rs485 Modbus Output Temperature Acquisition Module with Oled Screen](http://store.comwintop.com/cdn/shop/products/CWT-TM-6PT100.jpg?v=1640142157&width=1445)
![6 channels PT100/PT1000 Rs485 Modbus Output Temperature Acquisition Module with Oled Screen](http://store.comwintop.com/cdn/shop/products/1_97b2e721-6c1d-4976-a875-788bae216c8c.png?v=1640142133&width=1445)
![6 channels PT100/PT1000 Rs485 Modbus Output Temperature Acquisition Module with Oled Screen](http://store.comwintop.com/cdn/shop/products/3_bb0aec90-cc53-4e50-a3e8-b68e42d18b8a.jpg?v=1640142133&width=1445)
![6 channels PT100/PT1000 Rs485 Modbus Output Temperature Acquisition Module with Oled Screen](http://store.comwintop.com/cdn/shop/products/2_fe86cb2e-eb44-4259-bc50-e1edd8d56143.jpg?v=1640142133&width=1445)
![6 channels PT100/PT1000 Rs485 Modbus Output Temperature Acquisition Module with Oled Screen](http://store.comwintop.com/cdn/shop/products/4_37b59526-224d-4be7-b55b-36834156a6aa.jpg?v=1640142107&width=1445)
![6 channels PT100/PT1000 Rs485 Modbus Output Temperature Acquisition Module with Oled Screen](http://store.comwintop.com/cdn/shop/products/5_aaf1530e-6619-4b9e-8b7e-1ae83c6df844.jpg?v=1640142107&width=1445)
![6 channels PT100/PT1000 Rs485 Modbus Output Temperature Acquisition Module with Oled Screen](http://store.comwintop.com/cdn/shop/products/6_52fa82bd-27df-49de-acdc-7c00ca836c0d.jpg?v=1640142106&width=1445)
![6 channels PT100/PT1000 Rs485 Modbus Output Temperature Acquisition Module with Oled Screen](http://store.comwintop.com/cdn/shop/products/CWT-TM-6PT1000.jpg?v=1640142173&width=1445)
![6 channels PT100/PT1000 Rs485 Modbus Output Temperature Acquisition Module with Oled Screen](http://store.comwintop.com/cdn/shop/products/CWT-TM-6PT100-D.jpg?v=1640142188&width=1445)
![6 channels PT100/PT1000 Rs485 Modbus Output Temperature Acquisition Module with Oled Screen](http://store.comwintop.com/cdn/shop/products/CWT-TM-6PT1000-D.jpg?v=1640142201&width=1445)
