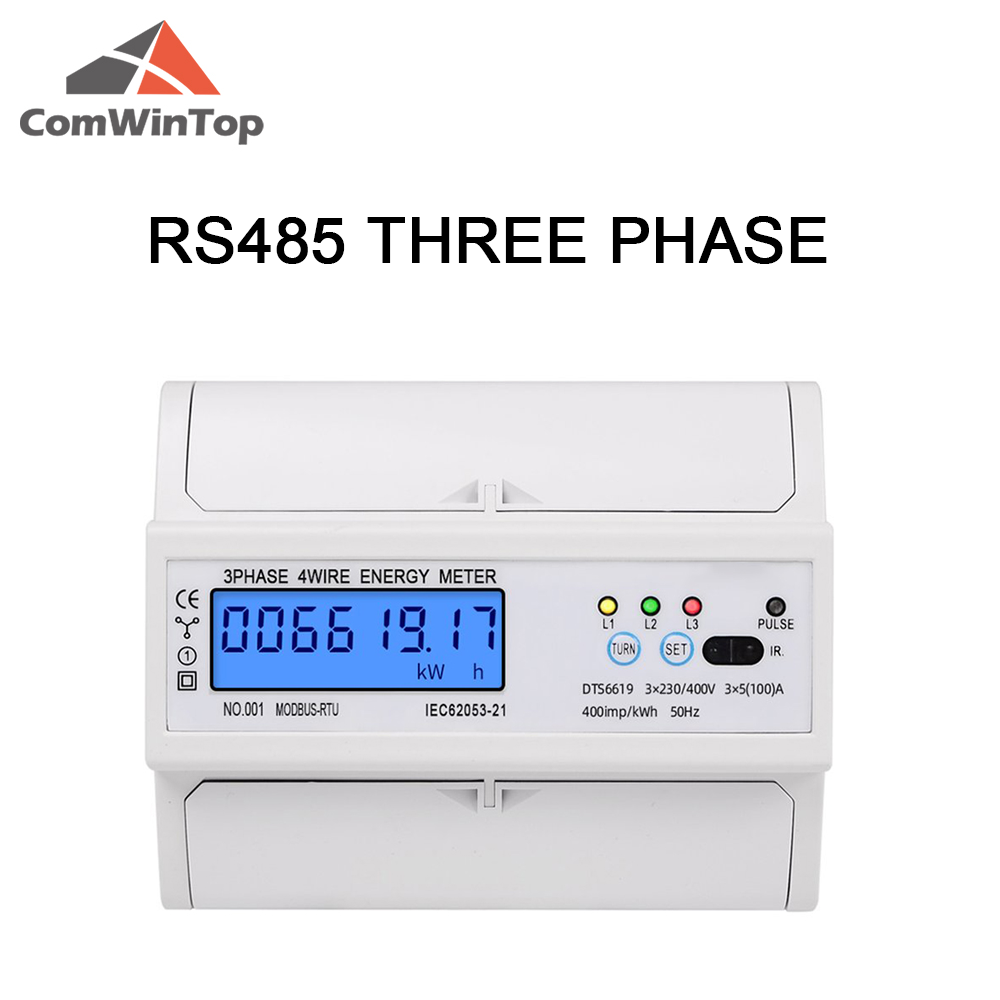

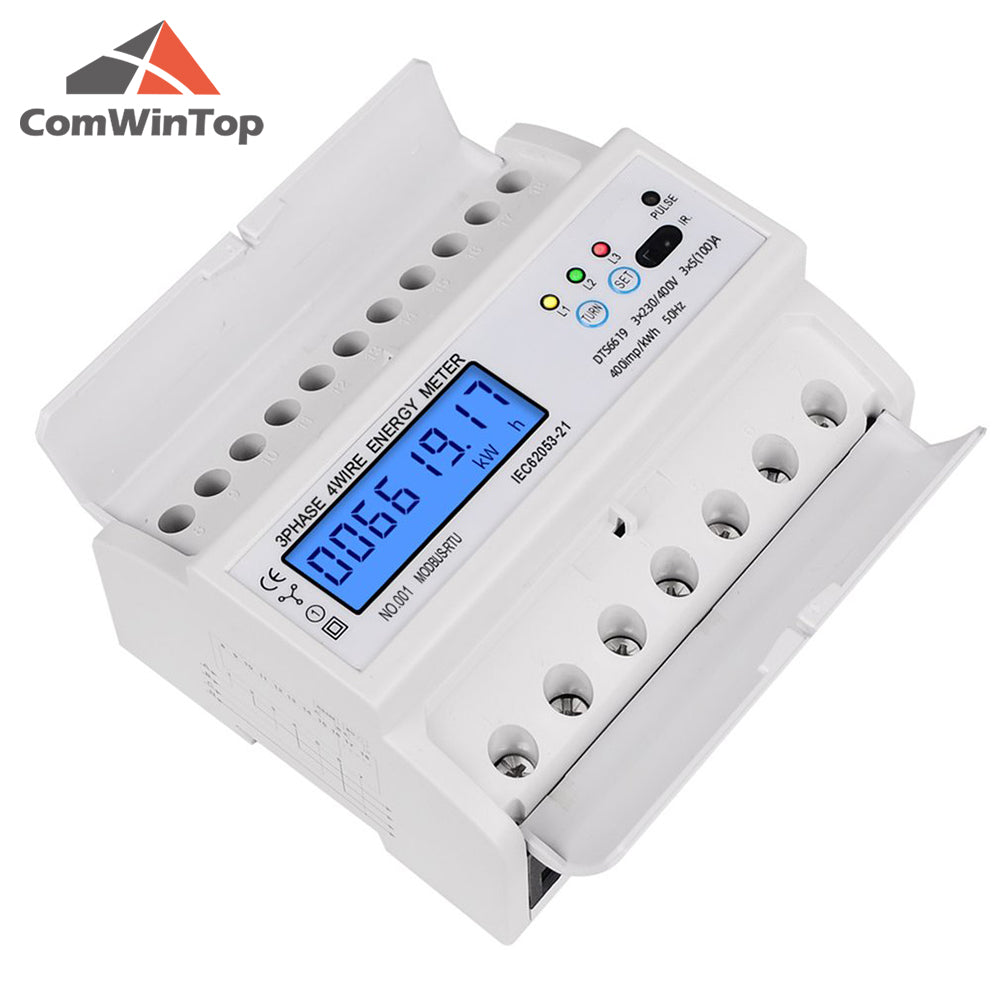

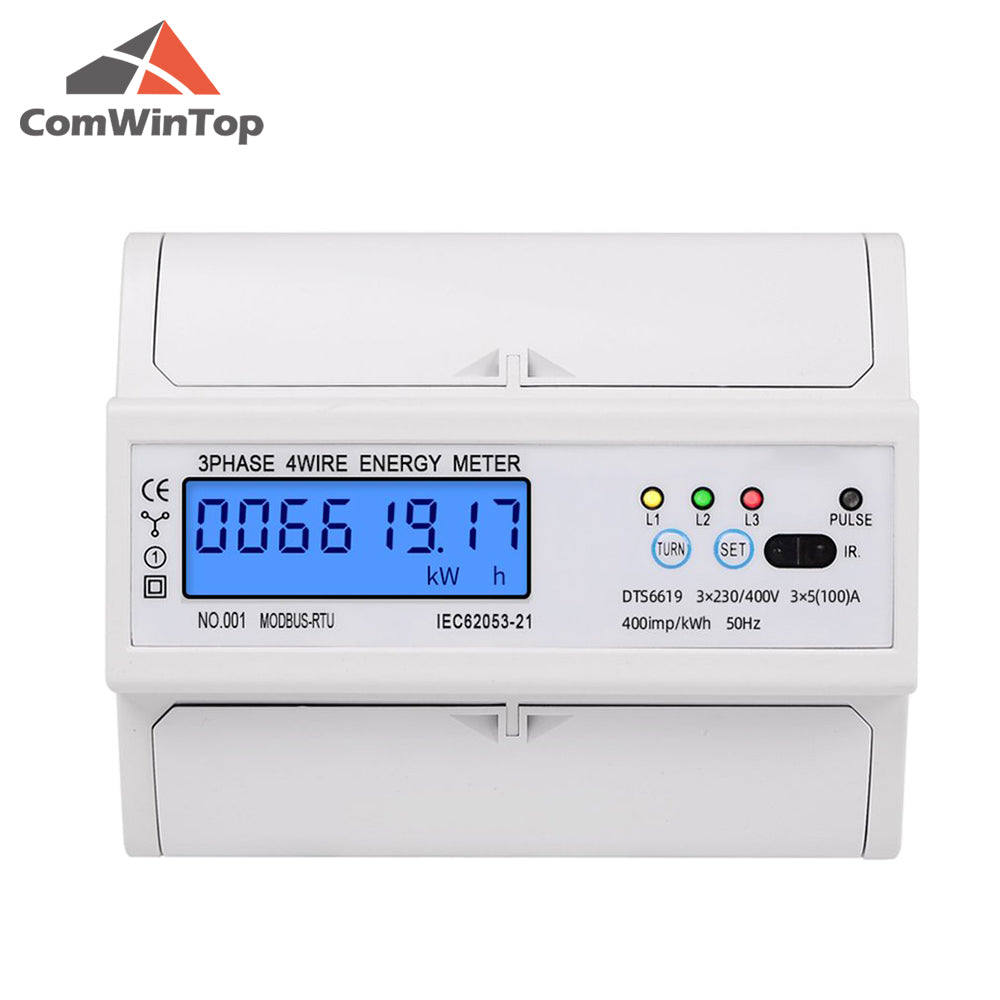

3 Phase 4 Wire RS485 Modbus 380V DIN Rail Energy Meter Digital Backlight Power Factor Monitors With Voltage Current Display

Features:

1. This energy meter is with RS485 coummunication.

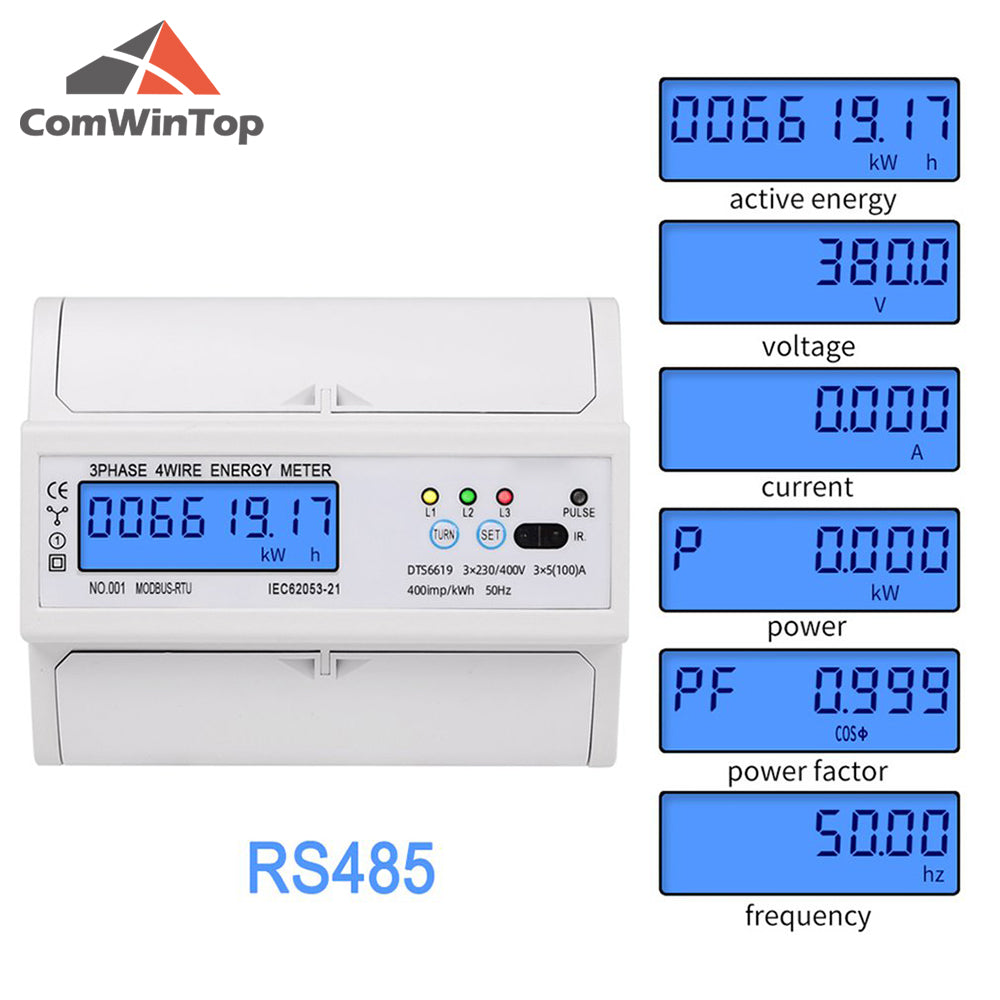

2. 6+1 digits LCD display shows the total power consumption.

3. It features high reliability, small volume, light weight, beautiful appearance, advanced technology.

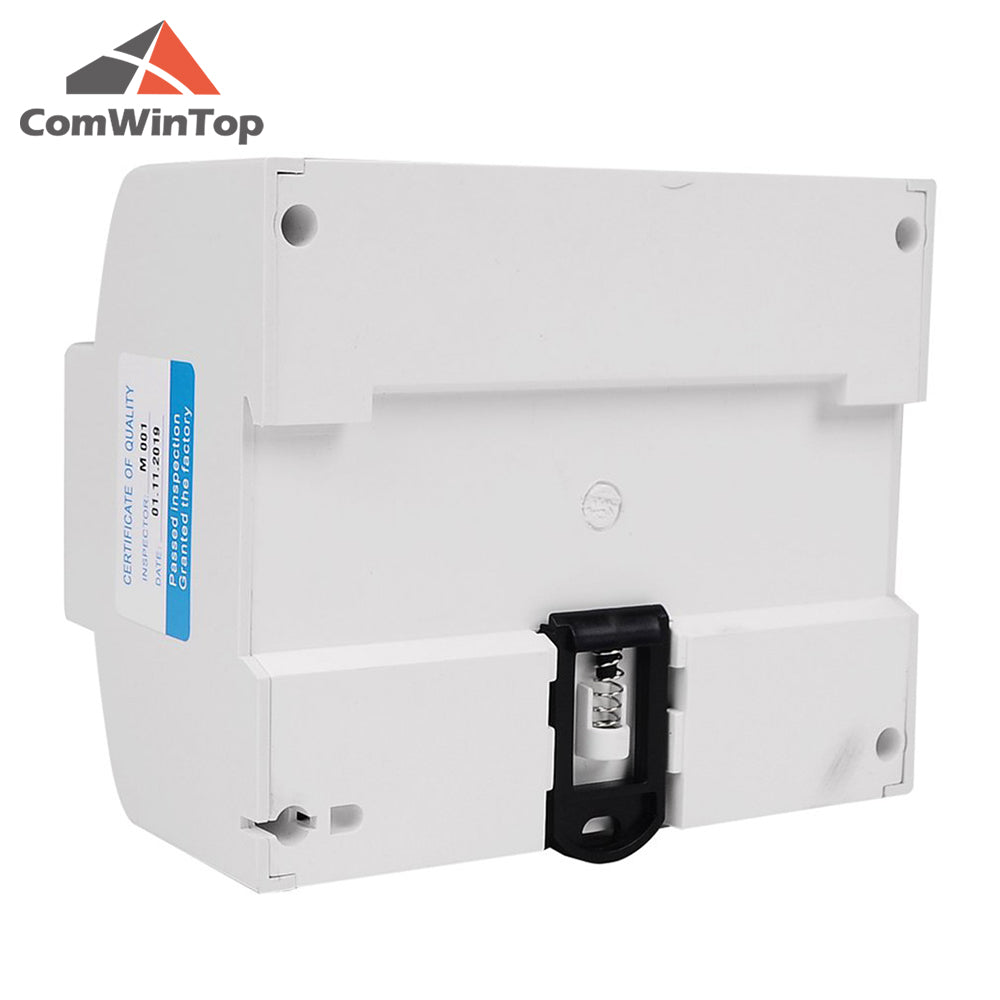

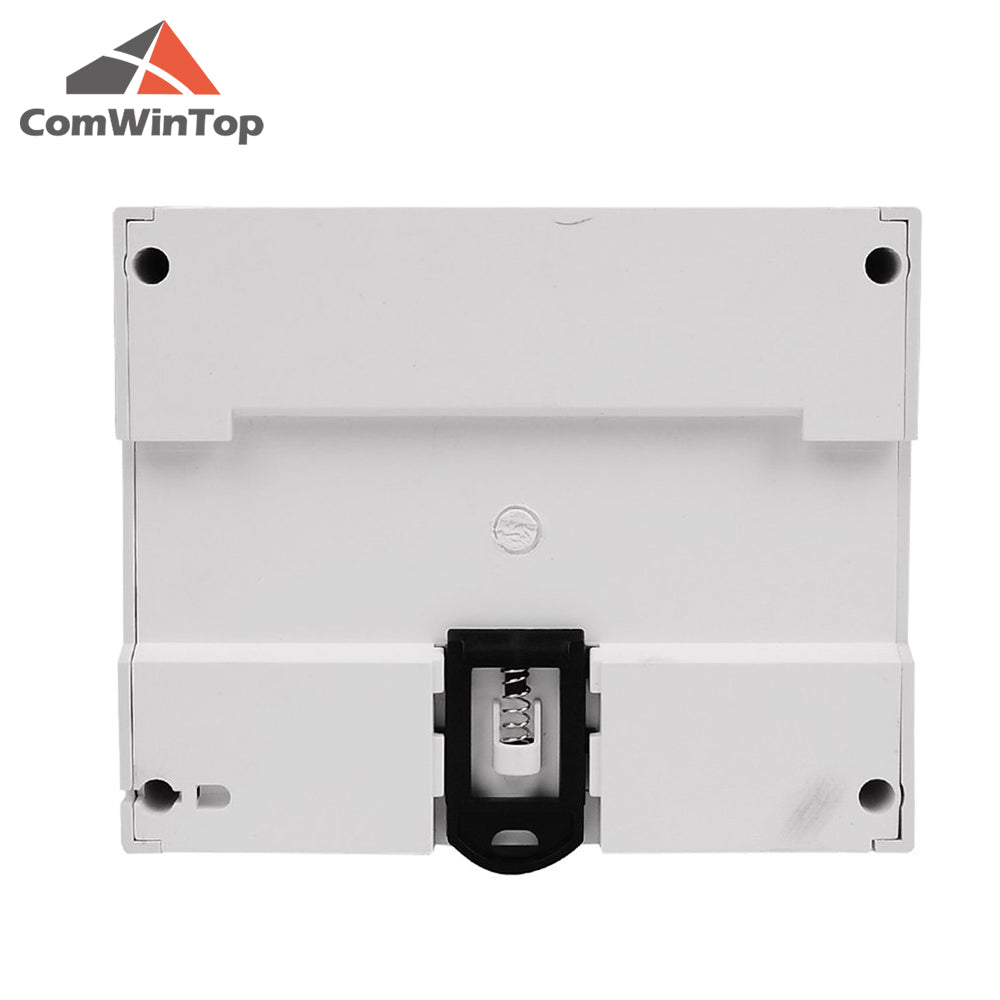

4. Standard 35mm din Rail installation, easy and convenient.

5. It has good anti-electromagnetic interference, low power consumption, high precision, high overload, high stability, anti electricity-stolen and long
life.

6. This table is suitable for the measurement of rated frequency 50 Hz three-phase ac active electricity, used for fixed installation indoors.

Description:

The meter is fully in conformity with the relevant technical requirements of GB/T17215.321-2008 national standard and the IEC62053 international standard of grade 1 or level 2 single-phase energy meter, which can directly and accurately measure active energy of the energy consumption.

Specifications:

Brand: comwintop

Model: CWT-XTPM-3P-S

Type: three phase four wire electronic type

Materiel: Metal + ABS

Reference Voltage: 3 X 230/400(V)

Reference Current: 3 X 5(100)A Rated

Frequency: 50Hz

Constant Pulse: 400imp / kWh

Display: LCD 6 + 2

Power consumption: ≤2W, 10VA

Installation: 35mm DIN rail

Reference voltage: 380V

Frequency: 50Hz

Maximum current: 100A

Notes:
1. Please allow 0-1 inch error due to manual measurement. Thanks for your understanding.
2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from real object.
